KREFELD - CNC Insert Carbide 3 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler/ 63.5 mm (Diameter) x 21.03 mm x 12.7 mm (Shank)

KREFELD - CNC Insert Carbide 3 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler/ 63.5 mm (Diameter) x 21.03 mm x 12.7 mm (Shank)

by Krefeld
$99.00 - $99.00
$99.00
$99.00 - $99.00
$99.00

63.5 mm (Diameter) x 21.03 mm x 12.7 mm (Shank)

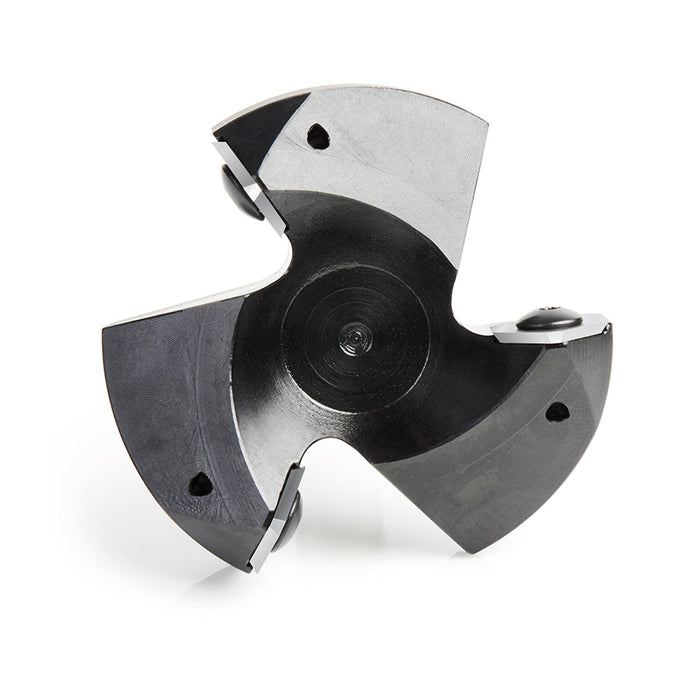

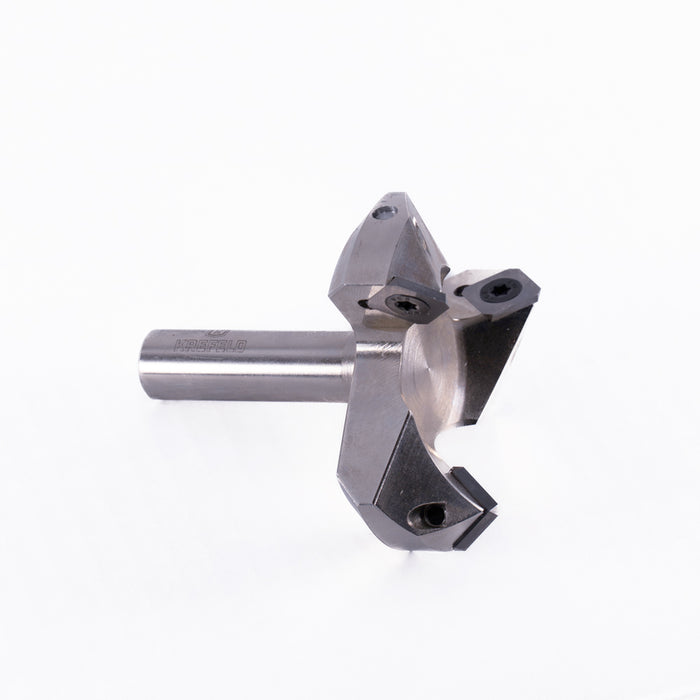

The KREFELD  CNC Spoilboard Insert Carbide Router Bit is a high-performance tool designed for surfacing, planing, flycutting, and slab leveling. Featuring a 3-wing design, this bit ensures smooth and precise material removal. With a 2-1/2" diameter and 1/2" shank, it provides stability and efficiency for CNC applications. The replaceable carbide inserts enhance durability and cost-effectiveness, making it an ideal choice for professionals working with wood, MDF, and other materials.

(D) Diameter 2-1/2
D1 2
(B) Cutting Height 53/64
B1 1/4
(d) Shank 1/2
Overall Length (L) 2-19/32
Max RPM 18,000
Flutes 3
D2 5/64


Perfect for:

  • Resurfacing spoilboards using CNC
  • Planing large glued up panels using CNC
  • Surfacing and finishing wood using timber slab machines
  • Also suitable for router sled machines, Make sure that your router sled is fully stable and squared
  • Rabbeting or slotting
  • 3-Flute Spoilboards are perfect for removing fine layers of materials

Designed for planing & chamfering the following materials:

  • MDF
  • Fiberboard
  • HDF/LDF
  • High Density Urethane (HDU Board)
  • Balsa Core*
  • Solidwood/Softwood*
  • Plywood/Chipboard*
  • Plastic/Acrylic**
  • Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
