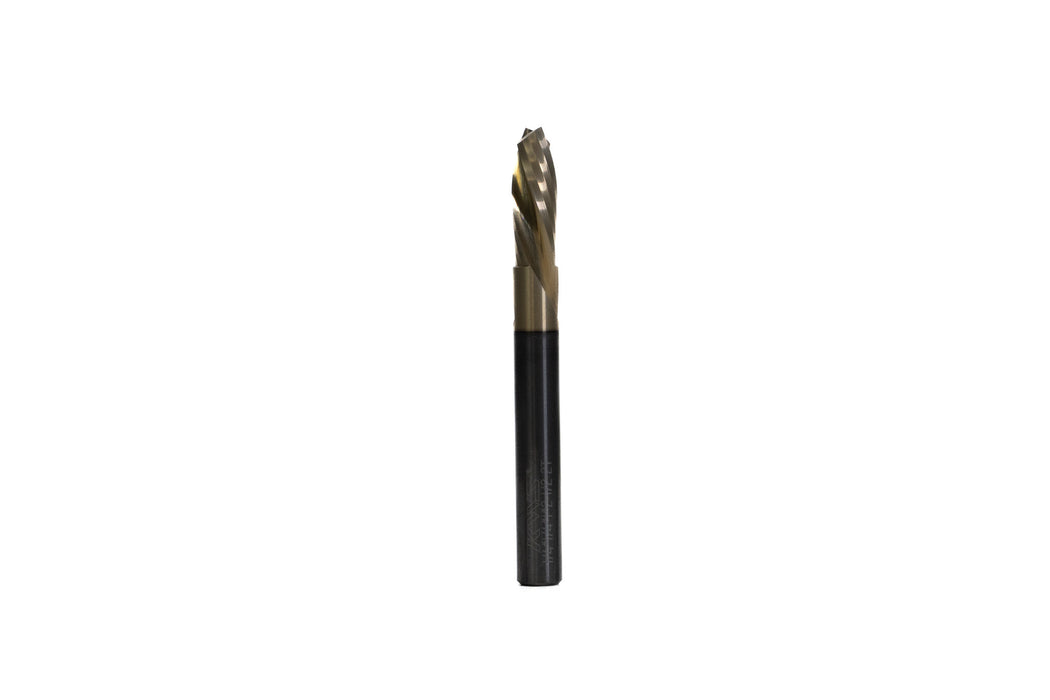

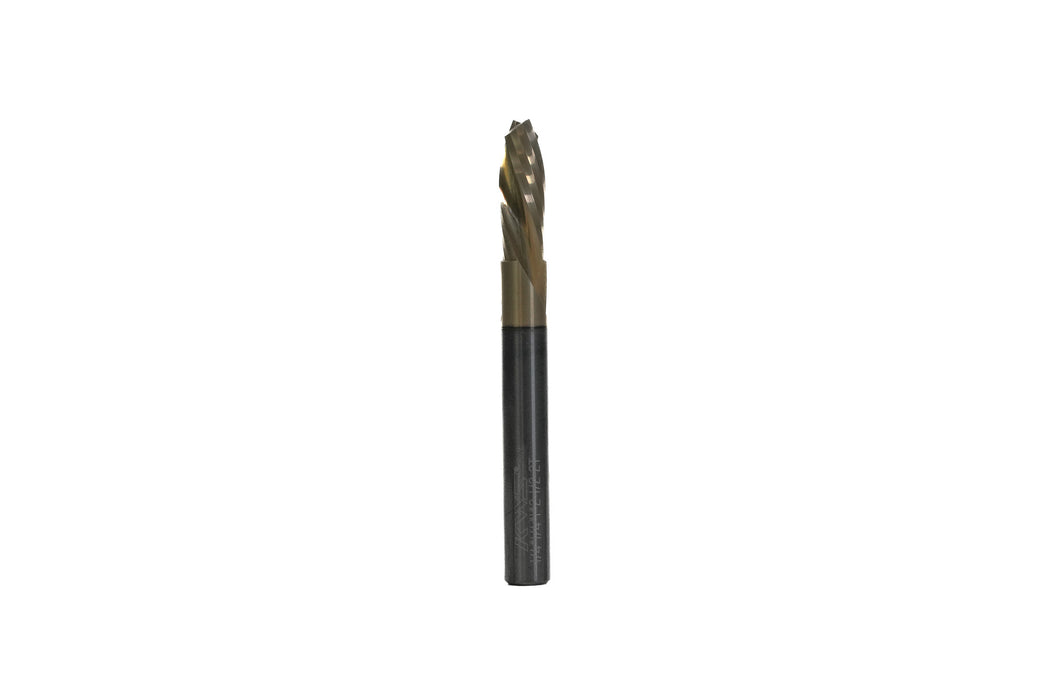

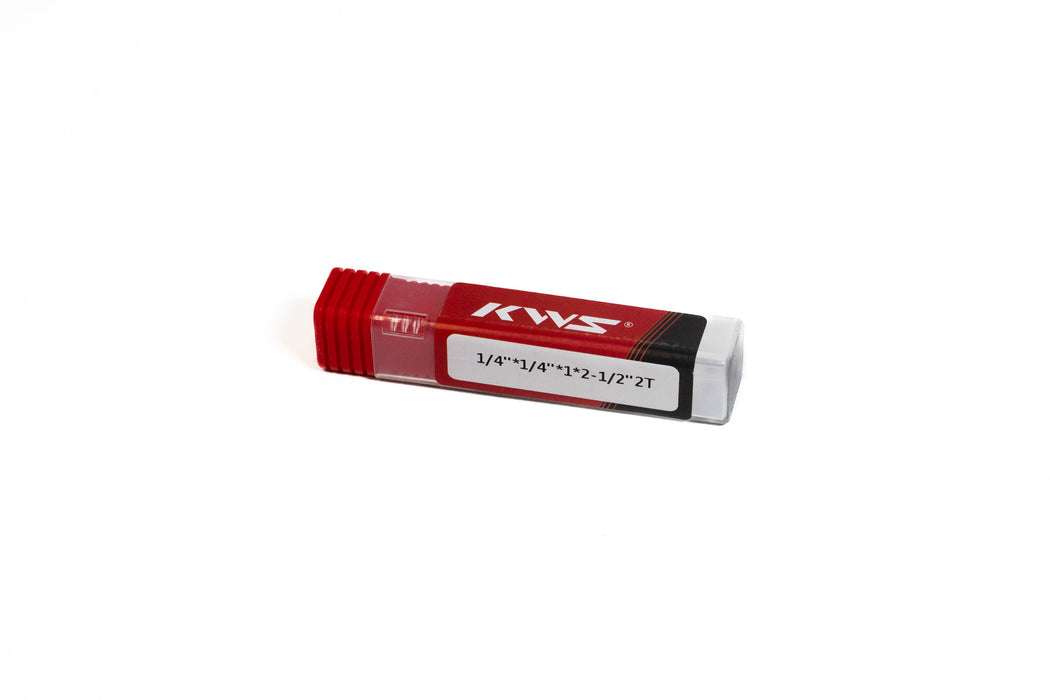

KWS - CNC Solid Carbide Compression Spiral 1/4 D x 1 CH x 1/4 SHK x 2-1/2 Inch Long Router Bit
| Rotation | Compression |
|---|---|
| (D) Diameter | 1/4 |
| (B) Cutting Height | 1 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/2 |
| B1 | 0.2756" |
| Flutes | 2 |
Perfect for cutting grooves and dadoes in plywood and composite panels. These solid carbide compression spiral bits are engineered for CNC applications that demand high feed rates and an exceptionally clean finish. Made with a unique carbide grade, they deliver extended tool life in abrasive materials and perform especially well on double-sided melamine and laminated boards.
Key features:
-
Special carbide blend for maximum durability in abrasive materials
-
Superior finish with longer tool life
-
Razor-sharp cutting edges and polished flutes
-
Compatible with CNCs, hand-held, and table-mounted routers
Industrial Router Bits – Made in the USA
Spektra router bits feature harder carbide for durability. Amana Tool® solid carbide router bits are manufactured to precise geometry for consistent, repeatable quality on every order. With strict control over carbide grades and production standards, you can count on reliable performance for woodworking.
Best for Cutting:
✔ Composite material
✔Laminate ✔Melamine & Melamine particle board
✔MDF / HDF
✔Oriented Strand Board (OSB)*
✔ Veneered plywood
✔Softwood & hardwood
*OSB is an engineered wood particle board.
These router bits are designed for production use, delivering excellent results in grooves, dado cuts, and more — primarily on CNC machines and other automatic routers.
