CANTEK Table Saw TA12 - 5HP 3 PHASE

by Cantek
Original price $3,675.00 - Original price $3,675.00
Original price
$3,675.00
$3,675.00 - $3,675.00
Current price $3,675.00

Industrial 12” cabinet table saw with 5HP motor.

The Cantek TA12 12″ Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality.  The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation.  Comes standard with both standard and dado arbors and table inserts.  Driven by a powerful 5HP motor it can make the cuts you need effortlessly.

Why Cantek TA12 12″ Table Saw?

  • Heavy-duty cast iron table is precision ground for accuracy & precision
  • Industrial strength cast iron saw carriage and trunnion for vibration free cutting
  • 50” capacity T-square rip fence assembly locks on front rail for a precise parallel reference to the saw blade
  • Right tilt blade to 45o
  • Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility
  • Miter gauge with two miter slots in the table
  • Comes with dado arbor & dado table insert

  • Rugged machine frame construction provides maximum stability and reduced vibration
  • Saw guard with built in splitter and safety anti-kickback unit
  • 1” standard and 5/8” dado arbor included along with appropriate cast iron table inserts

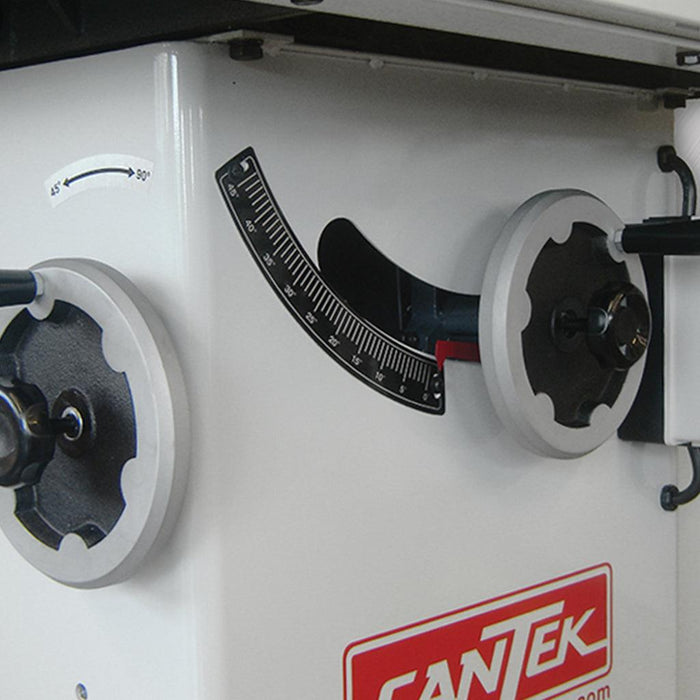

  • Handwheel adjustment for blade height and tilting adjustments which can be locked in place
  • CSA / UL approved magnetic switch

    Saw Blade Diameter
    12″
    Max. depth of cut at 90°
    4″
    Max. depth of cut at 45°
    2 ¾”
    Arbor diameter
    1″
    Dado arbor diameter
    5/8”
    Arbor speed
    4000 RPM
    Table size
    48″x30″
    Table height
    34 ¼”
    Max. rip to right of blade
    50″
    Motor
    5HP
    Electrical
    230/3/60 = 15.2 Full Load Amps

    230/1/60 = 28 Full Load Amps
    Net weight
    572 lbs
    Gross weight
    704 lbs
    Packing size (LxWxH)
    32″x36″x42″
