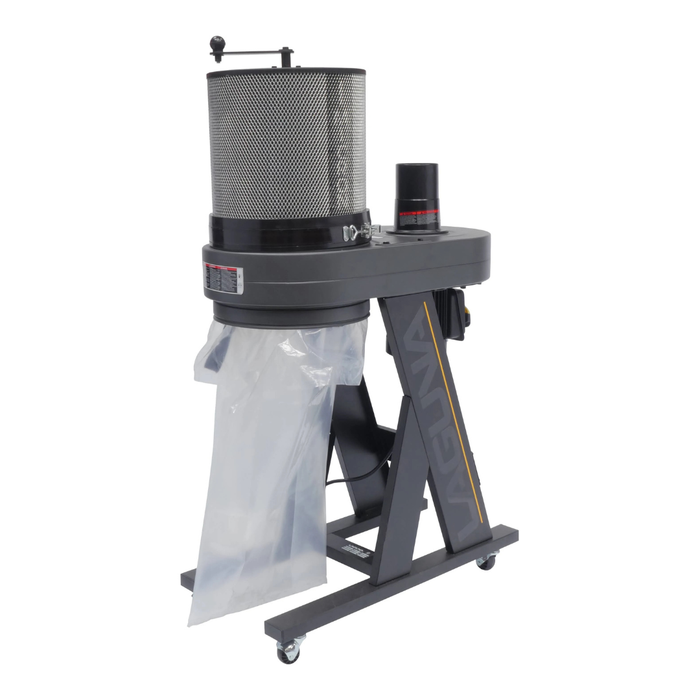

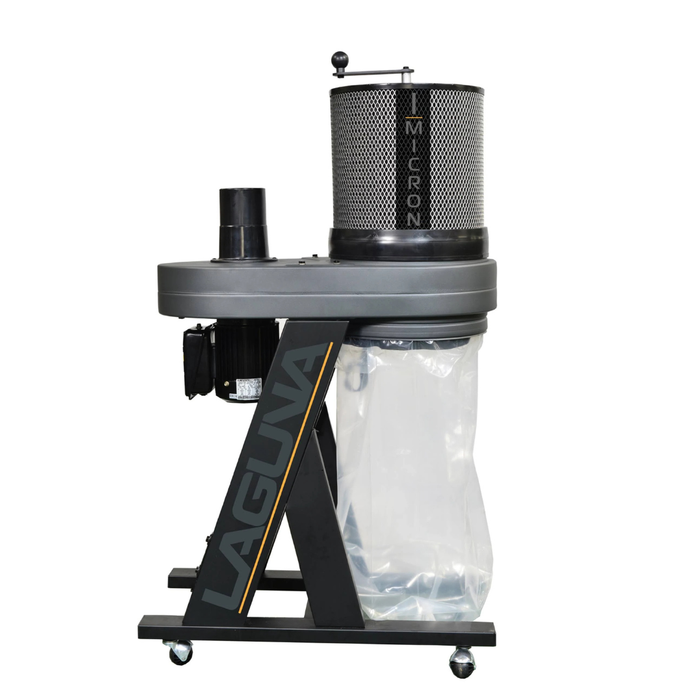

Laguna B|Flux Dust Collector

by Laguna
Original price $655.00 - Original price $655.00
Original price
$655.00
$655.00 - $655.00
Current price $655.00

The best looking single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the B|Flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the B|Flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4″ outlet face downwards. The B-flux dust collector can be oriented with the inlet port pointed up or down.

THIS MACHINE SOLD EXCLUSIVELY THROUGH OUR DEALER NETWORK

Features:
  • Motor: 1HP
  • Phase: 1
  • Voltage: 110v
  • Amps: 8.4 Amps
  • Recommended Breaker: 15 Amps
  • Hertz: 60


    The B|Flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns & features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents clogging of the filter.




    Plug: Yes

    RPM: 3450

    Switch Type: Motor Mounted Direct Switch

    Hand Held Remote: None

    Shop Setting CFM: 550

    Inlet CFM: 650

    Max Static Pressure (Inches of Water): 4.86″

    Impeller/Fan Size: 9″

    Impeller Material: Steel

    Impeller Type: Radial Fin

    Balanced To: ISO 1940

    Inlet Diameters: 4″ x 1 Port

    Drum Collection Bag (Dia. x L): Plastic Bag (350 x 980mm)

    Canister Filter Type: 1 Micron

    Filtration Efficiency: 0.2 – 2 Micron at 99.97%

    MERV Rating: 12

    Canister Diameter: 360mm (14.2″)

    Canister Length: 300mm (11.8″)

    Filter Surface Area: 1.6m² / 17.2ft²

    Canister Cleaning: Manual Handle Crank 360°

    Wheels: 2″ Ball Caster

    CSA Approved: Yes

    Decibel Reading: 76 dB (At 9.8ft)

    Assembled Dimensions (L x W x H): 29″ x 14.8″ x 50.4″ | 736 x 376 x 1280mm

    Shipping Weight: 77lbs

    Shipping Dimensions (L x W x H): 32″ x 20″ x 25″

    NEMA Plug: 5-15P

    Cord: 6 ft
