Laguna C|Flux: l Dust Collector
Laguna Tools C|Flux:1 Dust Collector
Model: CFLUX1
Next-Level Airflow. Compact Power.

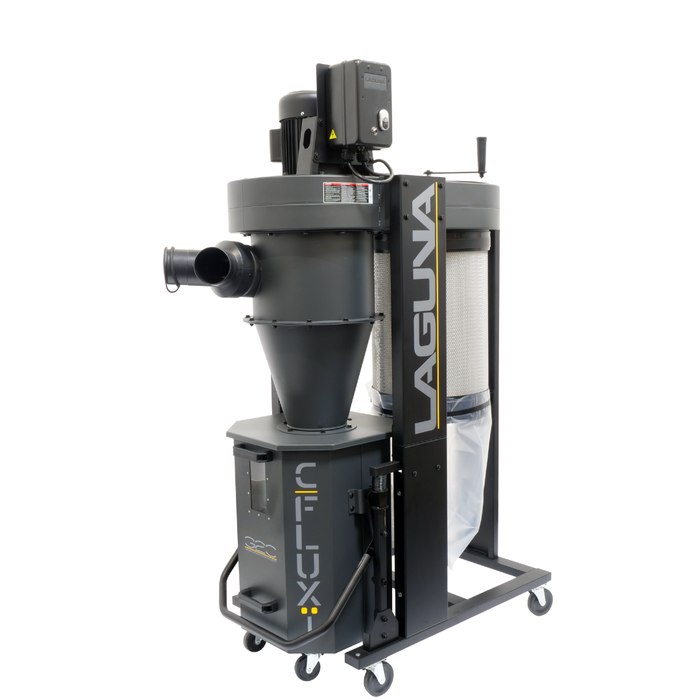

The C|Flux series sets a new standard for cyclone dust collectors, combining sleek design with powerful performance. Every shape and dimension has been reengineered to maximize airflow, delivering stronger suction and improved CFM across the entire line.
The C|Flux:1 comes standard with a 1-micron canister filter, capturing 99.97% of particles between 0.2 to 2 microns. Its 48 sq/ft spun-bond pleated filter ensures maximum airflow, while the 270° manual cleaning system keeps performance consistent over time.
For added convenience, the optional Auto-Clean Kit can be installed at purchase or later. This smart system uses sensors to detect pressure buildup and automatically activates a filter cleaning cycle — keeping your dust collector running efficiently without interruption.
The ingenious lift system raises the drum off the floor and seals it against the lid — eliminating the need for a flex hose and improving portability. Move your C|Flux with ease, even in tight shop spaces.
Key Features
-

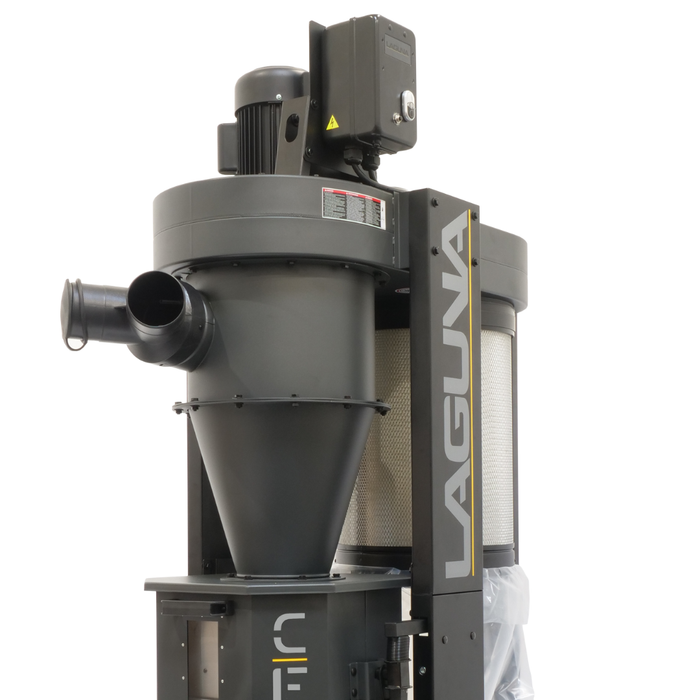

Redesigned horizontal chute maximizes airflow and suction
-
1-Micron canister filter with 99.97% filtration efficiency
-
Optional Auto-Clean Kit with smart pressure sensor
-
Quick-lift drum system improves portability and sealing
-
270° manual filter cleaning keeps performance steady
-
32-gallon octagonal metal drum with plastic liner
-

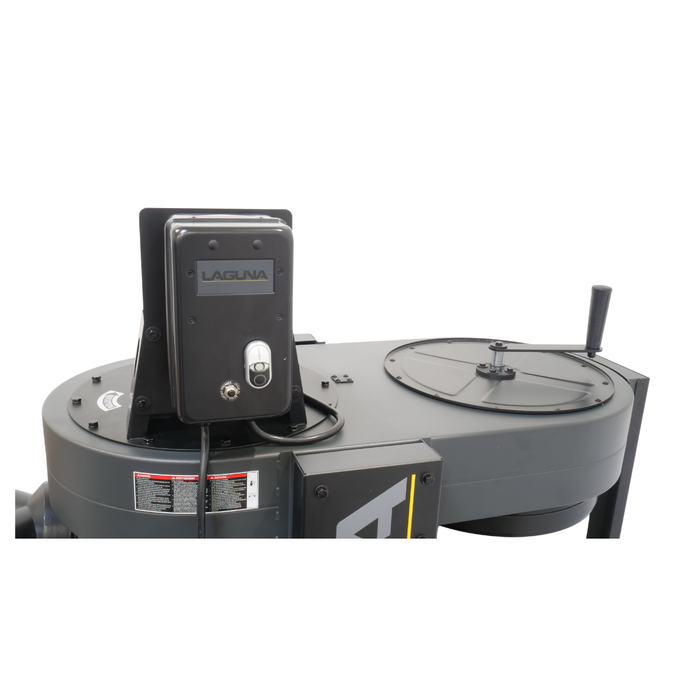

High-frequency remote control for convenience
-
CSA-approved and built to professional standards
Specifications
| Motor Specs | Details |
|---|---|
| Horsepower | 1.5 HP |
| Voltage | 110/220V |
| Phase | 1 |
| Amps (Motor Rating) | 18.8 / 9.4 A |
| Recommended Breaker | 20A (110V) / 15A (220V) |
| Hertz / RPM | 60Hz / 3450 RPM |
| Switch Type | Radio Frequency Remote (HF) |
| CFM (Real / Nominal) | 900 / 1314 |
| Max Static Pressure | 10.1 in. H₂O |
| Fan / Impeller Size | 13.5” Steel Radial Fin |
| Filter Efficiency | 0.2–2 Micron @ 99.97% |
| Filter Surface Area | 48 sq/ft (4.5 m²) |
| Drum Capacity | 32 Gallons |
| Noise Level | 82 dB(A) @ 9.8 ft |
| US/CSA Approved | Yes |
Dimensions & Weight
📏 Assembled Dimensions: 42.5” L × 24” W × 68.5” H (1078 × 614 × 1740 mm)
⚖️ Machine Weight: 232 lbs (105 kg)
⚖️ Shipping Weight: 287 lbs (130 kg)
Optional Accessories
-
Auto-Clean Kit (smart sensor + auto-clean cycle)
-
Replacement Filter Bags
-
Drum Liners & Seals
Performance You Can Count On
From its precision airflow design to its user-focused upgrades, the Laguna C|Flux:1 brings professional-grade dust collection to smaller shops. Compact, efficient, and intelligently engineered — it’s everything you need in a cyclone system, without compromise.
