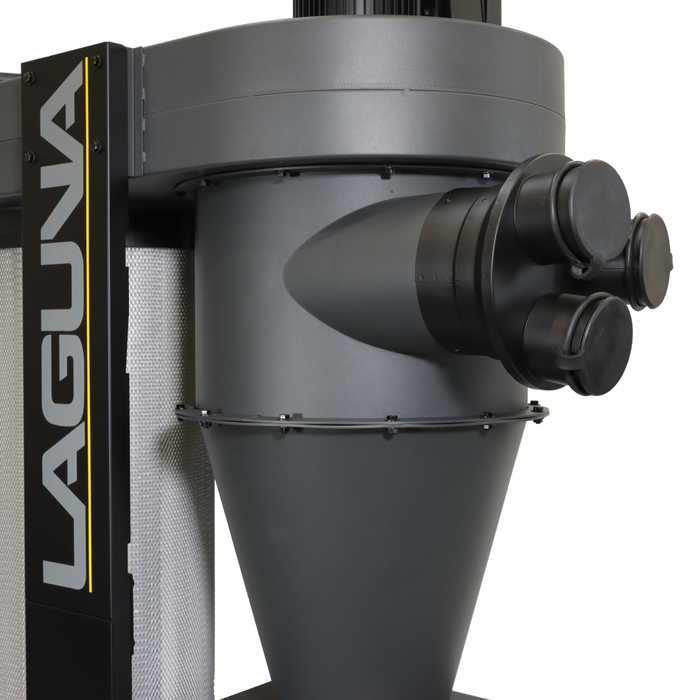

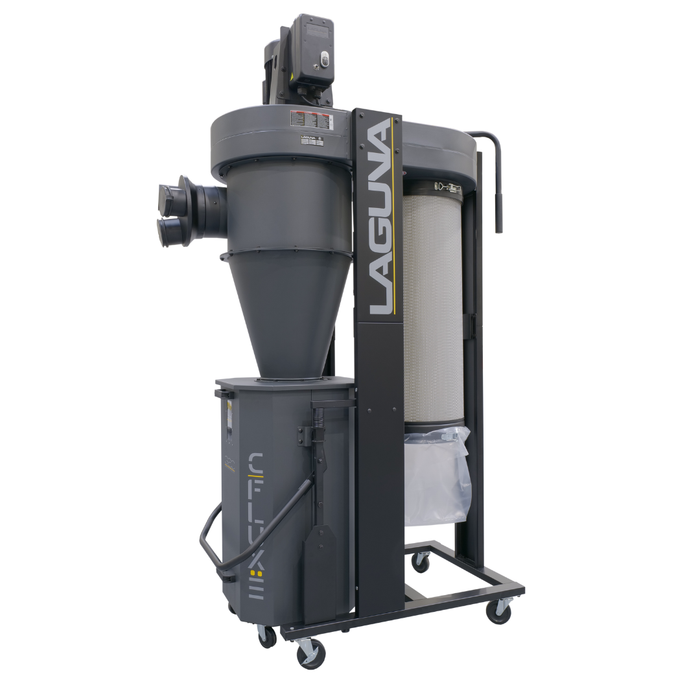

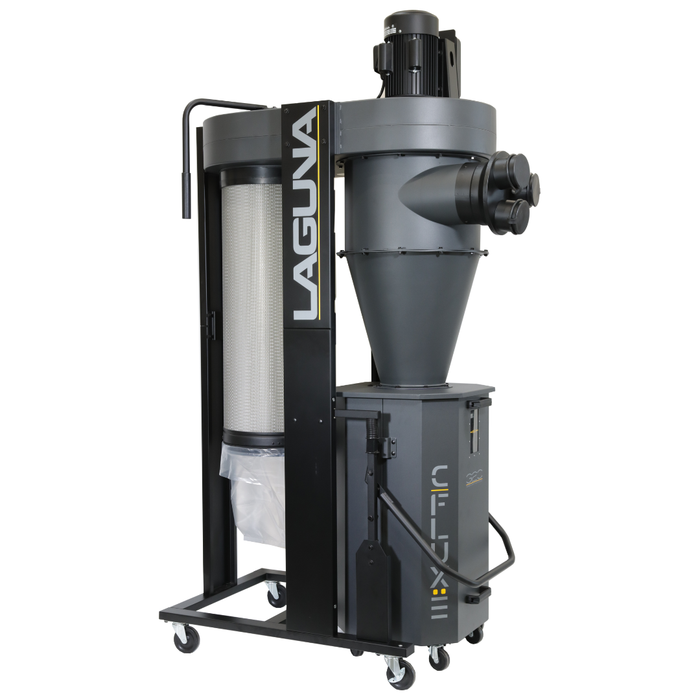

Laguna Tools C|Flux 3 Dust Collector

Model: CFLUX3

Smarter Design. Stronger Performance.

In 2022, Laguna reimagined its entire cyclone lineup — introducing new innovations across the C|Flux and P|Flux lines and unveiling the all-new X|Flux 5.
The upgraded C|Flux 3 Dust Collector takes user convenience and performance to the next level, featuring a dual-paddle filter cleaning system, max-level indicator, and a redesigned three-piece drum for faster assembly and improved stability.

With its powerful 3 HP motor, 1624 CFM airflow, and massive 46-gallon octagonal drum, the C|Flux 3 delivers the efficiency and durability serious woodworkers demand.

Smart Features

• Dual-Paddle Filter Cleaning: Keeps your filter performing like new, extending its lifespan.

• Max-Level Drum Indicator: Prevents overfilling and maximizes suction efficiency.

• Octagonal 46-Gallon Drum: Larger capacity means less downtime between cleanouts.

• 3-Piece Drum Construction: Fewer joints and fasteners for easier assembly.

• Locking Casters: Add stability and mobility when you need it.

• High-Frequency Remote Control: Operate your system conveniently from anywhere in the shop.

Key Specifications

✅ Motor: 3 HP, 220V / 60Hz / 1PH / 3450 RPM
✅ Running Amps: 22A @ 220V (8” inlet)
✅ Air Volume: 1624 CFM
✅ Max Static Pressure: 11.2" of water
✅ Fan Size: 15.5”
✅ Inlet: Ø8” (with Ø4” x 3-port adapter)
✅ Filter Media: 102 sq/ft (9.5 m²) Cartridge Filter
✅ Filter Rating: 1 Micron Ø15.74” x 35.43” (Ø40 x 90 cm)
✅ Collection Capacity: 46-Gallon Octagonal Drum
✅ Remote Control: High-Frequency

Dimensions & Weight

Assembled Dimensions: 48” L x 28” W x 87” H
Packing Size: 50” L x 31.5” W x 50.6” H (127 x 80 x 128.5 cm)
Machine Weight: 373 lbs (169 kg)
Shipping Weight: 441 lbs (200 kg)

Why Choose the C|Flux 3?

Designed for performance, reliability, and ease of use, the Laguna C|Flux 3 delivers the power of a high-end cyclone in a user-friendly, thoughtfully engineered system. Whether you’re upgrading your current setup or building a new workshop, this is dust collection — refined, powerful, and built to last.
