Laguna T|Flux: 5 Industrial Cyclone 5HP Motor

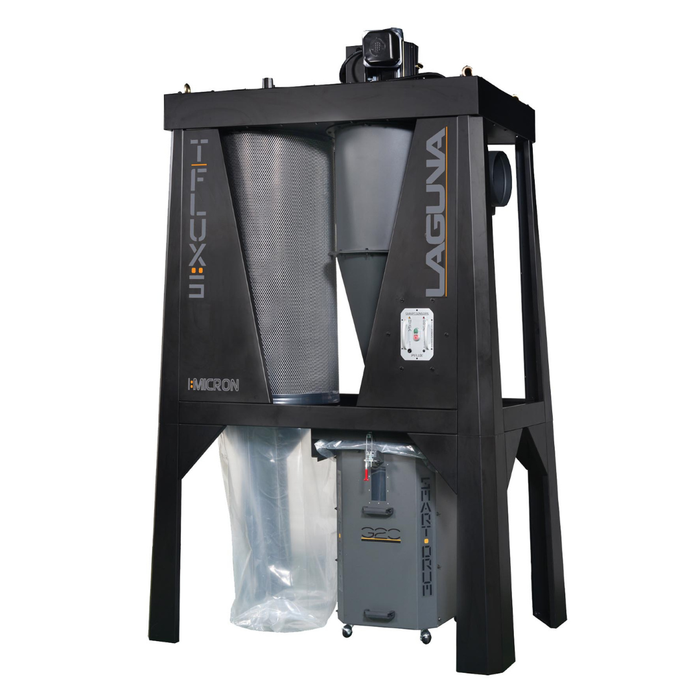

Laguna T|Flux 5 Industrial Cyclone Dust Collector
Powerful, Smart, and Built for the Whole Shop
The T|Flux 5 is Laguna’s ultimate industrial dust collection solution, designed for woodshops that demand maximum airflow and precision filtration. Equipped with a 5HP motor and smart drums that alert you when capacity is reached, this system keeps your workspace clean and productive without constant monitoring.
Automatic canister cleaning sweeps the 1-micron filter every hour—10 seconds clockwise and counterclockwise—ensuring consistent airflow and filtration efficiency. The filter captures 99.97% of particles between 0.2–2 microns, keeping even the finest dust from escaping into your shop.
With heavy-duty construction, high-quality casters, and a quick-disconnect design, the T|Flux 5 is engineered for professional durability and convenience.
Key Features
-
5HP Motor with industrial-grade suction
-
Smart Drums alert when capacity is reached
-
Automatic Canister Cleaning every work hour
-
1-Micron Canister Filter for superior dust filtration
-
Filtration Efficiency: 99.97% of particles 0.2–2 microns
-
Quick-Disconnect Drums for easy maintenance
-
High-Quality Casters for mobility in the shop
Performance Specs
| Spec | Details |
|---|---|
| Shop Setting CFM | 2,450 |
| Inlet CFM | 4,295 |
| Max Static Pressure | 12.1″ H₂O |
| Impeller / Fan Size | 16″ Steel Radial Fin |
| Inlet Diameter | 10″ |
| Drum Capacity | 54 Gal Octagon Drum |
| Collection Bag (Dia x L) | 740 x 1300 mm |
| Filter Type | Black 1-Micron Canister |
| Filter Surface Area | 15 m² / 162 ft² |
| Canister Cleaning | Auto Clean (10s clockwise + 10s counter) |
| Decibel Level | 76 dB(A) @ 9.8 ft |
| Machine Weight | 325 kg / 717 lbs |
| Shipping Weight | 430 kg / 948 lbs |
| Assembled Dimensions (LxWxH) | 73″ x 39″ x 111″ (1845 x 989 x 2810 mm) |
| Shipping Dimensions (LxWxH) | 75″ x 39″ x 80″ |
Why Choose T|Flux 5?
The T|Flux 5 combines industrial power, smart features, and high-efficiency filtration in one machine. Perfect for professional shops, it keeps your workspace clean while saving time and energy, making it the ideal central dust collection system for serious woodworking operations.
