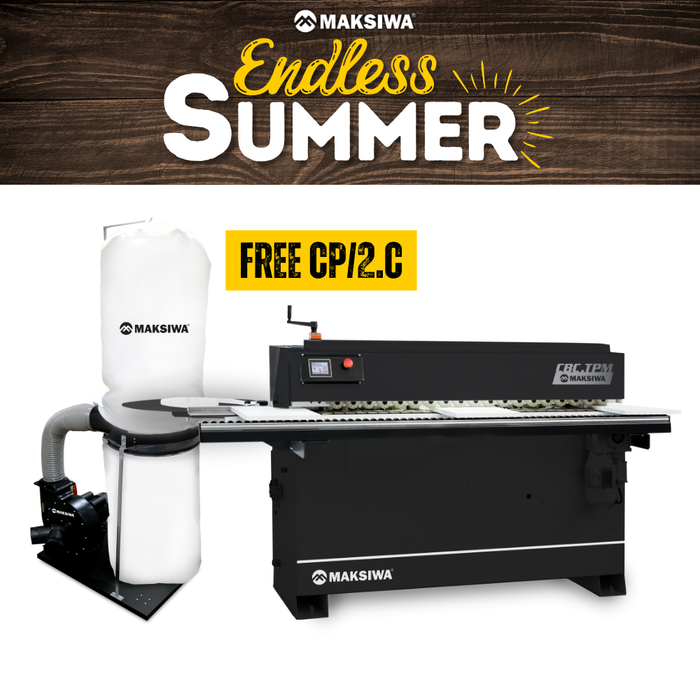

Maksiwa Endless Summer - CBC.TPM Edgebander Pre-Milling + Free CP/2.C Dust Collector

Maksiwa Endless Summer - CBC.TPM Edgebander Pre-Milling + Free CP/2.C Dust Collector

by Taco Tools
Sale Sale
$22,499.00
$22,499.00 - $22,499.00
$22,499.00
$21,900.00
$21,900.00 - $21,900.00
$21,900.00


The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with touchscreen panel, this machine ensures ease of operation and delivers a flawless finish.


Pre-milling in a small footprint!

  • Features:
    • Automatic Feeding speed: 21 ft/min/ 6.5m/min
    • Panel thickness Min/Max: 13/32" - 1 3/4"/10 - 45mm
    • Max Pre-milling Height: 1"/30mm
    • Edgebanding thickness: 0.0157" - 0.07"/0.4-2mm
    • Glue Pot Capacity: 1lb./0.5kg
    • Max Edgebanding Height: 1"/30mm
    • Minimum panel width: 1-3/4"/45mm
    • Minimum panel length: 4-3/4"/120mm
    • Extendable Panel Support Rail Length: 83-1/2"/2122mm
    • Extension table Max Width: 10"/257mm
    • Size of Dust Collector Ports: 6"/150mm
    • Minimum Dust Collection Requirements: 1236 CFM/2100m3/h
    • Air Pressure Requirement: 14 SCFM @ 87PSI/0.7Mpa
    • Edgebanding coil Support Diameter: 59"/1498mm
    • Recommended Glue Temperature Range: 356°F - 410°F/180°C - 210°C
    • Max. machine dimensions (LxWxH): 93 1/2" x 40 13/16" x 53"/2376 x 1028 x 1347 mm
    • Net weight: 1191lb./540Kgs
    • Glue Type: Granulated Hot-Melt EVA


    Motor/Electrical Specs:
  • • Electrical Requirement: 1 Phase 220V 30 Amps 60 Hz
    • Conveyor Motor: 60 Hz 1390 RPM .66 kw
    • Top/Bottom Trimmer HFM: 200 Hz 12,000 RPM .27kw
    • End Trimmer Motor: 200 Hz 12,000 RPM .27kw
    • Front/Rear Pre-Milling HFM: 150 Hz 9000 RPM .75/.25Kw
    • Top Buffing Motor: 60 Hz 1680 RPM .11kw
    • Bottom Buffing Motor: 60 Hz 1680 RPM .11kw


    Pre-Milling in a Small Footprint:
  • • Edge Tape: 0.4-2 mm
    • Panel Thickness: 10-45mm
    • Vertical Rounding
    • 1 Phase 220V 60Hz
    • Glue Scraper Unit
    • Buffing Unit
    • End Trimming HF Motor
    • Pre-milling Unit 2 HF Motors
    • Glue Pot Capacity 0.5kg|1lb. Teflon Coated
    • Automatic feeding Speed 21 ft/min
    • Net Weight 1911 lb.|540 kgs
    • Compact Design
    • Melamine/PVC/ABS/PP

Dust Collector Black Edition 2HP - 2 Entries Single Phase - CP/2.C BLACK

The Dust Collector CP/2.C is ideal for collecting light powder of small to medium machines such as saws and sanders. The airflow of this collector is 1,165 ft³/min, resulting in a clean and pleasant environment for your work. The large bag has a capacity of 5.4 sq. feet. 2 Year Warranty.


CE Certified - Global

ADDITIONAL INFORMATION

Motor

1 Phase, 2 HP
Number of air intel 2 Entries
Height

2.000 mm (78,7″)
Bag Volume

153 L  (5,4 ft³)
Air Flow

42 m³/min (1.483 ft³/min)
Weight

48 kg (105,8 pounds)
Air Suction Capacity

1.790 ft³/min
