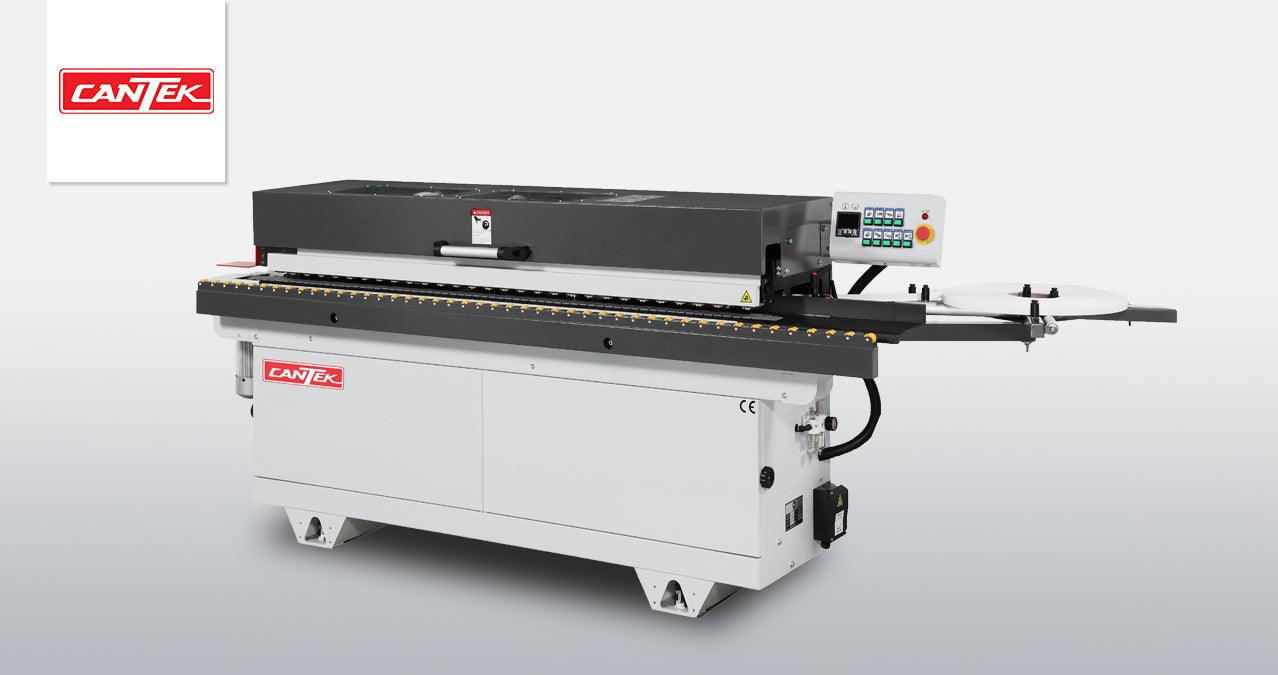

CANTEK Automatic Edgebander MX350M

Compact edgebander with pre-milling for best-in-class results.

The Cantek MX350M Automatic Edgebander is an entry level edgebander with pre-milling that is the perfect blend of quality and affordability.  With fine attention to detail and quality componentry, the MX350M can output high quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel just prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. Additionally, the machine is equipped with end trimming, flush trimming, PVC scraping, and buffing.  User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

• PLC control system with LED display and keypad
• Workpiece is fed by chain
• Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
• Automatic edge feeding with a thickness capacity of 0.4-3 mm; strip material up to 4mm can be hand-fed
• Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
• 2 kg (2.64 lb) Teflon-coated hot-melt glue pot
• Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
• Heavy duty pressure beam with extendable work-piece support
• Heated infeed fence for pre-heating the panel for optimum glue penetration
• Mechanical digital readouts for convenient and quick adjustment to the working units & thickness



• PRE-MILLING
  Pre-milling unit with (2) counter rotating diamond cutterheads for precise edge quality.
• END TRIM
  8800 RPM dual saw blade (80mm / 3.15″) end trimming unit
• TOP & BOTTOM TRIM
  10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
• RADIUS SCRAPING
  Radius scraper with 2mm radius knives can be easily excluded when not required
• BUFFING
  2800 RPM top & bottom buffing units to polish the machined edge



  INCH	METRIC
  Feeding speed	23 FPM	7 m/min.
  Panel thickness	0.472~1.77”	12~45 mm
  Edge thickness	0.0158”~0.118”	0.4 ~ 3 mm
  Minimum panel width	3.54”	90mm
  Minimum panel length	8 3/4”	220mm
  Working table height	33.7”	856mm
  Extraction connection	4”	100mm
  Premilling spindle speed	9000 RPM
  Top & bottom trimmer RPM	10500 RPM
  Max. machine dimensions (LxWXH)	126” x 47 ¼” x 47 ¼”	3200 x 1200 x 1200mm
  Machine weight	1162 lbs	528 kgs
  Shipping dimensions (LxWxH)	111” x 28.4” x 52”	2820 x 720 x 1320mm
  Shipping weight	1452 lbs	660 kgs




  Feed motor	1 HP	0.75 kW
  Pre-milling motor	2 HP	1.5 kW
  End trim motor	1/3 HP	0.25 kW
  Top & bottom trimming motor	¾ HP	0.55 kW
  Buffing motor (1 phase)	0.16 HP	0.12 kW x 2
  Buffing motor (3 phase)	¼ HP	0.18 kW x 2
  Heated infeed fence	½ HP	0.4 kW
  Glue pot	1 ¾ HP	1.315 kW
  Total connected power	8 HP	6 kW
