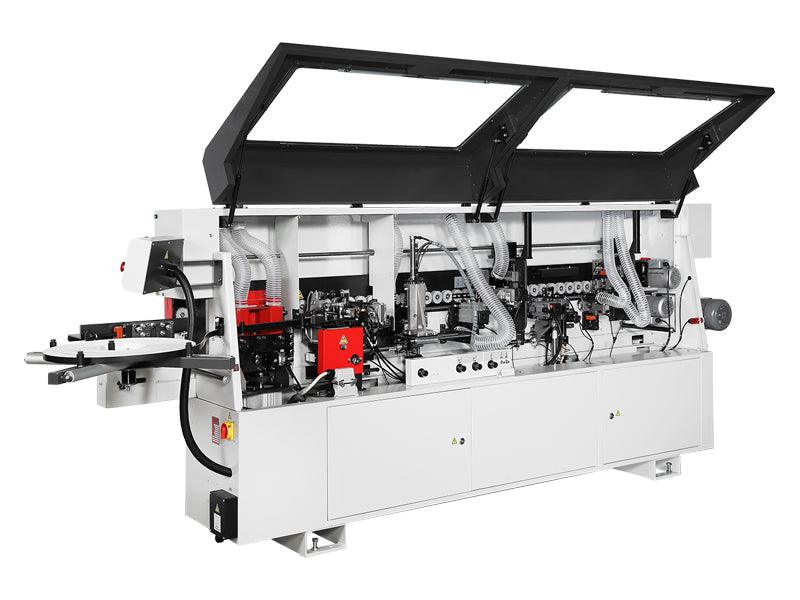

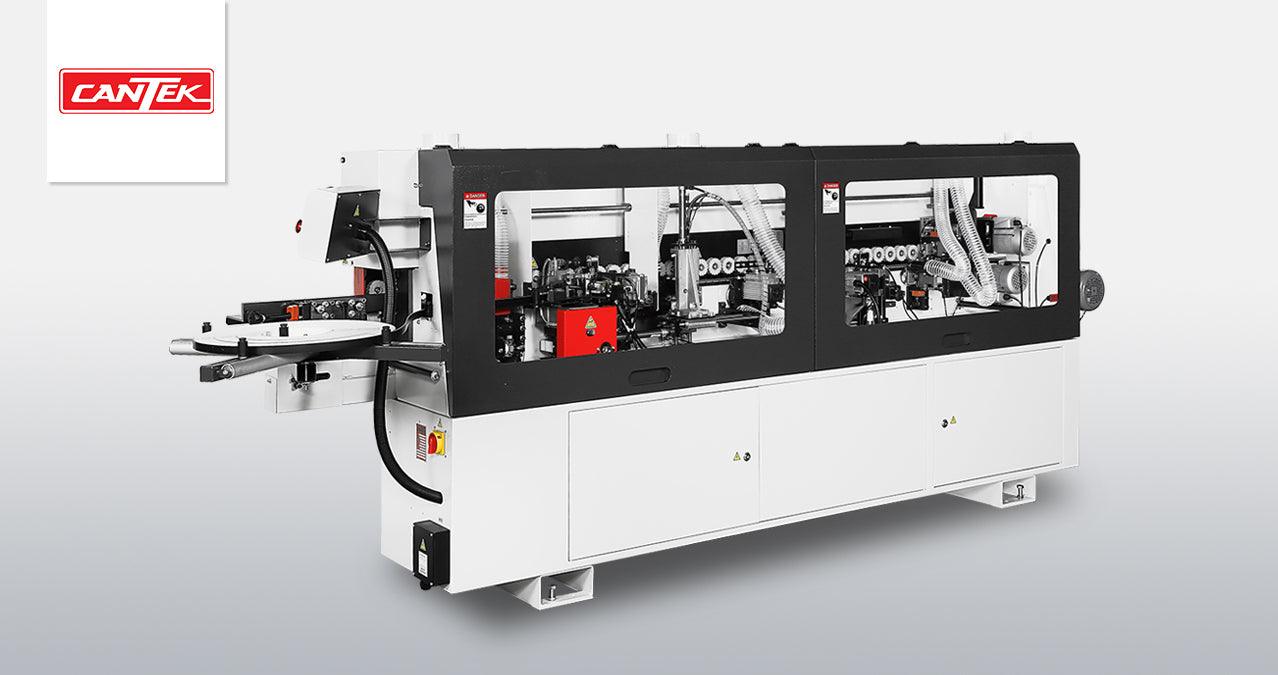

CANTEK Automatic Edgebander MX370PW with Strip Feed Magazine / Premilling & Corner Rounding (3 Phase)

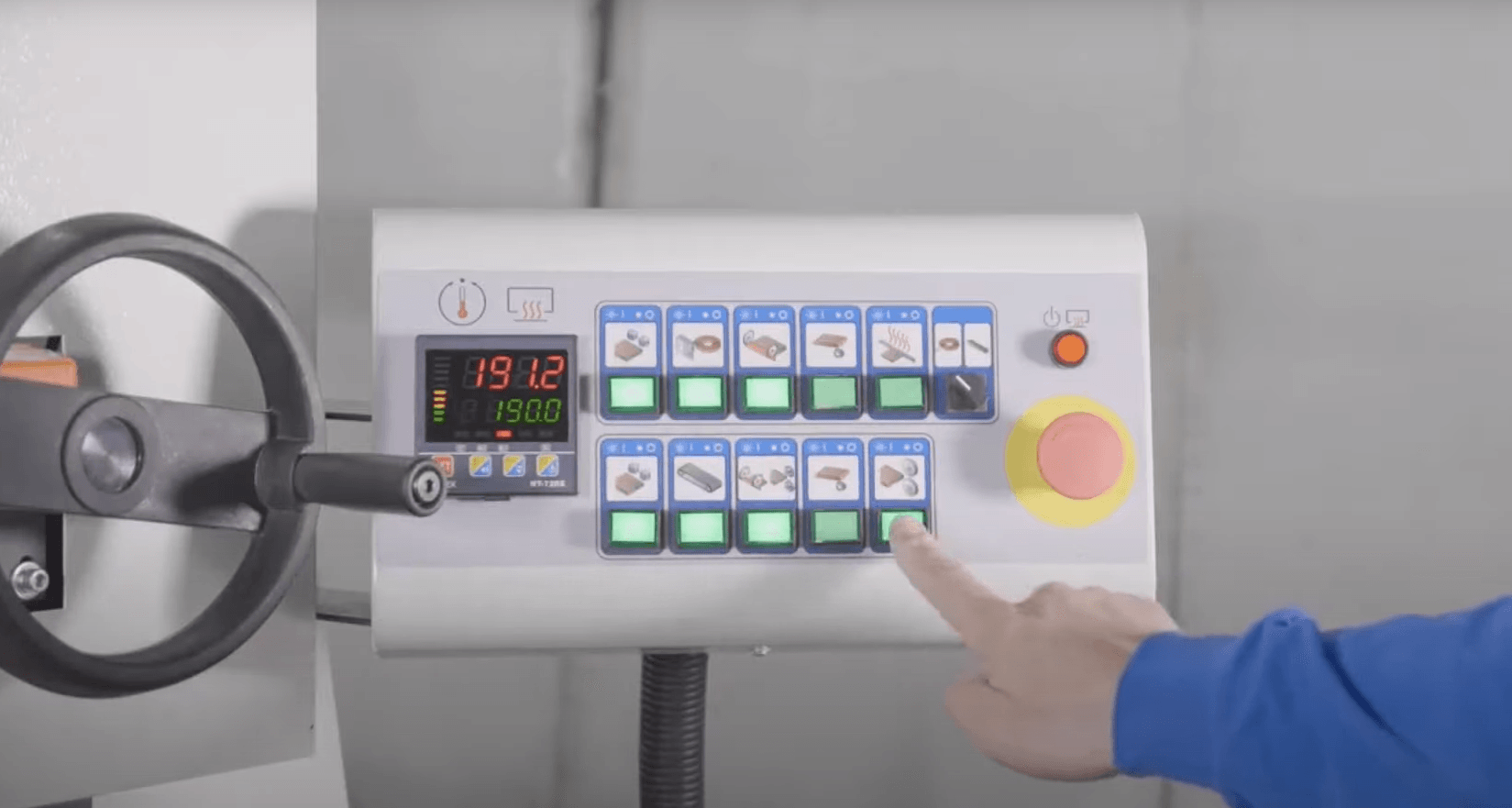

The Cantek MX370PW Edgebander with Premilling and Corner Rounding is designed to be a compact and durable edgebander offered at an affordable price. This machine is equipped with premilling, end trimming, flush trimming, corner rounding, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm. It comes equipped with a strip feed magazine for automatically feeding of strips including wood, laminate etc.
Why Cantek MX370PW Edgebander?
-
- Automatic strip feed magazine with up to 6mm edge capacity
- Versatile edgebander capable of applying 0.4mm to 3mm edge tape.
- Quick change glue pot allows you to change glue colours in minutes.
- Premilling ensures a perfectly square edge and clean panel to work with, resulting in a minimally visible glue joint.
- The corner rounding function finishes the ends of cabinet doors with a radius edge, eliminating any manual rework of the panel.
Working Units

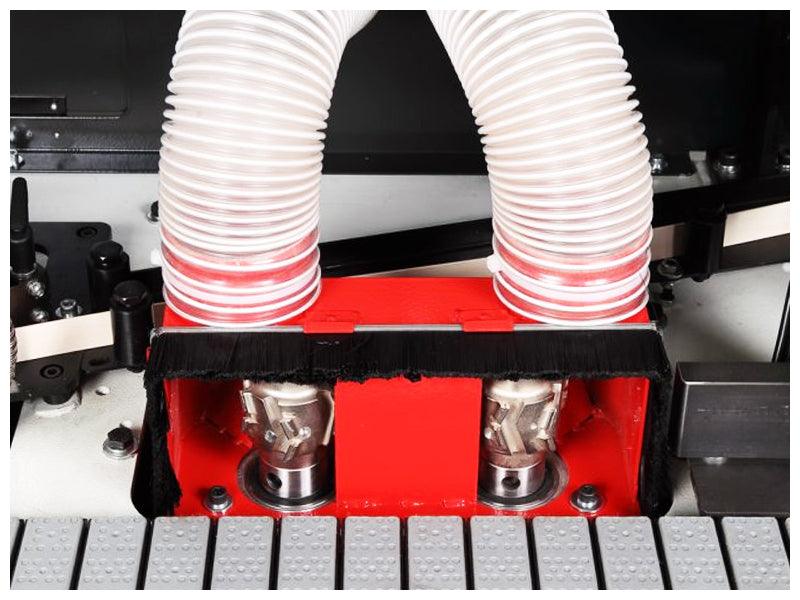

PREMILLING UNIT
High-frequency pre-milling units can remove up to 3mm and are designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels.
(2) counter-rotating diamond cutterheads for optimum results and longevity.END TRIM

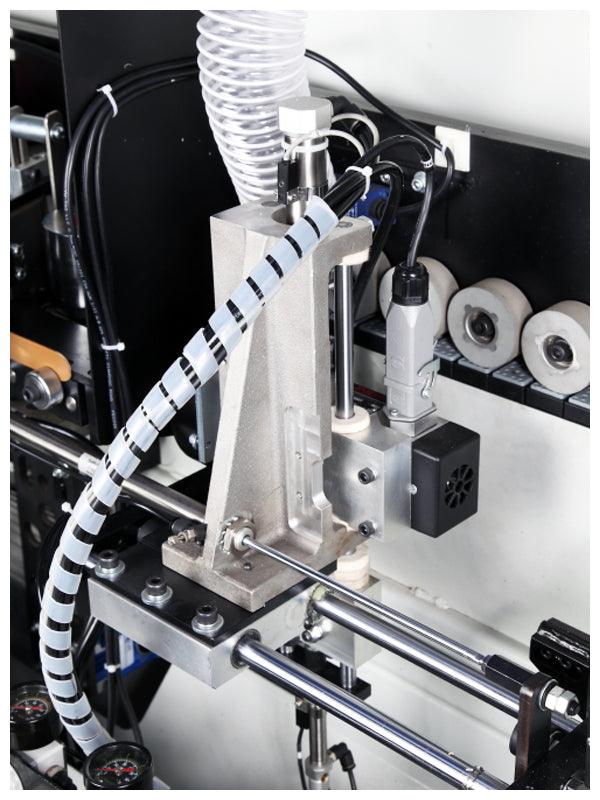

High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades.TOP & BOTTOM TRIM

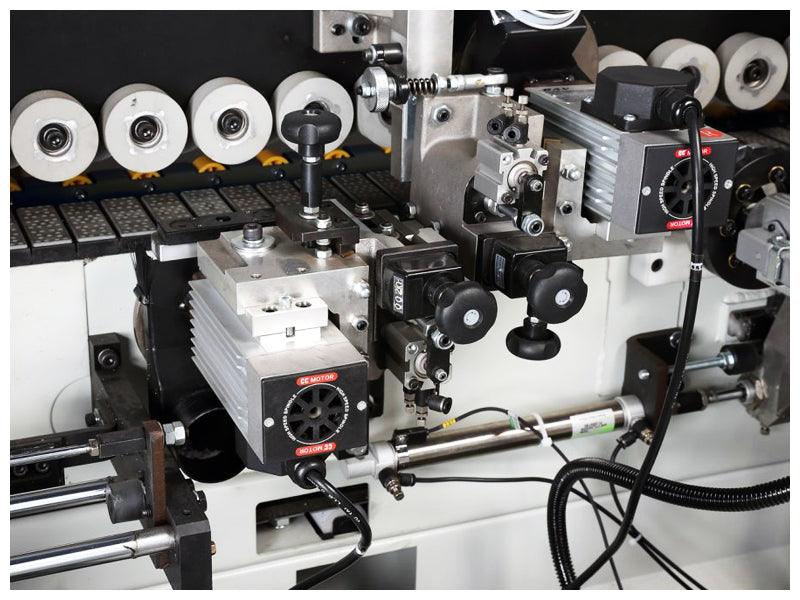

High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming.CORNER ROUNDING
High-frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel.RADIUS SCRAPING
Radius scraper with 2mm radius.BUFFING
3000 RPM top & bottom buffing units to polish the machined edge.Feeding speed
29 FPM
9 meters/min.
Panel thickness
0.315″ ~2.36″ (coil)
0.315”~2” (strip)
8~60 mm (coil)
8~50mm (strip)
Edge thickness – coil
0.0158”~0.118”
0.4 ~ 3 mm
Edge thickness – strips
to 0.24”
to 6 mm
Min. panel width
3 ¾”
95 mm
Min. panel length
6.7″
170 mm
Working table height
38″
960 mm
Extension support width
22″
560 mm
Dust collection outlet
Ø 5″ x3
Ø 127 mm x3
Air consumption
12.36 CFM
350 liters/min
Electrical consumption
10.9 HP
6.7 KW
Electrical requirement
230/3/60
26 Full load amps
Machine weight
2160 lbs
980 kgs
Machine dimensions
156” x 29” x 69”
3960 x 730 x 1748mm
