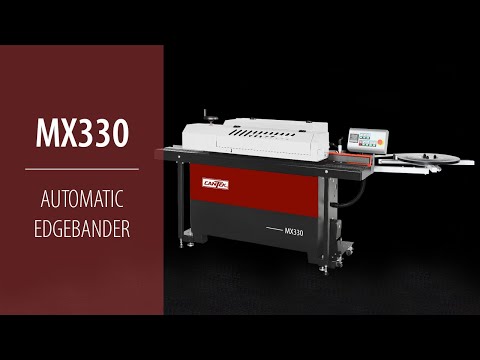

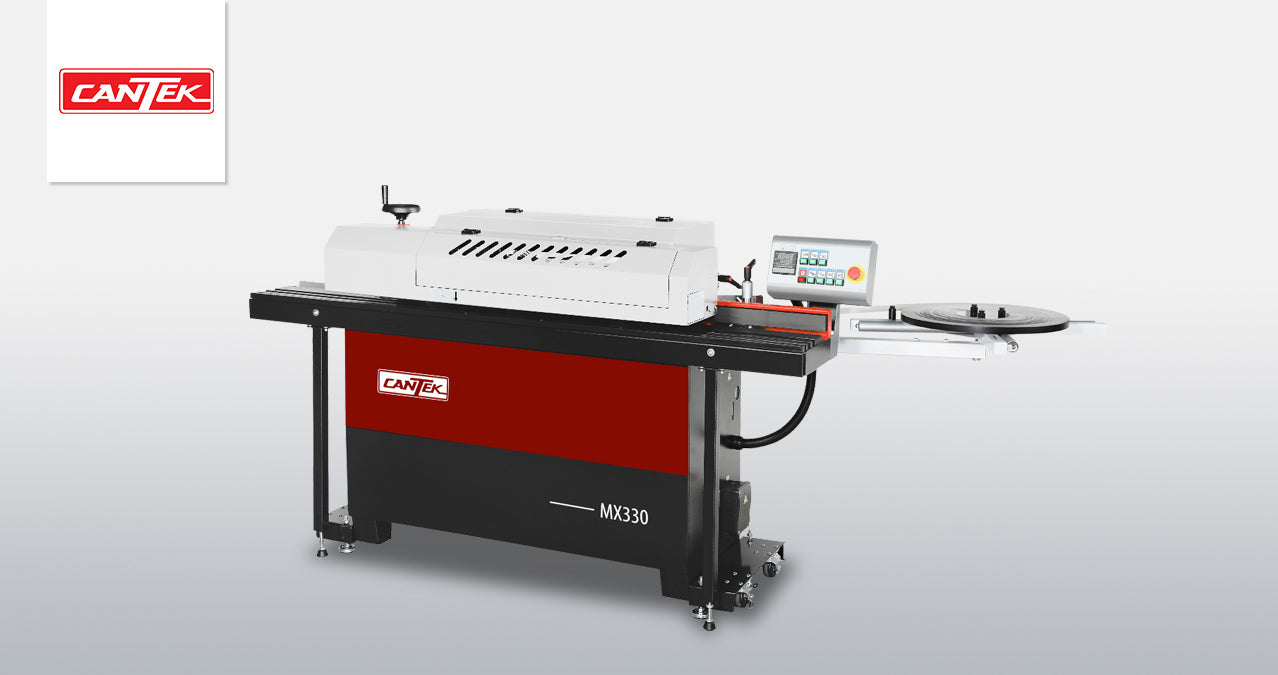

Cantek MX330 AUTOMATIC EDGEBANDER

MX330 | AUTOMATIC EDGEBANDER
Compact design with best-in-class edgebanding result.
The Cantek MX330 Automatic Edgebander is a compact entry-level edgebander with the perfect blend of quality and aff ordability. With fi ne attention to detail and quality
componentry, the MX330 can output high-quality edges on cabinet parts and more. This machine is equipped with end trimming, fl ush trimming, and buffi ng. User-friendly
controls and adjustments allow for effi cient changeovers of edge tape thicknesses between 0.4mm & 2mm.
• Compact design makes it the ideal edgebanding solution for small workshops.
• Precise adjustments for optimum edge quality.
• Mobility wheels allow you to move your edge bander in and out of position to save you
 work space.
• Available in 230V 1 phase.
• PLC control system with LED display and keypad.
• Workpiece is fed by upper conveyor belt & idle table rollers.
• Edge coil support plate: Ø 800 mm (31.5”) for PVC/ABS.
• Automatic edge feeding with a thickness capacity of 0.4-3 mm.
• Coiled edge bands up to 2 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
• 1.2 kg (2.6 lb) Tefl on-coated hot-melt glue pot.
• Spring-loaded pressure unit with (2) chrome pressure rollers.
• Heavy-duty pressure beam with extendable workpiece support.
• Heated infeed fence for pre-heating the panel for optimum glue penetration.
• Mechanical digital readouts for convenient and quick adjustment to the working units &
 thickness.
Key Advantages.
Specifi cations.
Feeding speed 16.4 FPM
Panel thickness 0.472~1.77”
Edge thickness 0.0158”~0.0787”
Min. panel width 4.73”
Min. panel length 9.45”
Working table height 33.7”
Dust collection outlet dia. 2 x 4” = 800 CFM
Total connected power 4.5 HP
Air 6 CFM / 85 - 100 PSI
Max. machine dimensions (LxWXH) 110” x 61” x 49.4”
Machine weight 766 lbs.
Electrical requirements 230/1/60 = 30
