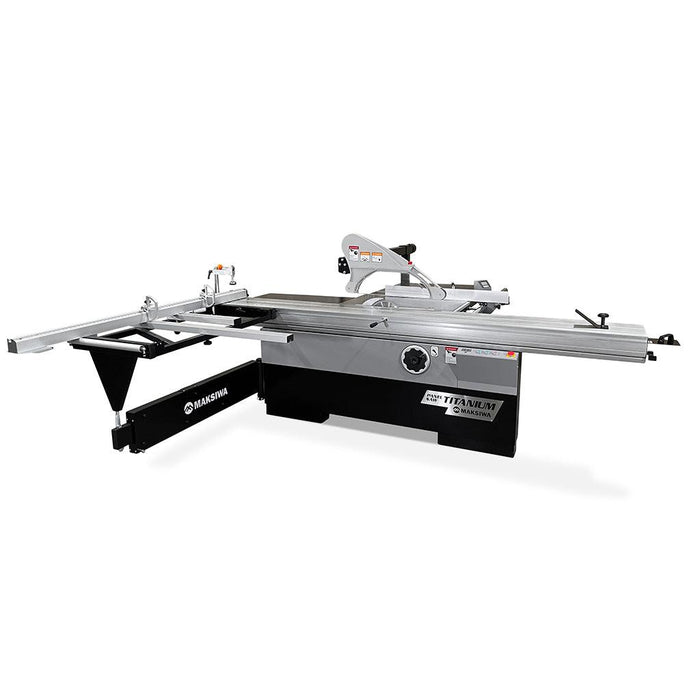

Maksiwa Sliding Panel Saw Titanium - BMT.3200.IR - 5HP 1 Phase Crosscut, Blade Covers 90° & 45°
by Maksiwa
Original price
$9,999.00
-
Original price
$9,999.00
Original price
$9,999.00
$9,999.00
-
$9,999.00
Current price
$9,999.00
Maksiwa has been developing and manufacturing sliding panel saws for over 30 years, the knowledge and expertise acquired during this period along with our endless pursuit of perfection bring us here today to show our newest and most advanced machine in its category.
The Maksiwa BMT.3200.IR Sliding Panel Saw is extremely durable and incredibly smooth to operate. From the first drawing until the final product our engineering team had as one of their main objectives produce the most advanced Sliding Panel Saw in its category. Maksiwa always uses superior components and materials to deliver the absolute best machines to you.
| GERAL TECHNICAL INFORMATION | BMT.3200.IR |
|---|---|
| Sliding table dimension | 132”x 14 1/8” |
| Sliding table max travel length | 286” |
| Main table with supporting table width | 59” |
| Crosscut Fence stoppers | 2 |
| Crosscut Fence | Tape |
| Crosscut Fence Max. Collapsed | 78″ |
| Crosscut Fence Max. Extended | 140″ |
| Rip Fence with digital readout | |
| Rip Fence bar: Solid Steel Micro Polished | 2″ |
| Blade Covers 90° & 45° | 2 units |
| Lockable main power switch | 45° |
| Emergency buttons | 2 |
| Hold Down Clamp | Included |
| Max tilt | 45° |
| Max depth cut | 3″ |
| Max cutting length | 120” |
| Max cutting height with blade at 90° | 3 1/2″ / 90mm |
| Max cutting height with blade at 45° | 2 3/8″ / 62mm |
| Digital Tilt Display | |
| Weight N/G | 1519 LBS / 1752 LBS |
| Machine dimensions (collapsed) | L 132” X W 135” X H 65’’ |
| Machine dimensions (extended) | L 192” X W 280” X H 65’’ |
| Warranty | 2 Years |
| DUST COLLECTOR BLADE TECHNICAL INFORMATION | BMT.3200.IR |
|---|---|
| Main blade diameter | 12” / 305mm |
| Main blade arbor size | 3/16″ / 30mm |
| Scoring blade arbor size | 3/4” / 20mm |
| • Scoring blade adjustment | T-Handle through cast top |
| ELETRICAL OPTIONS: 1 PHASE MODEL 220 V | BMT.3200.IR |
|---|---|
| Main motor | 5 HP – 24 Amps 60 HZ 3.7 KW |
| Main motor – Blade Speed | 4000 RPM |
| Scoring motor | 3/4 HP – 6 Amps 0.55 KW |
| Scoring motor – Blade Speed | 8000 RPM |
