Laguna 25x2 Double Drum Sander 1PH
by Taco Tools
Original price
$3,999.00
-
Original price
$3,999.00
Original price
$3,999.00
$3,999.00
-
$3,999.00
Current price
$3,999.00

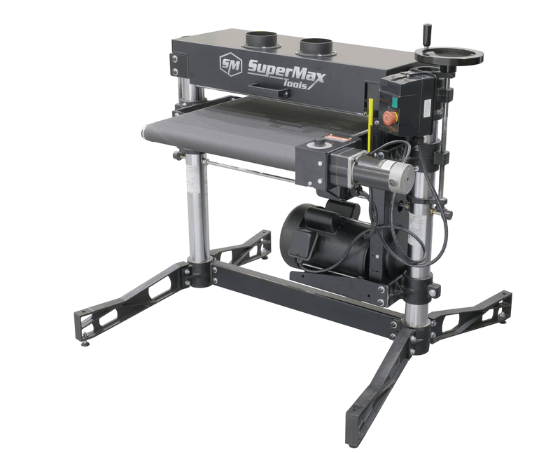

Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.
The 25×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor. Available in Single and 3 Phase power.
| Sanding Capacity: | Maximum Width (in): 25, 37, 50 Minimum Length (in): 3-1/2 Maximum Thickness (in): 25 model: 6 37 & 50 models: 12 Minimum Thickness (in): 1/32 |
| Dimensions HxWxD (in): | 25 model: 43 x 46 x 31 37 model: 43 x 58 x 31 50 model: 50 x 71 x 31 |
| Drum (in): (extruded aluminum) | 25 model: 5 x 25 37 model: 5 x 37 50 model: 5 x 50 |
| Drum speed: | 1740 RPM |
| Dust Hood: (Steel hood, hinged at back | 25” model: one (2) 4” vacuum port, min. 1000 CFM recommended 37 & 50 models: (3) – 4 vacuum ports, min. 1800 CFM recommended |
| Ball bearings (1”): | 4, sealed and permanently lubricated |
| Conveyor Motor: | 25 & 37 models: 100 in. -lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM 50 model: 220 in.-lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM |
| Drive Motor (TEFC): | 25 & 37 models: 5 HP 50 model: 7-1/2 H |
| Power Requirements: | 208-230V, 60HZ; 1 Ph, 30 amp service |
|
Shipping Weight (lbs): |
25 model: 475 37 model: 525 50 model: 820 |
