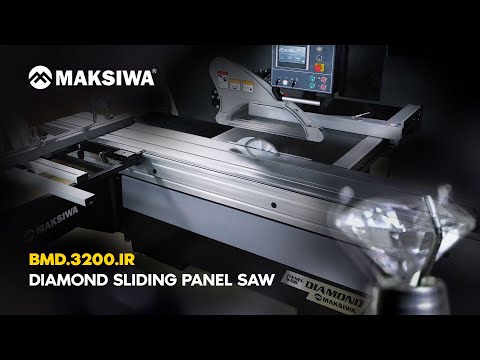

Maksiwa Sliding Panel Saw Diamond - BMD.3200.IR - Main motor Power 7.5HP 3 phase 220 V

Maksiwa has been developing and manufacturing sliding panel saws for over 30 years, the knowledge and expertise acquired during this period along with our endless pursuit of perfection bring us here today to show our newest and most advanced machine in its category.

The Maksiwa BMD.3200.IR Sliding Panel Saw is extremely durable and incredibly smooth to operate. From the first drawing until the final product our engineering team had as one of their main objectives produce the most advanced Sliding Panel Saw in its category. Maksiwa always uses superior components and materials to deliver the absolute best machines to you.

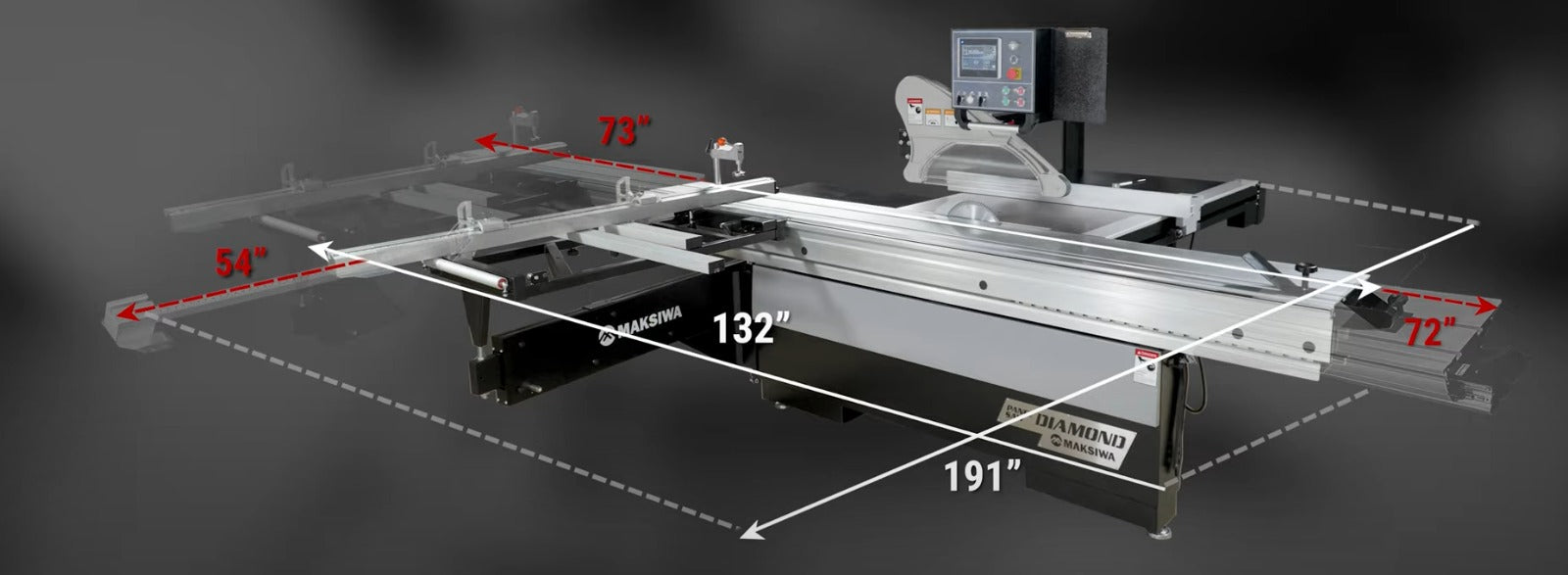

KEY FEATURES • Programable Rip Fence • Main motor Power 7.5HP 3 phase 220 V • Scoring blade motor power 1HP (0.75kw) • Set of Blades Included • Sliding Table Dimension 126” x 15” - 3200 x 378 mm • Cast Iron Table 35” x 21” - 896 x 548 mm • Extension Table (rear) 37” x 35” - 952 x 896 mm • Extension Table (front) 32.5” x 12.5” - 830 x 320mm • Table size 68”x 59” - 1726 x 1500mm • Max Blade Diameter 16” - 400 mm • Main Blade Arbor 1” - 30mm • Max cutting Height at 90º 5” - 130 mm • Max cutting height at 45º 3.5” - 90 mm

Main Blade speed 3000/4000/5000 rpm • Scoring saw blade 4 3/4” - 120mm • Scoring saw blade bore 3/4” - 20 mm • Scoring blade speed 8,000 rpm • Max Cut Capacity 51” - 1,300 mm • Main Saw blade Tilting adjustment Manual (0 - 45º) • Main saw Height Adjustment Manual • Scoring Saw adjustment Manual • Dual Blade Protection Cover • Dust Collection Port (for overhead guard) 4” - 100mm and Main port 4 3/4” - 120mm • Machine size 82” x 47” x 43 ³⁄4” - 2,100 x 1,200 x 1,110mm • Net W. 1179 lbs - 535 kgs | Gross W. 1400 lbs - 635 kg
