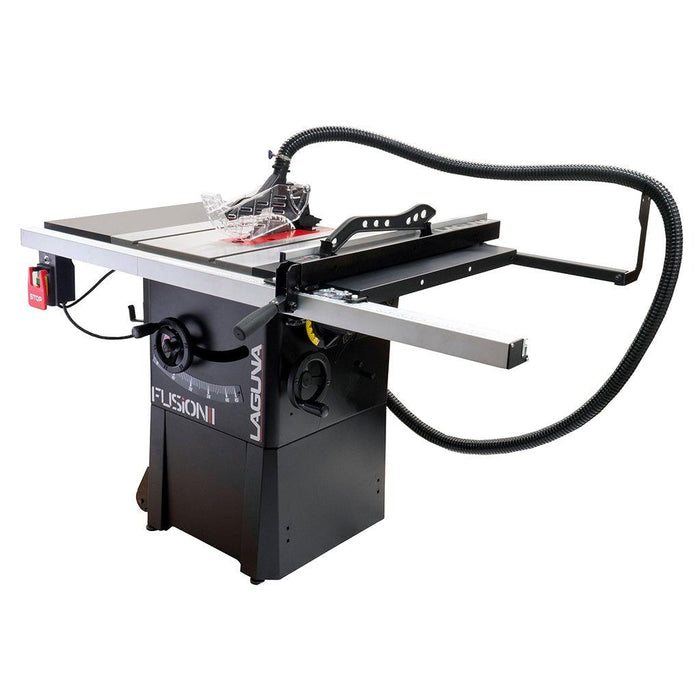

Laguna Fusion F1 Tablesaw
An affordable fusion tablesaw. We have packed all the features that our users have come to love in an affordable, sleek, and very precise package.
The new Laguna Fusion line was developed for demanding woodworkers.
Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms. Permanently lubricated bearings & Acme screws are part of the internal DNA.
Electrical:
Power Requirements:110V-1PH-60HZ*
Amperage (FLA): 12 AMP
Motor Power: 1.5 HP
Motor Speed: 3450 RPM
Starter Switch: Magnetic
Plug Included: 5-15
Circuit Breaker Req.: 110V - 20 AMP
Receptacle Req.: 5-15
General :
Certification: CSA C/US 175370
Net Weight: 200 lbs
Shipping Weight: 280 lbs
Shipping Dimensions: L30" W40" H30"
Overall Size: L39-3/4" W59-5/8" H38"
Tablesaw:
Rip Capacity: 30"
Blade Size: 10"
Vertical Cut Height: 3 1/8”
45° Cut Height: 2 1/8"
Tilt: 0-45° Left
Min. Kerf: 3mm ~1/8" (actual: 0.1875")
Max. Kerf (Dado Blade): 13/16"
Arbor Speed: 4000 RPM
Arbor Diameter: 5/8"
Mitre Slot: 3/4" to 1" T
Throat Plate: Zero Clearance Square Die- Cast, w/ adjustment
Fence: Single Rail Cam Action
Dimensions:
Overall Size: L39-3/4" W59-5/8" H38"
w/ 52" Extension: +16" to W in Overall Size
Base: L19" W20"
Floor to To Table: H34-3/4"
Table: L27" W20"
Extension Wing: L27" W12" (x2)
Throat Plate: L14-5/8" W4-1/16" th1/2"
Dust Collection:
Dust Port Outer Diameter: 3-7/8"
CFM Requirement: 350 CFM
Dust Port Outer Diameter: 3-7/8"
Materials:
Table: Cast Iron
Table Wing: Sheet Steel
Cabinet : Sheet Steel
Throat Plate: Die Cast Iron
Arbor Wheels: Die Cast
Fence: Aluminum Rail, Steel Body
Upper Trunnion : Cast Aluminum Alloy
Lower Trunnion: Cast Aluminum Alloy
Features & Comparison:
Industrial Use: NO
Enclosed Cabinet: NO
Integrated Mobility: NO
Quick Release Guards: YES
Quick Blade Change: YES
Integrated Tool Holder: YES
TEFC Motor: YES
110V Power: YES
Iron Upper Trunnion: NO
Accessories & Options:
Dado Throat Plate: PTSF236110175-001
Thin Kerf Riving Knife: PTSF132110150-0130-000
Right of wing table: NO
Outfeed Table Attachment: NO
Dust Collection Guard: Included with purchase
Mitre Guage: Included with purchase
Blade Guard: Included with purchase
Arbor Wrench: Included with purchase
Riving Knife: Included with purchase
Standard Throat Plate: Included with purchase
