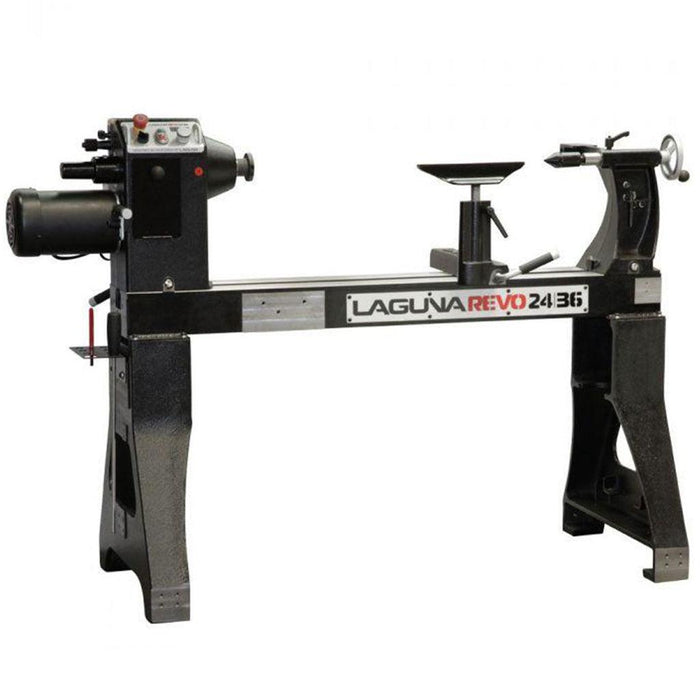

Laguna Revo 24|36 Lathe – 3HP, 220V

Model: MLAREVO 2436-220

Power. Precision. Professional Craftsmanship.

The Laguna Revo 24|36 Lathe is built for serious woodturners who demand strength, accuracy, and smooth performance. From the ergonomic anodized aluminum control panel to the steel-reinforced bed, every detail is designed for durability and ease of use.

The blue DRO display and knurled rubber grip control knob signal that this is no ordinary lathe. Variable electronic speed control via VFD ensures maximum torque even at low speeds, while the rear-positioned headstock and tailstock locks keep your workflow uninterrupted.

Smooth & Consistent Performance

• Steel bed with cast iron headstock for ultra-smooth travel and long-lasting strength

• Electronic variable speed (VFD): Converts single-phase input to 3-phase output for full torque across the range

• Digital Readout (DRO): Accurate RPM readout at all times, perfect for fine adjustments

• Quick-release handle: Effortless switching between high and low speed ranges

Thoughtful Ergonomics

• Rear-positioned lock handles: Keep work area clear and workflow uninterrupted

• Cam-lock ergonomic handles: Firm, secure feel with zero deflection

• Spring-loaded spindle lock and self-ejecting tailstock quill for fast setup

• Redesigned banjo: Compact, solid, and precise with wider base, larger hanger, and 45° cutout

Key Specifications

✅ Motor: 3HP Induction, 1725 RPM, 220V, 60Hz
✅ Phase: 1-Phase Input / 3-Phase Output
✅ VFD: Delta S1 Variable Frequency Drive
✅ Drive Belt: Poly-Groove with EZ Access
✅ Tailstock Quill: 4½”, engraved, self-ejecting, MT2 taper hardened 40° HRC
✅ Headstock Spindle: MT2 taper hardened 40° HRC
✅ Spindle Size: 1¼” x 8 TPI RH
✅ Distance Between Centers: 36”
✅ Swing Over Bed: 24” | Swing Over Banjo: 19¾” | Max Outboard Swing: 38”
✅ Face Plate: 3” Diameter | Tool Rest: 12”
✅ Floor to Spindle Center: 44½” | Floor to Bed: 32½” with pads
✅ RPM: High: 135–3500 | Low: 50–1300
✅ Front/Rear Bearings: TPI Taiwan 6307LLU / 6205LLU
✅ Dimensions (LxWxH): 60″ x 26″ x 52¼”
✅ Weight: 610 lbs (Shipping)
✅ Construction: Steel bed ASTM A36, reinforced legs, redesigned banjo for solid feel.

Why Choose the Revo 24|36?

This lathe combines strength, precision, and innovative design to meet the demands of professional woodturners. From the steel-reinforced bed and advanced electronic controls to the redesigned banjo and ergonomic layout, every feature is engineered to maximize accuracy, torque, and workflow efficiency. The Revo 24|36 is a lathe built to last for years of heavy-duty turning.
