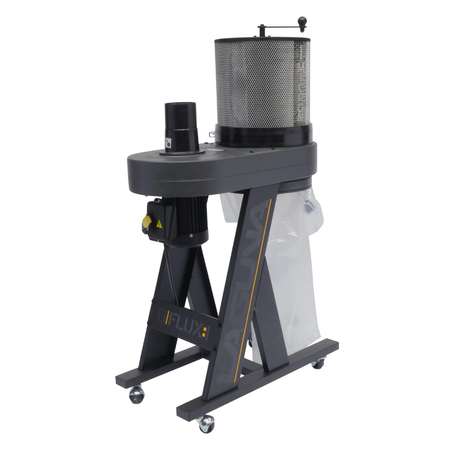

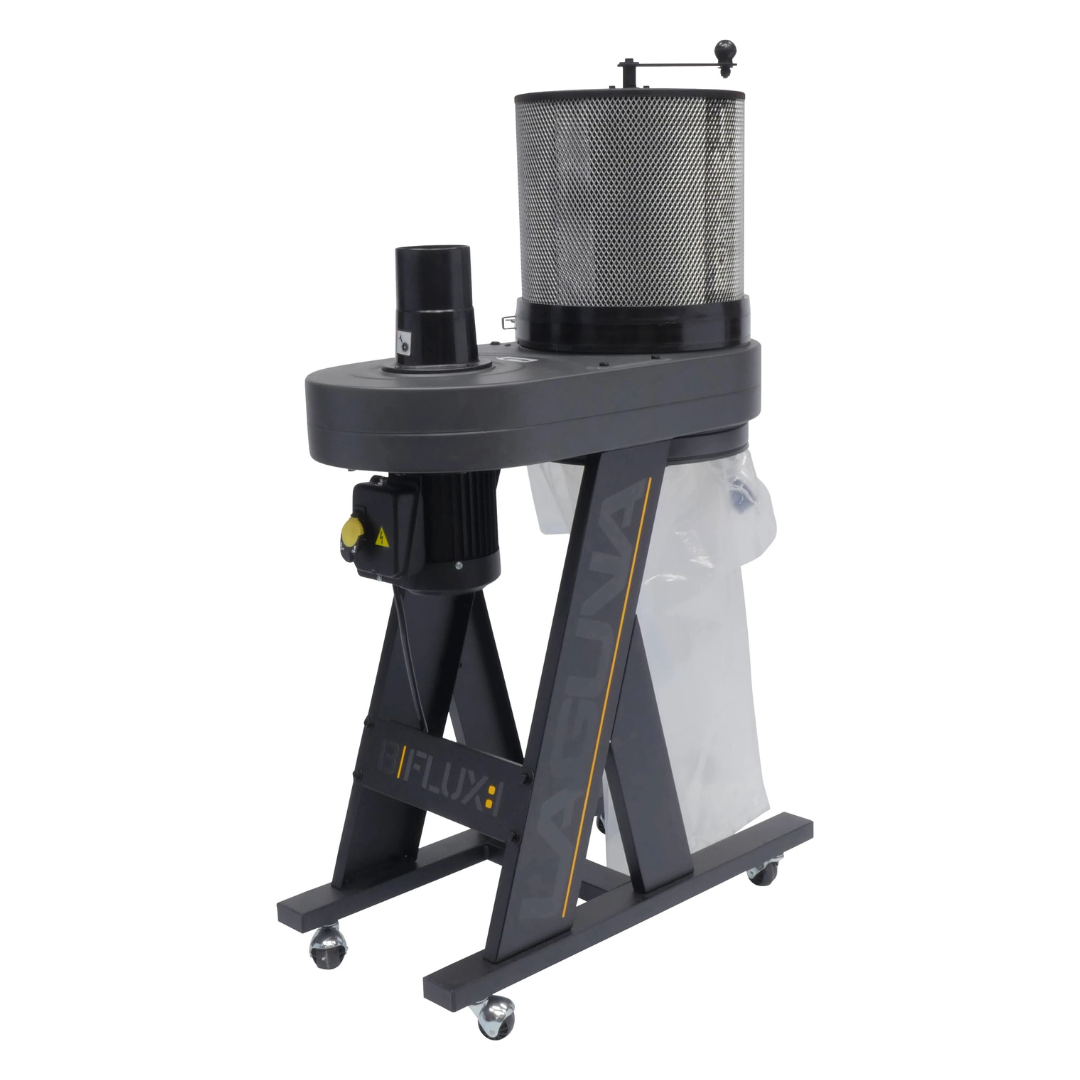

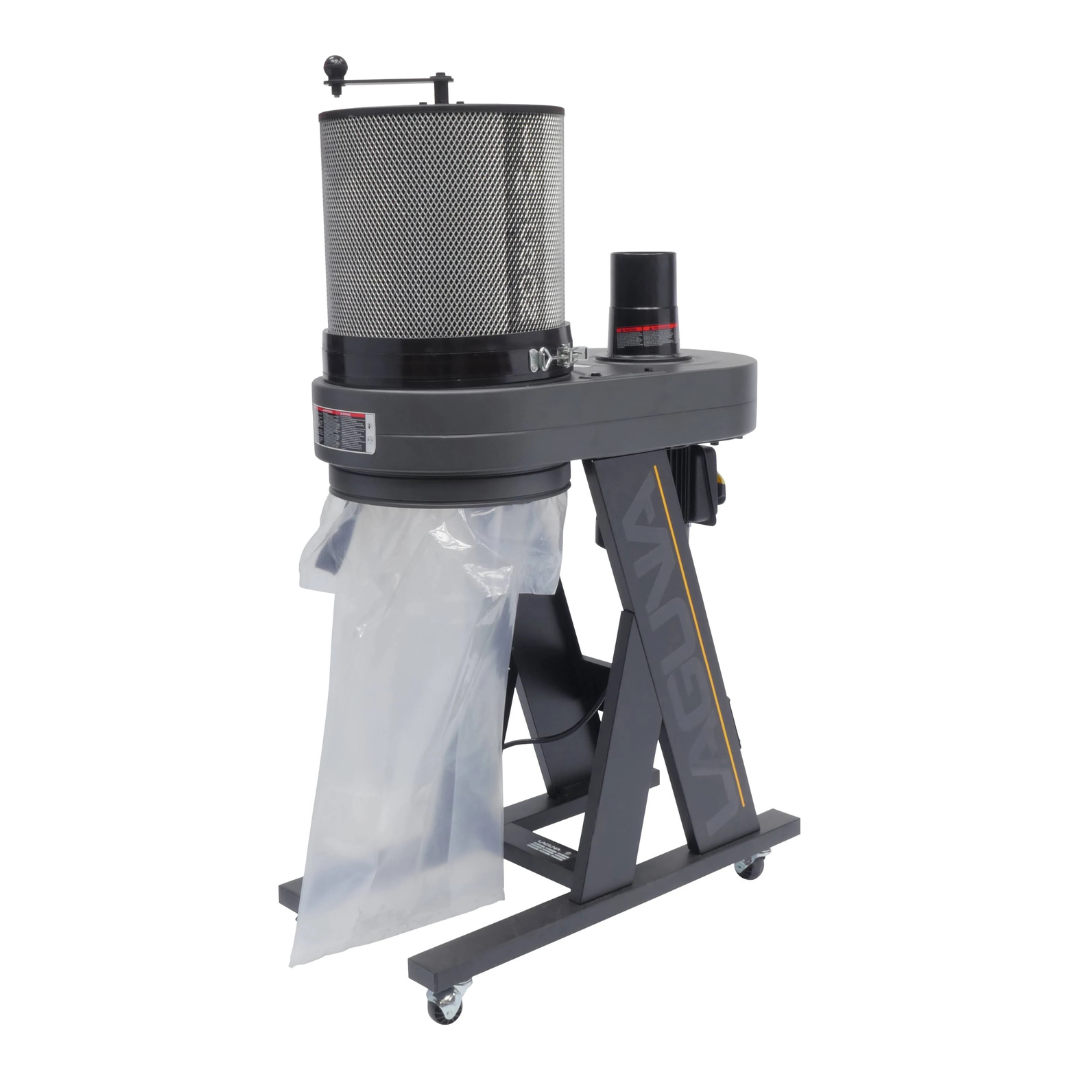

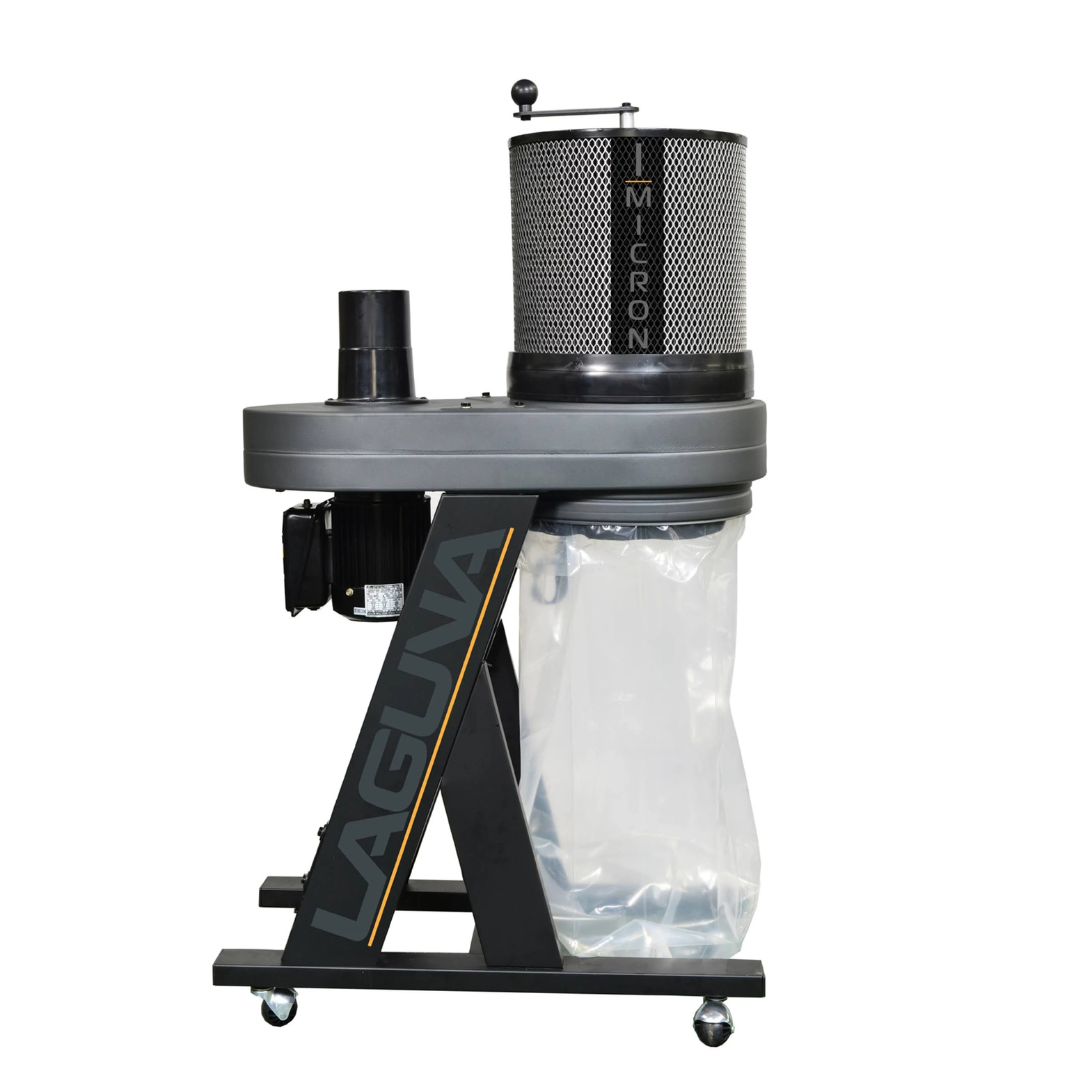

The best looking single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the B|Flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the B|Flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4″ outlet face downwards. The B-flux dust collector can be oriented with the inlet port pointed up or down.
THIS MACHINE SOLD EXCLUSIVELY THROUGH OUR DEALER NETWORK
- Motor: 1HP
- Phase: 1
- Voltage: 110v
- Amps: 8.4 Amps
- Recommended Breaker: 15 Amps
- Hertz: 60
The B|Flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns & features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents clogging of the filter.
Plug: Yes
RPM: 3450
Switch Type: Motor Mounted Direct Switch
Hand Held Remote: None
Shop Setting CFM: 550
Inlet CFM: 650
Max Static Pressure (Inches of Water): 4.86″
Impeller/Fan Size: 9″
Impeller Material: Steel
Impeller Type: Radial Fin
Balanced To: ISO 1940
Inlet Diameters: 4″ x 1 Port
Drum Collection Bag (Dia. x L): Plastic Bag (350 x 980mm)
Canister Filter Type: 1 Micron
Filtration Efficiency: 0.2 – 2 Micron at 99.97%
MERV Rating: 12
Canister Diameter: 360mm (14.2″)
Canister Length: 300mm (11.8″)
Filter Surface Area: 1.6m² / 17.2ft²
Canister Cleaning: Manual Handle Crank 360°
Wheels: 2″ Ball Caster
CSA Approved: Yes
Decibel Reading: 76 dB (At 9.8ft)
Assembled Dimensions (L x W x H): 29″ x 14.8″ x 50.4″ | 736 x 376 x 1280mm
Shipping Weight: 77lbs
Shipping Dimensions (L x W x H): 32″ x 20″ x 25″
NEMA Plug: 5-15P
Cord: 6 ft
