Laguna SuperMax 16-32 Drum Sander Drum
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Overview

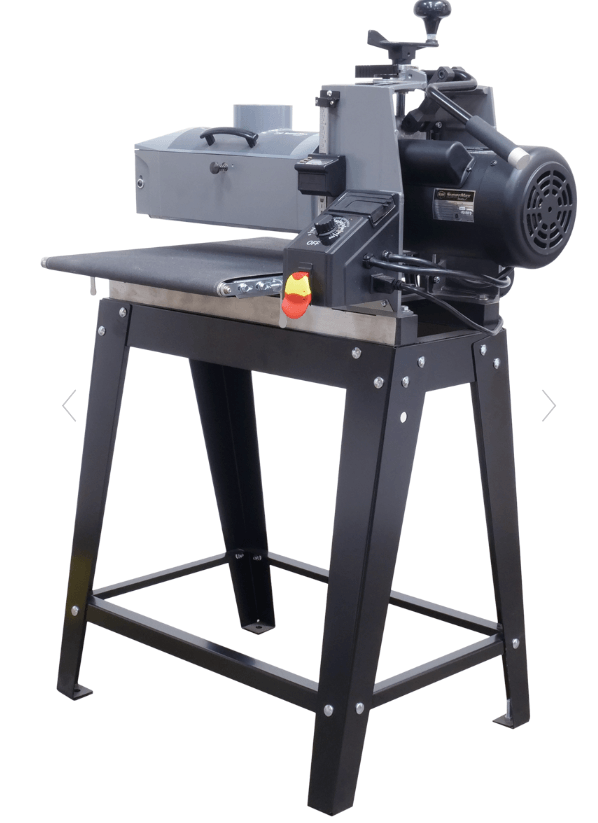

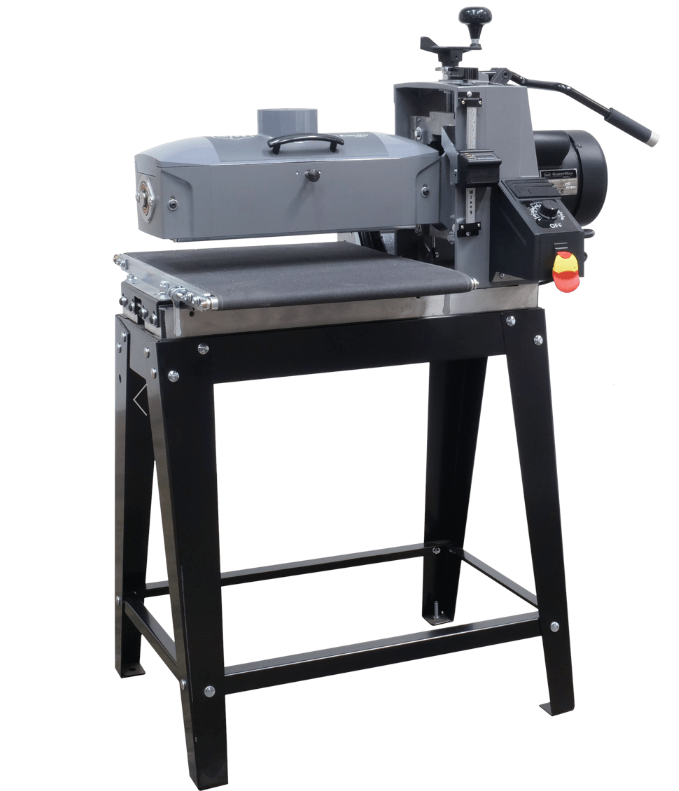

The Laguna SuperMax 16-32 Drum Sander is an open-ended drum sander with a 5-inch x 16-inch extruded aluminum drum for consistent, precise thickness sanding. A turbo-vented dust hood increases airflow to your dust collector, and the 1-1/2 HP drive motor pairs with a variable 0-10 FPM conveyor for controlled stock feed.
Key Features
- 5″ x 16″ extruded aluminum drum
- Turbo-vented dust hood for improved dust collector airflow
- Variable conveyor speed, 0-10 FPM
- 1-1/2 HP drive motor
Specifications
| Drum Speed | 1740 RPM |
|---|---|
| Max. Sanding Width | 32″ |
| Min. Sanding Length | 2-1/4″ |
| Max. Sanding Thickness | 3″ |
| Min. Sanding Thickness | 1/32″ |
| Drum | 5″ x 16″ extruded aluminum |
| Dust Hood | Turbo Vented, 1x4″ vacuum port (min. 600 CFM recommended) |
| Conveyor Speed | 0-10 FPM |
| Drive Motor | 1-1/2 HP |
| Power Requirements | 110V, 15 Amp, 20 Amp Service |
| Shipping Weight | 158 lbs (1 box incl. stand) |
| Assembled Dimensions | W: 34″ | D: 22″ | H: 48″ (without casters) |
