Overview

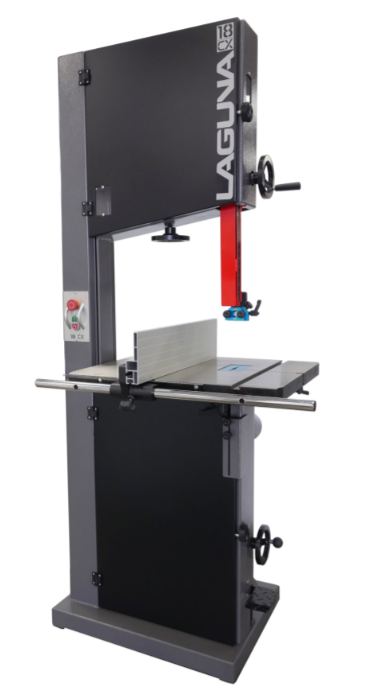

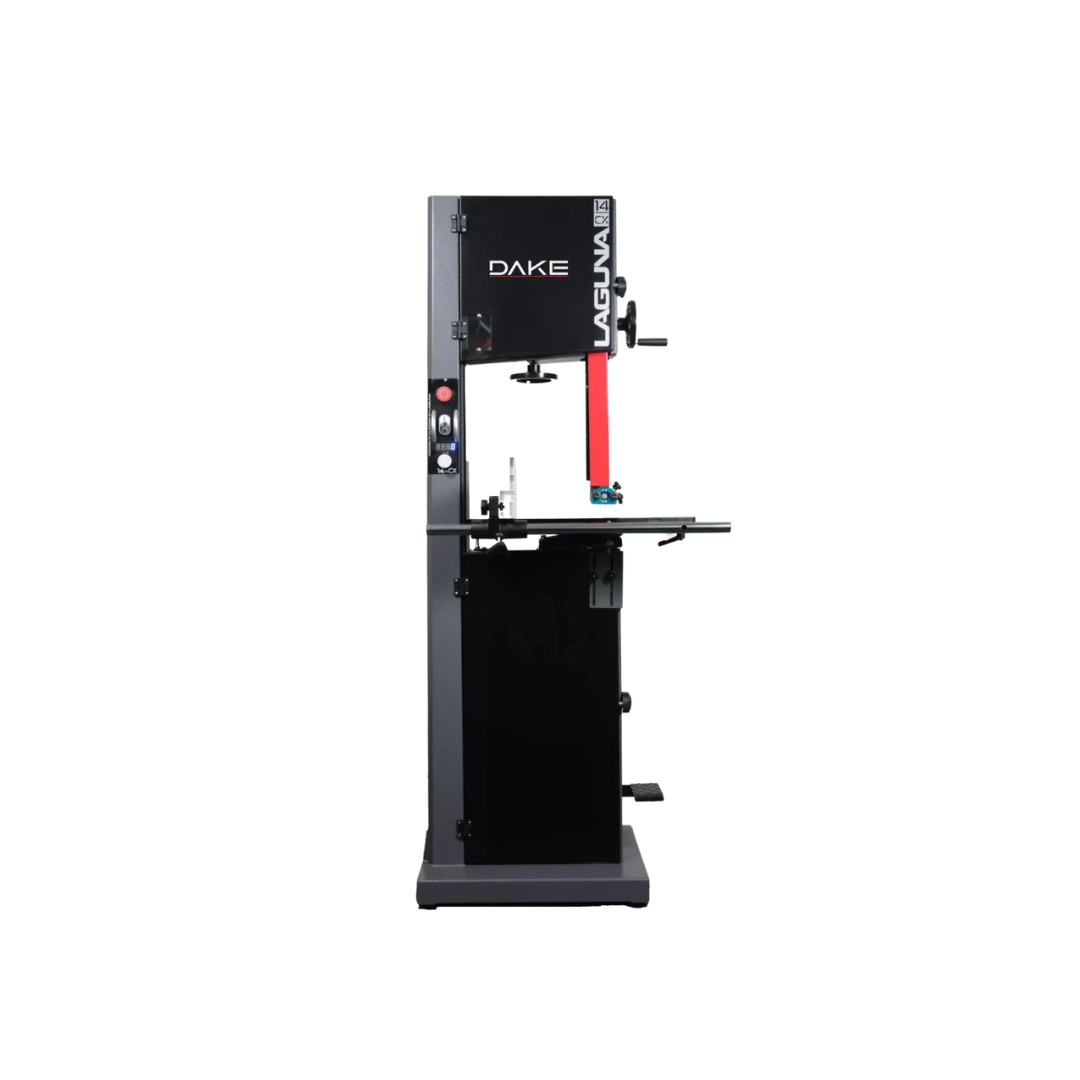

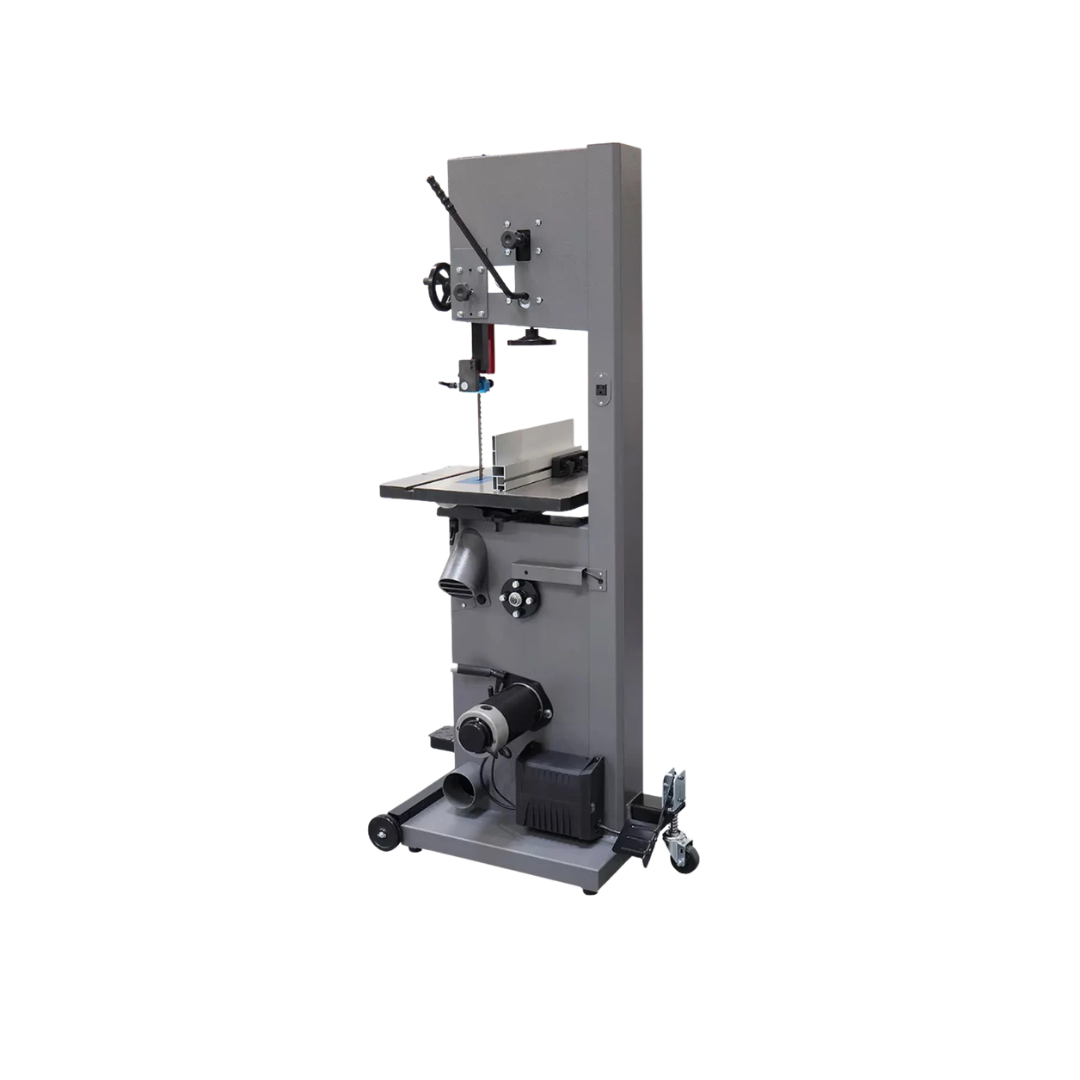

The Laguna 18|CX Bandsaw is a bandsaw built with a 1.75HP, 110V motor and variable speed control for cutting through metals with ease. Dynamically balanced cast iron wheels, a magnetic blade tension guide, worm gear and pinion upper guide, and 10-point Laguna ceramic guides deliver smooth, accurate cuts, while a disc brake with micro switch and quick-release tension make setup and operation easy.
Key Features
- 1.75HP, 110V motor with mechanical variable speed drive
- Disc-brake with micro switch
- Magnetic blade tension guide
- Worm gear & pinion upper guide
- 10-point Laguna ceramic guides

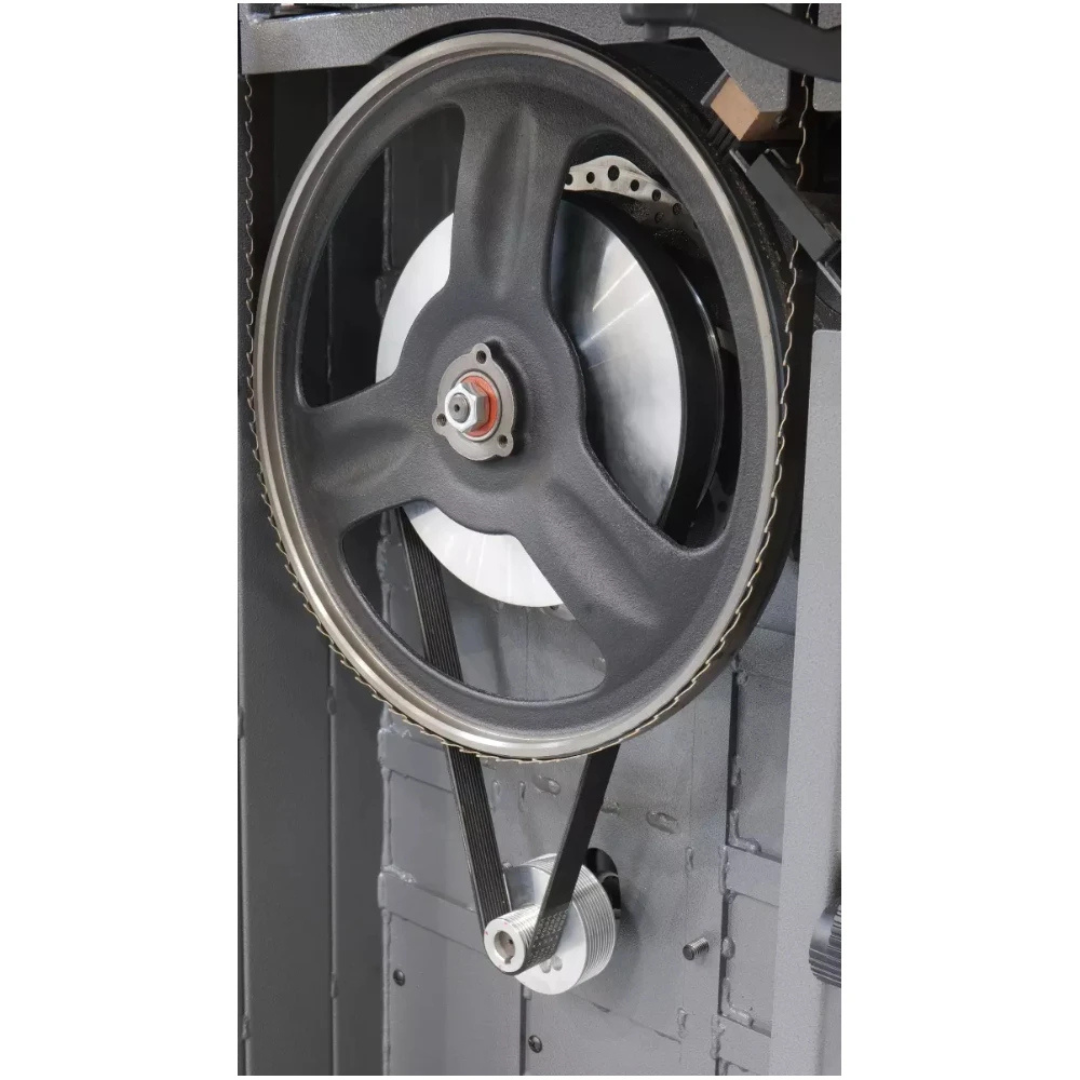

- Dynamically balanced cast iron wheels with urethane single-piece snap-on tire
- Quick-release tension
- Hi/Low anodized aluminum fence
- Windows for tension and tracking
- 110V outlet on back for light
Specifications
| Motor | 1.75HP, 110V, 14/7 Amp |
|---|---|
| Recommended Breaker | 20 Amp |
| Min-Max Blade Width | 1/8″–1 1/4″ |
| Resaw Capacity | 16″ |
| Throat | 18 7/32″ |
| Blade Length | 145″ |
| Low Blade Speed | 100–290 FPM |
| High Blade Speed | 1200–3500 FPM |
| Cast Table Size | 20″ x 26″ |
| Table Tilt | -6°, +45° |
| Hi/Low Fence | 22 3/4″ x 7 1/4″ x 11/16″ |
| Table Height | 38″ |
| Dust Ports | 2 x 4″ |
| Overall Height | 77 3/4″ |
| Base Dimensions | 27″ x 20″ |
| Overall Dimensions | 38″ x 36″ |
| Box Dimensions | 82″ x 34″ x 36″ |
| Weight (Net/Ship) | 480/545 lbs |
