Overview

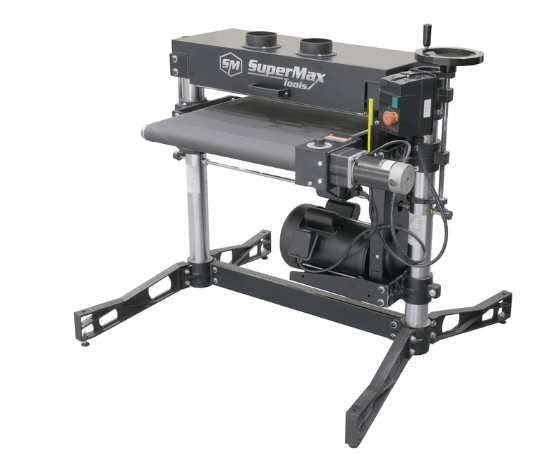

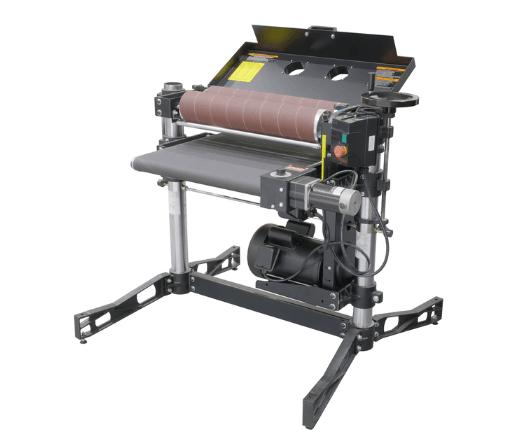

The Laguna SuperMax 25×2 Double Drum Sander sands two grits in a single pass, using INTELLISAND Technology and a 5 HP motor to speed up stock removal and finishing. The conveyor automatically adjusts based on load to prevent burning, gouging, or damaging material, and the machine ships standard on an open-column base, available in single- or 3-phase power.
Key Features
- Sands two grits in a single pass (double drum)
- INTELLISAND Technology auto-regulates conveyor speed based on load
- Prevents burning, gouging, and damaging stock
- 5 HP motor
- Standard open-column base
- Available in single and 3 phase power
Specifications
| Max. Sanding Width | 25″ (model shown); 37″ and 50″ also available |
|---|---|
| Min. Length | 3-1/2″ |
| Max. Thickness | 6″ (25 model) |
| Min. Thickness | 1/32″ |
| Dimensions (HxWxD) | 43″ x 46″ x 31″ (25 model) |

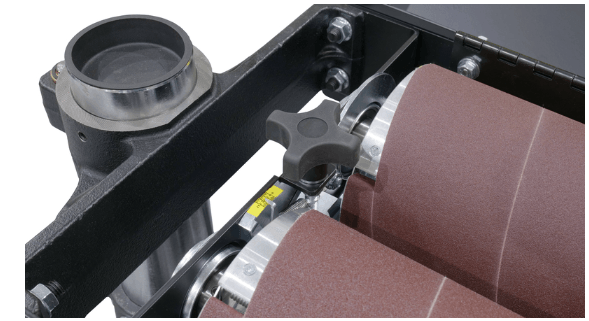

| Drum | 5″ x 25″ extruded aluminum |
| Drum Speed | 1740 RPM |
| Dust Hood | 4″ vacuum port, min. 1000 CFM recommended |
| Conveyor Motor | 100 in-lb torque, direct drive DC motor, 0–15 FPM variable |

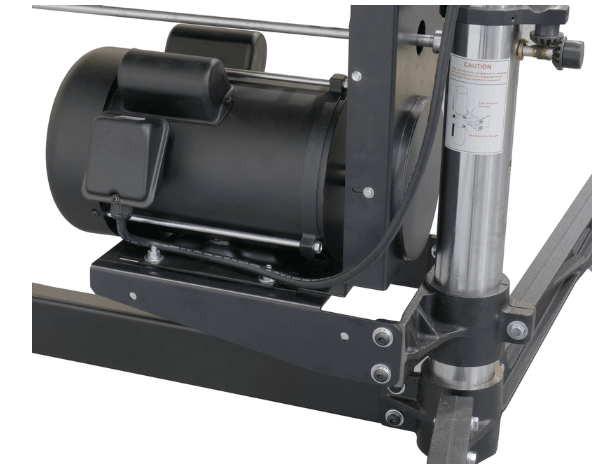

| Drive Motor (TEFC) | 5 HP |
| Power Requirements | 208-230V, 60Hz, 1 Ph, 30 amp service |
| Shipping Weight | 475 lbs |
