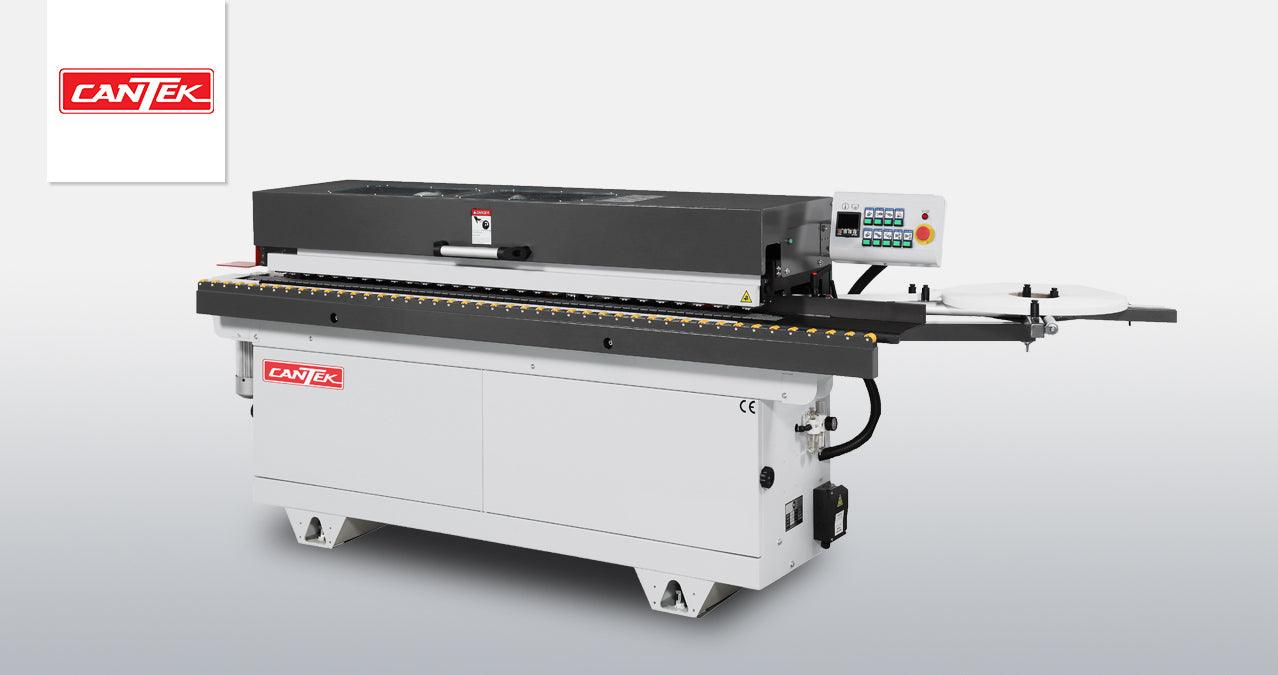

Cantek - Automatic Edgebander MX350M

Free Shipping!


  • $20,480.00


Compact edgebander with pre-milling for best-in-class results.

The Cantek MX350M Automatic Edgebander is an entry level edgebander with pre-milling that is the perfect blend of quality and affordability.  With fine attention to detail and quality componentry, the MX350M can output high quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel just prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. Additionally, the machine is equipped with end trimming, flush trimming, PVC scraping, and buffing.  User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

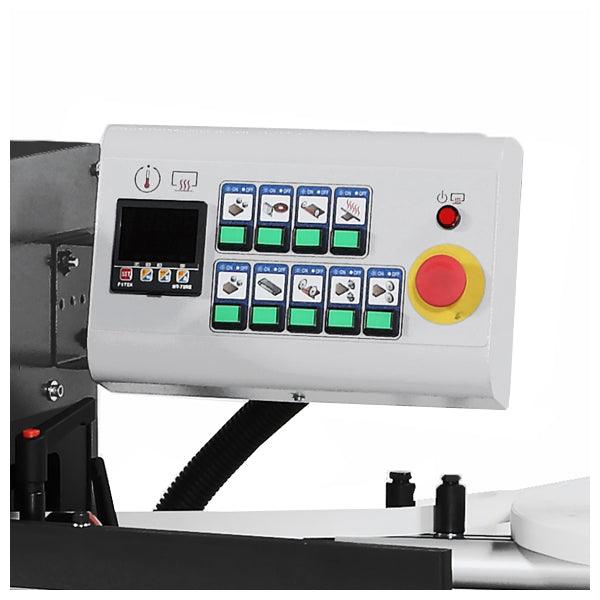

  • PLC control system with LED display and keypad

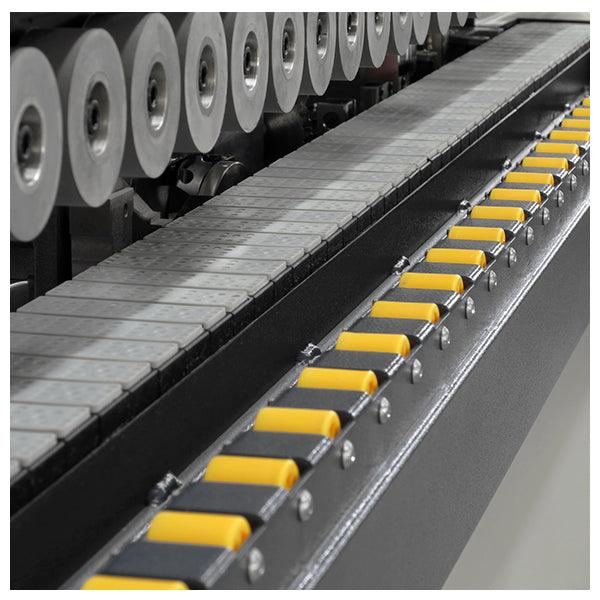

  • Workpiece is fed by chain

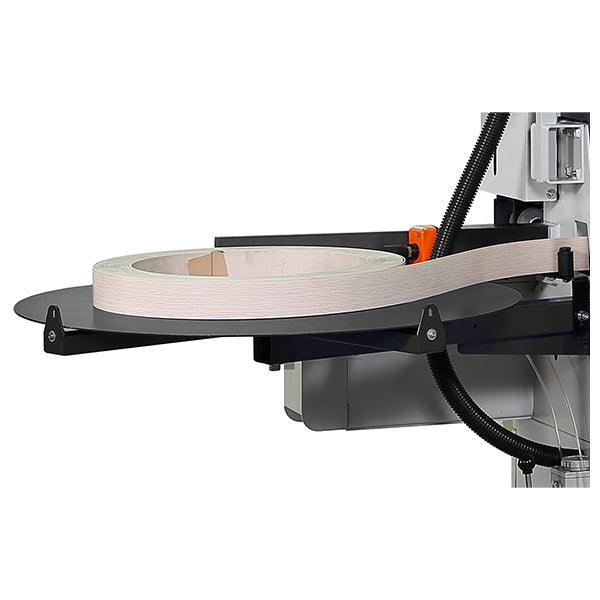

  • Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
  • Automatic edge feeding with a thickness capacity of 0.4-3 mm; strip material up to 4mm can be hand-fed

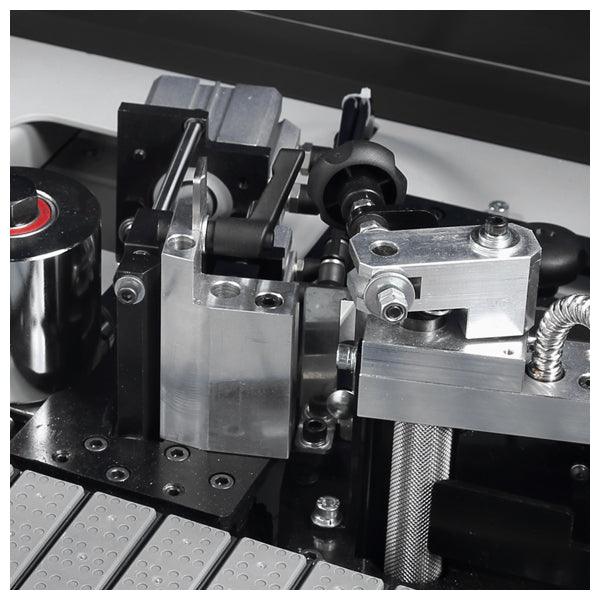

  • Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

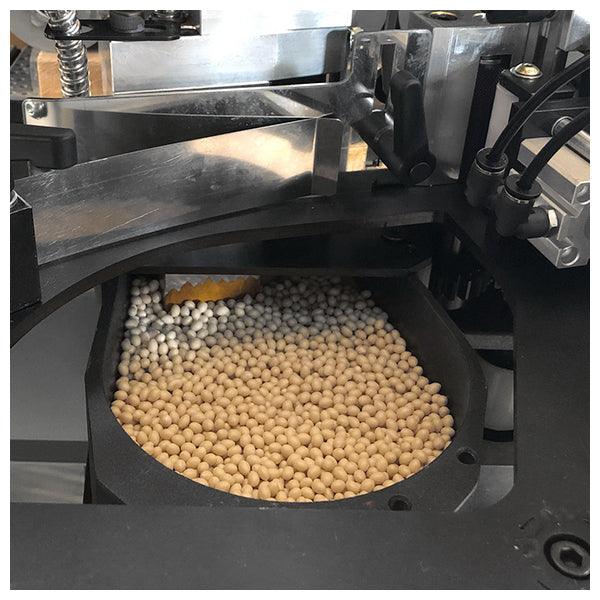

  • 2 kg (2.64 lb) Teflon-coated hot-melt glue pot

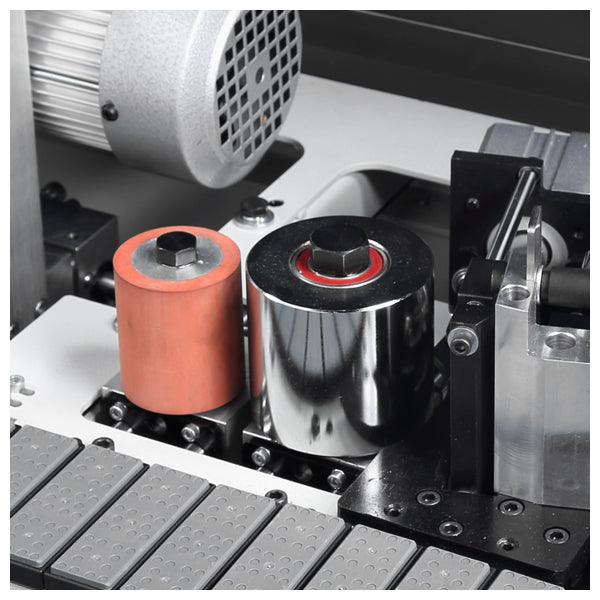

  • Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
  • Heavy duty pressure beam with extendable work-piece support
  • Heated infeed fence for pre-heating the panel for optimum glue penetration
  • Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

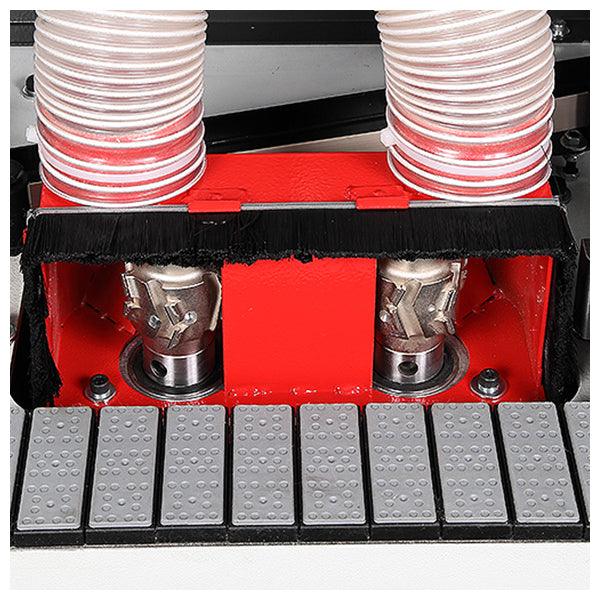

  • PRE-MILLING
    Pre-milling unit with (2) counter rotating diamond cutterheads for precise edge quality.

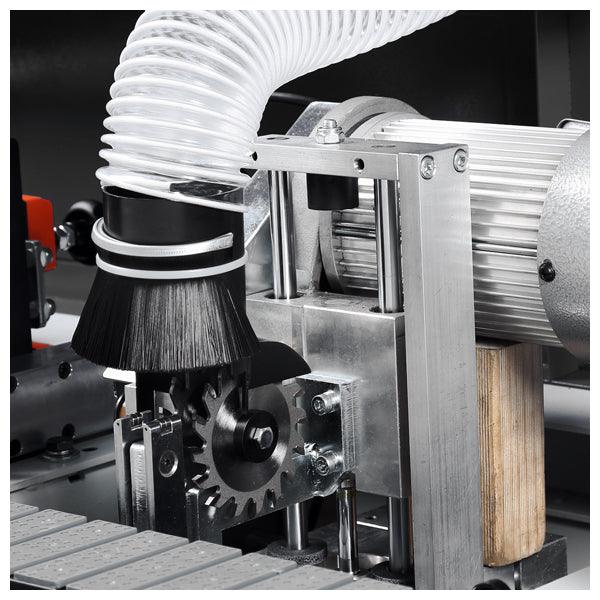

  • END TRIM
    8800 RPM dual saw blade (80mm / 3.15″) end trimming unit

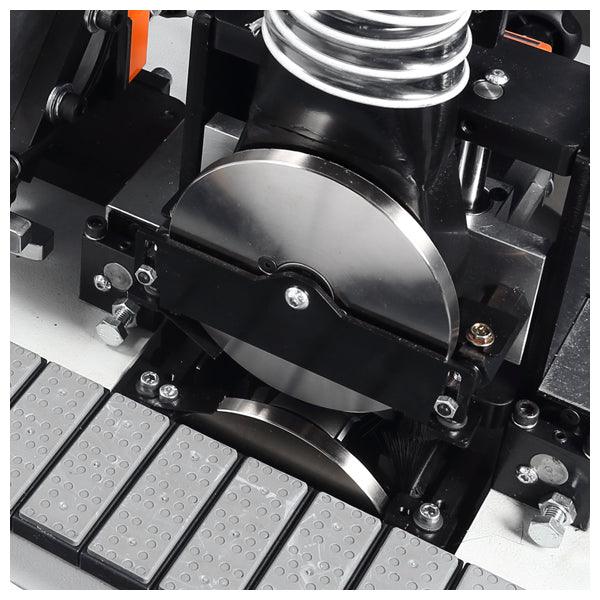

  • TOP & BOTTOM TRIM
    10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

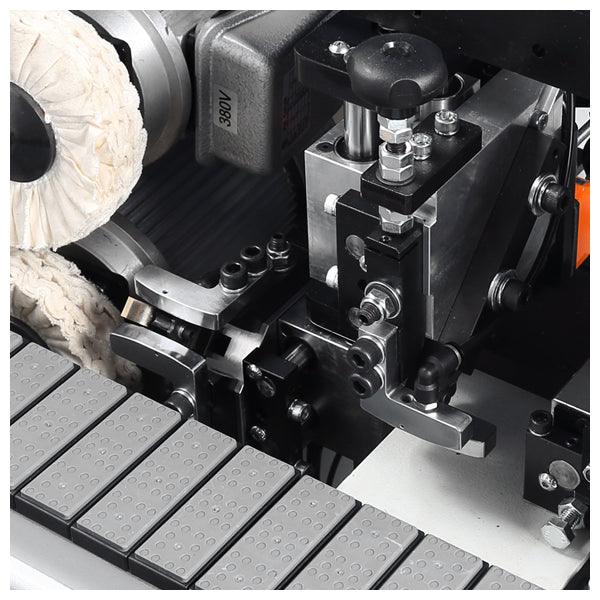

  • RADIUS SCRAPING
    Radius scraper with 2mm radius knives can be easily excluded when not required

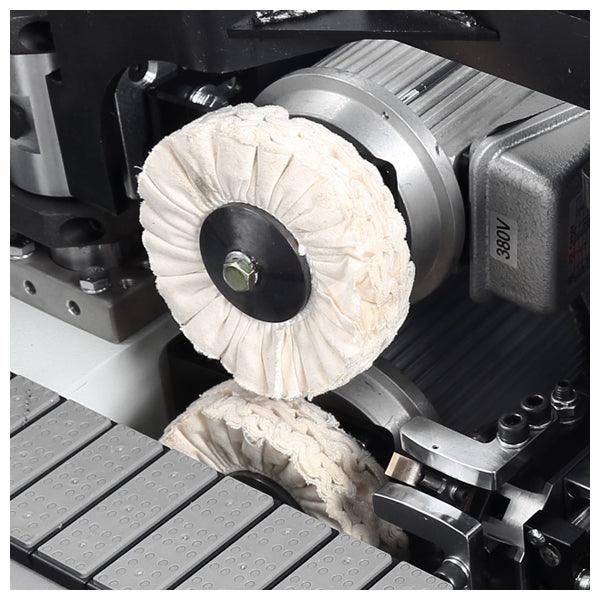

  • BUFFING
    2800 RPM top & bottom buffing units to polish the machined edge

    INCH
    METRIC
    Feeding speed
    23 FPM
    7 m/min.
    Panel thickness
    0.472~1.77”
    12~45 mm
    Edge thickness
    0.0158”~0.118”
    0.4 ~ 3 mm
    Minimum panel width
    3.54”
    90mm
    Minimum panel length
    8 3/4”
    220mm
    Working table height
    33.7”
    856mm
    Extraction connection
    4”
    100mm
    Premilling spindle speed
    9000 RPM

    Top & bottom trimmer RPM
    10500 RPM

    Max. machine dimensions (LxWXH)
    126” x 47 ¼” x 47 ¼”
    3200 x 1200 x 1200mm
    Machine weight
    1162 lbs
    528 kgs
    Shipping dimensions (LxWxH)
    111” x 28.4” x 52”
    2820 x 720 x 1320mm
    Shipping weight
    1452 lbs
    660 kgs

    Feed motor
    1 HP
    0.75 kW
    Pre-milling motor
    2 HP
    1.5 kW
    End trim motor
    1/3 HP
    0.25 kW
    Top & bottom trimming motor
    ¾ HP
    0.55 kW
    Buffing motor (1 phase)
    0.16 HP
    0.12 kW x 2
    Buffing motor (3 phase)
    ¼ HP
    0.18 kW x 2
    Heated infeed fence
    ½ HP
    0.4 kW
    Glue pot
    1 ¾ HP
    1.315 kW
    Total connected power
    8 HP
    6 kW
