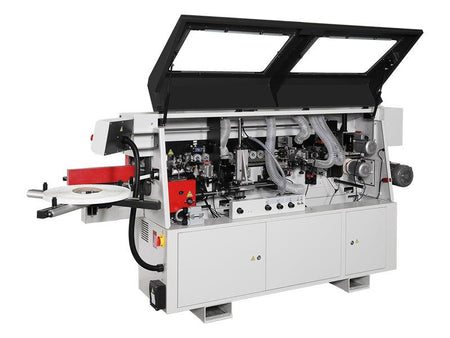

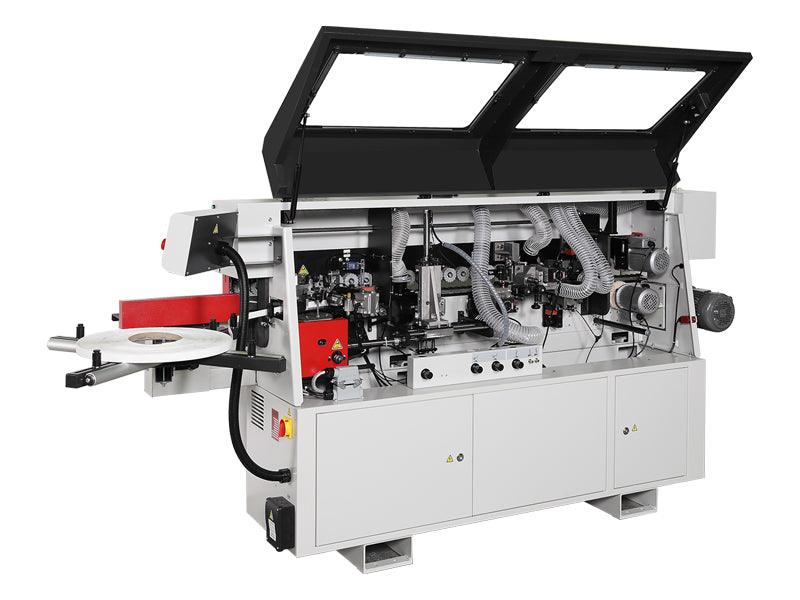

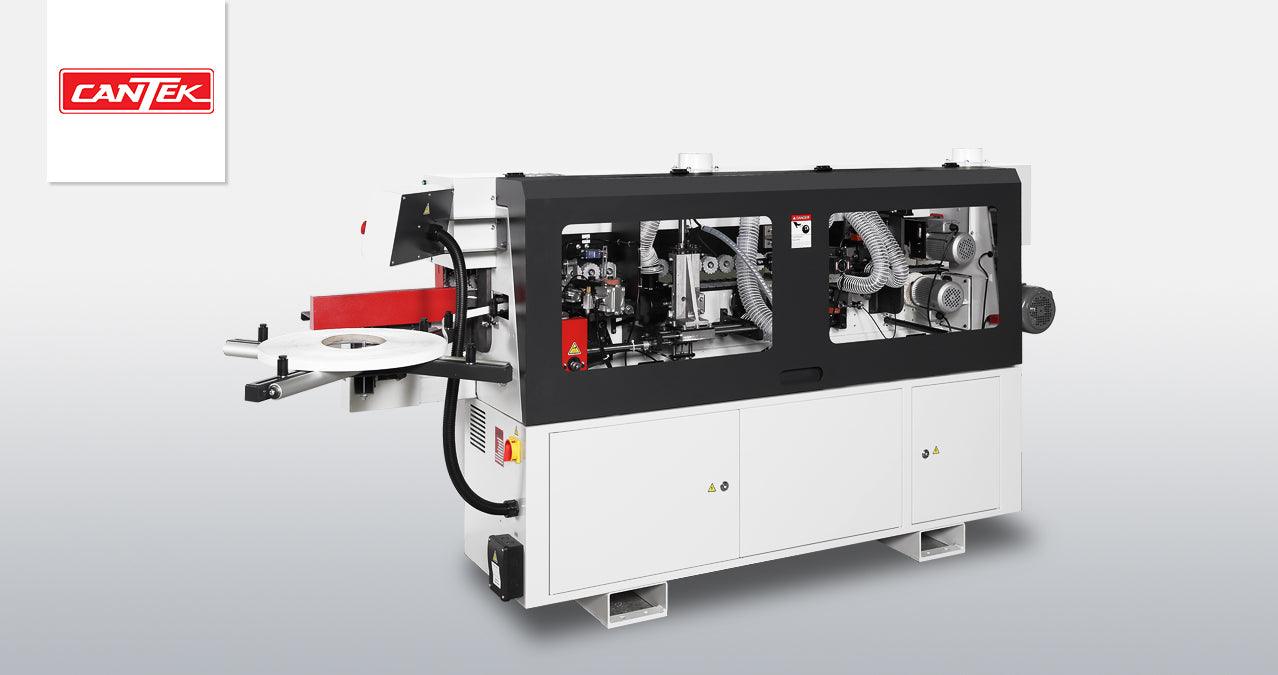

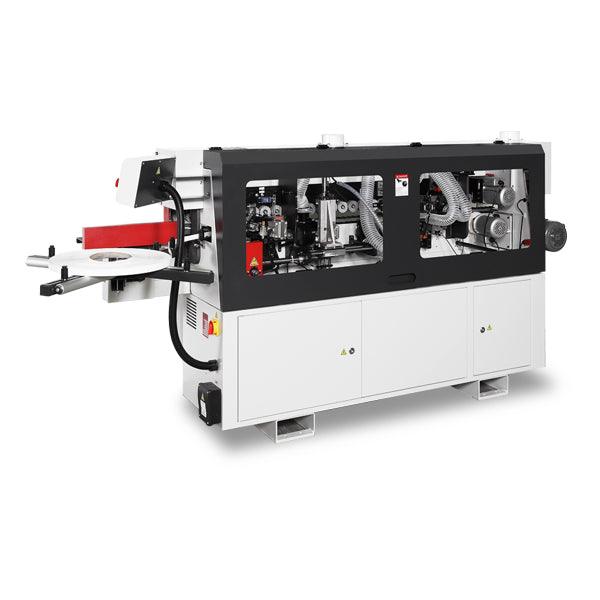

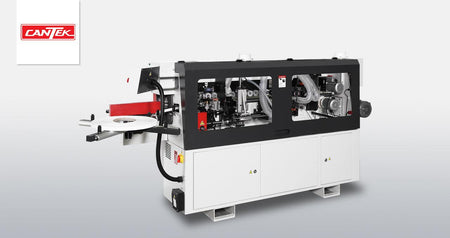

CANTEK Automatic Egdebander MX340 1PH

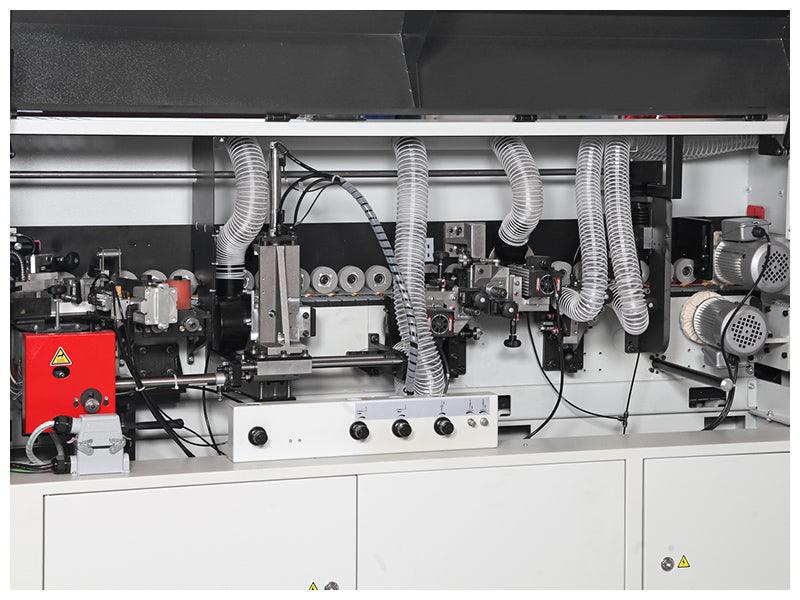

• The MX340 from Cantek is designed to be a compact, and durable edgebander offered at an affordable price. This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing.  User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

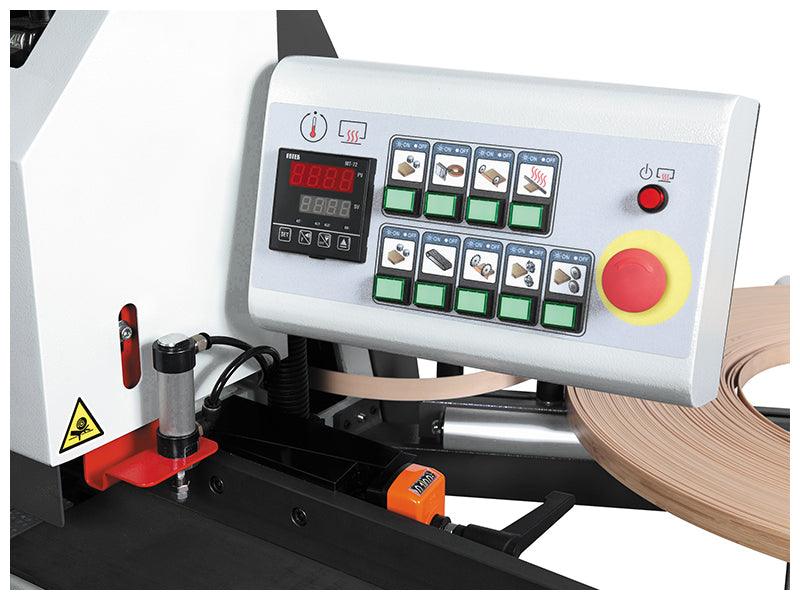

  • • PLC control system with LED display and keypad
    • Work-piece is fed by chain
    • Edge coil support plate: Ø 800 mm, for PVC/ABS
    • Edge feeding is Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed

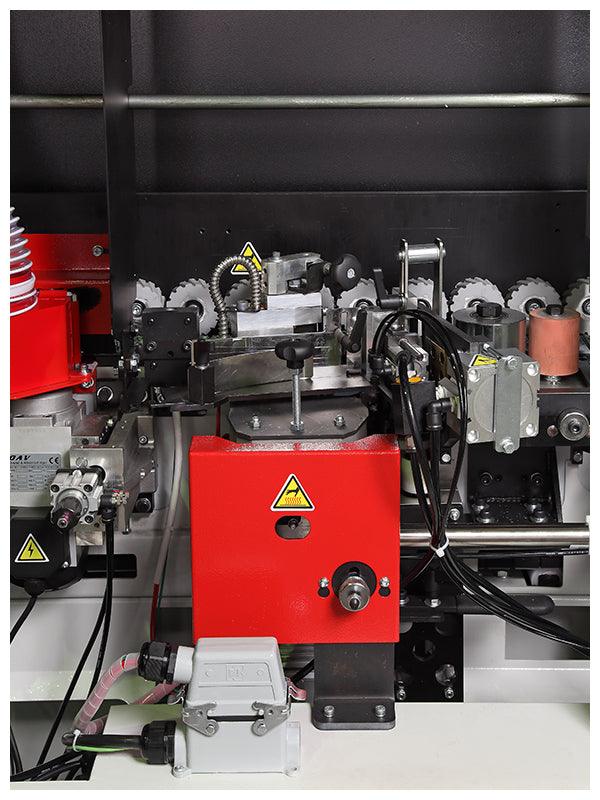

    • Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

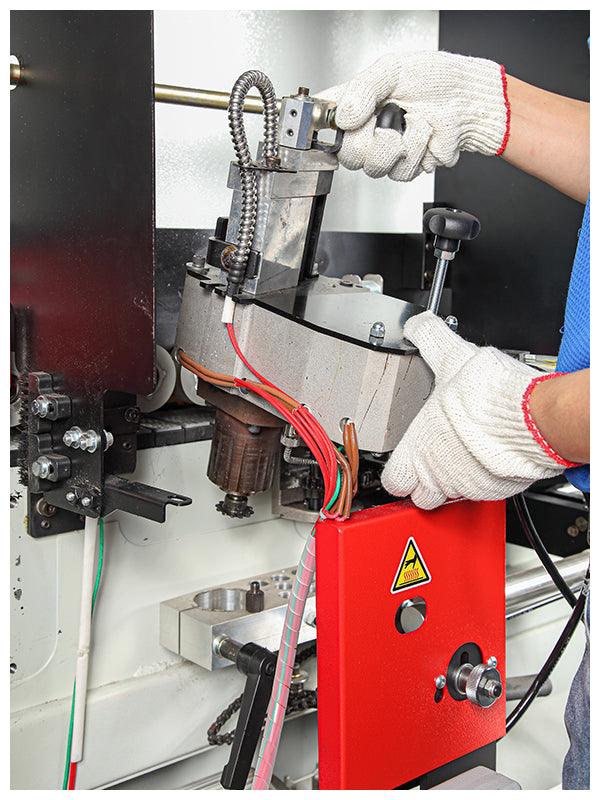

    • Teflon-coated hot-melt glue pot
    • Spring loaded pressure unit with (2) pressure rollers

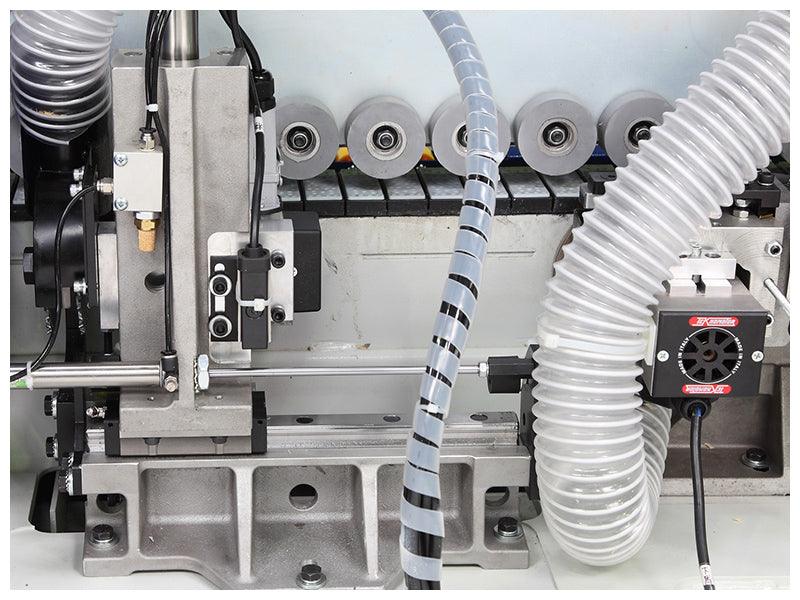

    • High frequency 12000 RPM end trimming unit, with Ø100 mm TC-Saw blades

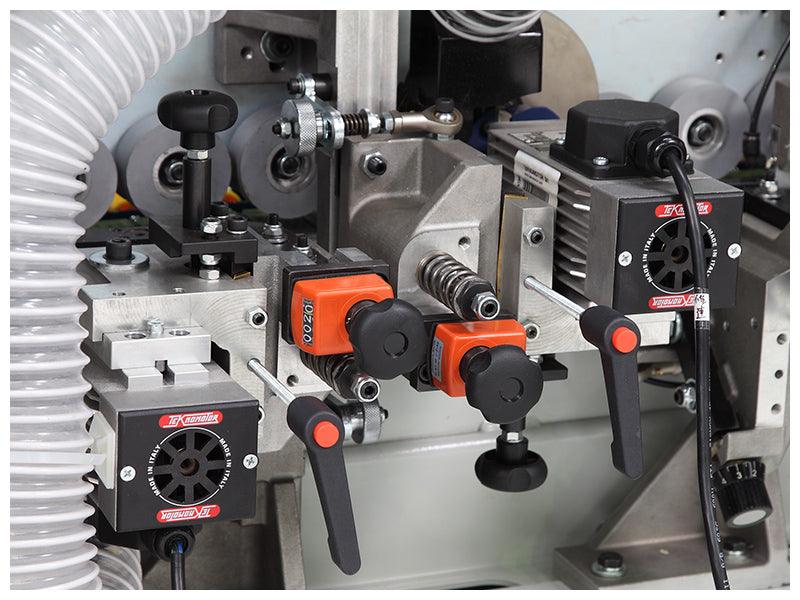

    • High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

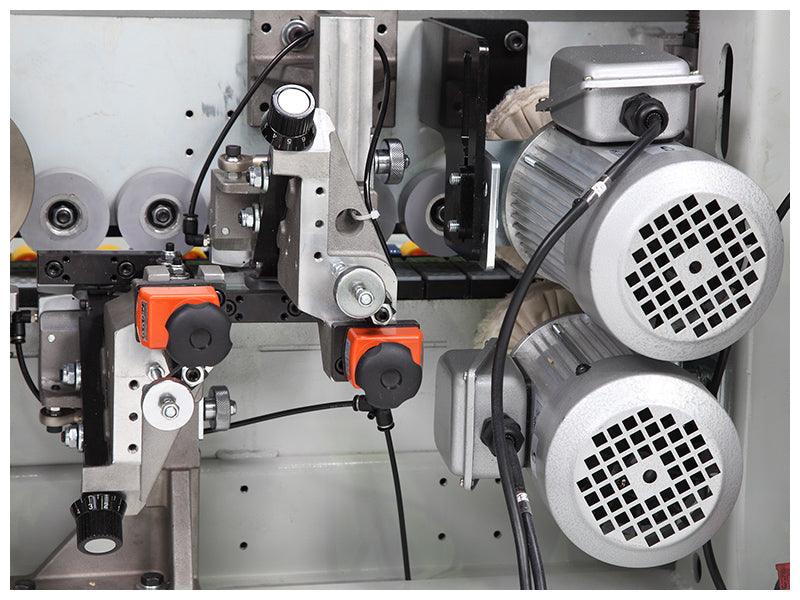

    • Radius scraper with 2mm radius
    • 3000 RPM top & bottom buffing units
    • Heavy duty pressure beam with extendable work-piece support
    • Heated infeed fence for pre-heating the panel for optimum glue penetration



      Feeding speed	9 meters/min.
      Panel thickness	8~45 mm
      Edge thickness	0.4 ~ 3 mm
      Min. panel width	100 mm
      Min. panel length	210 mm
      Working table height	850 mm
      Dust collection outlet	Ø 127 mm (5”)
      Electrical consumption	5.5 KW
      Electrical requirement	30 amps (Voltage must be +/- 5%)
      Voltage	230/3/60
      Machine weight	520 kgs
      Machine dimensions	2950 x 1370 x 660 mm
      Shipping weight	558 kgs
      Shipping dimensions	2290 x 720 x 1360 mmhttps://youtu.be/ugt2tUZ6yPA
