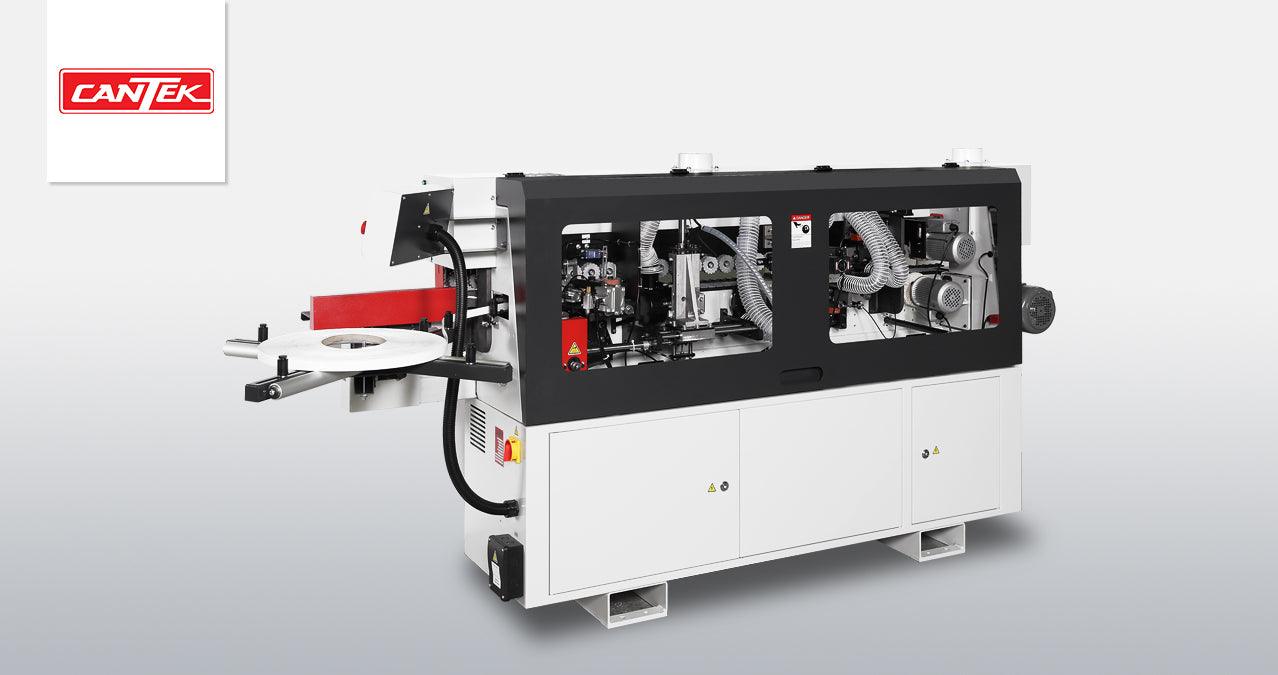

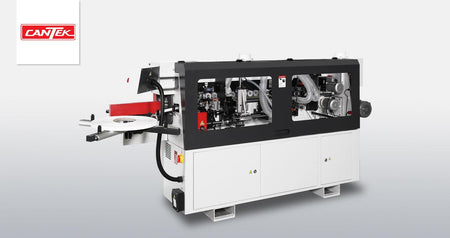

Cantek Automatic Egdebander 3PHH MX340 3PH
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Overview

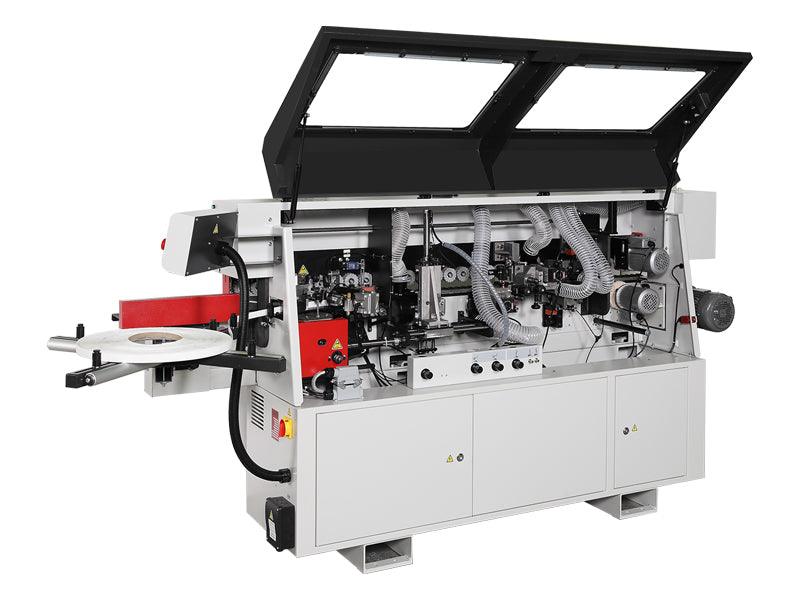

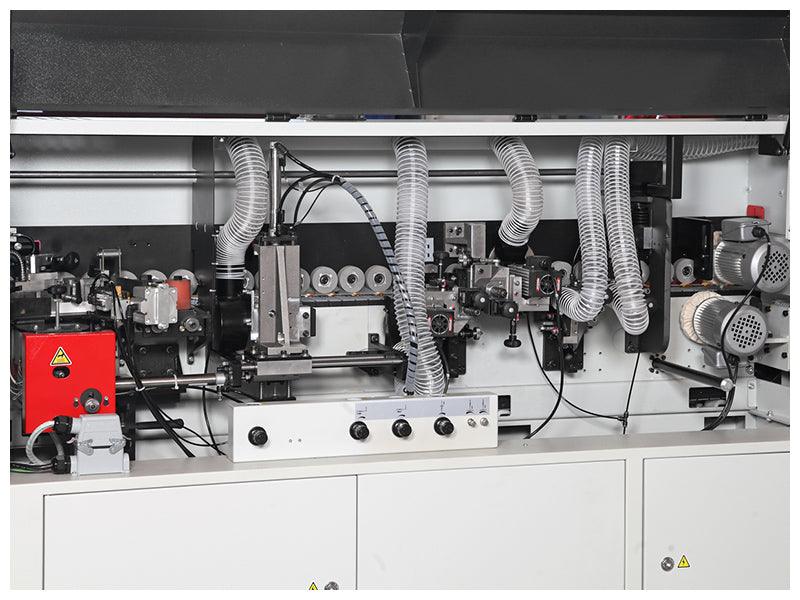

The Cantek MX340 Automatic Edgebander is a compact, durable edgebander offered at an affordable price. It is equipped with end trimming, flush trimming, PVC scraping, and buffing, with user-friendly controls and adjustments allowing efficient changeovers of edge tape thicknesses between 0.4mm and 3mm.
Key Features

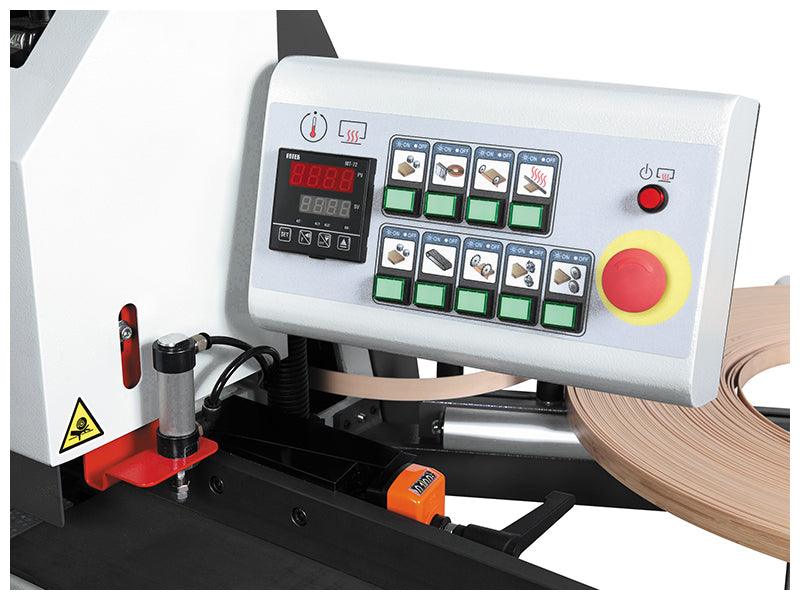

- PLC control system with LED display and keypad
- Work-piece fed by chain

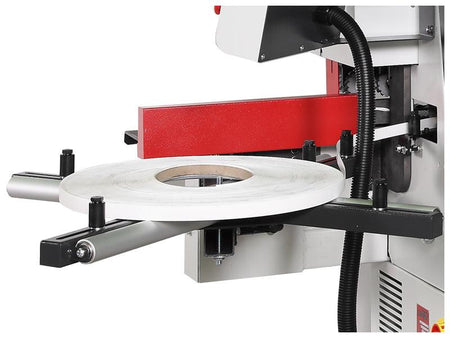

- Edge coil support plate: Ø 800 mm, for PVC/ABS
- Automatic edge feeding with 0.4–3mm thickness capacity; strip material can be hand-fed
- Coiled edge bands up to 3mm thick in Hard-PVC/ABS cut with guillotine shears

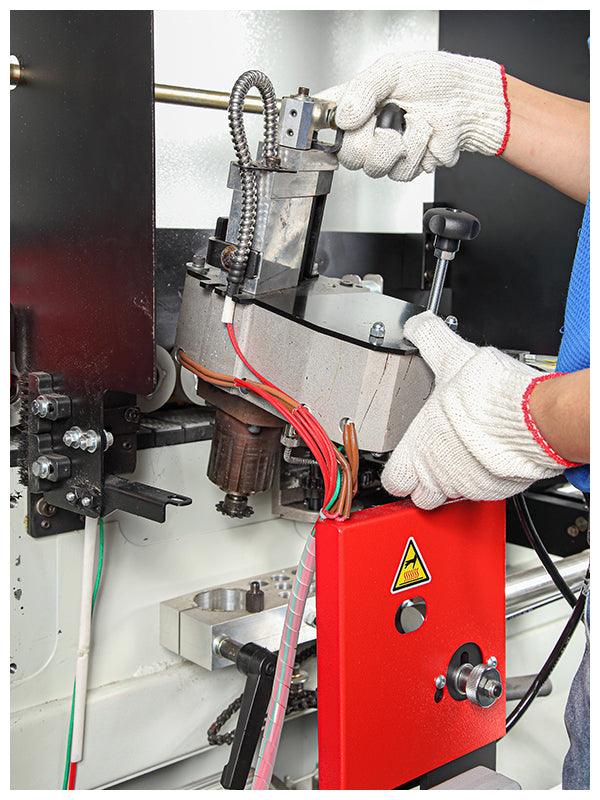

- Teflon-coated hot-melt glue pot
- Spring loaded pressure unit with (2) pressure rollers

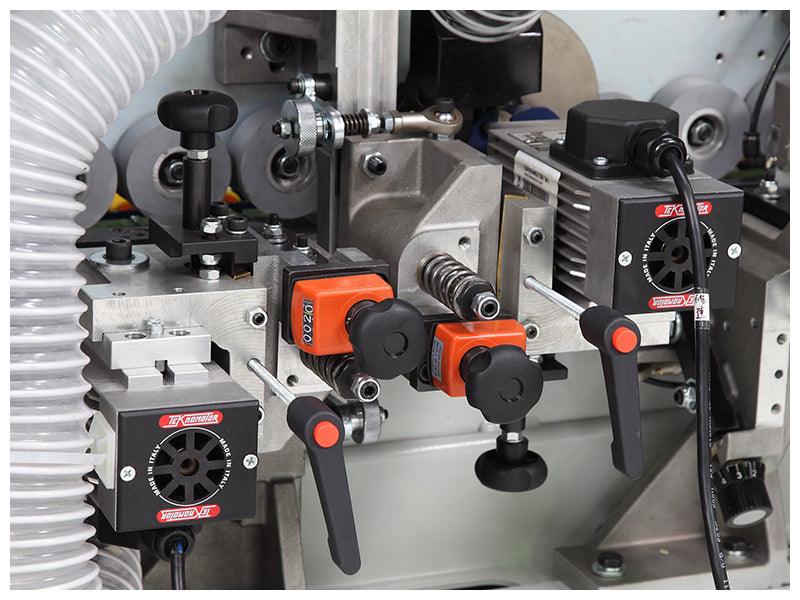

- High frequency 12000 RPM end trimming unit, with Ø100mm TC-Saw blades
- High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius & bevel trimming
- Radius scraper with 2mm radius
- 3000 RPM top & bottom buffing units
- Heavy duty pressure beam with extendable work-piece support
- Heated infeed fence for pre-heating the panel for optimum glue penetration
Specifications
| Feeding Speed | 9 meters/min. |
|---|---|
| Panel Thickness | 8~45 mm |
| Edge Thickness | 0.4 ~ 3 mm |
| Min. Panel Width | 100 mm |
| Min. Panel Length | 210 mm |
| Working Table Height | 850 mm |
| Dust Collection Outlet | Ø 127 mm (5″) |
| Electrical Consumption | 5.5 KW |
| Electrical Requirement | 30 amps (Voltage must be +/- 5%) |
| Voltage | 230/3/60 |
| Machine Weight | 520 kgs |
| Machine Dimensions | 2950 x 1370 x 660 mm |
| Shipping Weight | 558 kgs |
| Shipping Dimensions | 2290 x 720 x 1360 mm |
