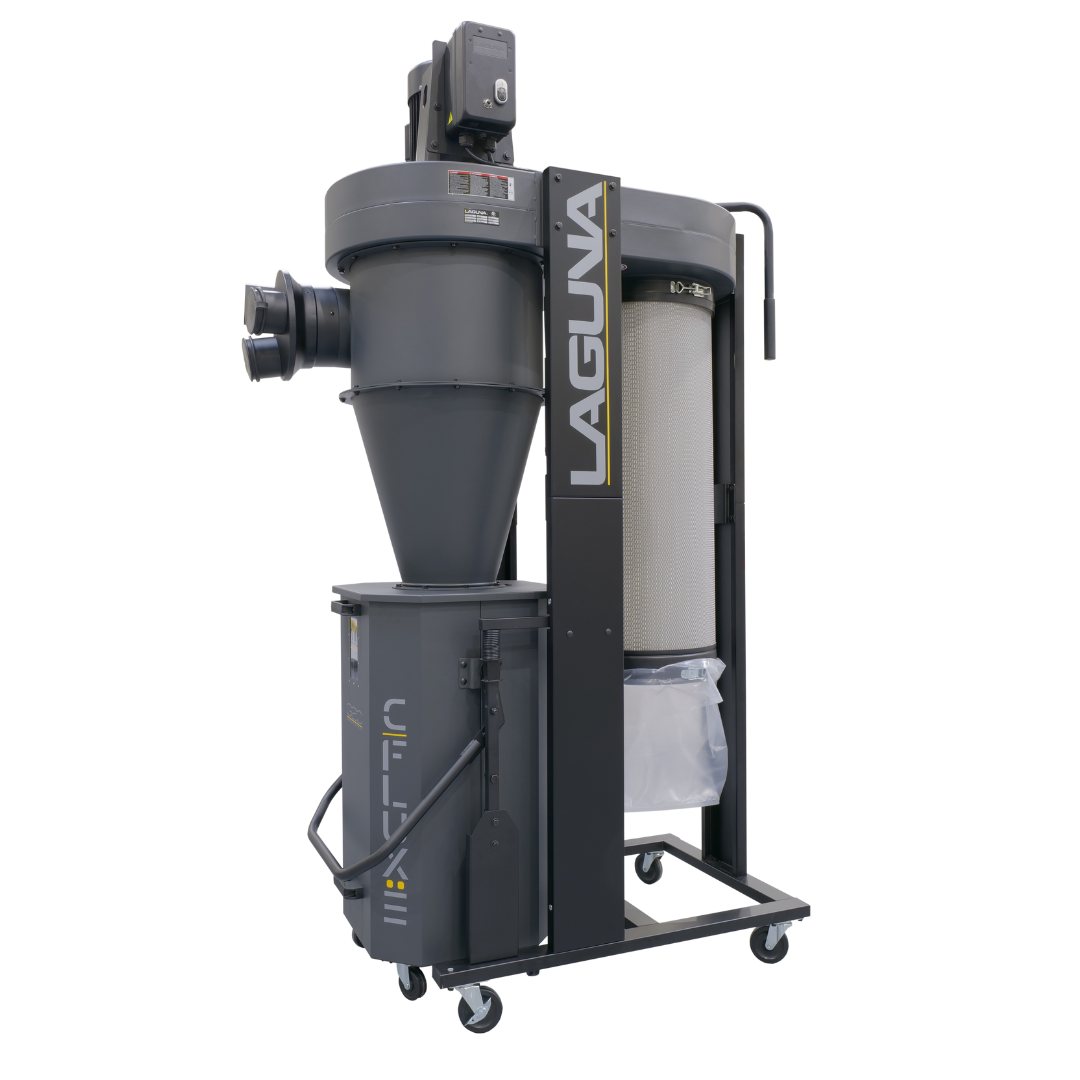

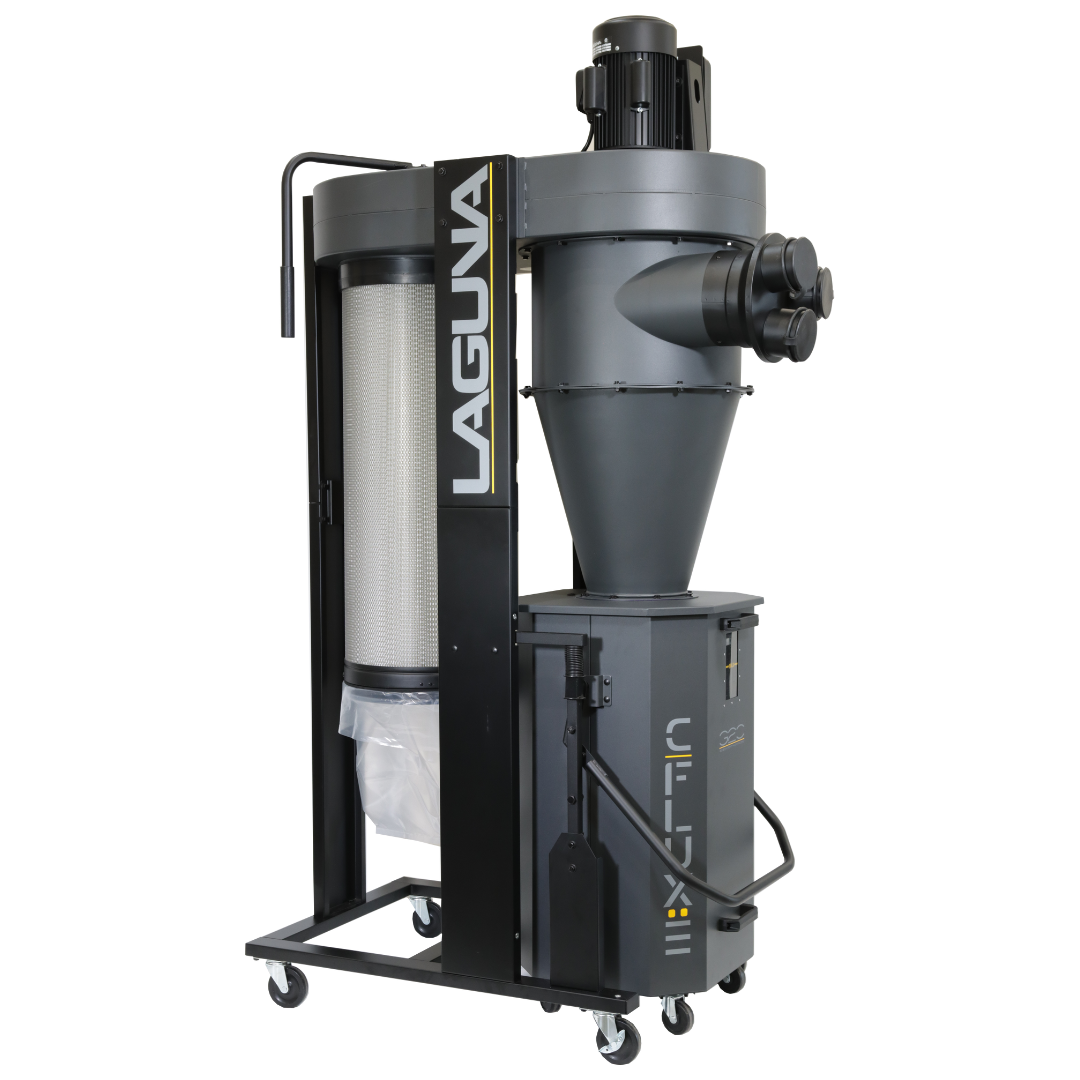

C|Flux: III Dust Collector

In 2022, Laguna has updated its line-up of C|Flux & P|Flux cyclones, and launched the all-new X|Flux 5 dust collector!

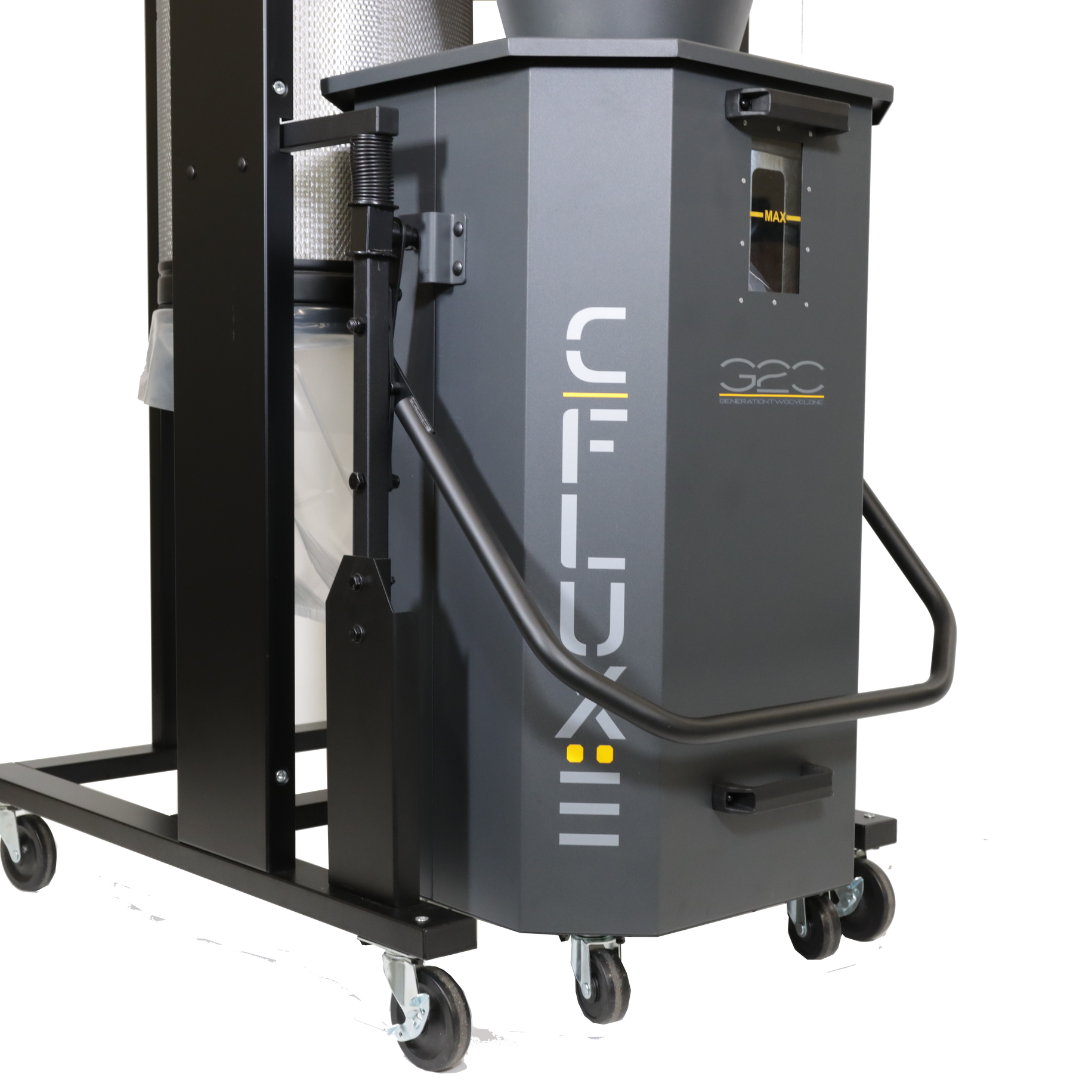

For the popular C|Flux cyclone dust collectors, we've kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity.  The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the added locking casters provide additional stability.

Motor Specs: 3 HP

Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM

Running AMP: (8” inlet) 22A at 220V

Air Volume: 1624CFM (cubic feet per minute)

Max. static pressure: 11.2 Inches of water

Fan size: 15.5”

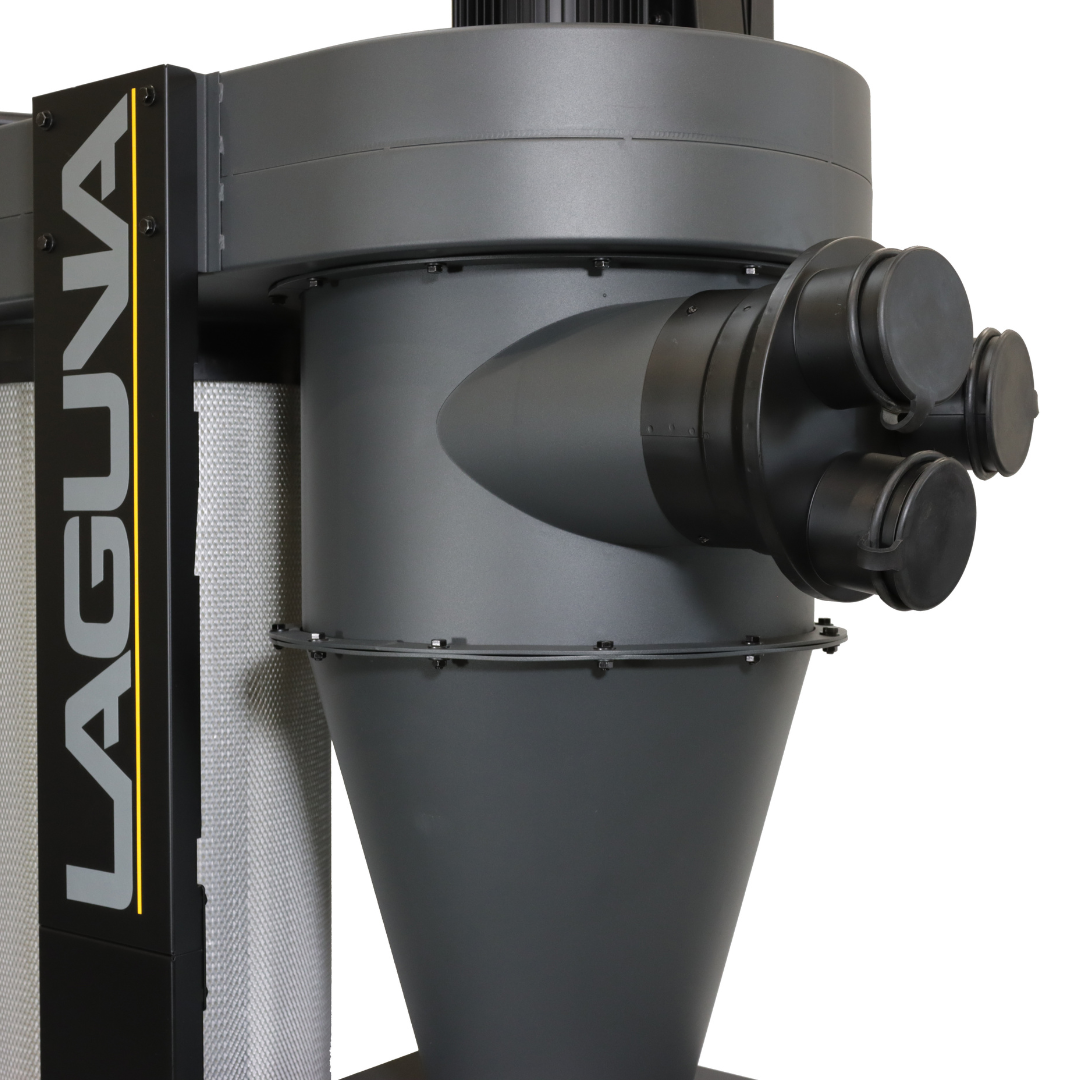

Inlet: Ø8” (Ø 8” BY Ø 4” X 3 PORTS)

Remote Control: High frequency

Collection capacity: 46-gallon Octagon drum

(L x W x H)

50” x 31.5” x 50.6”

(127 x 80 x 128.5 cm)

Assembled Dimensions:

(L x W x H) - 48” x 28” x 87”

Machine weight: 373 lbs. (169 kgs)

Shipping weight: 441 lbs. (200 kgs)

Filter Media: filtering area: 9.5 m2 (102 ft2)

Cartridge Filter: 1 Micron Ø15.74” x 35.43” (Ø40 x 90cm) x 1pc
