CANTEK 303S 10" Straight Line Ripsaw
by Cantek
Original price
$14,175.00
-
Original price
$14,175.00
Original price
$14,175.00
$14,175.00
-
$14,175.00
Current price
$14,175.00
Save time and speed up production in your ripping operations.
The CANTEK 303S Straight Line Ripsaw is a straight line ripsaw that is the ideal ripping upgrade for those looking to prepare material for a moulder or for producing face frame material. The 303S automatically feeds the material for consistent rip results. The cast iron feed chain runs on double V guide rails and holds the material firmly for precision straight cutting. A powerful 10 HP motor with maximum 12” blade provides a cutting depth up to 3.35”. A micro adjustable infeed fence allows for quick setups to ensure precise rip widths with fast adjustments.
Why CANTEK 303S Straight Line Ripsaw ?
- Rigid machine body consists of a thick welded steel frame with an integral table which is fitted with a sturdy cast column.

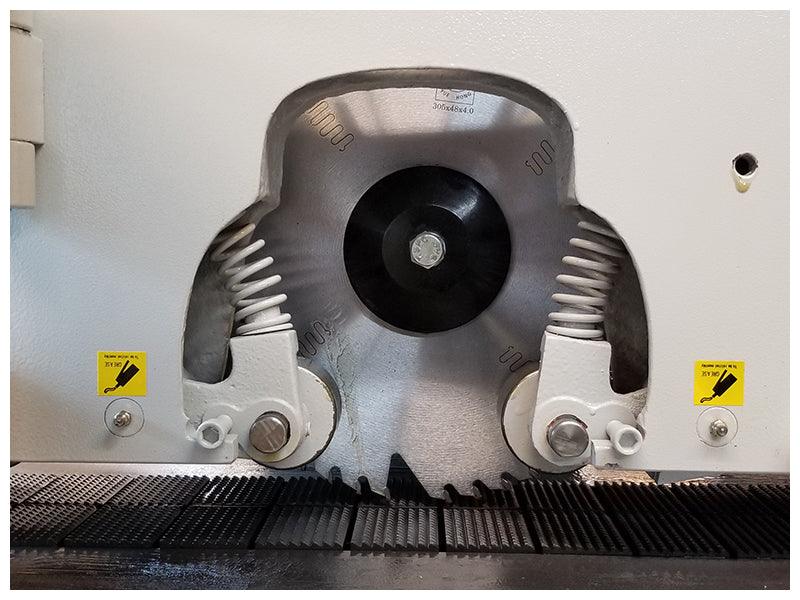

- Precision built saw arbor constructed to ensure precision cutting without vibration.
- Cast iron upper assembly & cast iron table with superior vibration damping for optimum results

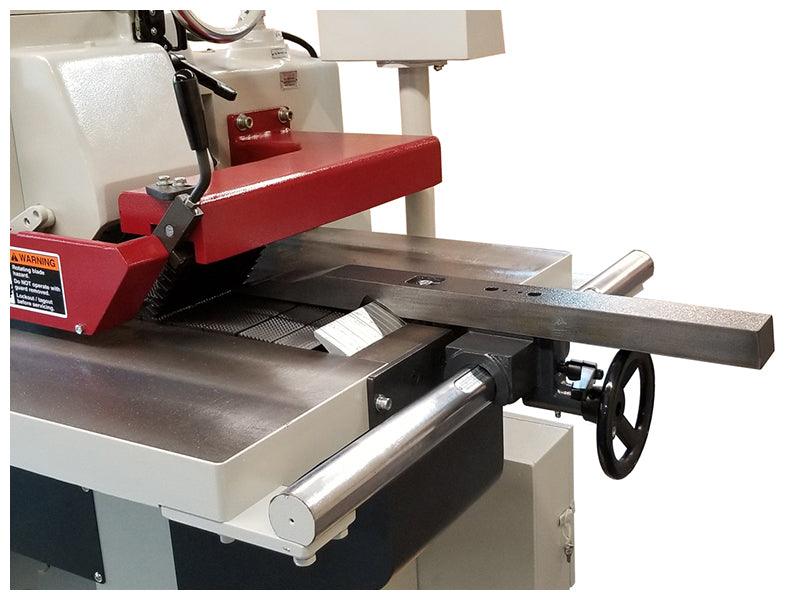

- Micro adjustable fence by rack and pinion for fast setups with precise results

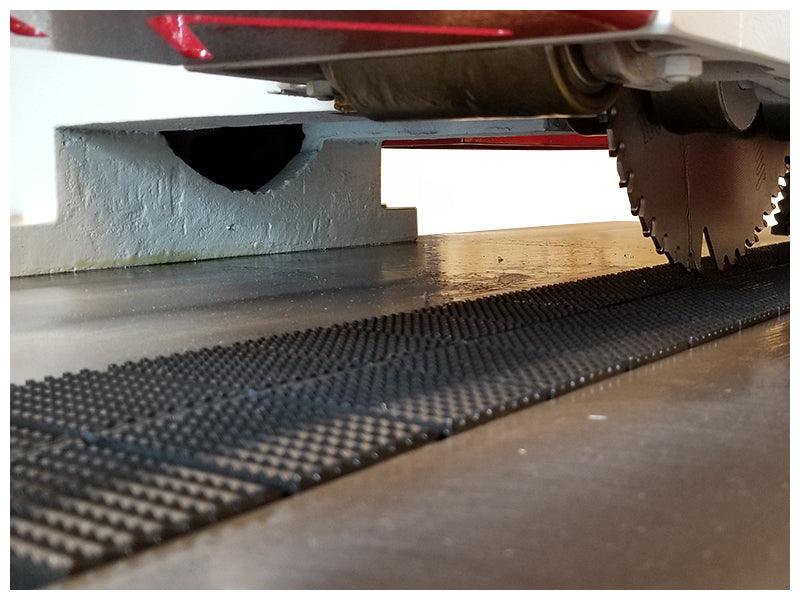

- Cast iron chain and track assembly is precision machined and hardened for maximum wear resistance with superior cut quality

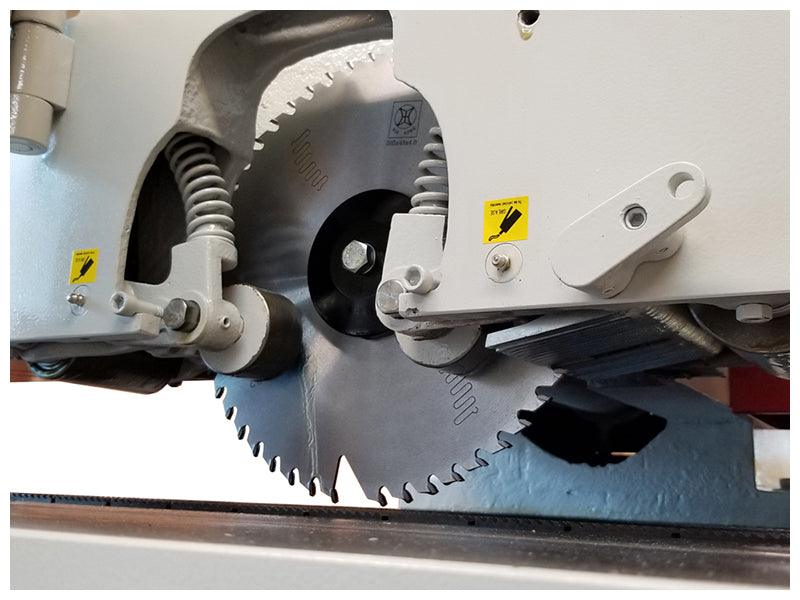

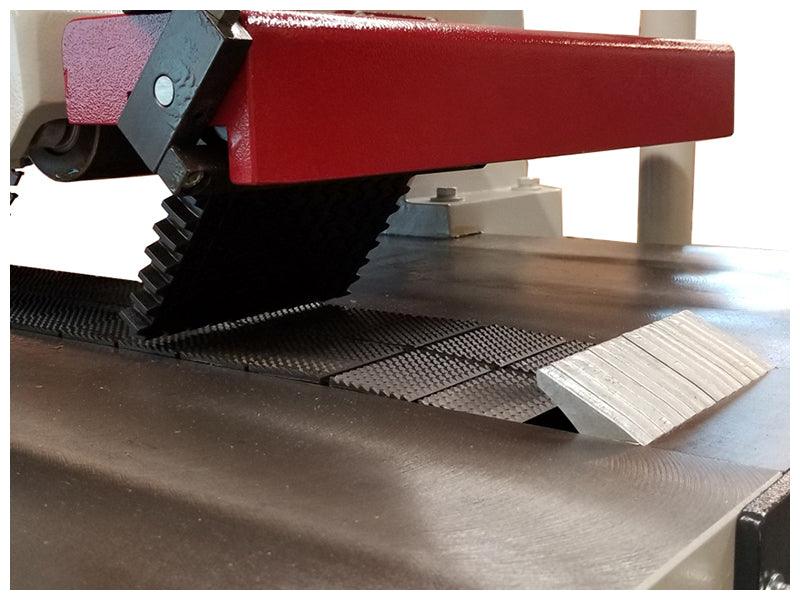

- Two rows of anti-kickback fingers for safe operation
- Swing down rear table prevents short workpieces and thin edgings from jamming in the machine

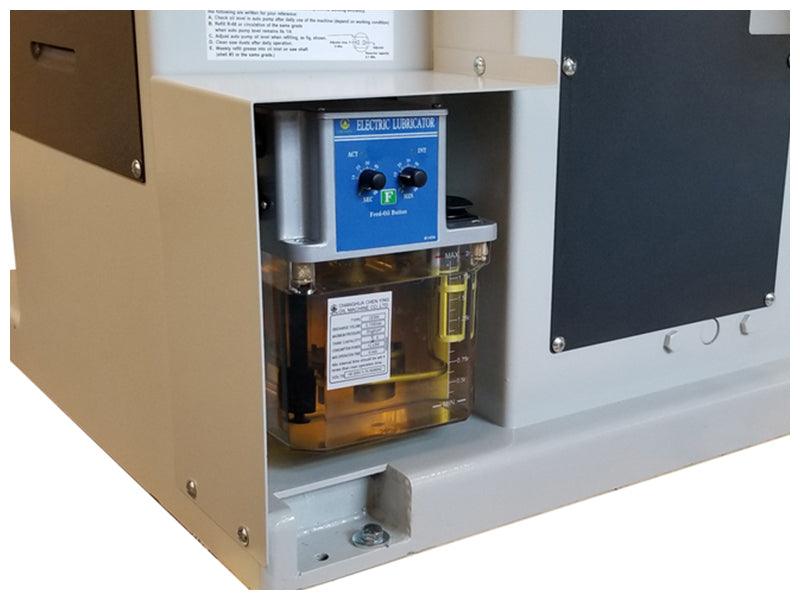

- Electronic chain lubricator provides consistent lubrication to the chain track for optimum wear resistance
- Powerful 10HP motor

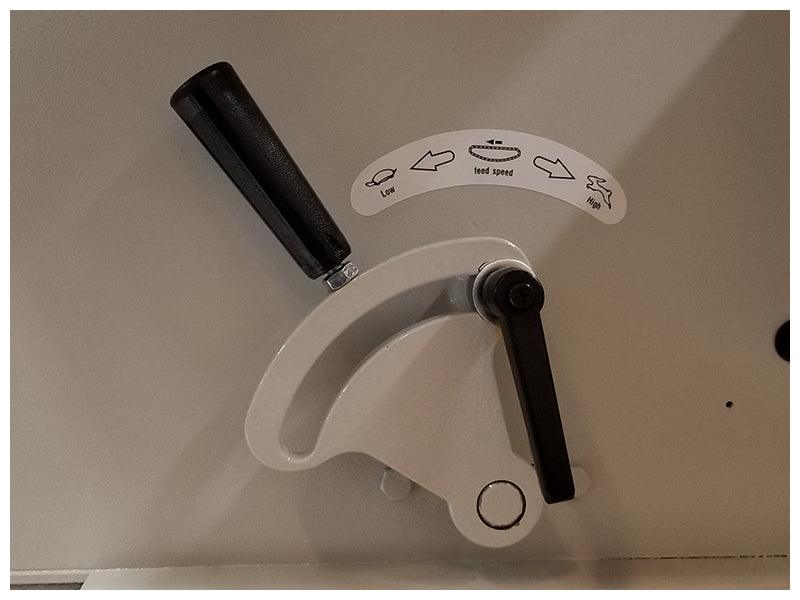

- Three feed speeds can be externally adjusted for operator convenience

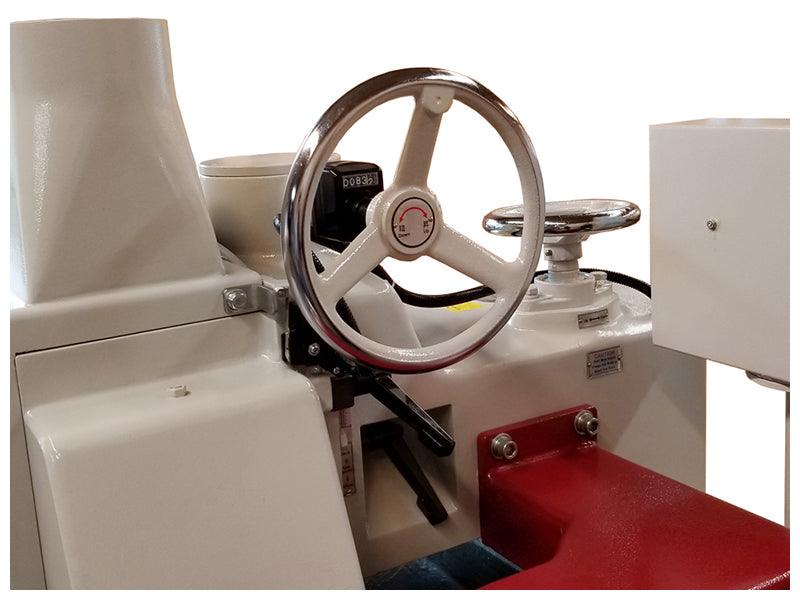

- Mechanical digital readout for setting the workpiece thickness
- 12” blade is included

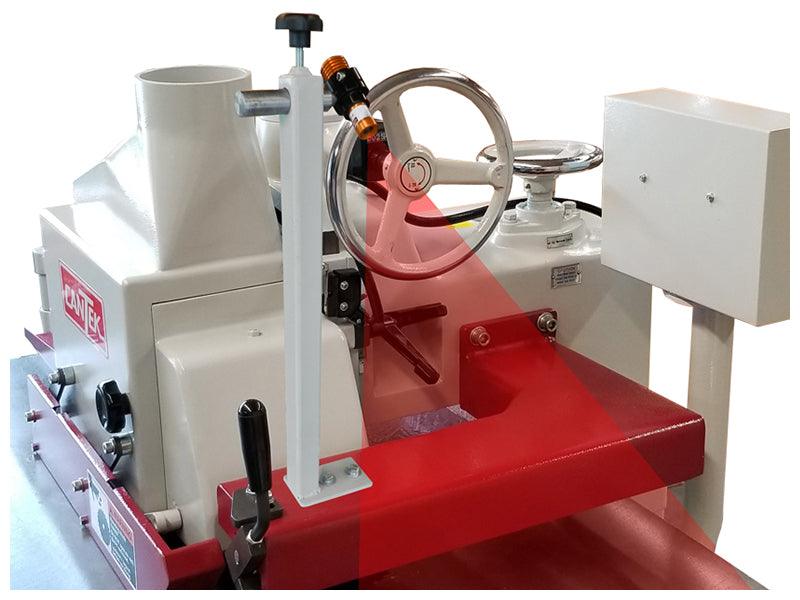

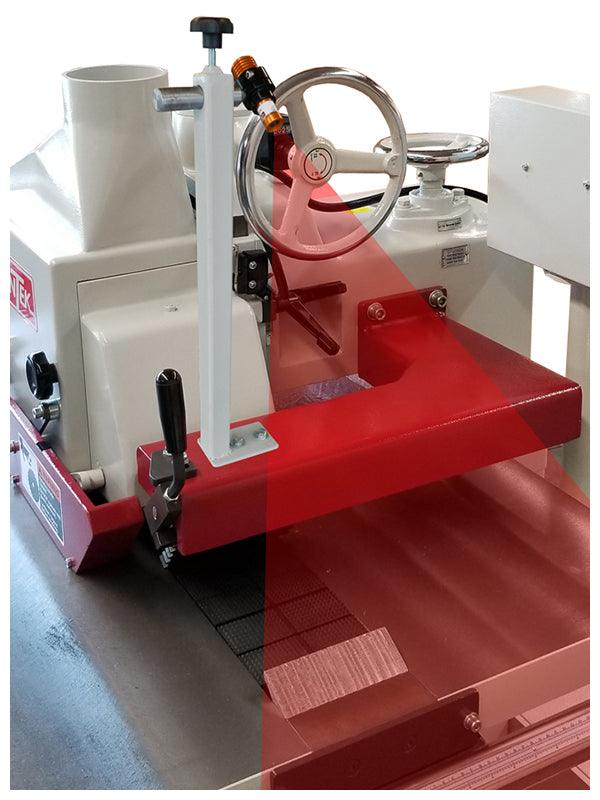

- Optional laser light for projecting the cutting line
| Saw arbor diameter | 1″ |
| Saw blade diameter | 8 – 12″ |
| Saw arbor speed | 4500 RPM |
| Feed speeds |
3 (50, 65, 85 FPM)
|
| Maximum workpiece thickness | 3.35″ |
| Minimum workpiece length | 8″ |
| Pressure rollers |
4 rows (6 rollers)
|
| Distance between saw and column | 13 ¾” |
| Arbor motor | 10 HP |
| Feed motor | 1 HP |
| Table size | 30″ x 50″ |
| Table height | 31-7/8″ |
| Net weight | 1870 Lbs |
| Shipping weight | 2310 Lbs |
| Machine dimensions |
61″ x 38″ x 53″
|
| Shipping dimensions |
59″ x 46″ x 59″
|
