Cantek Automatic Edgebander Premilling, end trimming, top/bottom trimming, corner rounding MX380PRO
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Overview

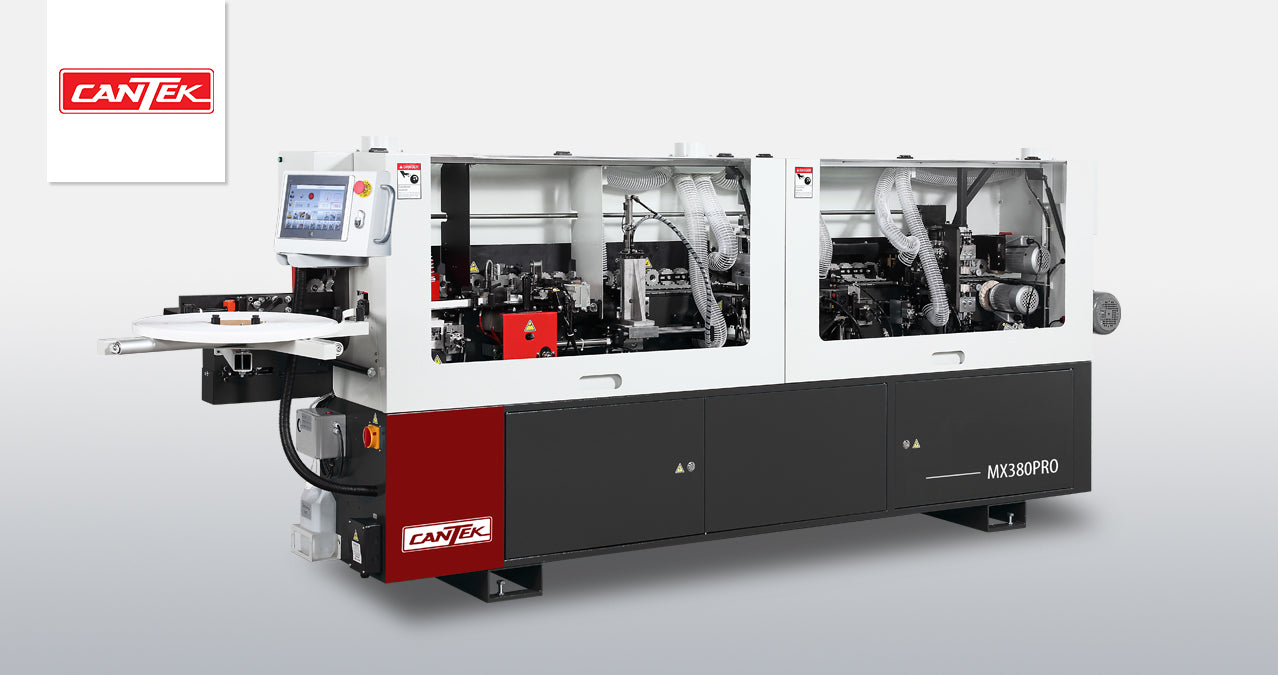

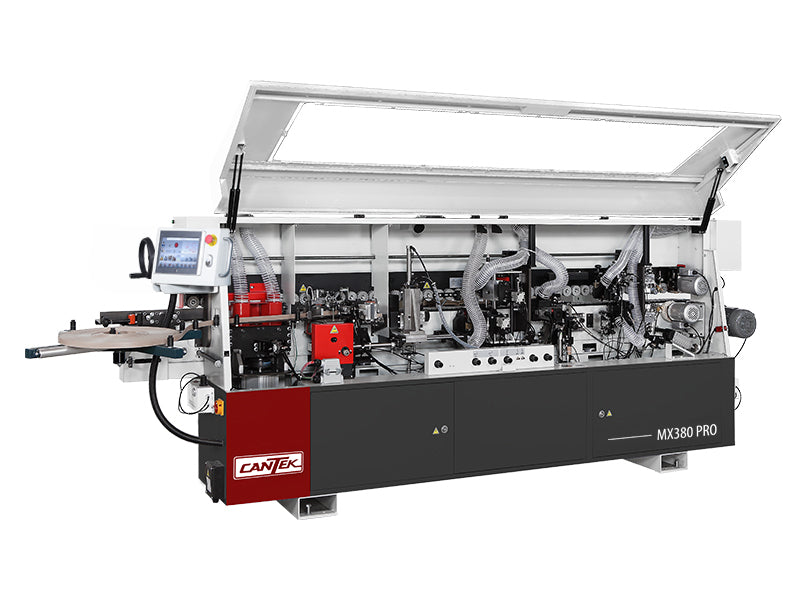

The Cantek MX380PRO Automatic Edgebander is a full-featured production edgebander built around a touch screen interface that lets the operator switch between flush trim, chamfer, and radius trim right from the control panel. Three-position pneumatic RAPID changeover moves between 0.5mm, 1mm, and 2mm edge thickness without manual resetting, while on-screen diagnostics and automatic temperature control simplify day-to-day operation. Premilling, end trimming, top/bottom trimming, corner rounding, radius scraping, buffing, and release/cleaning agent spray stations are all built in for a finished edge in a single pass.
Key Features

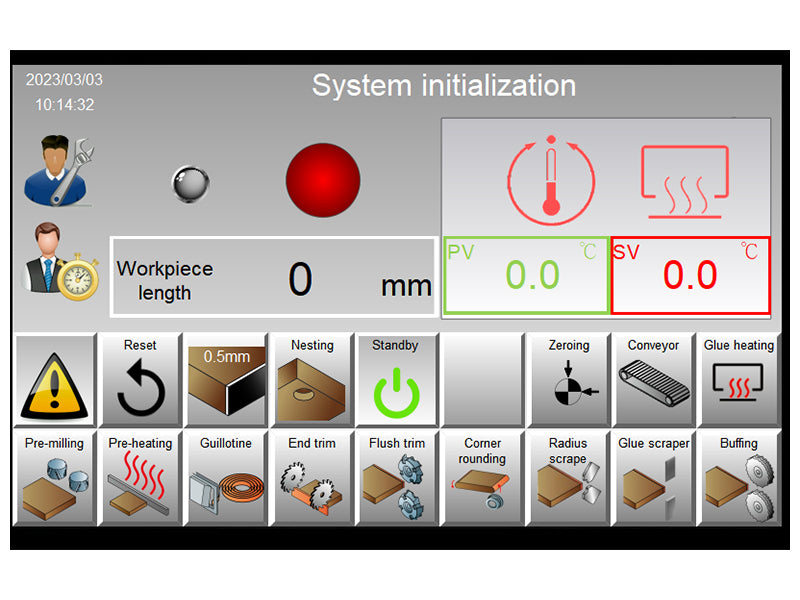

- Touch screen interface controls machine functions, trim mode, and temperature, with on-screen error diagnostics
- Three-position pneumatic RAPID changeover (0.5mm / 1mm / 2mm) selectable from the control panel

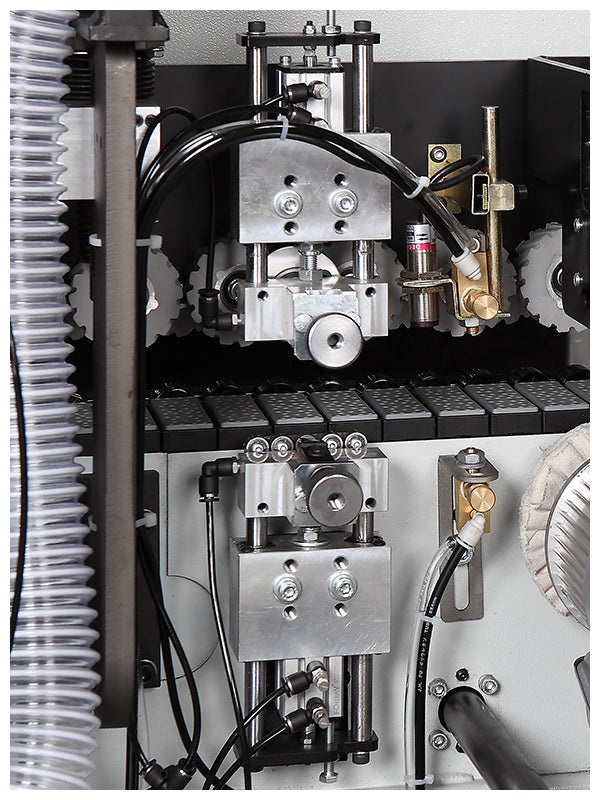

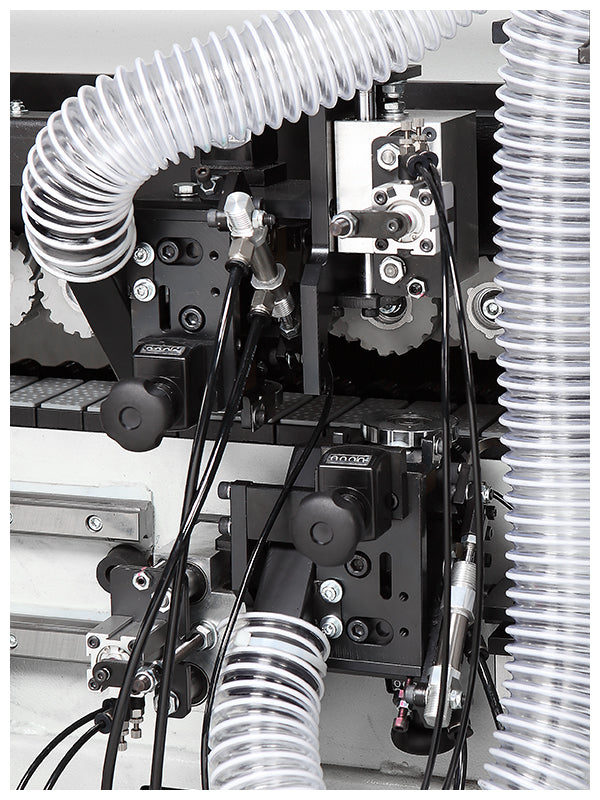

- Multi-radius scrapers apply a 1mm or 2mm radius to the top and bottom of the panel

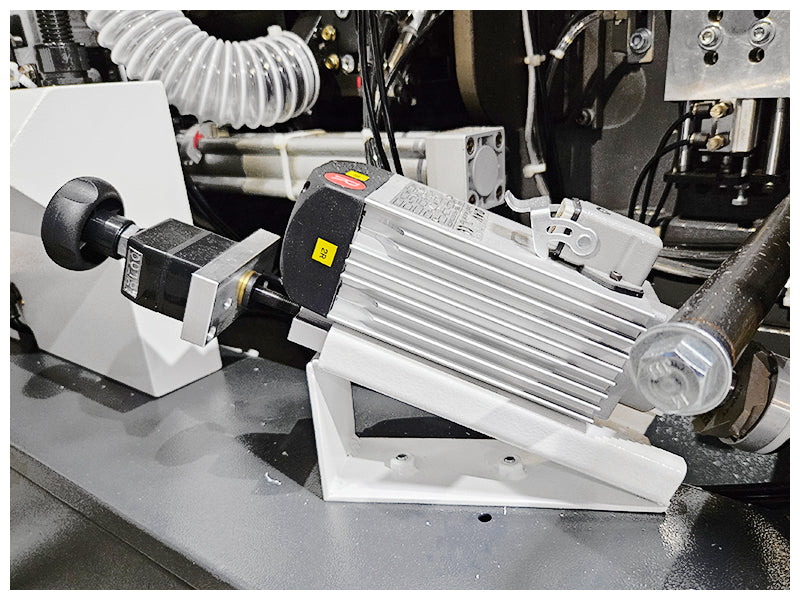

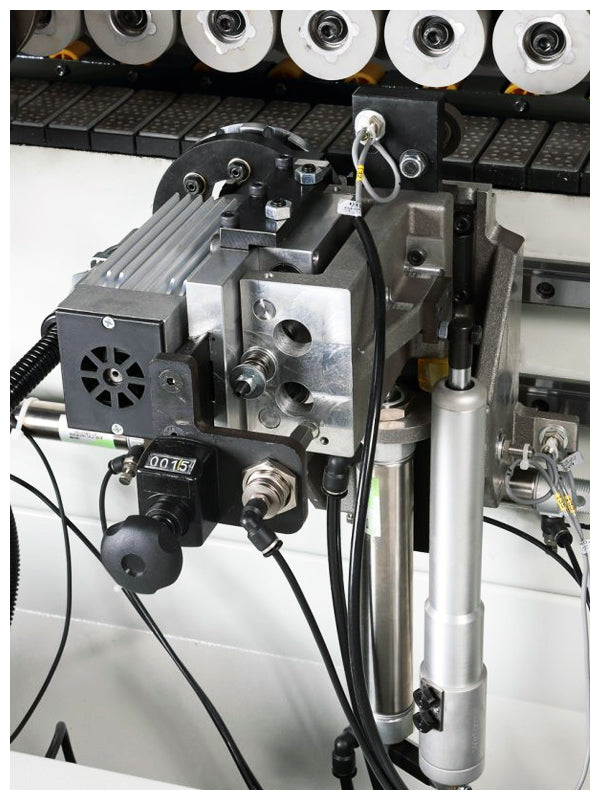

- Quick-change corner rounding motor for fast changeover between 1mm and 2mm end radius
- Automatic edge feeding, 0.4–2mm thickness capacity; strip material can be hand-fed

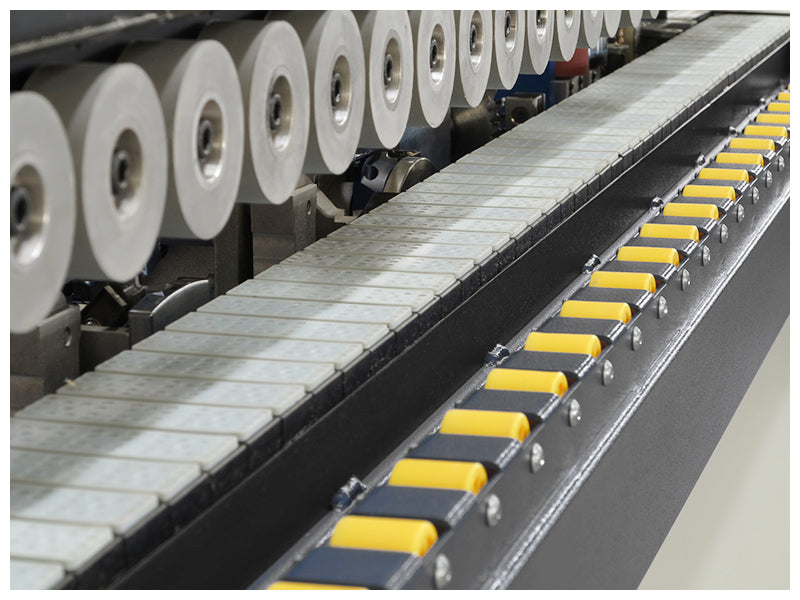

- Conveyor chain feed system for reliable results

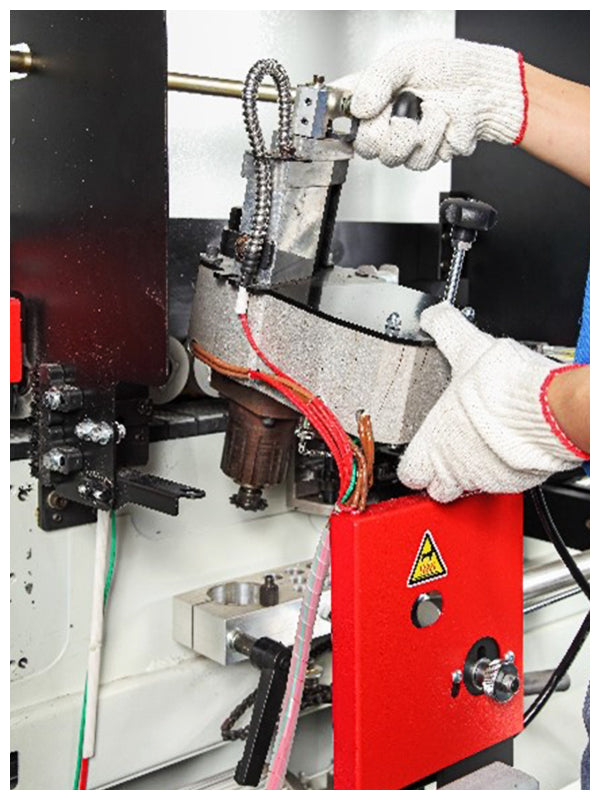

- Teflon-coated quick-change hot-melt glue pot
- Heated infeed fence for pre-heating the panel for optimum glue penetration

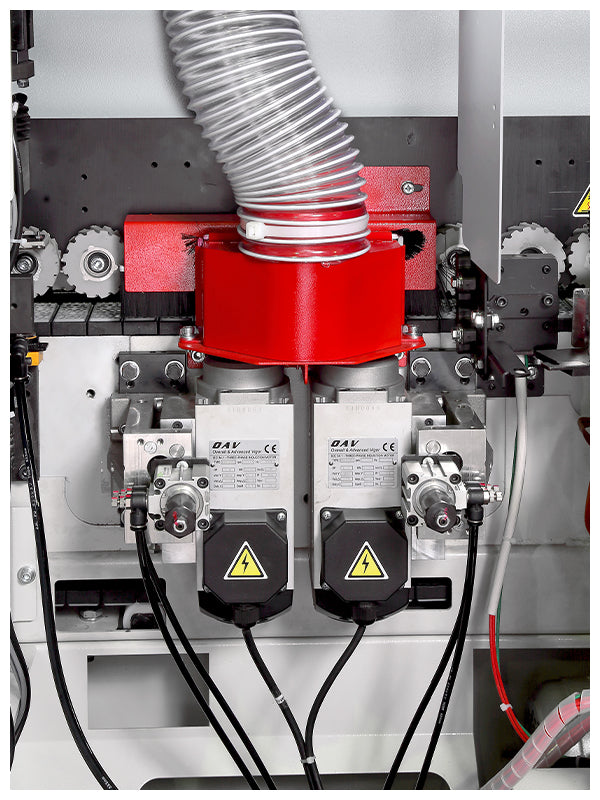

- (2) counter-rotating diamond premilling cutterheads remove up to 2mm of the panel edge before taping

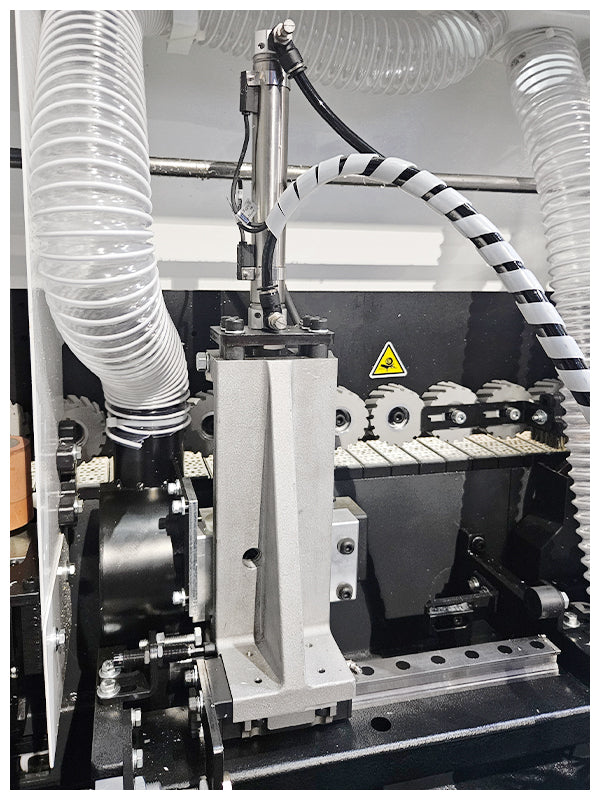

- High-frequency 12000 RPM end-trim motor mounted on high-precision linear guide rails

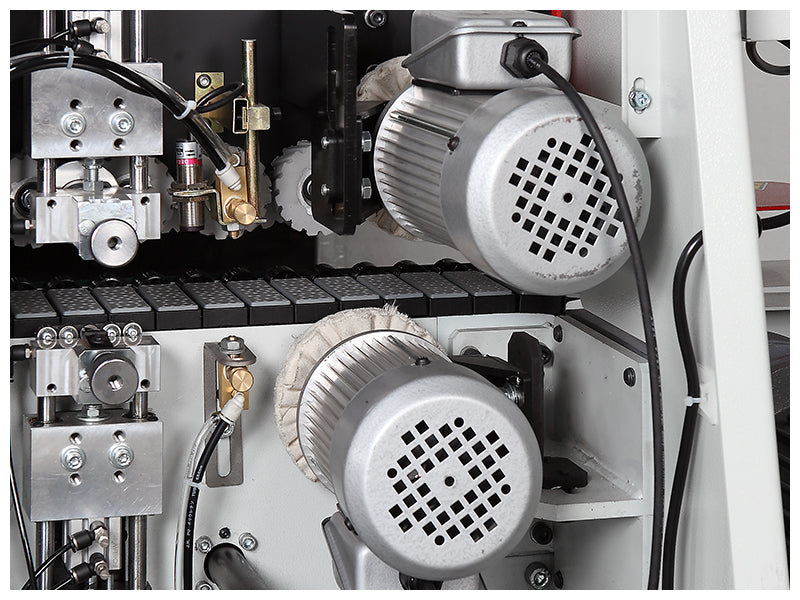

- Dedicated buffing unit leaves a super finish on ABS and PVC edging

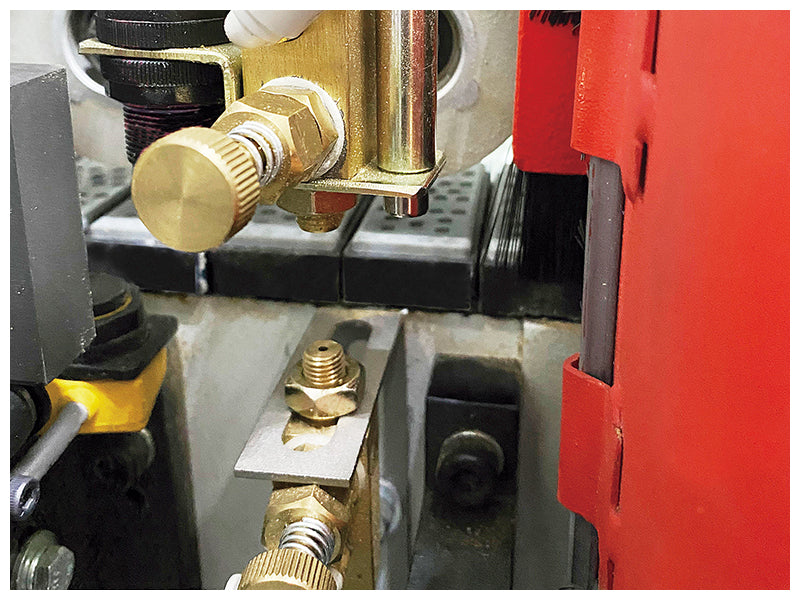

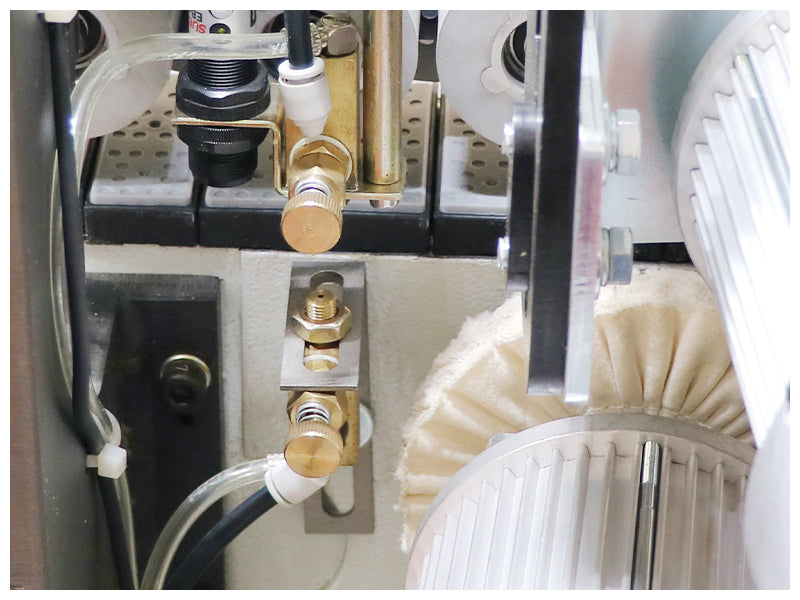

- Release agent and cleaning agent spray units for clean, simple glue removal
Specifications
| Feeding Speed | 29 FPM (9 m/min) |
|---|---|
| Panel Thickness | 0.315″–1.77″ (8–45mm) |
| Edge Thickness | 0.0158″–0.118″ (0.4–2mm) |
| Min. Panel Width | 3.54″ (90mm) |
| Min. Panel Length | 6.7″ (170mm) |
| Working Table Height | 38″ (960mm) |
| Extension Support Width | 22″ (560mm) |
| Dust Collection Outlet | Ø 5″ x 3 (Ø 127mm x 3) |
| Air Consumption | 12.36 CFM (350 liters/min) |
| Electrical Consumption | 11.4 HP (7 KW) |
| Electrical Requirement | 230/3/60 = 26 Full Load Amps |
| Machine Weight | 2024 lbs (910 kgs) |
| Shipping Weight | 2618 lbs (1190 kgs) |
| Shipping Dimensions | 156″ x 29″ x 69″ (3960 x 730 x 1748mm) |
| Feeding Motor | 1.5 kW |
| Pre-Milling Motors | 1.5 kW (12000 RPM) |
| Glue Spindle Motor | 0.25 kW |
| Front/Rear Trimming Motor | 0.22 kW (12000 RPM) |

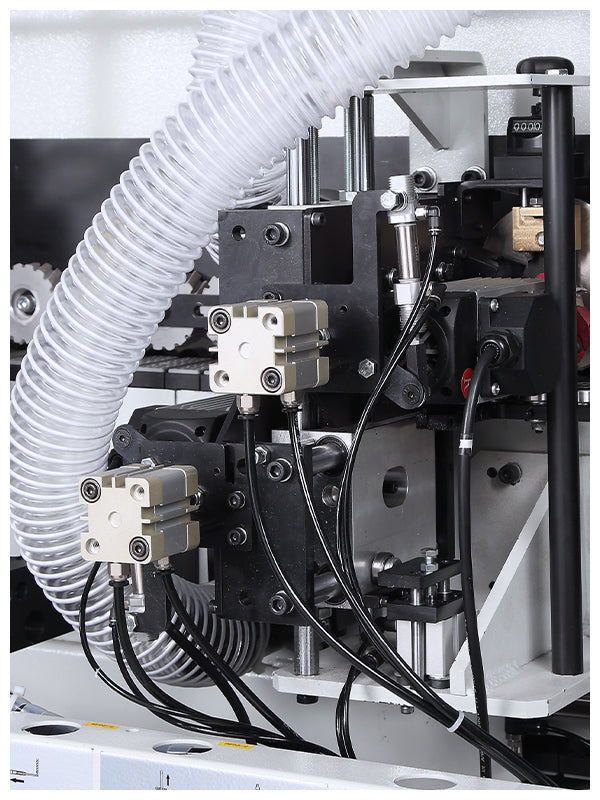

| Upper Trimming Motor | 0.37 kW (12000 RPM) |
| Lower Trimming Motor | 0.37 kW (12000 RPM) |
| Corner Rounding Motor | 0.37 kW (12000 RPM) |
| Upper Buffing Motor | 0.18 kW (3000 RPM) |
| Lower Buffing Motor | 0.18 kW (3000 RPM) |
| Pre-Heating | 0.4 kW |
| Gluepot Heating | 1.315 kW |
