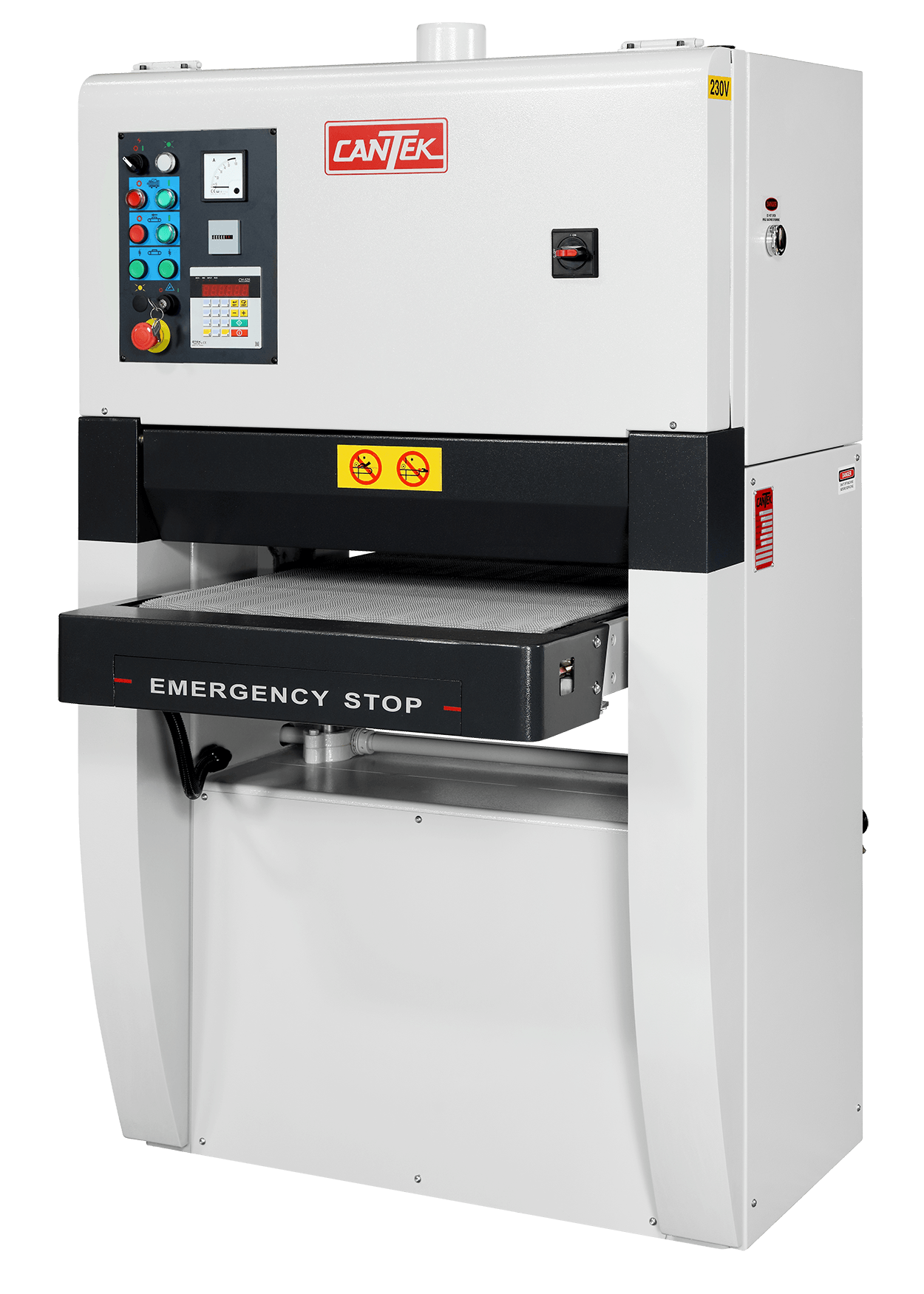

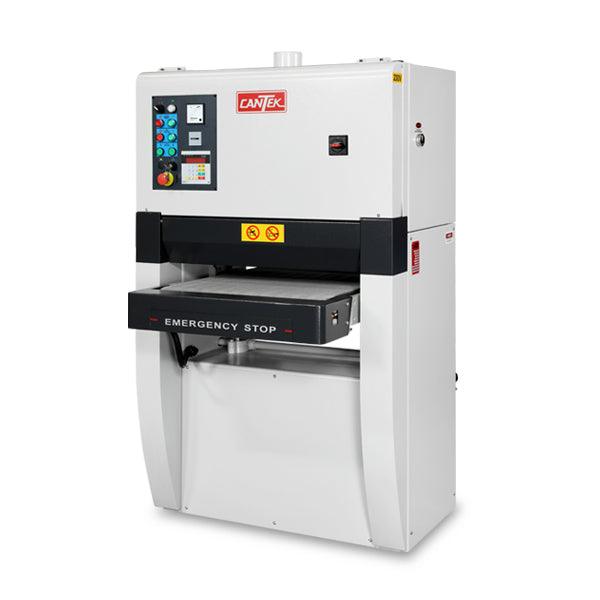

CANTEK C251 24″ WIDEBELT SANDER - 60" Belt - 1/3 Phase

by Cantek
Original price $11,865.00 - Original price $11,865.00
Original price
$11,865.00
$11,865.00 - $11,865.00
Current price $11,865.00

A robust widebelt sander with minimal footprint.

The Cantek C251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding.  The robust sanding unit and heavy-duty frame ensures optimum sanding results.  Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

Why Cantek C251 24″ Widebelt Sander?

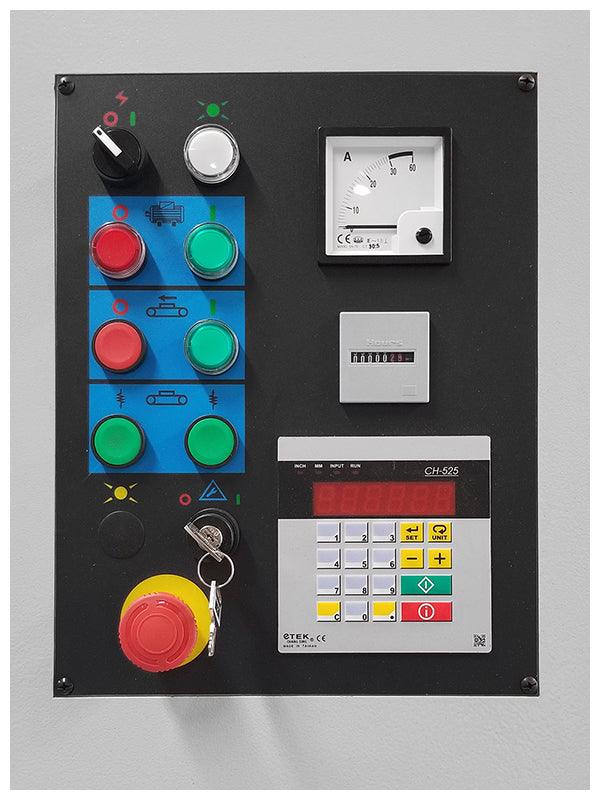

  • Accurate digital thickness control with both Inch & Metric settings allows operator to key in the desired thickness and table will automatically move into position.
  • Small footprint

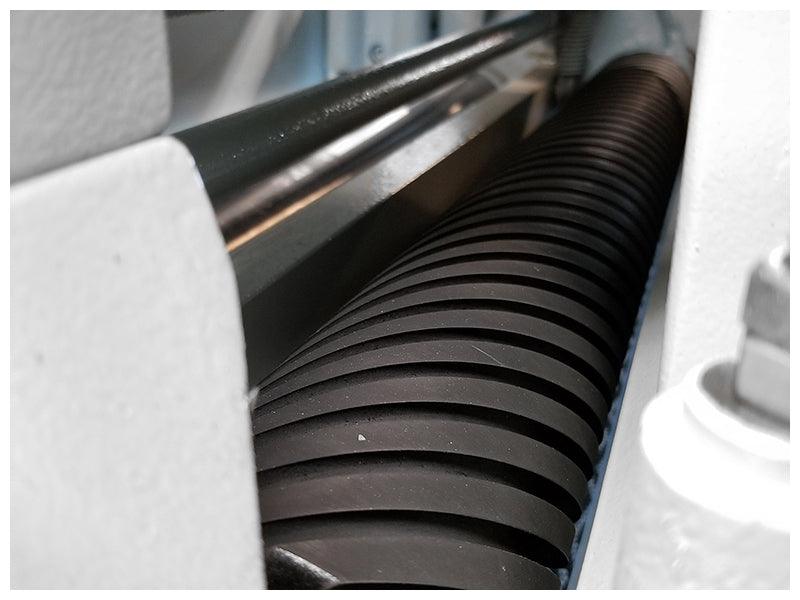

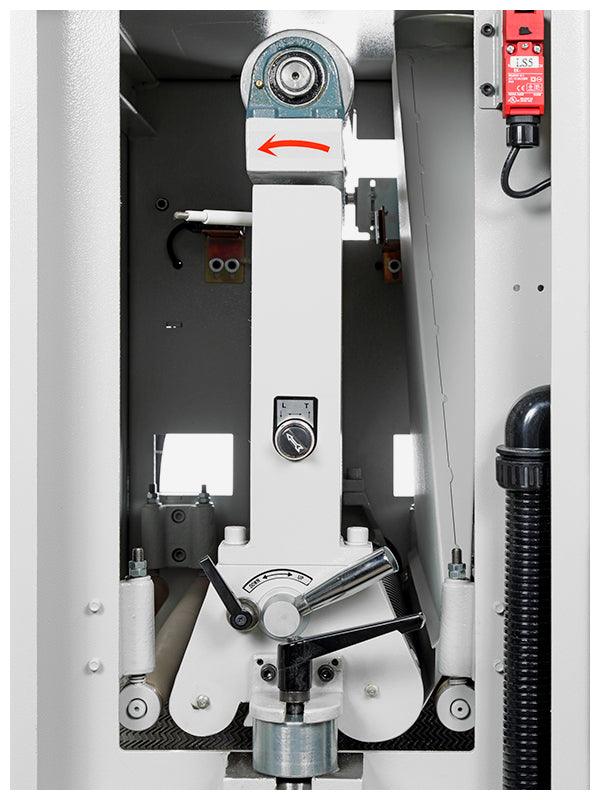

  • Combination sanding unit with 3-3/8” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications.

Advantages:

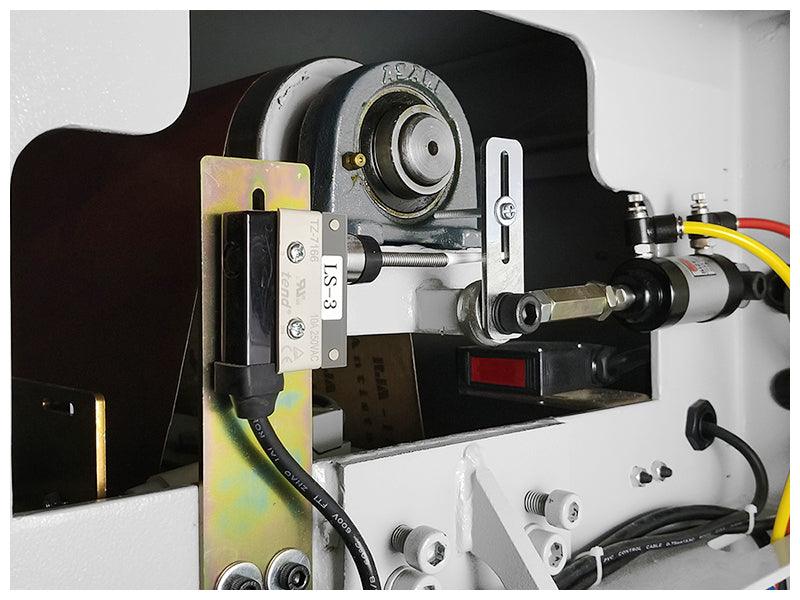

  • Electronic belt tracking for optimum belt life and sanding results
  • Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.

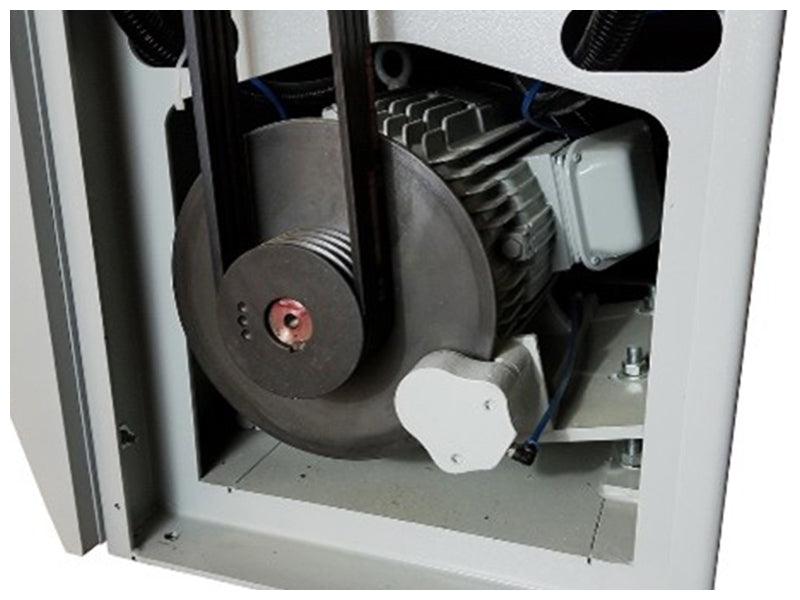

  • Disc brake on main motor allows for faster belt changes

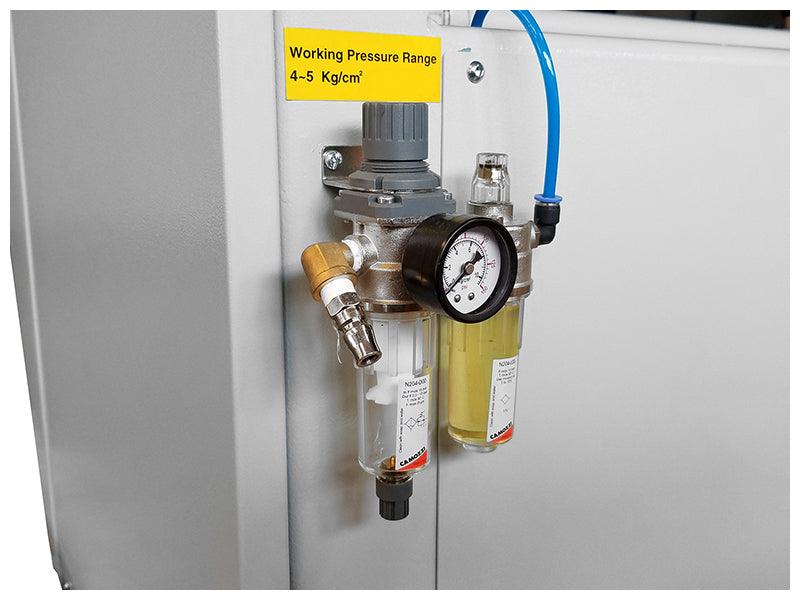

  • Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.

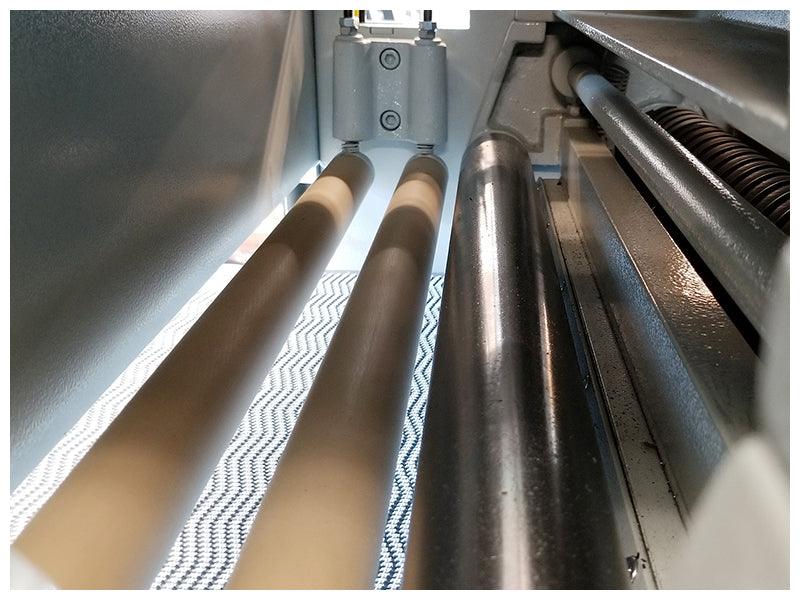

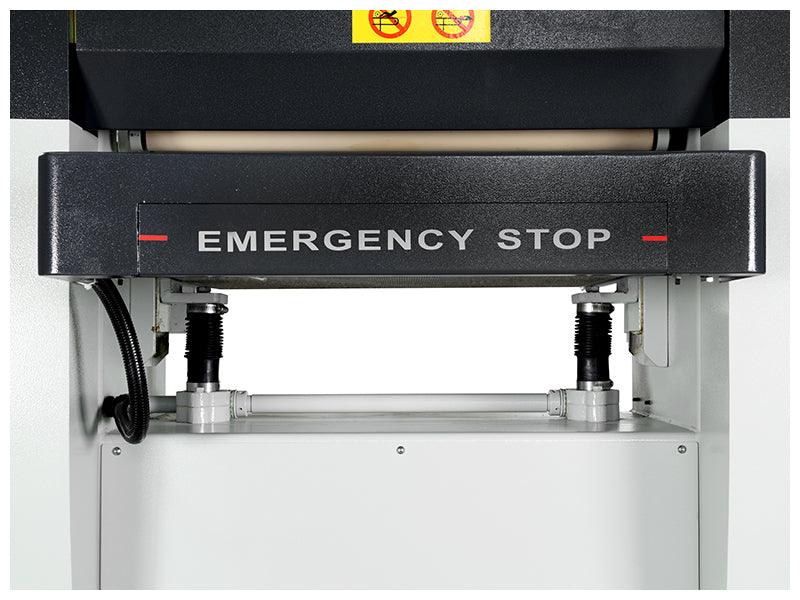

  • Double infeed and outfeed pressure rolls for superior part hold down
  • Material over-height limit switch
  • Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
  • Interlocks located on all access doors.

Specs
Inch
Metric
Abrasive belt size
25” x 60”
635 X 1524 mm
Main motor
10 HP

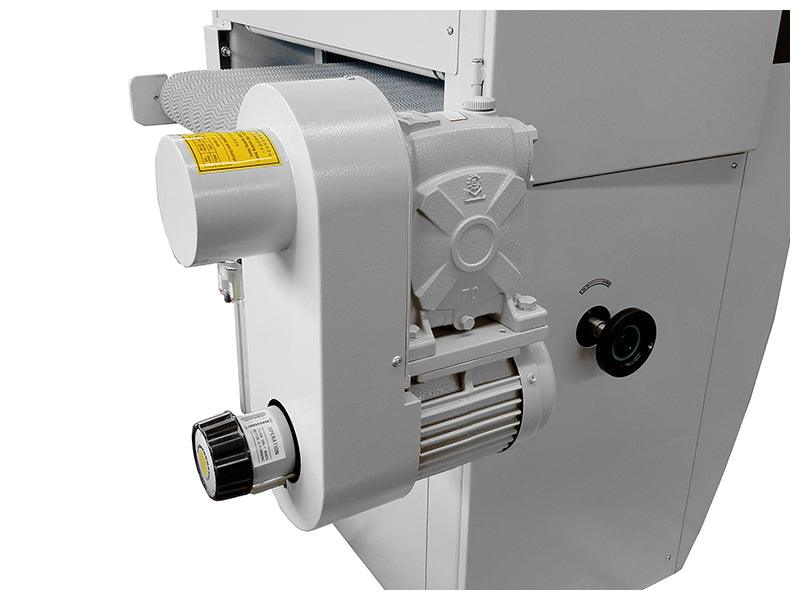

Feed motor
1 HP
Table rise/fall motor
½ HP
Maximum width stock
24”
609 mm
Minimum part length
13”
330 mm
Maximum thickness opening
4”
100 mm
Feed speed: variable
13 to 52 FPM
4 to 16 m/min
Passline height
33” – 38”
838 – 965 mm
Infeed table
11-1/2”
292 mm
Dust outlet
1 @ 4”
1 @ 101 mm
Compressed air usage
2 CFM @ 90 PSI
2 CFM @ 90 PSI
Net weight
1452 lbs
660 kgs
Machine dimensions
53” x 50” x 63”
1346 x 1270 x 1600 mm
Shipping weight
1584 lbs
720 lbs
