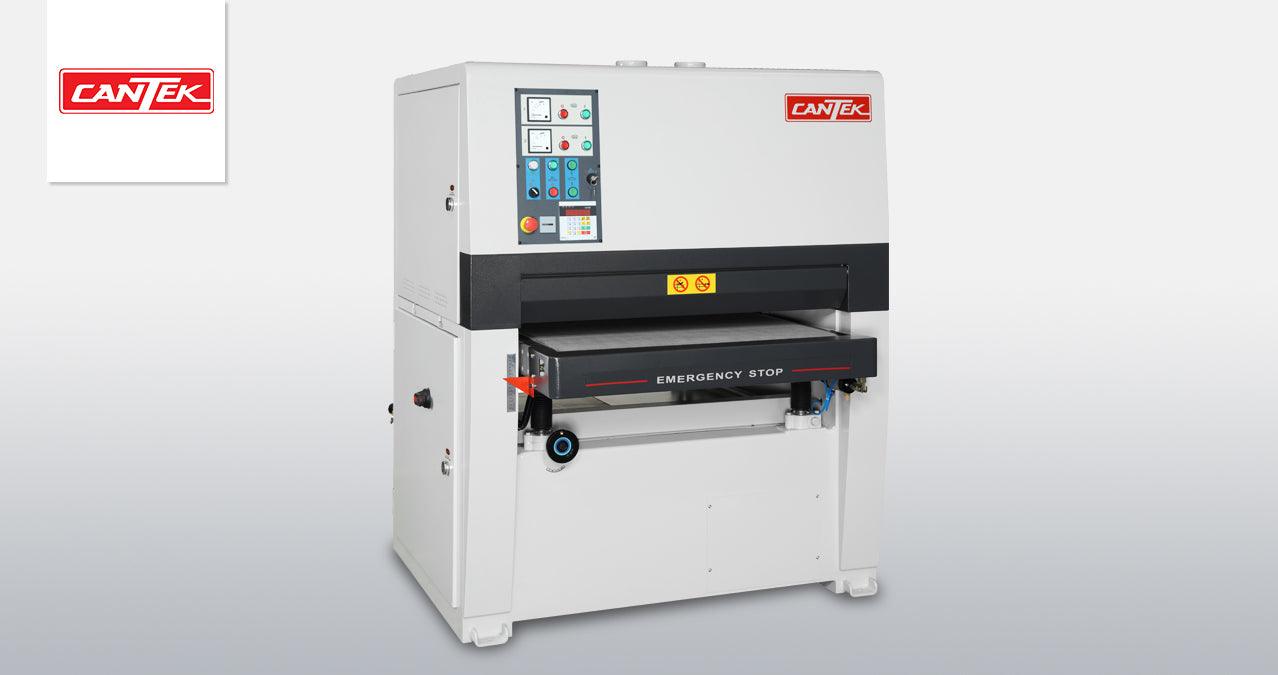

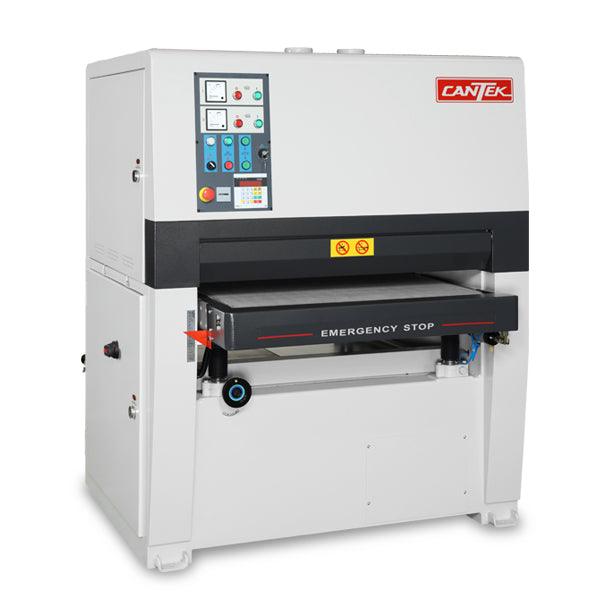

CANTEK C372 37″ Two Head Widebelt Sander
by Cantek
Original price
$29,085.00
-
Original price
$29,085.00
Original price
$29,085.00
$29,085.00
-
$29,085.00
Current price
$29,085.00
Why Cantek C372 36″ Two Head Widebelt Sander?
- Dual sanding heads increases efficiency by reducing the number of passes

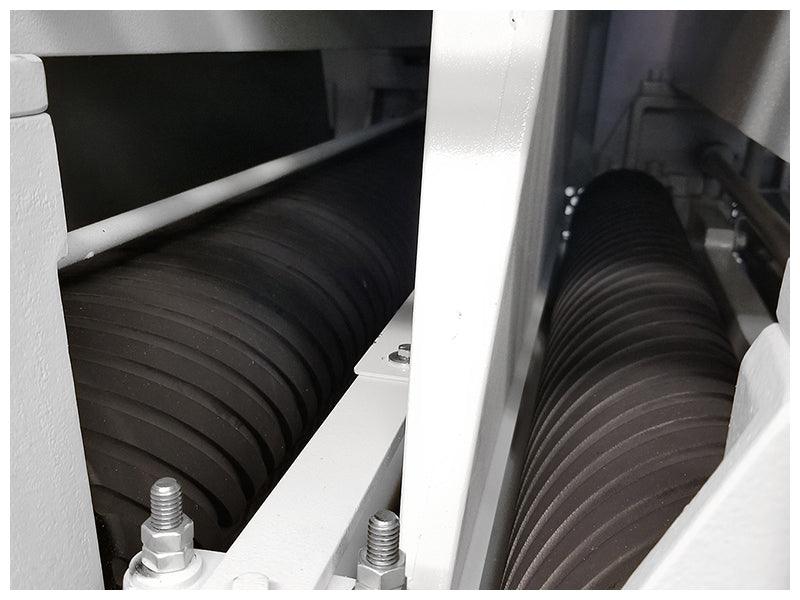

- Rubber contact drum for calibration sanding
- Combination sanding unit with 5” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications

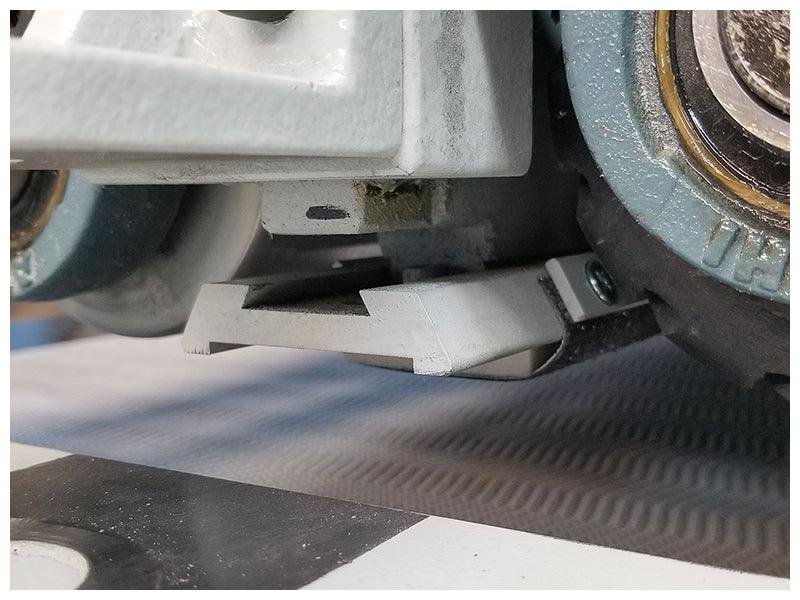

- Adjustable platen produces superior sanding results with finer sandpaper grits
- Solid cast iron sanding heads and mounting base for superior vibration damping resulting in an optimum sanding result

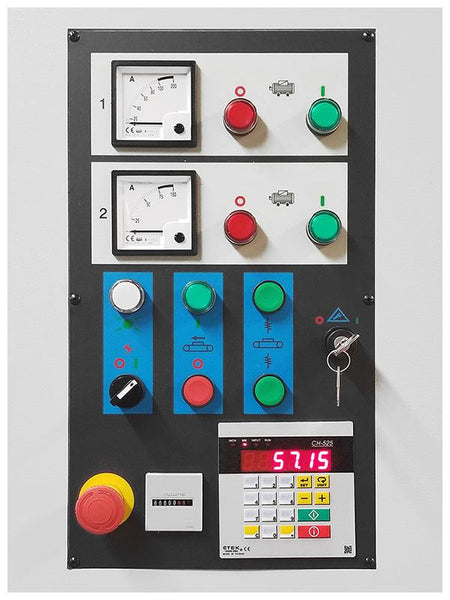

- Accurate digital thickness control with both Inch & Metric settings allows operator to key in the desired thickness and table will automatically move into position.
- Small footprint
KEY ADVANTAGES

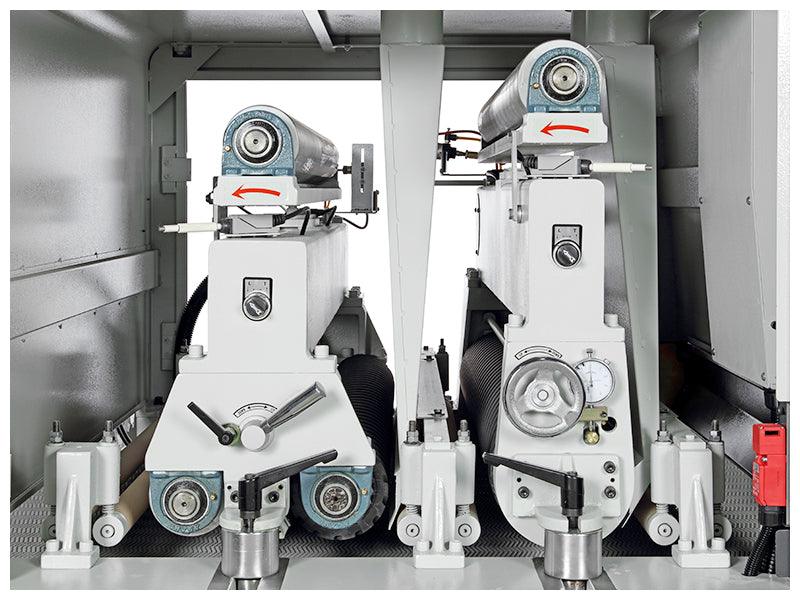

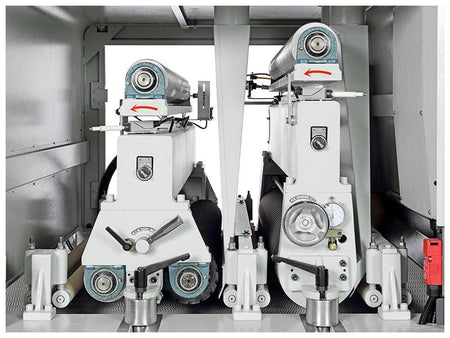

- Two sanding heads
- First Head: Rubber contact drum with 7” diameter drum
- Second Head: Combination head with 5” diameter drum and 2” wide platen

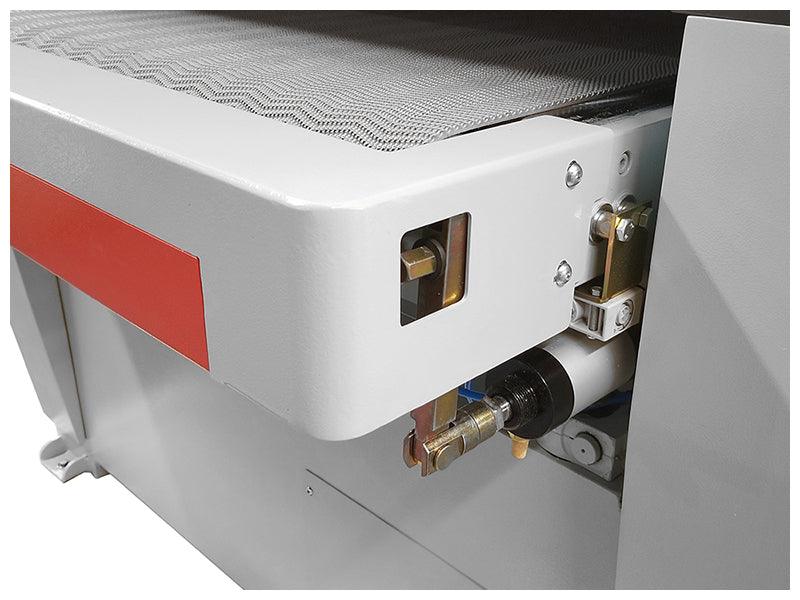

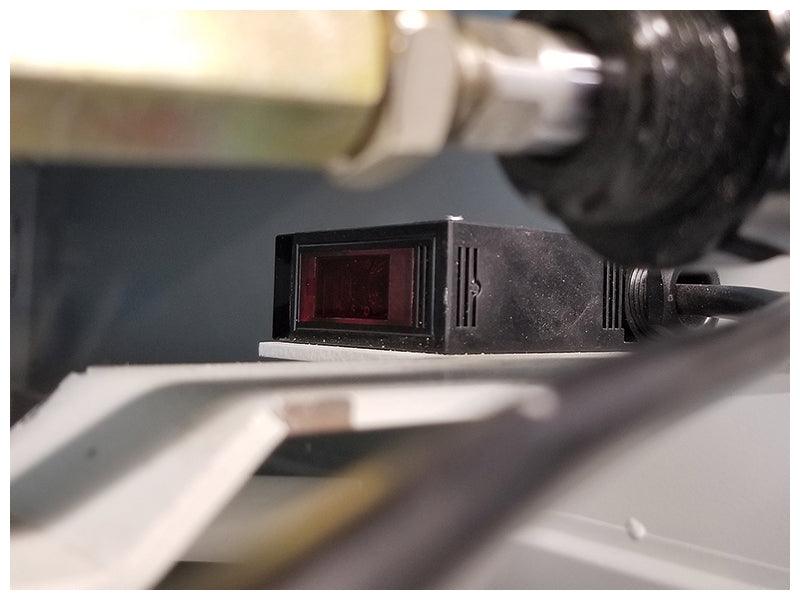

- Electronic belt tracking for optimum belt life and sanding results

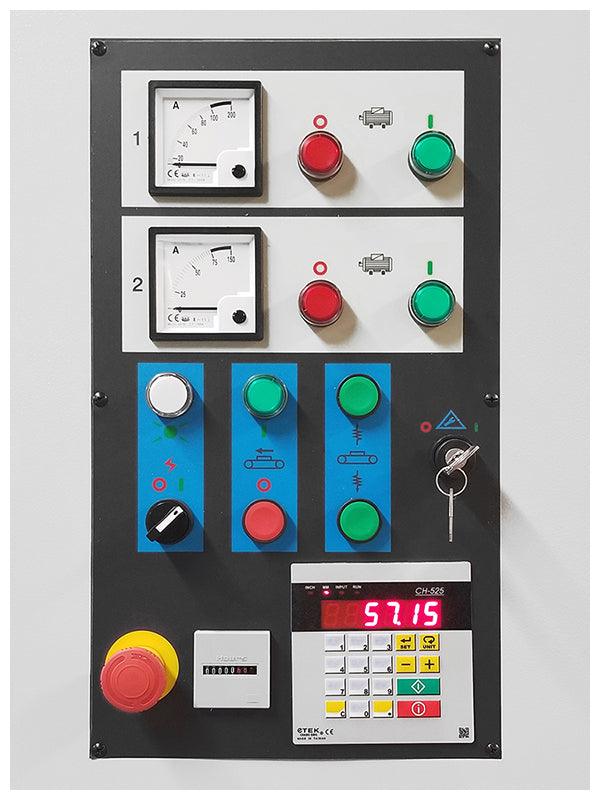

- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.

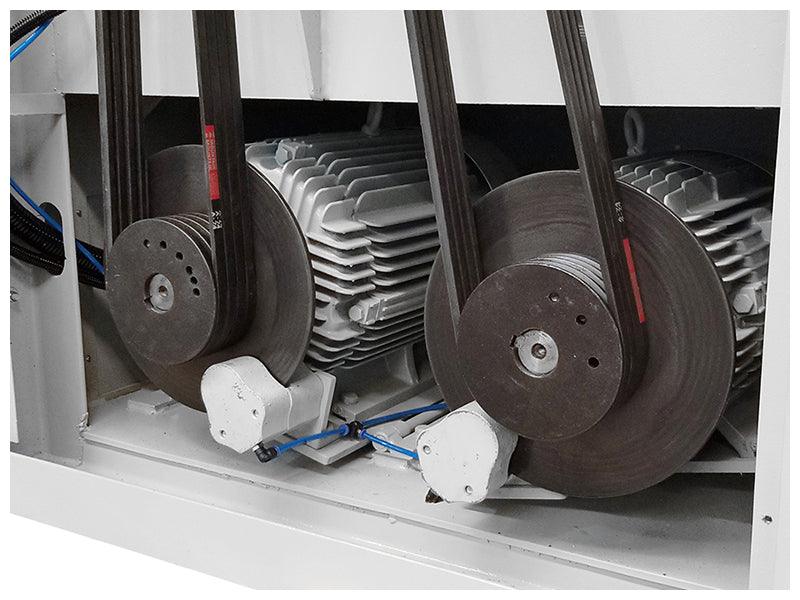

- Disc brake on main motor allows for faster belt changes
- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
- Double infeed and outfeed pressure rolls for superior part hold down

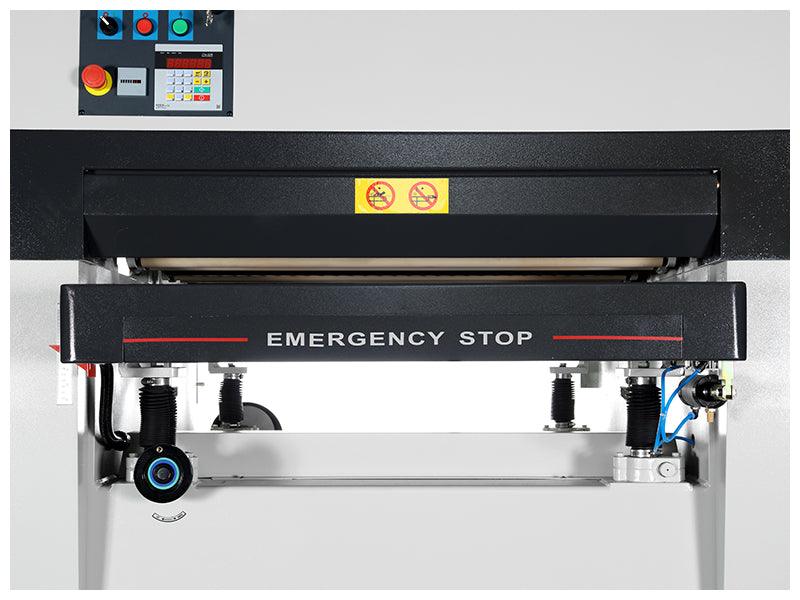

- Four table raising jack screws

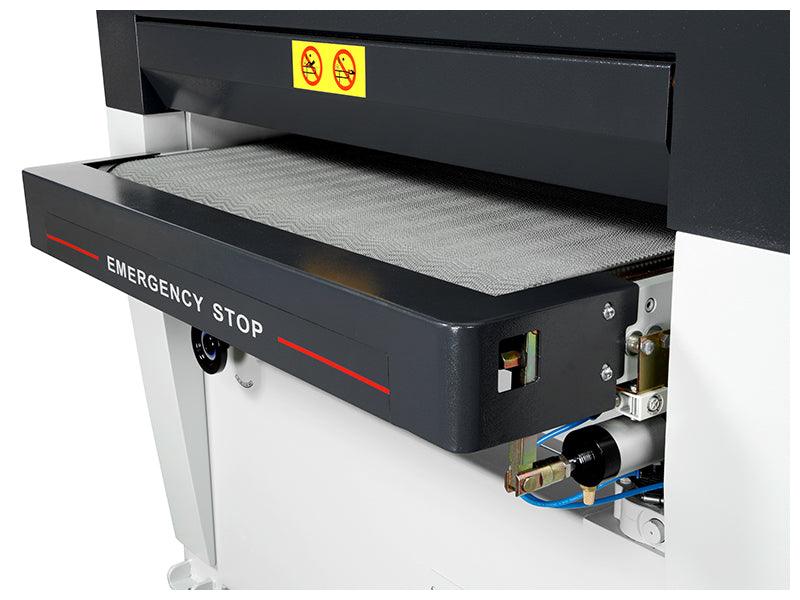

- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
- Interlocks located on all access doors.
Inch |
Metric |
|
Abrasive belt size |
37” X 60” |
940 X 1524 mm |
Main motor (First Head) |
20 HP |
20 HP |
Main motor (Second Head) |
15 HP |
15 HP |
Feed motor |
2HP |
2 HP |
Table rise/fall motor |
½ HP |
½ HP |
Maximum width stock |
36” |
914 mm |
Minimum part length |
13” |
330 mm |
Maximum thickness opening |
5” |
127 mm |

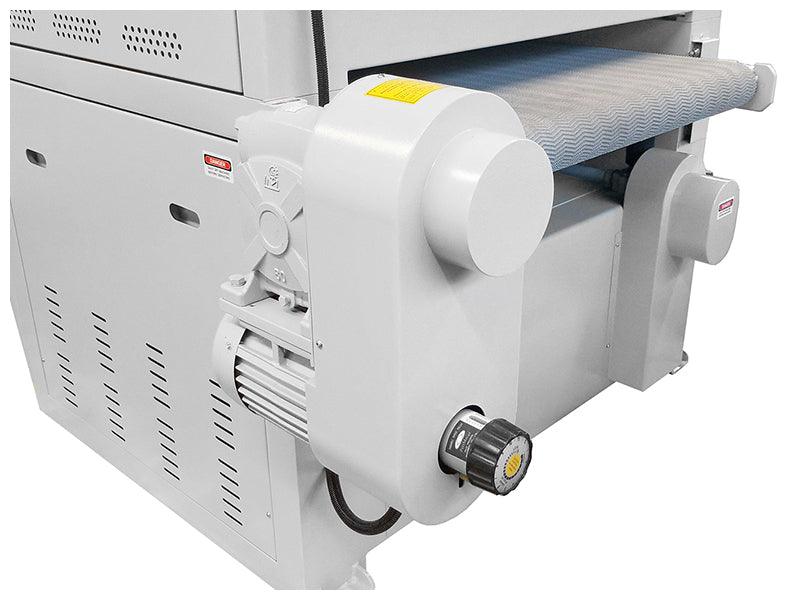

Feed speed: variable |
13 to 52 FPM |
13 to 52 FPM |
Passline height |
33”- 38” |
838 – 965 mm |
Infeed table |
11-1/2” |
279- 12.7 mm |
Dust outlet |
4 @ 4” |
4 @ 100 mm |
Compressed air usage |
2 CFM @ 90 PSI |
2 CFM @ 90 PSI |
New weight |
3300 lbs |
3300 lbs |
Machine dimensions |
74” X 64” X 70” |
1879 X 1625 X 1778 mm |
Shipping weight |
3960 lbs |
1796 kgs |
Shipping dimensions |
78” X 67” X 76” |
1981 X 1701 X 1930 mm |
