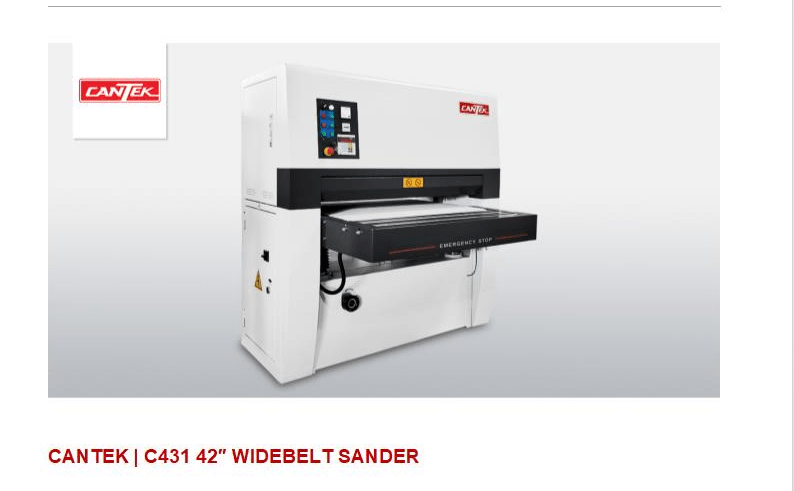

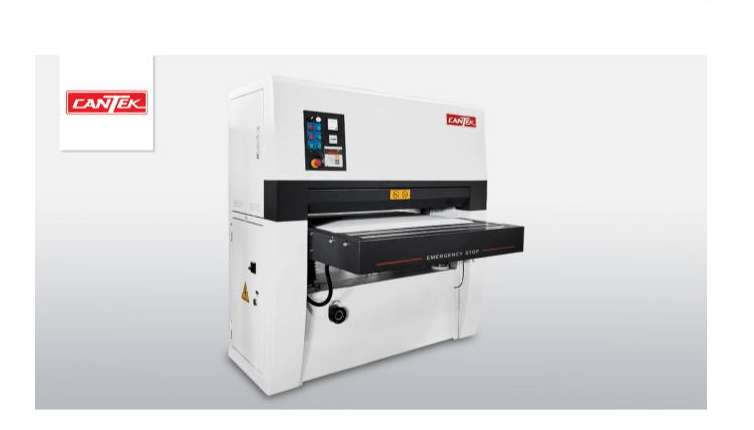

CANTEK | C431 43″ WIDE BELT SANDER
CANTEK | C431 43″ WIDE BELT SANDER
Dependable, consistent sanding results with a robust design that is built to last.
The Cantek C431 43” Single Phase Wide Belt Sander is a reliable tool for mid-size sanding tasks, ideal for woodworking professionals. Despite its compact size, it boasts powerful capabilities, suitable for sanding face frames, cabinet doors, and stair treads.
Featuring a combination sanding unit, the Cantek C431 Single Phase ensures precision and consistency from calibration to final sanding, enhancing project quality.

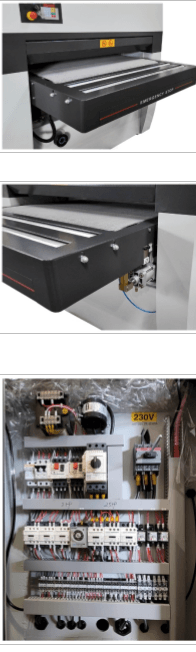

Built to withstand daily use, the Cantek C431 boasts a robust sanding unit and frame, instilling operator confidence. Motorized thickness adjustment with digital control adds convenience, facilitating swift and accurate table adjustments.
This sander offers unmatched performance and versatility for mid-size applications, standing ready to elevate woodworking projects to new levels of precision and excellence
DESCRIPTION INCH METRIC
Abrasive belt size 44” x 60” 1117 x 1524 mm
Main motor 10 HP
Feed motor 2HP
Table rise/fall motor ½ HP
Maximum width stock 43" 1092 mm
Minimum part length 16" 400 mm
Maximum thickness opening 5.9" 150 mm
Feed speed: variable 13 to 52 FPM 4 to 16 m/min
Infeed table 11 ½" 292 mm
Dust outlet 2 @ 4” 2 @ 100 mm
Compressed air usage 2 CFM @ 90 PSI 2 CFM @ 90 PSI
Net weight 3344 lbs 1520 kgs
Machine dimensions 70” x 72” x 71” 1780 x 1820 x 1810mm
Shipping weight 5390 lbs 2444 kgs
Shipping dimensions 73” x 77” x 82” 1854 x 1950 x 2080mm
Machine electrical requirements 230/1/60 = 62 amps
