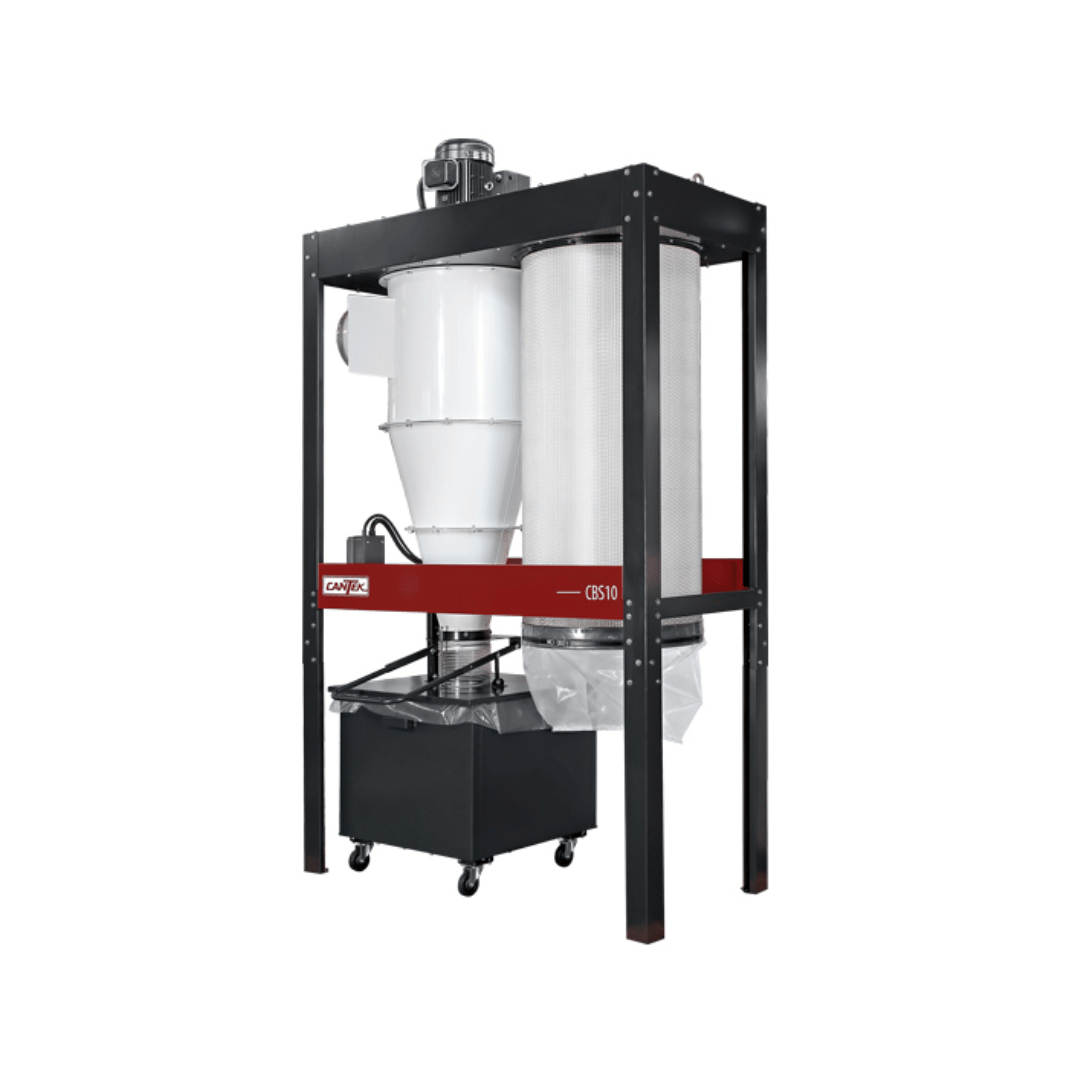

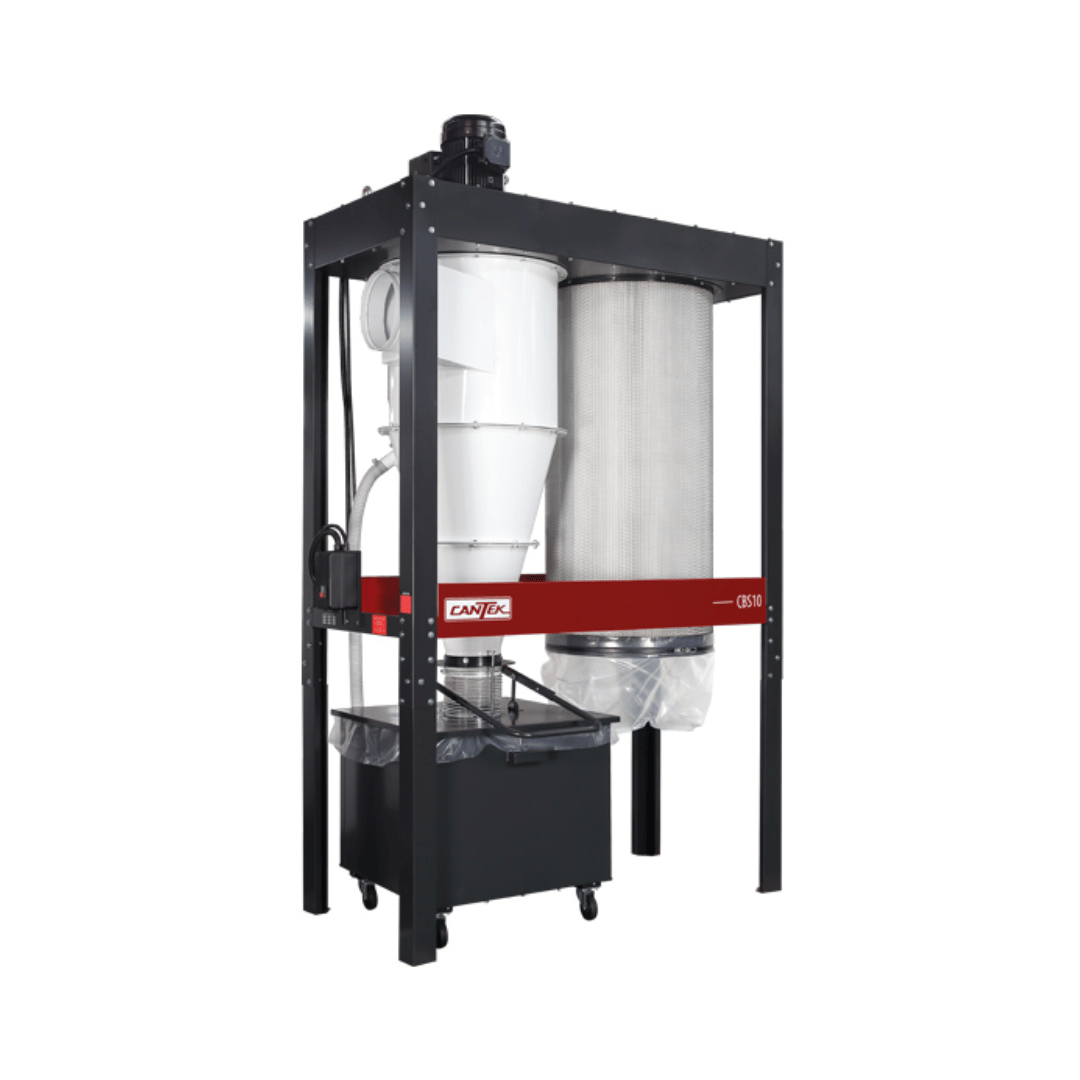

CANTEK | CBS10 10 HP CYCLONE DUST COLLECTOR

Key Advantages

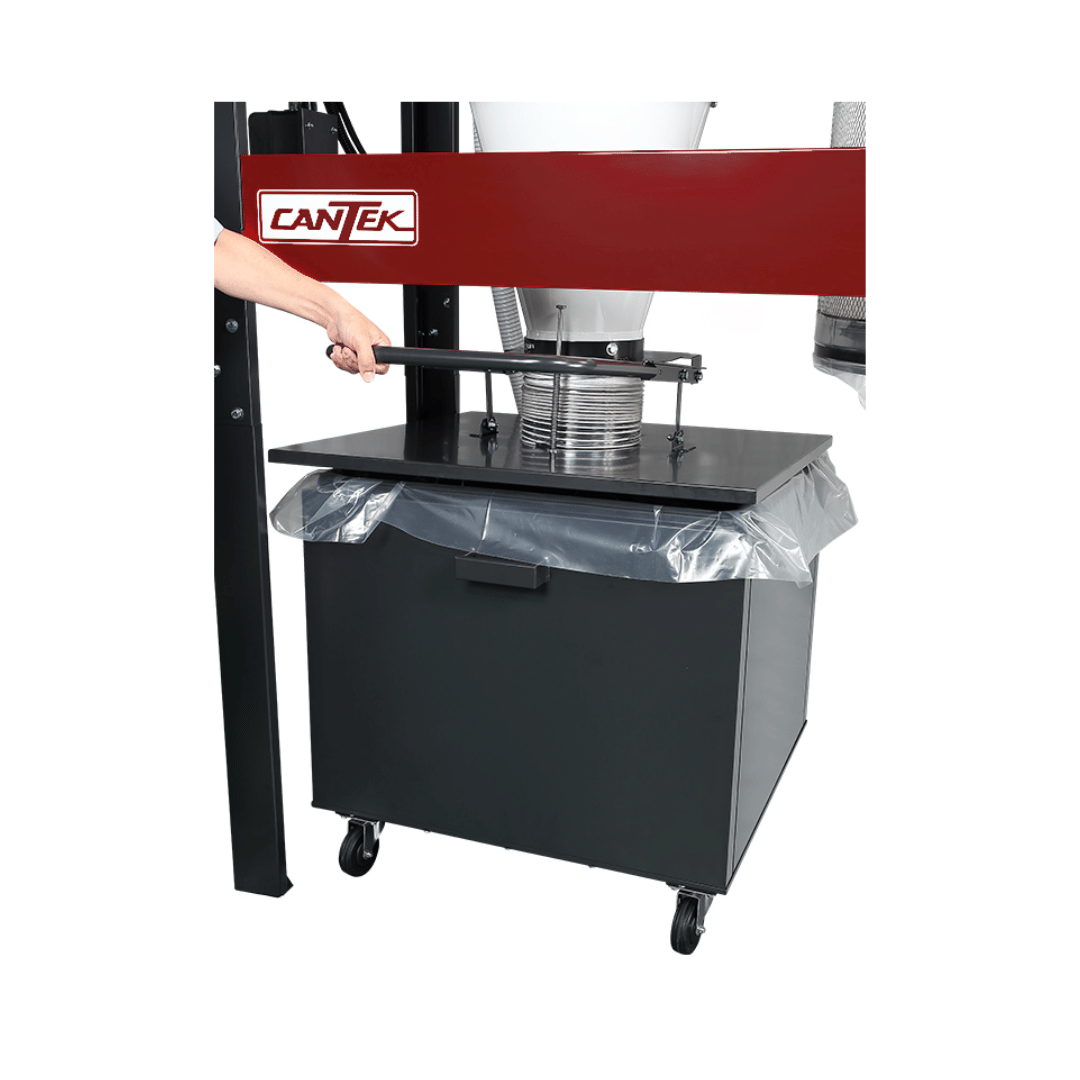

· Convenient quick release connection for removing the coarse dust bin which is outfitted with casters

· Bin is lined with plastic bag for simple and clean removal of dust

· HEPA filter is equipped with an automatic

· HEPA Filter is equipped with a quick release system to remove and dispose of fine dust particles

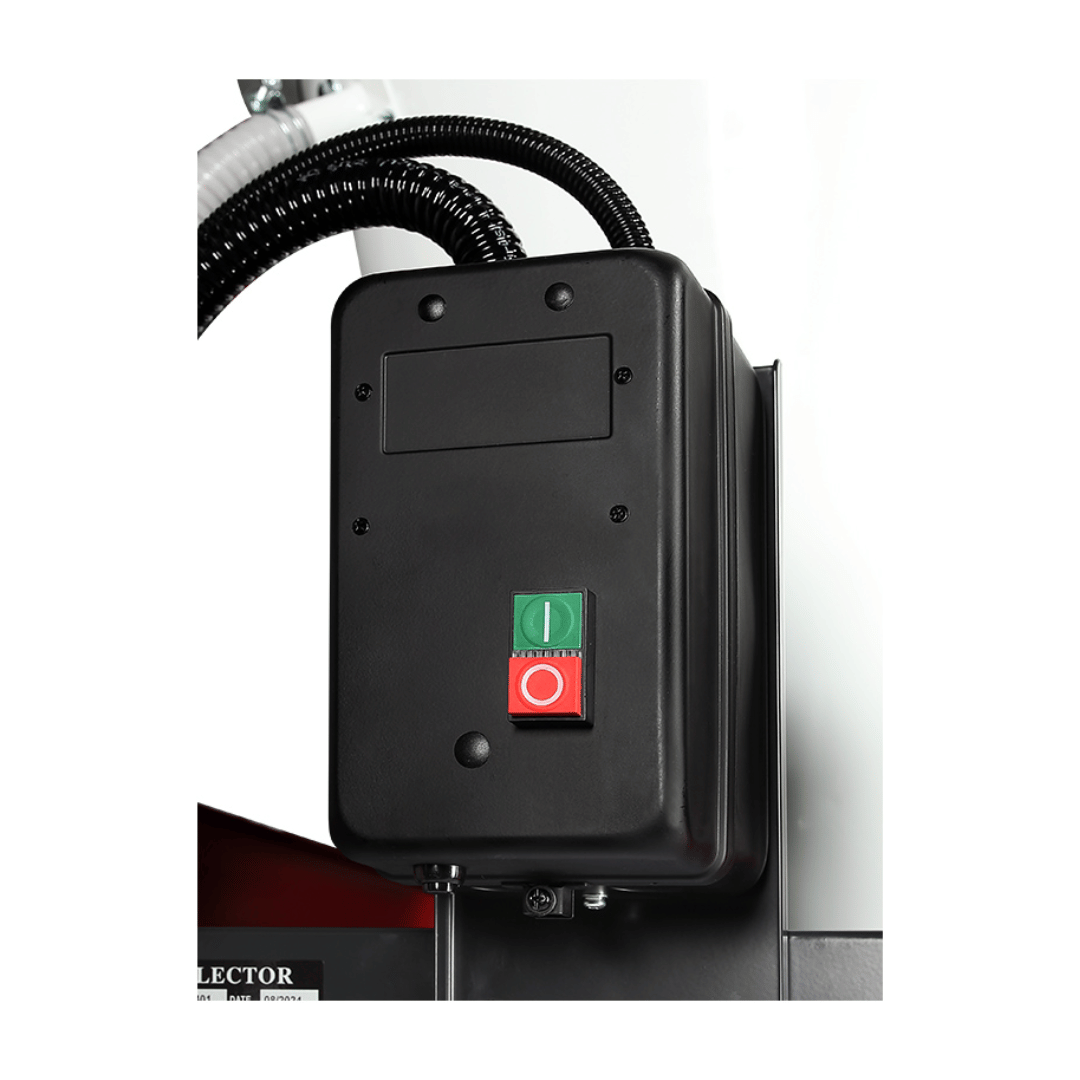

· Equipped with magnetic switch

· Fast and simple machine assembly

| Specifications

Blower motor: 10 HP

CFM Capacity: 4030 CFM

Fan diameter: 18.5” 400mm

Dust port dimensions: 12” 300mm

Auto-cleaning moto:r 0.03 HP 25 Watts

HEPA filer size: 29.5” x 59” 750 x 1500mm

Dust drum capacity: 115 gallons 435 litres

Sound rating: 82~85 dB

Machine electrics: 230/3/60 (29 amps)

Machine dimensions: 78.4” x 37” x 127.5” 1990 x 942 x 3238mm

Machine weight: 1276 lbs 580 kgs

Shipping dimensions: 77” x 40 ½” x 102” 1950 x 1030 x 2590mm

Shipping weight: 1617 lbs 735 kgs
