Overview

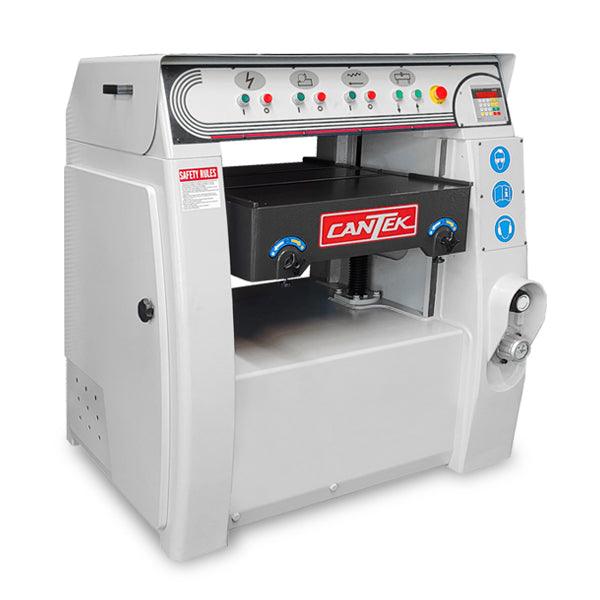

The Cantek CM626 26″ Planer is a production planer with high horsepower and feed rates built to handle everyday planing needs. Its spiral insert-knife cutterhead with two-sided replaceable knives delivers a smooth finish and maximum cutting depth, while driven upper and lower feed rollers let it plane even difficult-to-feed material. A powerful 20 HP motor ensures optimum stock removal on full-width boards, with infinitely variable feed and motorized digital thickness control for accurate, operator-controlled results.
Key Features
- Spiral insert-knife cutterhead for superior cut quality and maximum depth of cut
- Two-sided solid carbide inserts, easily changed, for optimum wear life

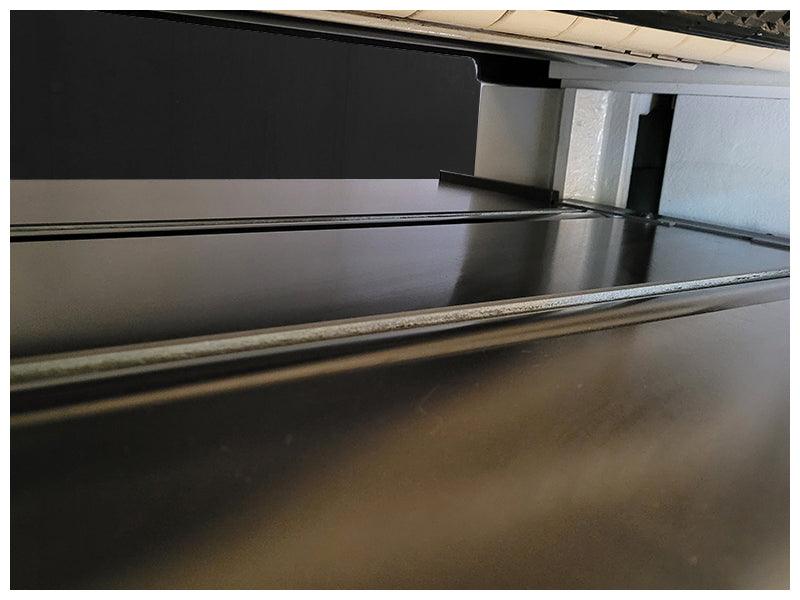

- Heavy-duty cast-iron machine frame for long machine life and superior vibration damping
- Driven bed rollers for optimum feeding of difficult-to-feed material
- Powerful 20 HP cutterhead motor for demanding planing jobs

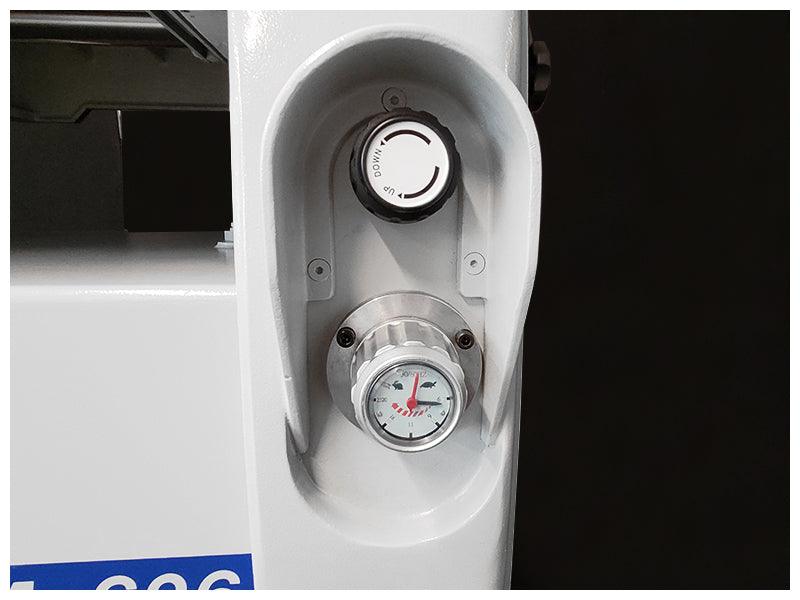

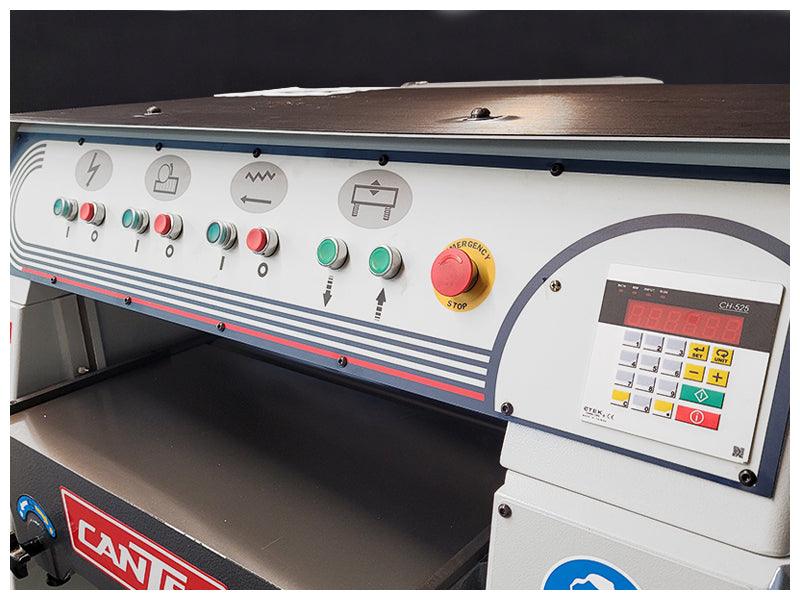

- Digital thickness control for accurate, automatic table adjustment

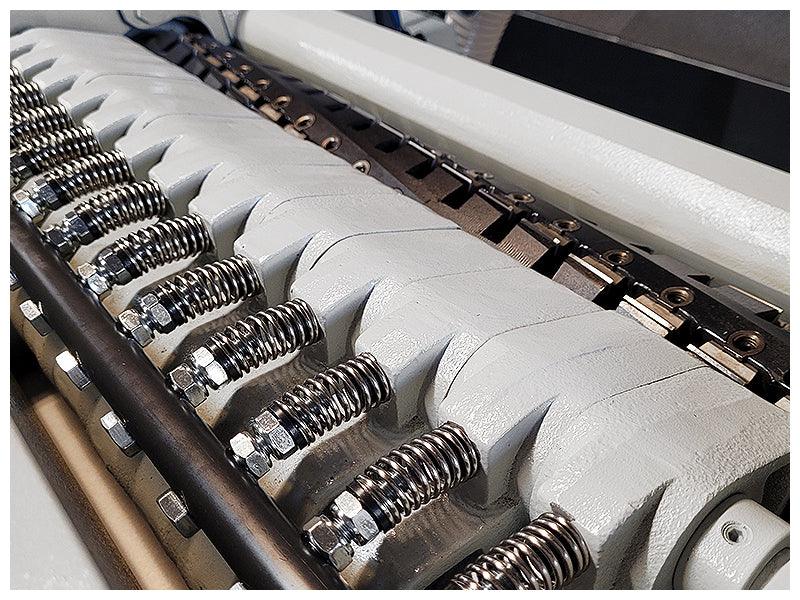

- Serrated sectional infeed roll, sectional chip breakers, and pressure shoes

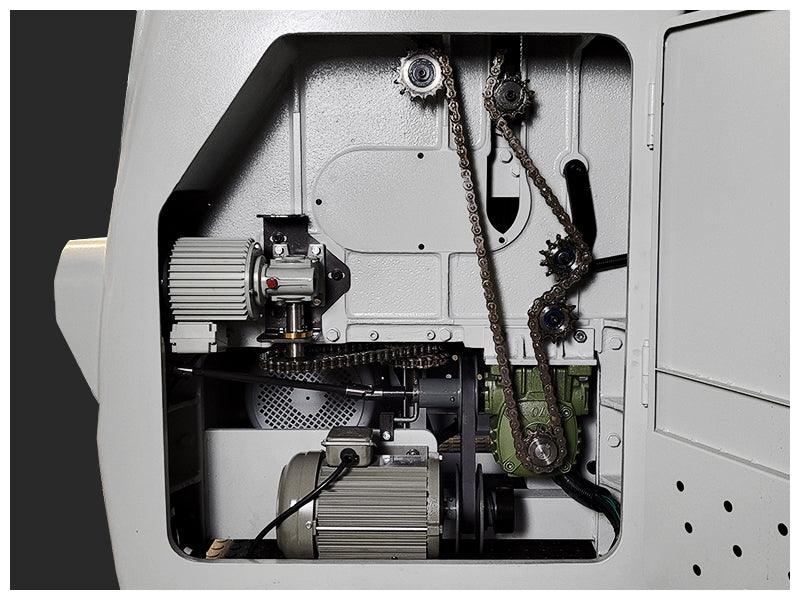

- Driven opposing upper and lower feed rollers
- Variable feed speed up to 70 FPM

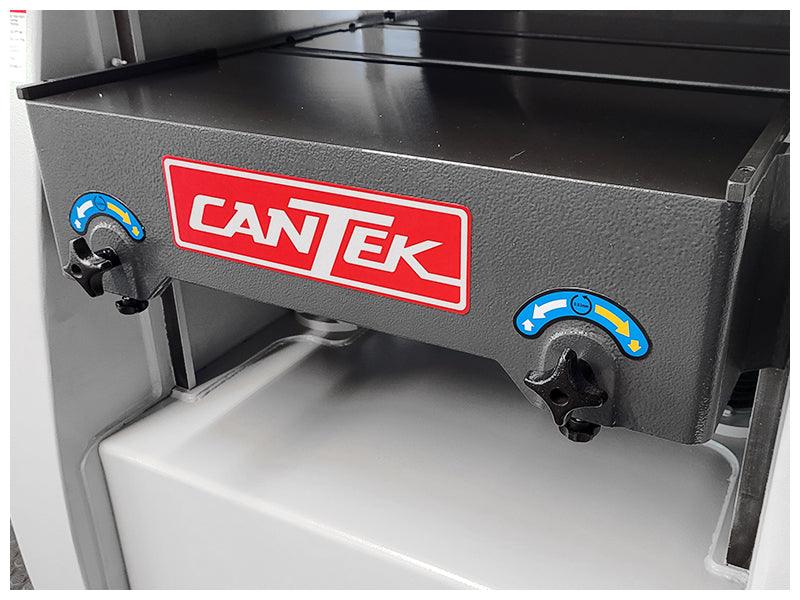

- Adjustable bed rollers to assist feeding when needed
- Anti-kickback fingers for safe operation
- Heavy-duty elevation jack screws and precision machined slides for smooth table movement
- Sound-dampening machine cover hinges open for easy access to the planer head and feed assembly
- 6” dust port
Specifications
| Maximum planing width | 26″ (660mm) |
|---|---|
| Maximum planing thickness | 11.8″ (300mm) |
| Minimum planing thickness | 0.15″ (4mm) |
| Maximum depth of cut | 0.31″ (8mm) |
| Minimum planing length | 10.35″ (263mm) |
| Table area | 35″ x 27″ (900 x 690mm) |
| Feed speeds variable | 23~98 FPM (7~30m/min) |
| Main motor | 20 HP |
| Feed motor | 1 HP |
| Table motor | 1/2 HP |
| Knives | 30 x 12 x 1.5mm (QTY: 100) |
| Cutterhead diameter | 4 ¾” (120mm) |
| Cutterhead RPM | 5000 RPM |
| Top feed rollers | 3″ dia. (75mm) |
| Dust hood outlet | 6″ dia. (150mm) |
| Machine weight | 2200 lbs. (1000 kgs) |
| Machine dimensions (WxDxH) | 46″x39″x49″ (1167 x 995 x 1246mm) |
| Shipping weight | 2420 lbs. (1100 kgs) |
| Shipping dimensions (LxWxH) | 44″x52″x58″ (1117 x 1320 x 1474mm) |
