CANTEK | CN600 CNC DOVETAILER
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
-
t is time to upgrade your cabinetry with precision dovetail drawer boxes.

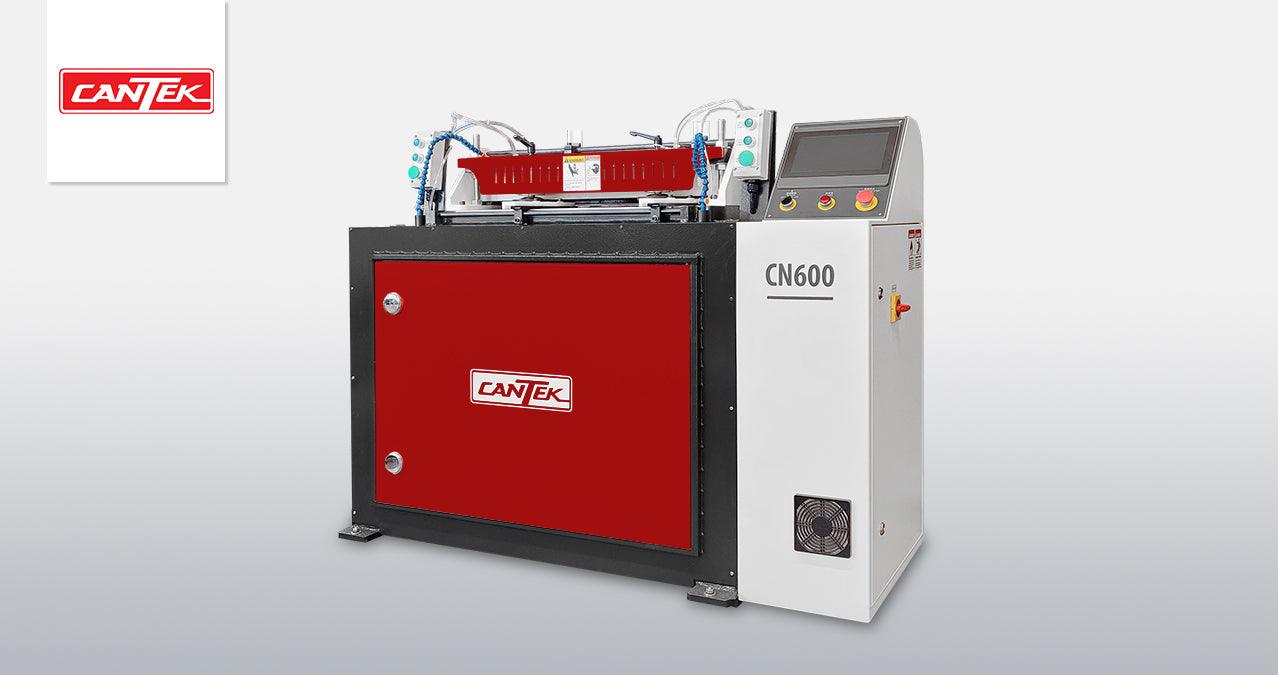

The Cantek CN600 CNC dovetailer provides optimal flexibility & output in the production of dovetail drawer boxes. The user friendly touch screen interface allows the operator to select from a range of standard dovetail joints as well as program the spacing or pitch of the dovetails. This allows for maximum flexibility to ensure the optimal aesthetic result. The dovetail milling unit can also pre-score the workpiece to ensure the best possible finish. In addition, the machining stroke is optimized to reduce any wasted time leading to greater productivity. With a capacity of up to 60 drawers an hour the CN600 is truly a production dovetailer.
Why Cantek CN600 CNC Dovetailer?
- High speed production with a capacity up to 60 drawer boxes per hour!
- CNC allows flexibility on dovetail patterns without the constraints of following a fixed pattern
- Simply enter the desired pitch or the number of dovetails
- User friendly touch screen interface
- Automatic scoring of the workpiece for superior finish
- Two working zones for continuous production
- Adjustable fences with mechanical digital readouts for precise adjustment (setting provided by the control)
- Pneumatic clamping of the workpiece.

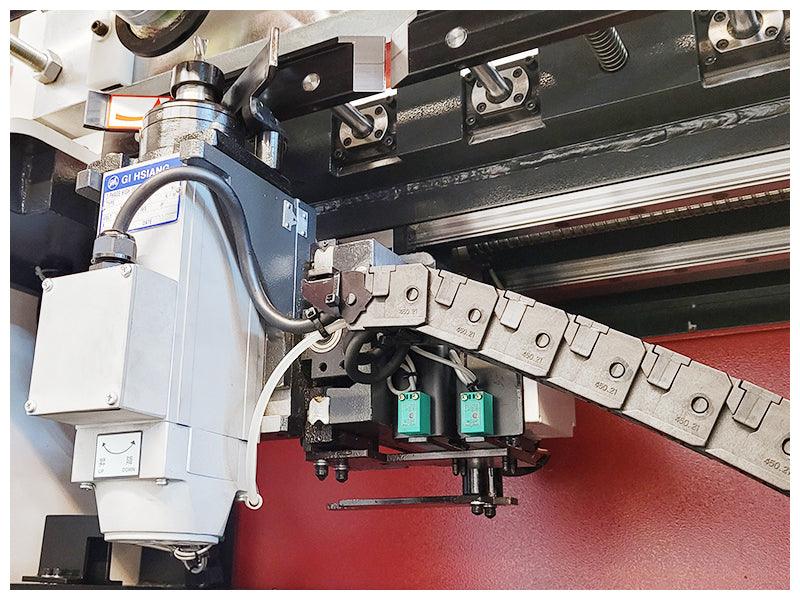

- 2HP 20000 RPM spindle for optimal finish on dovetail drawers
- Rigid machine construction resulting in superior finish quality while promoting long machine life
KEY FEATURESSPECIFICATIONS- Variable dovetail pitch allows for machining of any drawer height with ease
- Adjustable spindle height and mortise and tenon depth
- Spindle speed and machining speed is variable to ensure optimal results in a wide range of materials
- Ballscrew drive on both X and Y axis
- Precision linear guideways for smooth and precise movement of the spindle motor
- Automatic lubricator to lubricate the ballscrew and guideways

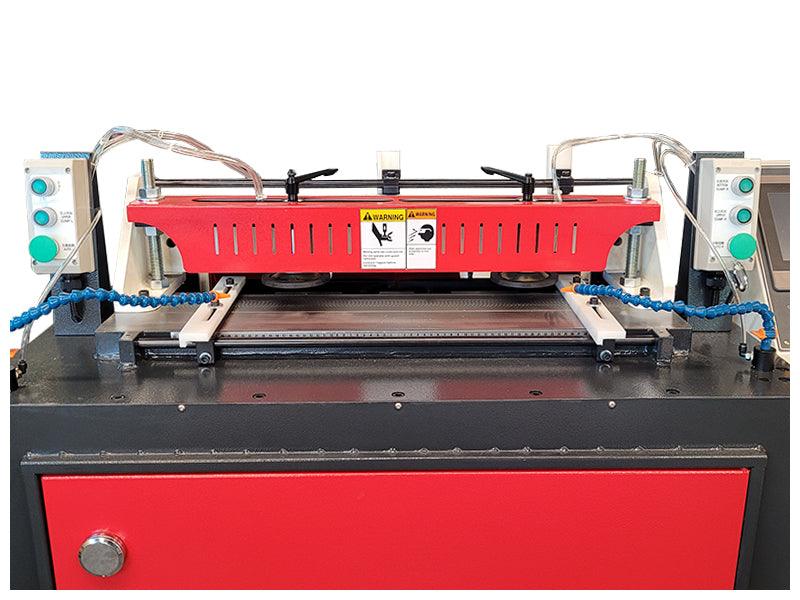

- Individual pneumatic clamps capable of clamping all four pieces of the drawer at once
- Fences are equipped with UHMW anti tear-out blocks
- (3) 4” dust outlets
