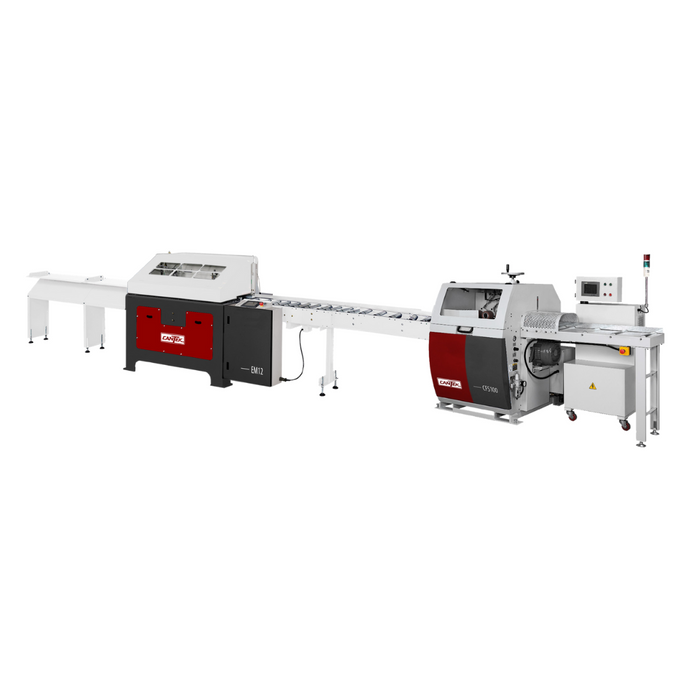

Cantek - EM12 End Matcher & CFS100 Automatic Defect Cut Off Chop Saw
An economical and high-speed approach to defect cross-cutting with partial optimization.
The Cantek CFS100 Automatic Defect Cutoff Chop Saw is the perfect upgrade from your manual cutoff saw with 3 to 5 times higher production output. It is designed to scan for defects in your material which are indicated by a florescent crayon mark. The saw will cut on the crayon mark allowing for fast defect removal. Equipped with several cutting modes like fixed, sequential, defect cutting modes the operator can select the program most suited to their needs. The powerful 10HP motor and 18” blade provide for effortless cutting from 11.8” (w) x 2.75” (t) or 5.9” (w) x 3.9” (t). An optional feature is available for cutting thin material down to 0.078” (2mm) which is ideal for lamellas for engineered flooring.
Why Cantek CFS100 Automatic Defect Cutoff Chop Saw?
- Ideal for the defect cutting wood mouldings, wood flooring, finger joint blocks, wood paneling and more!
- Machine scans for defects marked with a florescent crayon allowing for high-speed defecting
- Provides 3 to 5 times higher production rate than manual cut-off saws.
- 5% increase in material yield over manual cutting operations
- +/- 1mm (0.0393”) accuracy
- Safe operation with automatic feeding and comprehensive safety guards
- Partial optimization with sequential and fixed part cutting functions or simply cut out defects
- User friendly touch screen control with on board synoptics, cutting counter, and menu based cutting modes
- Servo driven feed motor for fast accurate motion and position control
- Compact design requires less space than manual cutting setups
- 18” diameter blade provides a large cross cutting capacity
- Powerful 10HP motor running at 3200PRM
- Adjustable automatic trim of front and tail of the workpiece
- 48″ (1.2 meter) long infeed table (Longer available on request)
- 40″ (1 meter) long flat outfeed table
- Defect blowing system combined with computerized logic control permits the blowing time and the length of defect to be set as desired
Continuous through feed end matcher producing tongue and groove on flooring & paneling.

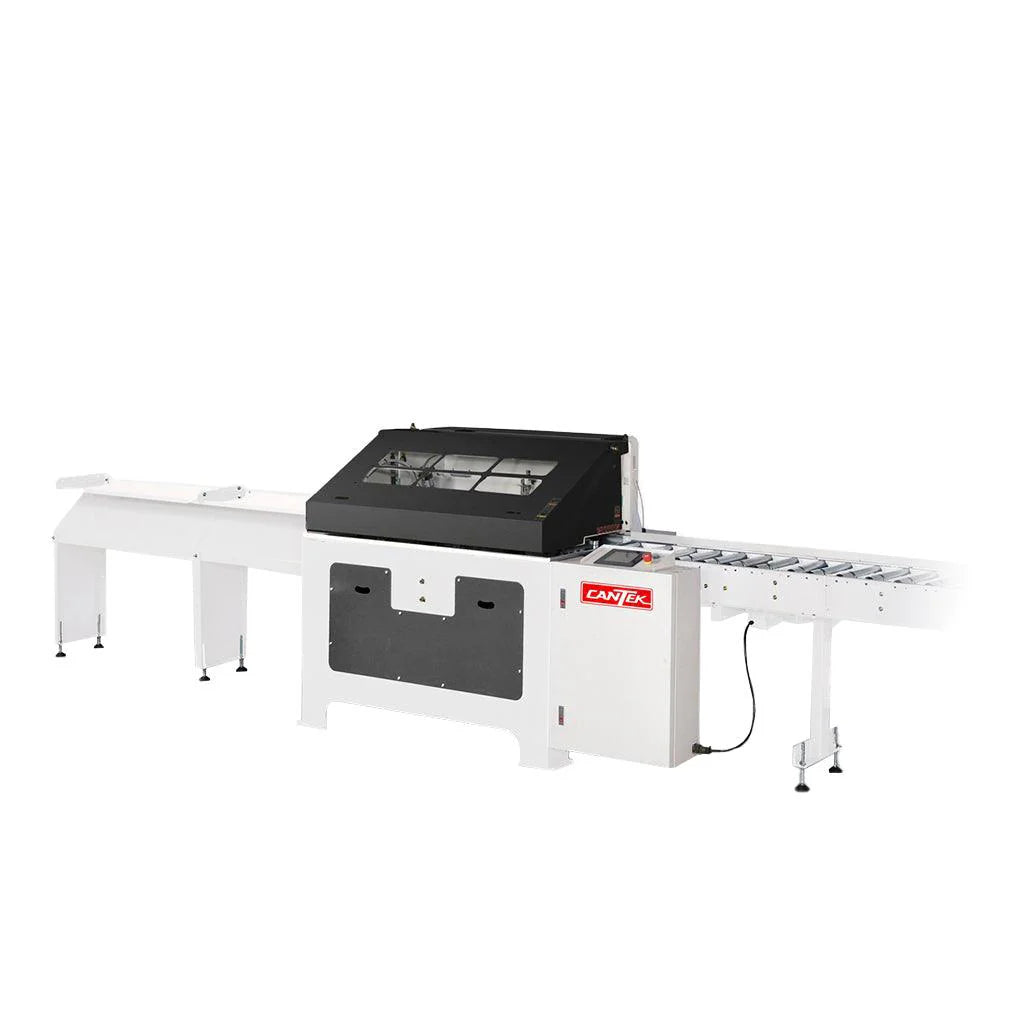

The Cantek EM12 End Matcher is specially designed for machining tongue and groove (with or without bevels) on hardwood flooring and wall/ceiling paneling up to 12” wide. Its compact design with continuous through feed system allows for maximum output in a small space. Equipped with a user-friendly touch screen interface allow for simple operation with excellent performance and error diagnostics. The dual counter-rotating cutterheads produce both the tongue and groove simultaneously ensuring a perfect match. The anti-tear-out blocks and counter rotation of the heads ensure optimum cut quality without chipping or blowout. The insert style segmented cutterheads can be adjusted according to your desired tongue / groove thickness and can perform a micro-bevel or not. The variable speed infeed conveyor, variable feed speed, and variable cross-cutting speed allow the operator full control according to the type and size of material being run. The innovative clamps allow for simultaneous top and side clamping to ensure pieces are perfectly square for consistent end matching results.
Why Cantek EM12 End Matcher?
- Capable of processing end matching on flooring or paneling up to 12” wide x 1.38” thick
- Through-feed system allows the tongue and groove to be cut simultaneously on the tail of one board and the leading edge of the next board
- Powerful dual 10HP cutterhead motors allow for maximum cutting rate no matter the width, thickness, or species of the wood
- Stackable insert knife cutterheads allow for perfect matching of tongue and groove thickness
- Variable cross-cutting feed speed and anti-tear-out blocks produce optimum finish quality on tongue and groove
- Minimal floor space required with through feed design
- User friendly PLC control touch screen can keep track of total linear feet cut as well as piece count
- Production capacity of 77 lineal feet per minute based on average of 6.5’ board
- Variable speed through-feed system is controlled by frequency inverter
- Powered top urethane rolls and spring-loaded bed rollers feed the material into position for processing
- Pneumatic side pressure system ensures the material is held square against the fence
- Capable of processing material as short as 12” to an unlimited length
- Cutterheads are stacked and fully adjustable with replaceable and rotatable insert knives
- Cutterheads are equipped with removable micro bevel insert cutter section for bevel or square flooring / paneling
- 118” powered infeed table with angled rolls ensure material is fed up against the infeed fence
- 87” outfeed slide table allows board to slide out of the way while the next board comes through to be processed resulting in continuous production
- Chrome table ensures maximum wear resistance
- Complete safety and noise reduction enclosure
- Added feature of inverter-controlled infeed conveyor allows you to slow the infeed speed when dealing with heavy boards
