Overview

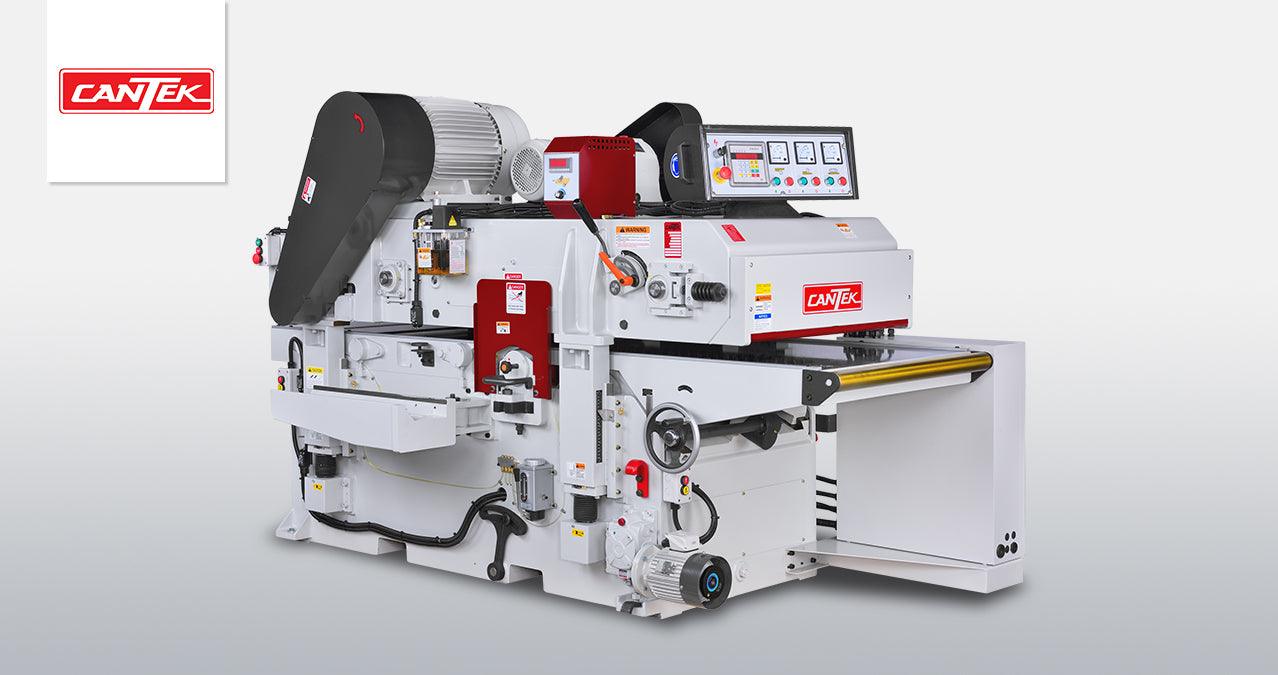

The Cantek GT635ARD 25″ Double Surface Planer has a robust cast-iron body for efficient, single-pass industrial planing. Spiral insert-knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal and extremely quiet operation, while a spring-loaded pin feed system passes material over the bottom head with an adjustable infeed bed, and digital control automatically positions the top head and feed assembly to the keyed-in final thickness.
Key Features
- Spring-loaded conveyor pin system flattens material over the bottom cutterhead before planing to thickness on the top head
- Spiral insert-knife cutterheads with two-sided solid carbide knives for a smooth finish, increased stock removal, and quiet operation
- Heavy-duty cast-iron machine body and table for vibration-free cutting
- Digital electronic thickness adjustment in inch and mm (0.001”/0.01mm resolution) for precise control
- 25″ x 8″ capacity as standard, with optional 16″, 20″, or 24″ thickness capacity
- Cutterheads are spiral insert type with six (6) rows of carbide inserts
- (2) driven and (1) idle bed roll for superior feeding of difficult material
- Swiveling control panel for ergonomic access
- Inverter variable speed control with feed speeds from 26 to 80 FPM
- External handwheel adjustment of infeed bed
- Hard-chromed worktable for high wear resistance
- Auto lubrication to conveyor chain and central lubrication for dovetail elevation guideways
- Sectional chipbreaker and sectional feed roller before the top cutterhead
- Rubber outfeed top roller to prevent chip marking
- Over-thickness safety shut-off bar across infeed
- Ammeter for each motor on the control panel to monitor motor load
Specifications
| Capacity | 25″ x 8″ standard (16″, 20″, 24″ optional) |
|---|---|
| Cutterhead type | Spiral insert, 6 rows of carbide inserts |
| Feed speed (variable) | 26 to 80 FPM |
| Thickness adjustment resolution | Inch: 0.001” / mm: 0.01mm |
