Overview

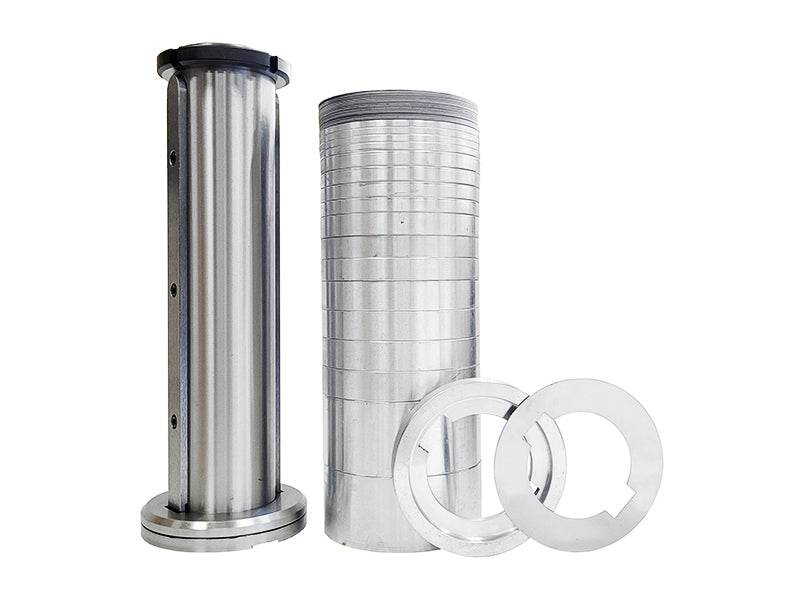

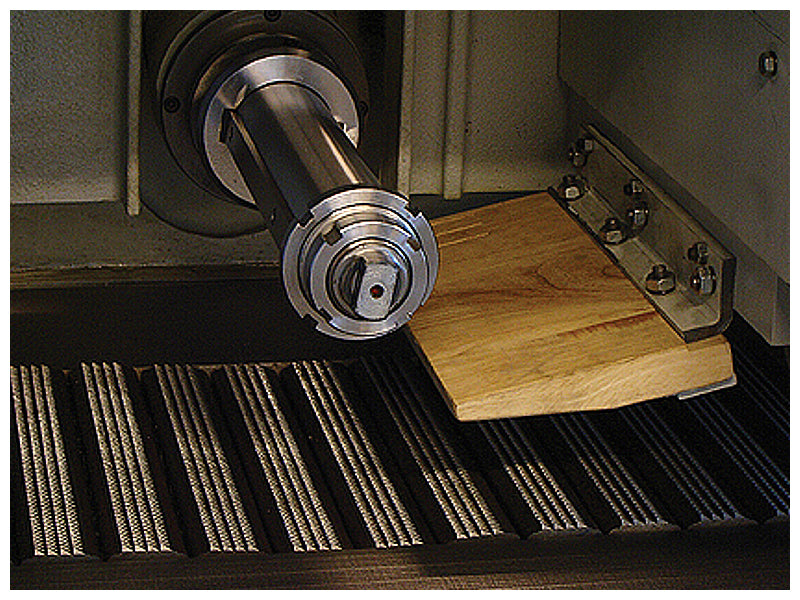

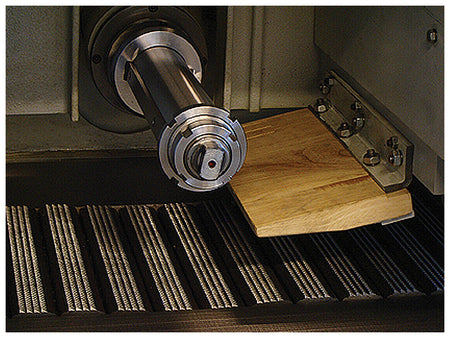

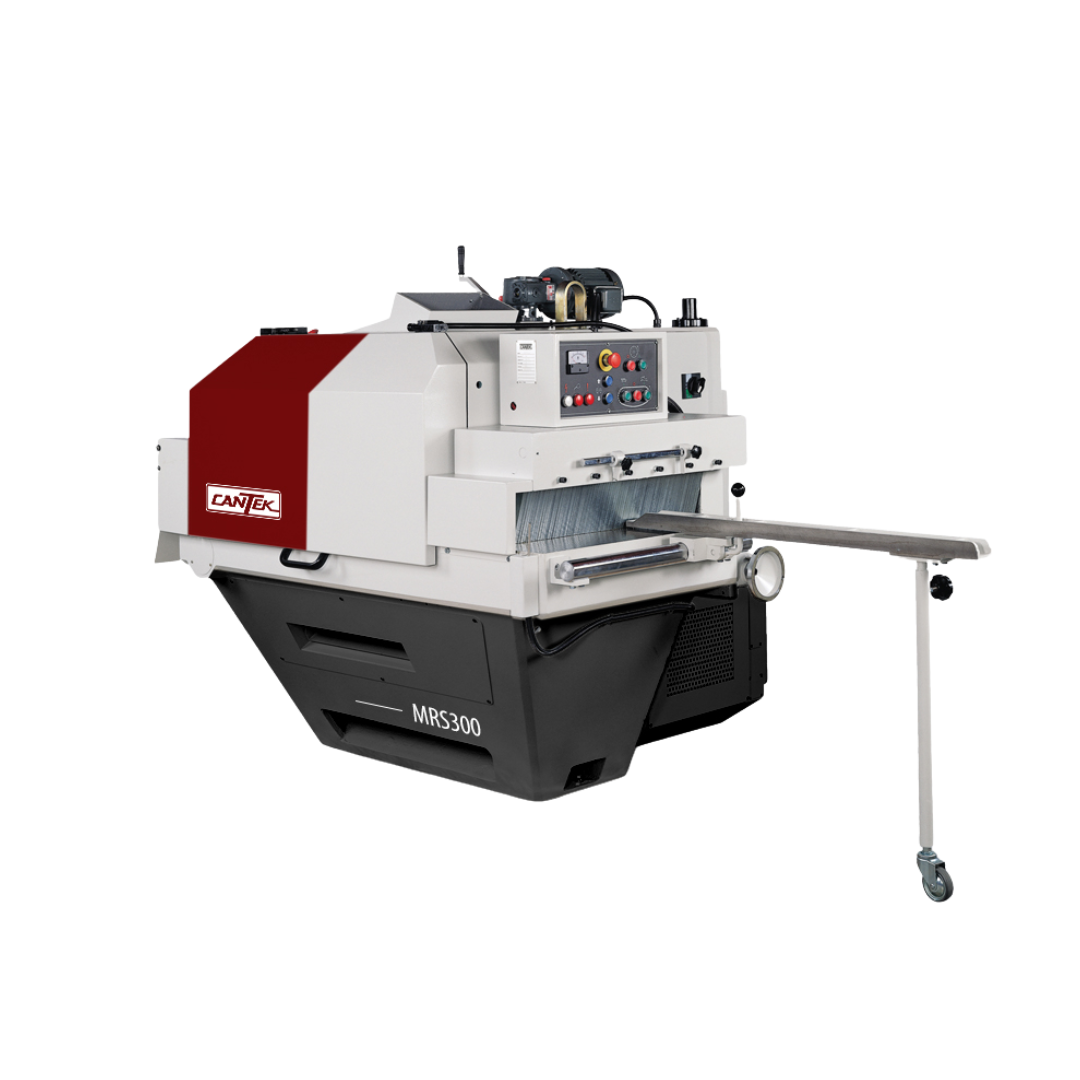

The Cantek MRS300 Multi Blade Gang Ripsaw is a production multi-ripsaw built on an industrial cast-iron machine body for the most demanding ripping applications. A precision cast-iron chain and track system delivers maximum durability and accuracy, while the removable saw sleeve system allows fast changeovers between ripping operations to increase throughput. The powerful 50HP standard saw motor provides maximum cutting depth with multiple rip blades at increased feed speeds.
Key Features
- Straight-line caterpillar feeding with heavy guided chain

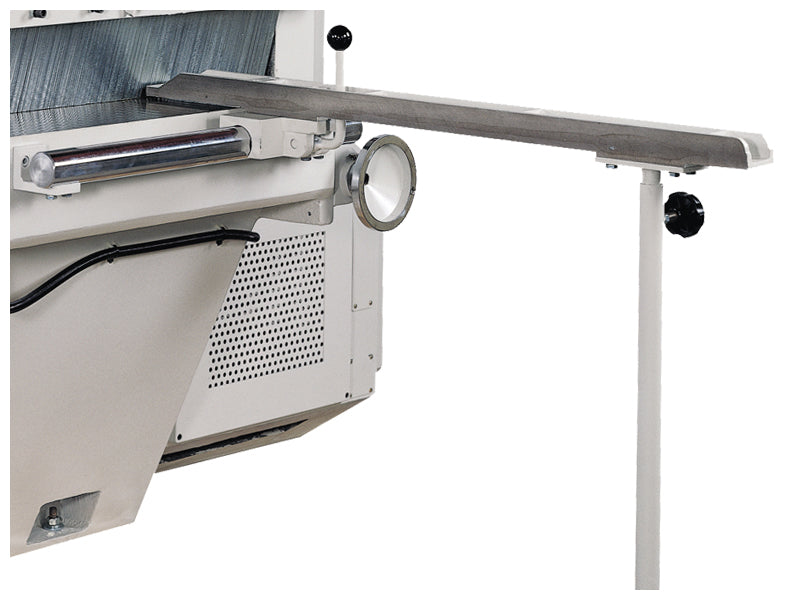

- Precision extended cast-iron rip fence runs on a large-diameter fence bar for quick adjustment
- Automatic centralized lubrication system for the chain and race assembly ensures long life and precision

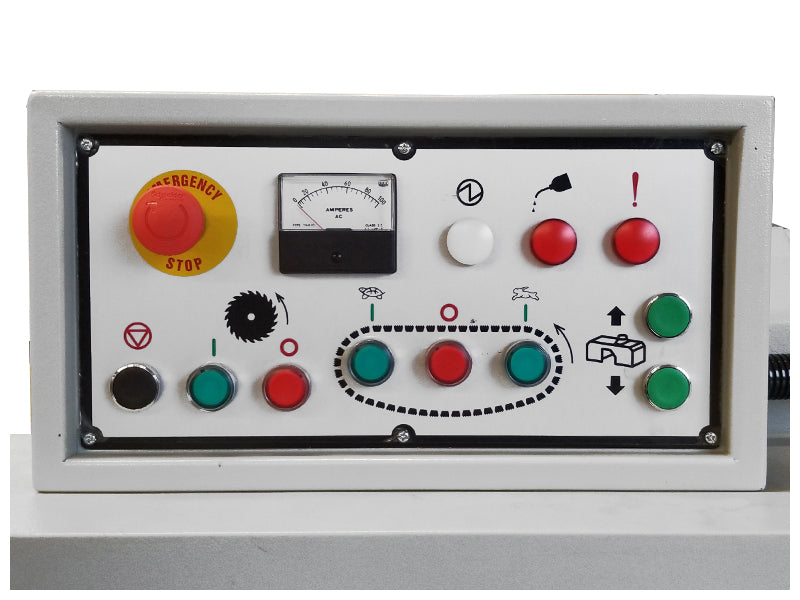

- Automatic Star-Delta starter (slow-speed start) on the main motor with low-voltage controls

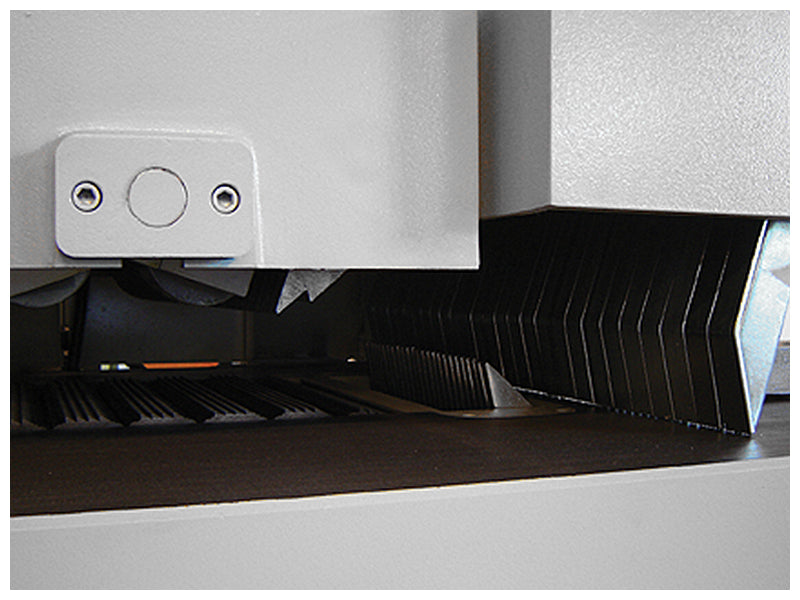

- (3) sets of anti-kickback fingers — (2) top + (1) bottom — for operator safety
- Powered rise & fall of the pressure rollers for quick thickness adjustment
- CE-style European guards and safety features

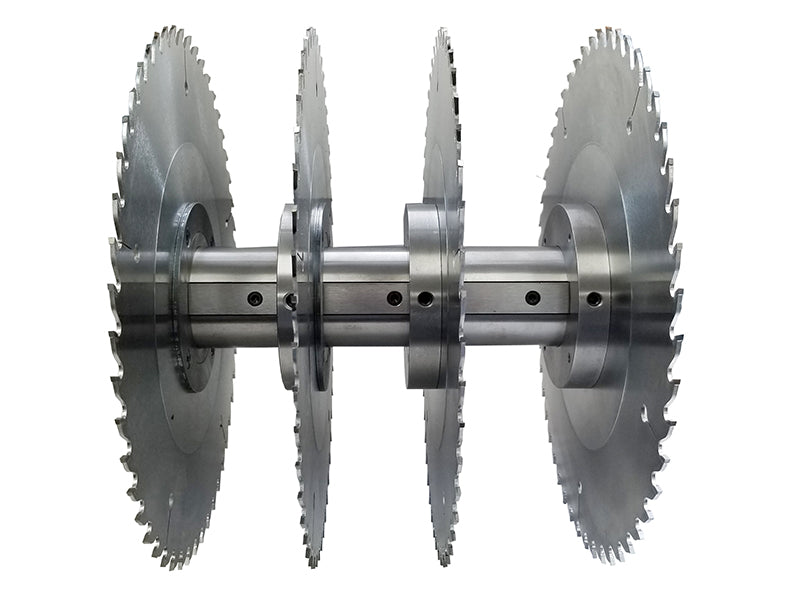

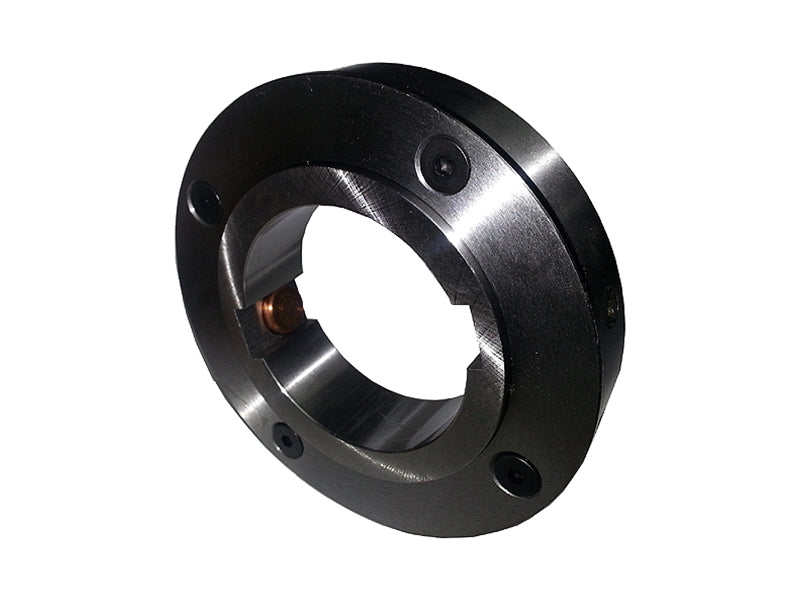

- Optional quick-setting collars eliminate the need for spacers, allowing fast changeovers between ripping widths
- Optional laser projection lights

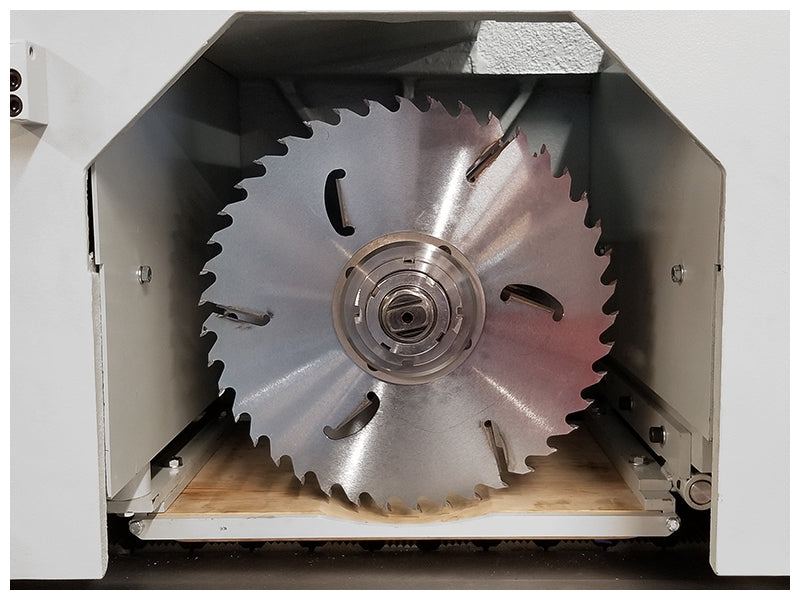

- Optional short stock attachment reduces minimum ripping length to 11.8″ (300mm)
Specifications
| Max. Working Thickness (14″ Blade, w/ Short Stock) | 3.74″ (95mm) |
|---|---|
| Max. Working Thickness (14″ Blade, w/o Short Stock) | 4.33″ (110mm) |
| Max. Working Thickness (15″ Blade, w/o Short Stock) | 4.72″ (120mm) |
| Min. Length (w/o Short Stock Attachment) | 23″ (585mm) |
| Min. Length (w/ Short Stock Attachment) | 11.8″ (300mm) |
| Maximum Cutting Width | 11.8″ (300mm) |
| Distance From Column To Center Of Chain | 14.17″ (360mm) |
| Sawblade Diameter | 8″ to 15″ (203 to 380mm) |
| Saw Arbor Sleeve Diameter (Blade Bore) | 70 mm w/ keyways |
| Saw Arbor Diameter | 50 mm |
| Saw Arbor Speed | 3800 RPM |

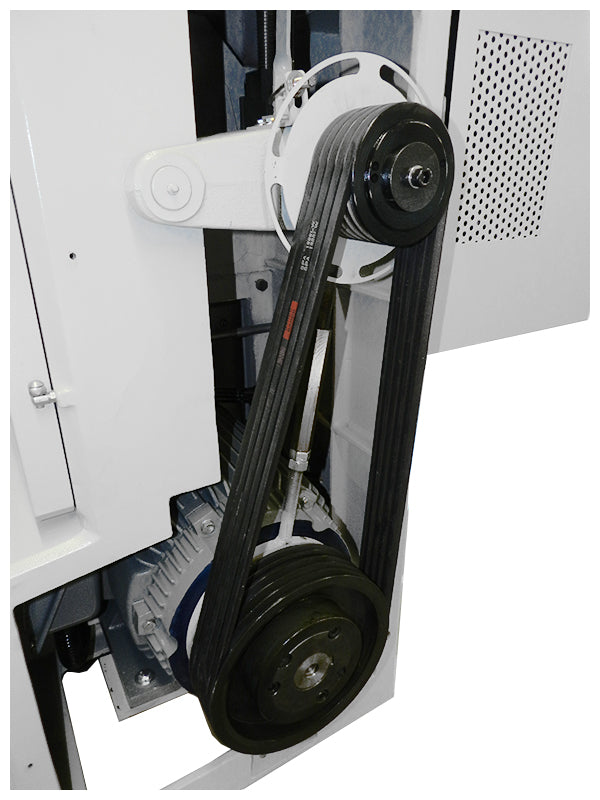

| Saw Motor | 50 HP |
| Thickness Setting Motor | ½ HP |

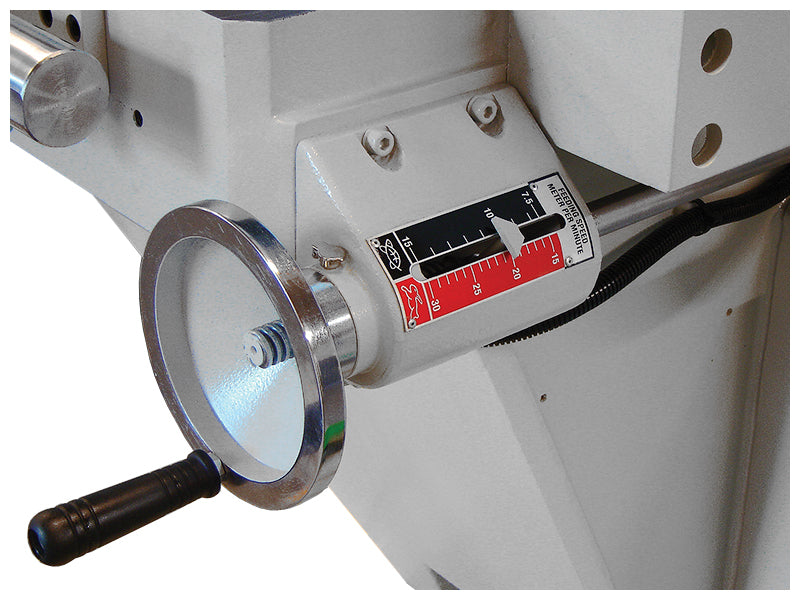

| Feed Speeds | 25–100 FPM (7.5–30 m/min) |
| Feed Motor | 2 HP |
| Dust Hood Diameter | 2 @ 6″ (2 @ 150mm) |
| Table Size | 60″ x 30″ (1530 x 760mm) |
| Table Height From Floor | 33.5″ (851mm) |
| Net Weight | 4510 lbs (2050 kgs) |
| Shipping Weight | 5060 lbs (2300 kgs) |
| Machine Dimensions | 82.68″ x 59″ x 56½″ (2100 x 1500 x 1435mm) |
| Shipping Dimensions | 70.87″ x 66.93″ x 63″ (1800 x 1700 x 1600mm) |
| Electrics | 460/3/60* = 69.5 Full Load Amps |
