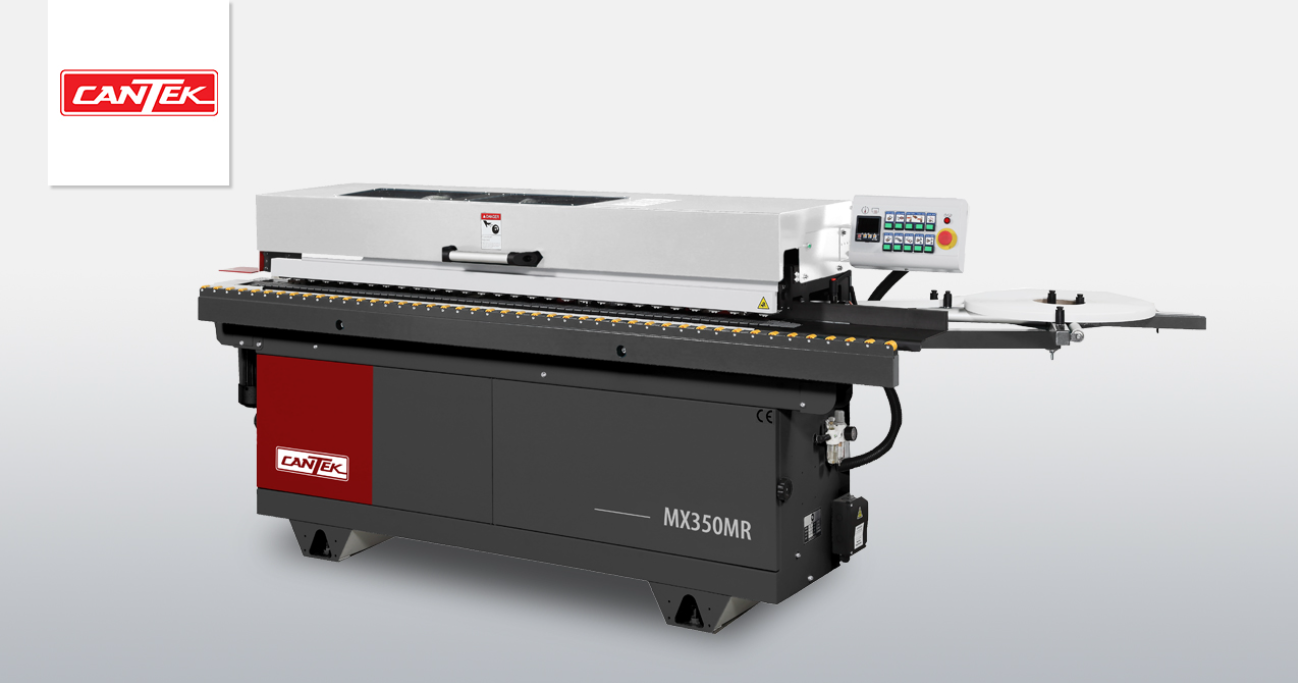

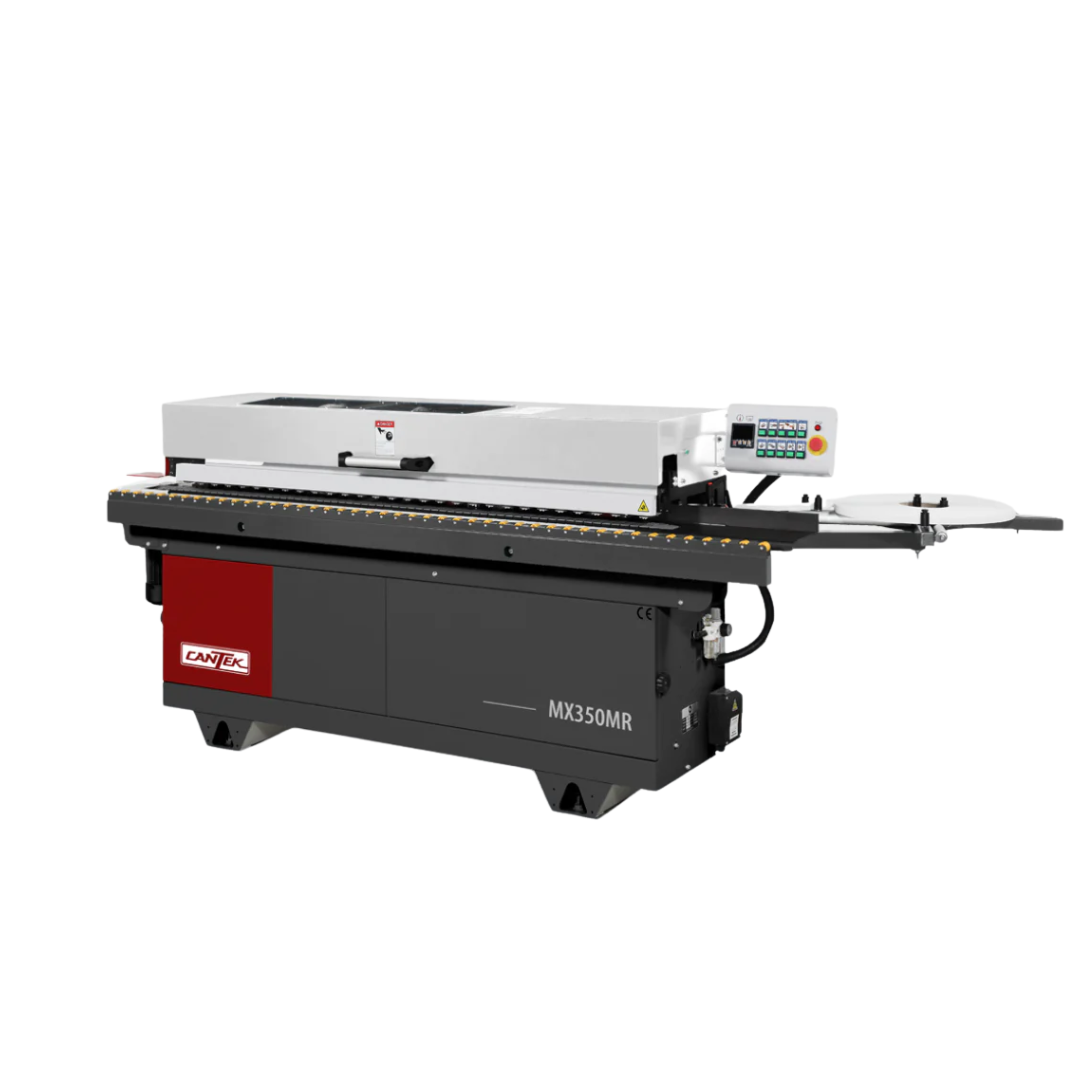

Cantek Automatic Edgebander | MX350MR
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Key Advantages

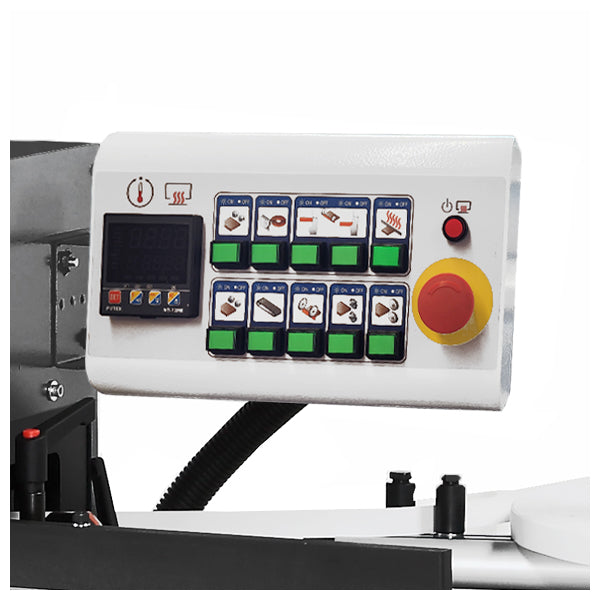

- PLC control system with LED display and keypad

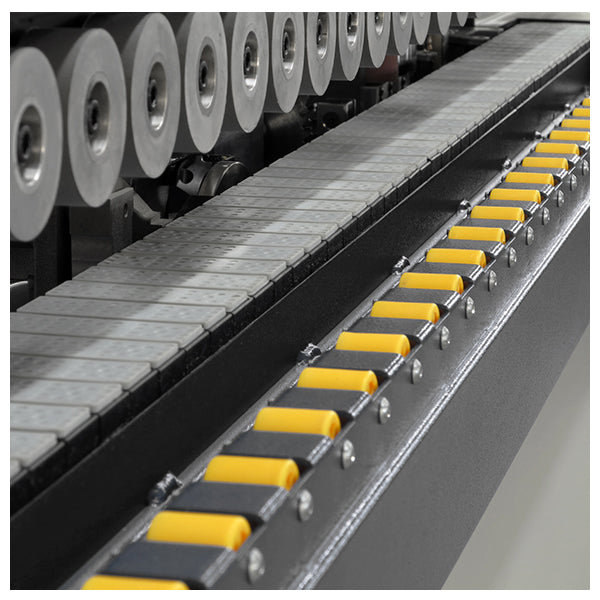

- Workpiece is fed by chain

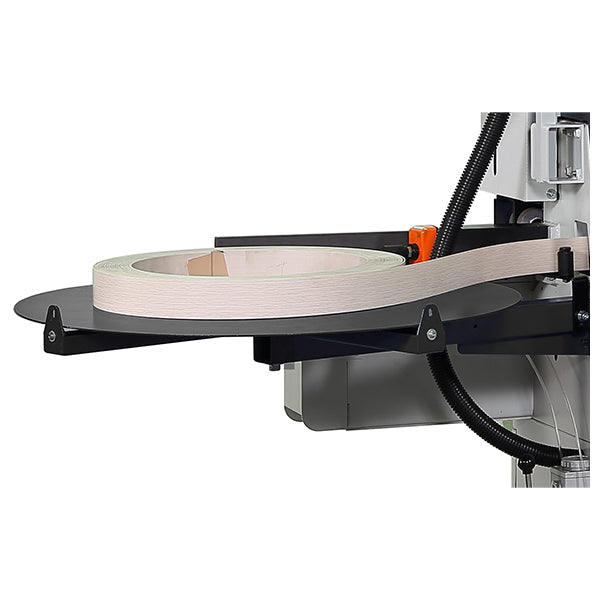

- Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
- Automatic edge feeding with a thickness capacity of 0.4-3 mm.

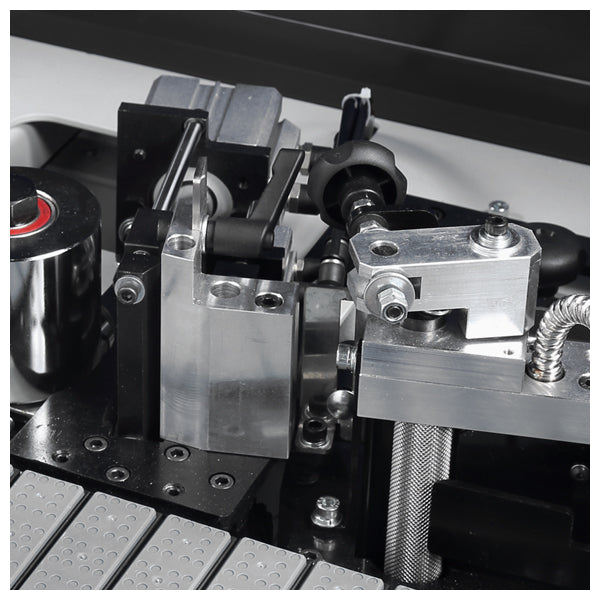

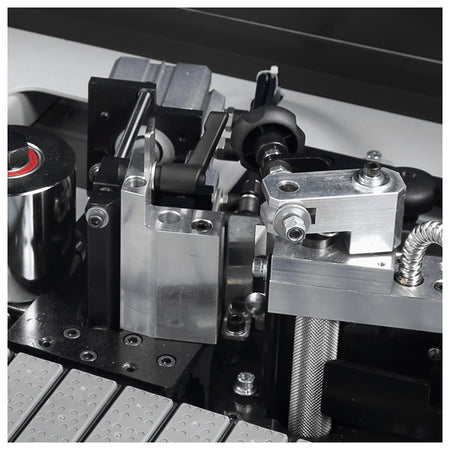

- Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

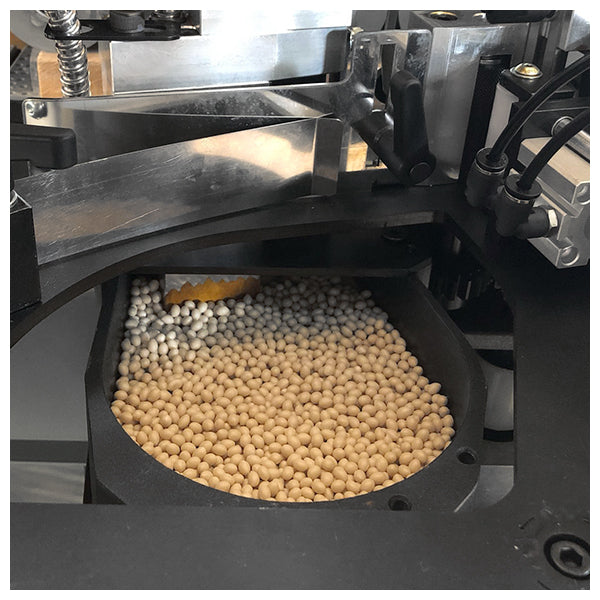

- 1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot

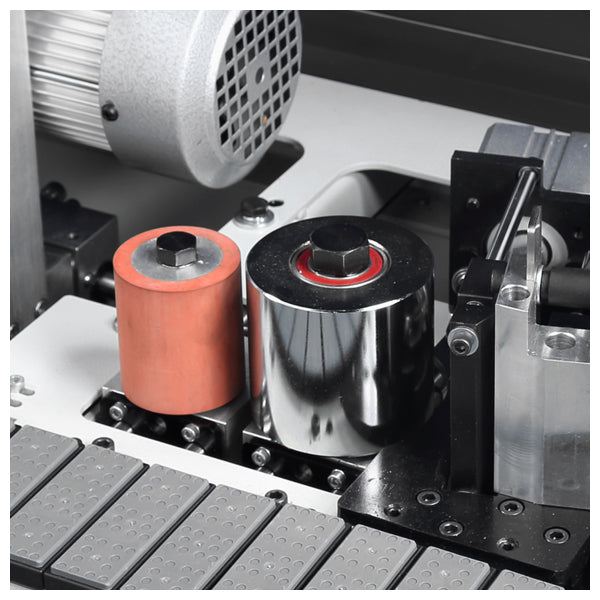

- Spring-loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
- Heavy-duty pressure beam with extendable workpiece support
- Heated infeed fence for preheating the panel for optimum glue penetration
- Mechanical digital readouts for convenient and quick adjustment to the working units & thickness
Specifications:
INCH |
METRIC |
|
Feeding speed |
23 FPM |
7 m/min. |
Panel thickness |
0.472~1.77″ |
12~45 mm |
Edge thickness |
0.0158”~0.118” |
0.4 ~ 3 mm |
Minimum panel width |
3.54″ |
90mm |
Minimum panel length |
8 3/4″ |
220mm |
Working table height |
33.7″ |
856mm |
Extraction connection |
3 x 4” = 1,200 CFM |
3 x 100mm = 1,200 CFM |
Air consumption |
8.83 CFM |
250 liters/min |

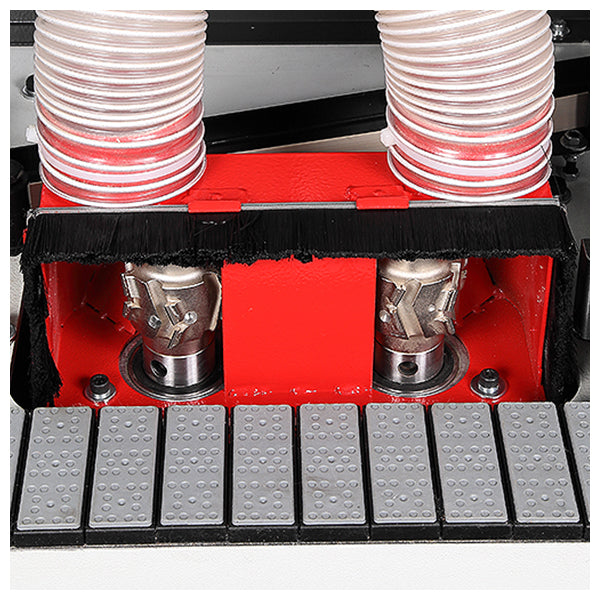

Premilling spindle speed |
9000 RPM |
|

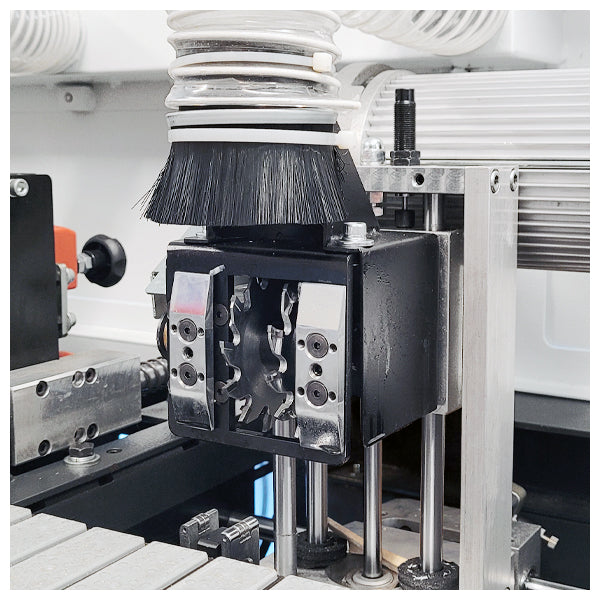

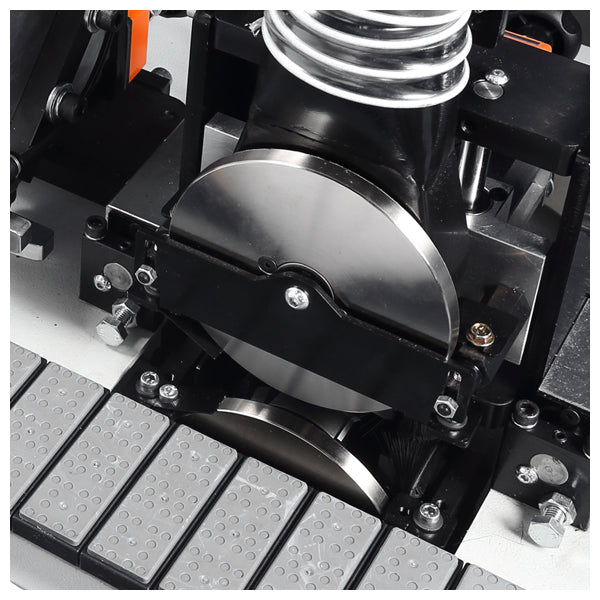

Top & bottom trimmer RPM |
10500 RPM |
|
Max. machine dimensions (LxWXH) |
126” x 47 ¼” x 47 ¼” |
3200 x 1200 x 1200mm |
Machine weight |
1162 lbs |
528 kgs |
Shipping dimensions (LxWxH) |
111” x 28.4” x 52” |
2820 x 720 x 1320mm |
Shipping weight |
1452 lbs |
660 kgs |
Electrical requirements |
230/1/60 = 35 amps 230/3/60 = 19 amps |
|
