Powerful features in a small footprint sliding panel saw.

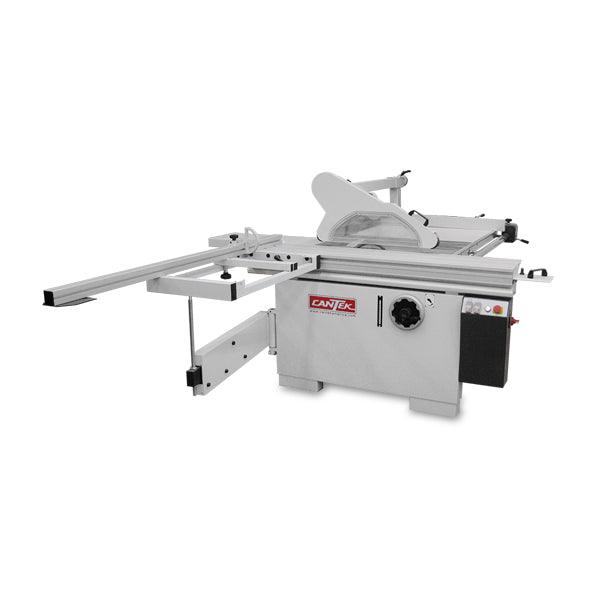

The Cantek P30 5′ Sliding Table Saw is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements. The P30 has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51”. Equipped with a crosscut miter fence and (2) flip stops.
Why Cantek P30 5′ Sliding Table Saw?

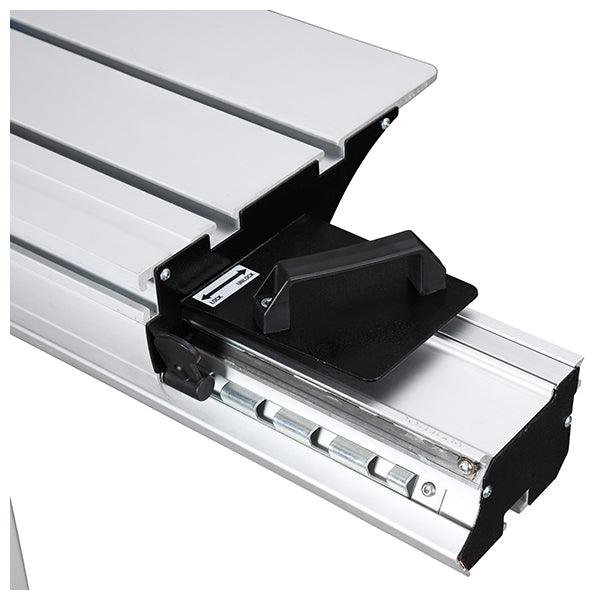

- Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement
- Powerful 5 HP main motor with ¾ HP scoring motor
- Heavy duty cast-iron rip fence with 51” cutting capacity

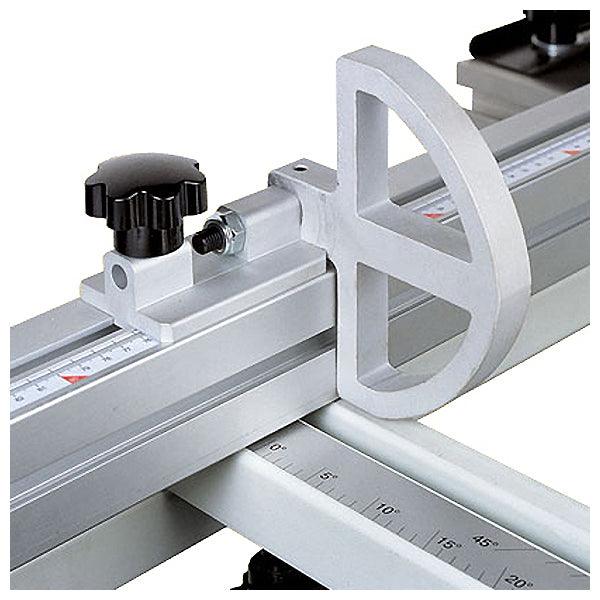

- Aluminum crosscut miter fence with (2) flip stops
- Manual rise/fall the main saw blade

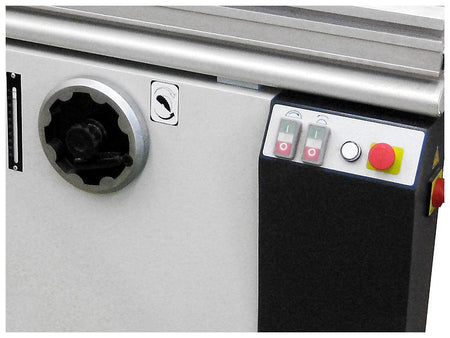

- Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel
- Overarm blade guard with build in dust port
- Solid cast iron main table which is ground and polished
- Heavy-duty outrigger for strong support of workpiece during cutting operations

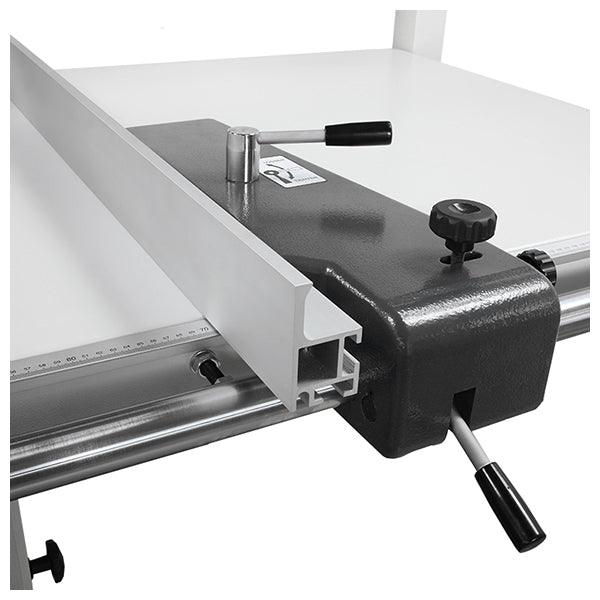

- Solid rip fence with manual fine adjustment and locking lever
- Easy to access external scoring adjustment
- Extension table at side and back of main table
- Optional Equipment Included:
- Eccentric hold down clamp
- CE Overarm Guard with Dust Port
- Wedge for Solid Wood Ripping
Sliding table dimension |
63″ x 12.4″ |
1600 x 315mm |
Cast Iron table |
21 ½” x 35 ¼” |
548x896mm |
Extension table (rear) |
18″ x 17 ½” |
470x896mm |
Extension table (front) |
12 ½” x 32 ½” |
320x830mm |
Table size |
39 ½” x 68″ |
1018x1726mm |
Main saw blade (Max.) |
12″ |
305mm |
Main saw bore |
30mm |
|
Max. cutting height at 90° (355mm) |
3.54” |
90mm |
Max. cutting height at 45° (355mm) |
2.48” |
63mm |
Main motor power |
5 HP |
|
Main blade speed |
4000 RPM |
|
Scoring saw blade |
120mm |
|
Scoring saw blade bore |
20mm |
|
Scoring blade motor power(optional) |
3/4 HP |
|
Scoring blade speed |
8000 RPM |
|
Cutting width – ripping |
51” |
1300mm |
Cutting width adjustment |
Manual |
|
Crosscutting width (Maximum) |
134.6” |
3420mm |
Main saw blade tilting adjustment |
Manual (0°~ 45°) |
|
Main saw height adjustment |
Manual |
|
Scoring saw height adjustment |
Manual |
|
Saw guard |
CE Guard Included |
|
Dust collection ports |
(1) 4” / (1) 2.3” |
(1) 100mm / (1) 60mm |
Machine weight |
984 lbs |
447 kgs |
Shipping weight |
1151 lbs |
523 kgs |
Shipping dimensions |
83” x 46” x 44” |
2110 x 1150 x 1160mm |
Electrics |
230/1/60 = 34.9 Full Load Amps |
|
230/3/60 = 18.4 Full Load Amps |
||
|
|
575/3/60 = 7.4 Full Load Amps |
|
