Overview

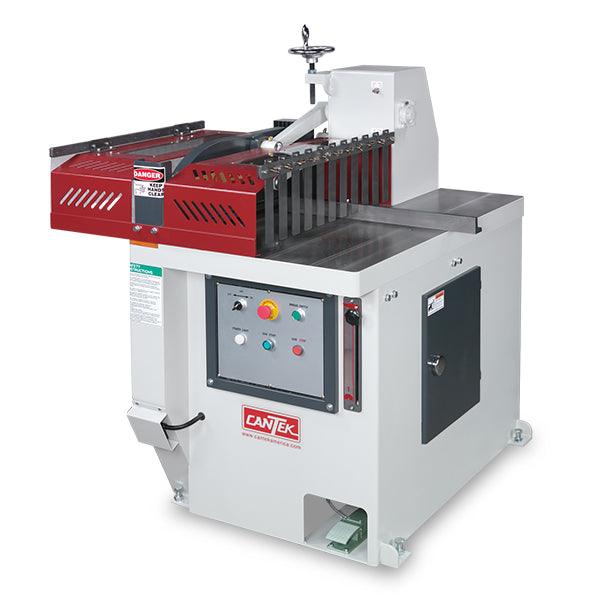

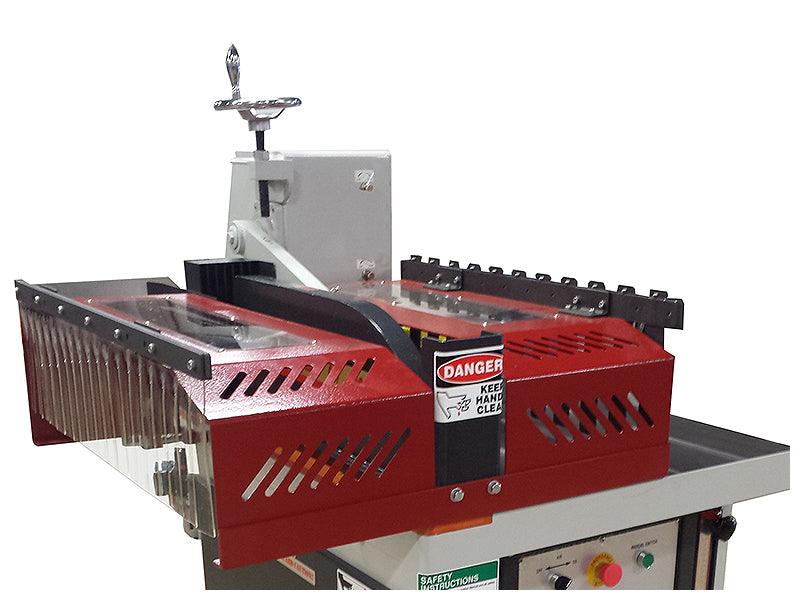

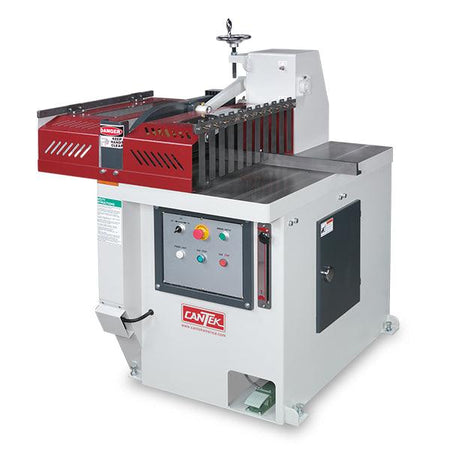

The Cantek PCS24 24” Pneumatic Cut-Off Saw is a large-capacity crosscutting solution with a powerful 15 HP motor and adjustable cutting stroke for increasing production while maintaining safety. It's available in left-hand or right-hand configurations to match your ideal production flow, and includes safety features such as an infeed/outfeed guard, microswitches on all access doors, and a security bolt on the saw access door.
Key Features
- Large cutting capacity from 2”x21” up to 7”x8”
- Adjustable cutting stroke for optimum cutting speed and cut quality
- Available in right-hand and left-hand configurations
- Powerful 15 HP main motor
- Pneumatic foot pedal operation with adjustable cutting speed (optional dual push-button control)
- Fast cutting cycle up to 40 strokes per minute
- Precision-ground cast-iron table for high cutting accuracy
- Material clamp easily adjusts for workpiece thickness variation
- CSA/UL magnetic switch
Specifications
| Cutting capacity (thickness x width) | 2″x21″, 4″x19″, 6″x15″, 7″x8″ |
|---|---|
| Cycle speed | 40 strokes/min |
| Cycle operation | Air / mechanical |
| Saw blade size | 24″ max. (20″ min.) |
| Saw arbor diameter | 1″ |
| Saw blade speed | 2400 RPM |
| Dust exhaust diameter | Ø4″ x 2 |
| Air consumption | 27.5 CFM |
| Motor | 15 HP |
| Table size | 45.3″ x 26″ |
| Net weight | 1058 lbs |
| Gross weight | 1433 lbs |
| Machine dimensions (LxWxH) | 40.2″ x 45″ x 55″ |
| Packing dimensions (L x W x H) | 53.5″ x 35.5″ x 57″ |
