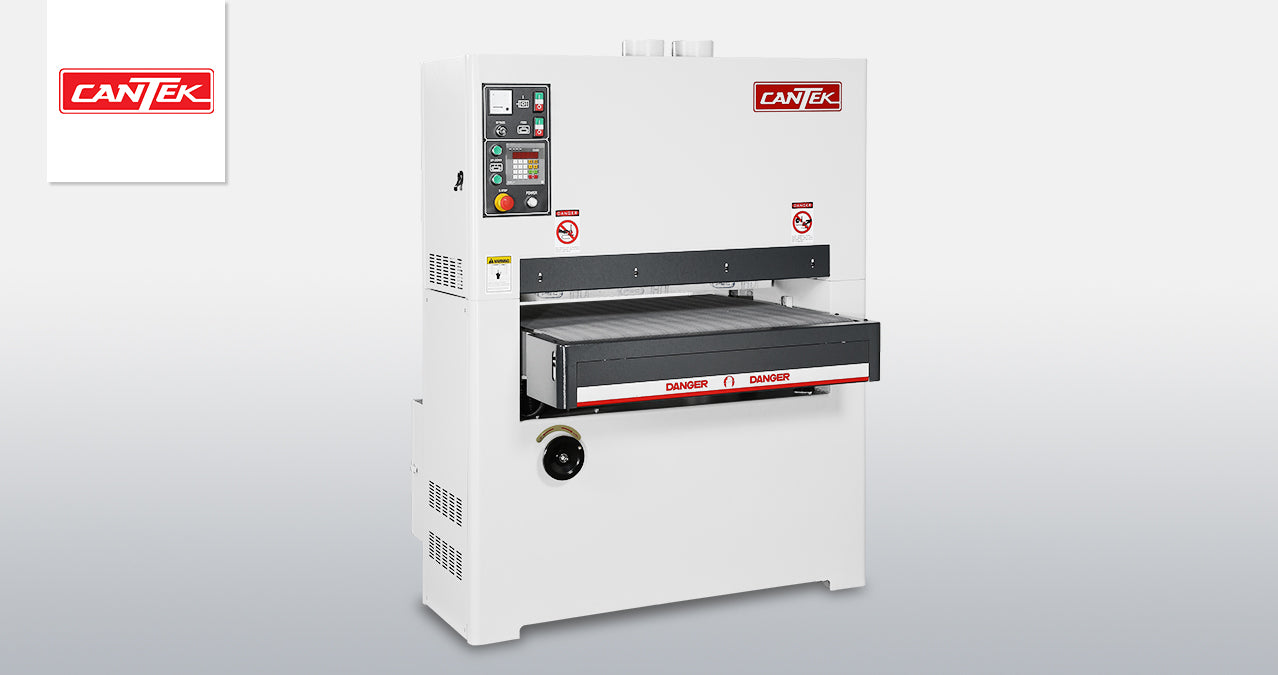

Why Cantek S371 36″ Widebelt Sander?

  • Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position.
  • Combination sanding unit with 5″ rubber contact drum and 2″ wide adjustable sanding platen for a wide range of sanding applications.
  • Small footprint.
INCH
METRIC
Abrasive belt size
37” x 60”
939 X 1524 mm
Main motor
15 HP (3 PH)
10 HP (1 PH)
Feed motor
1HP
Table rise/fall motor
0.25 HP
Working width
37″
930 mm
Minimum part length
12.5″
320 mm
Maximum thickness opening
5.9″
150 mm
Feed speed: variable
15 to 49 FPM
4 to 15 m/min
Pass line height
37″
950 mm
Dust outlet
3 @ 4”
3 @ 101 mm
Compressed air pressure
PSI 60
4 Kg/cm2
Compressed air volume
7 CFM
0.2M3/Min
Dust collection requirements
1236 CFM
2100 M3/HR
Net weight
1609 lbs
730 kgs
Machine dimensions
50” X 52” X 66”
1270 x 1335 x 1680 mm
Shipping weight
 1829lbs
830 kgs
Shipping dimensions
52” X 57” X 76”
1330 x 1460 x 1940 mm
Electrical requirements
230/3/60 = 47 amps
