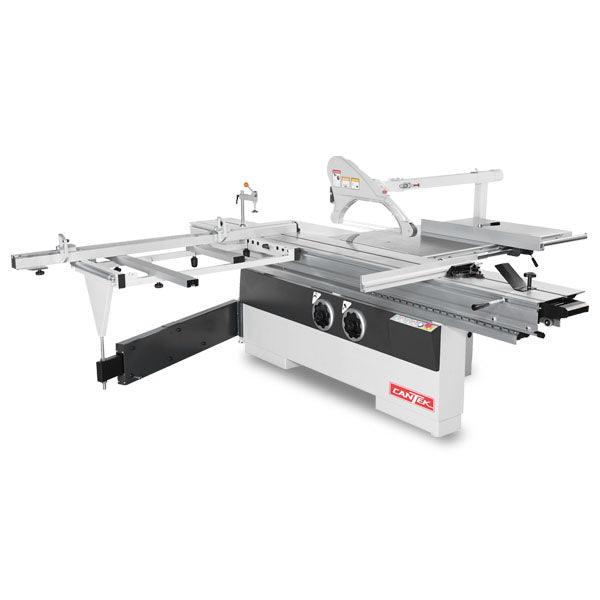

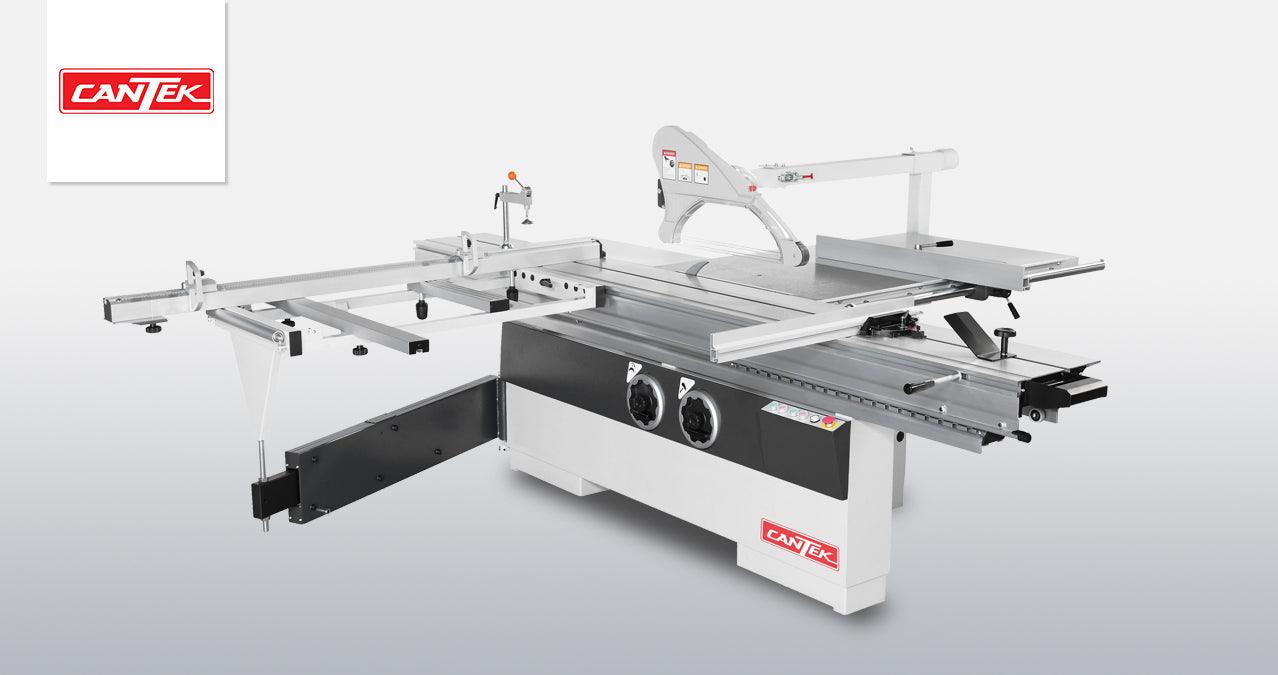

CANTEK 10' Sliding Table Saw D405M
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Why Cantek D405M-10 10′ Sliding Table Saw?

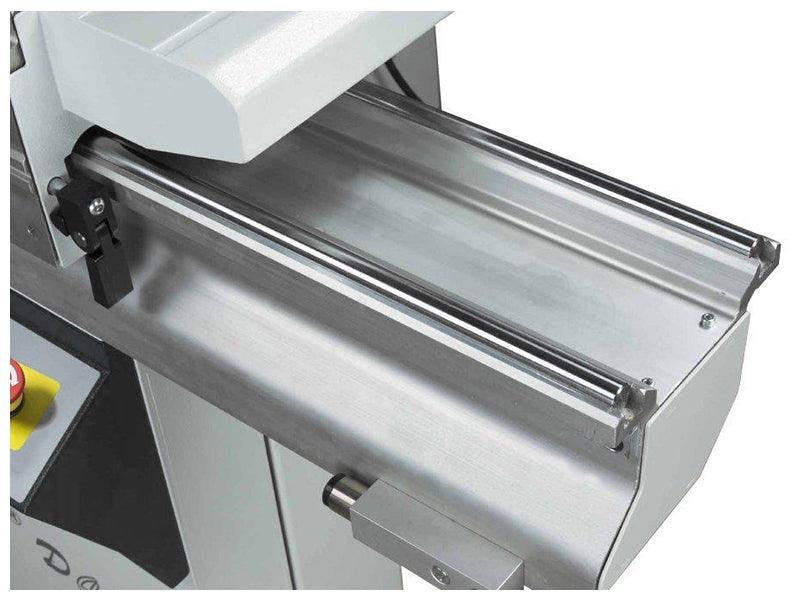

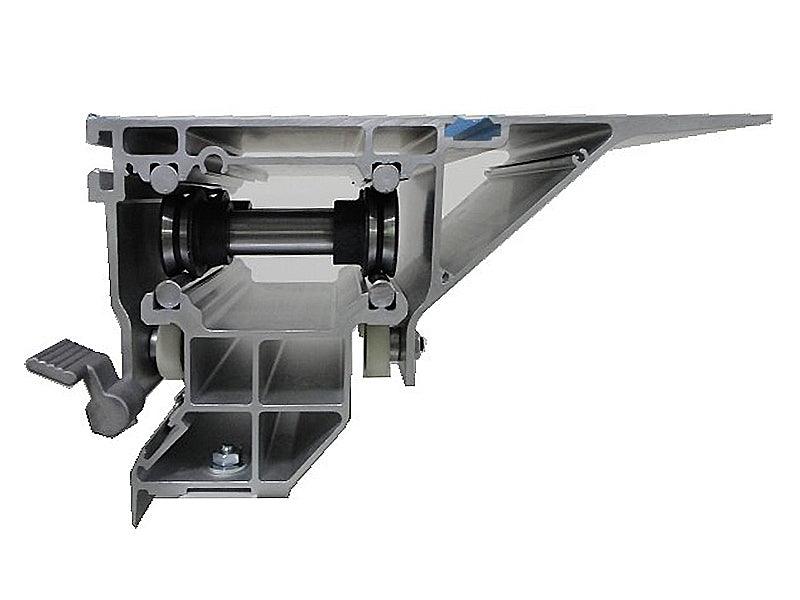

- Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides for smooth and effortless table movement

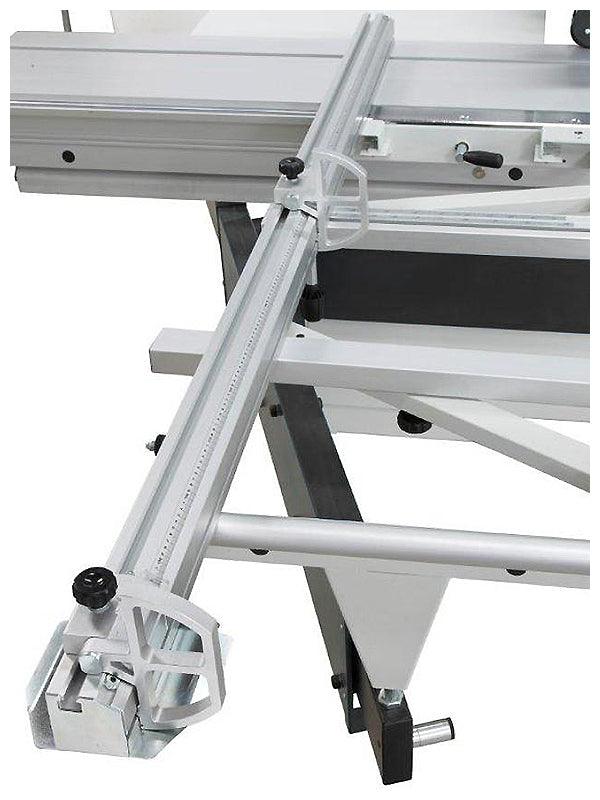

- Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts
- Manual blade rise, fall, and tilting with convenient pointer for blade angle display

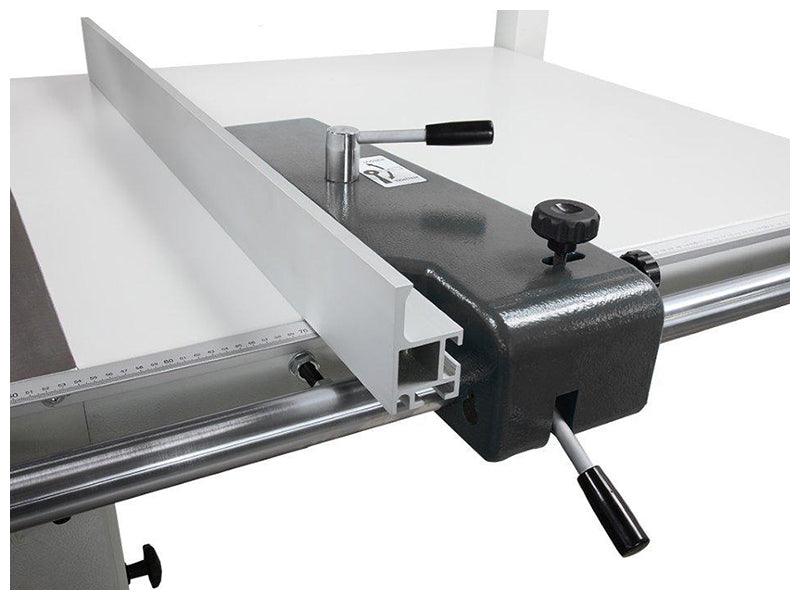

- Heavy duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro adjustment knob

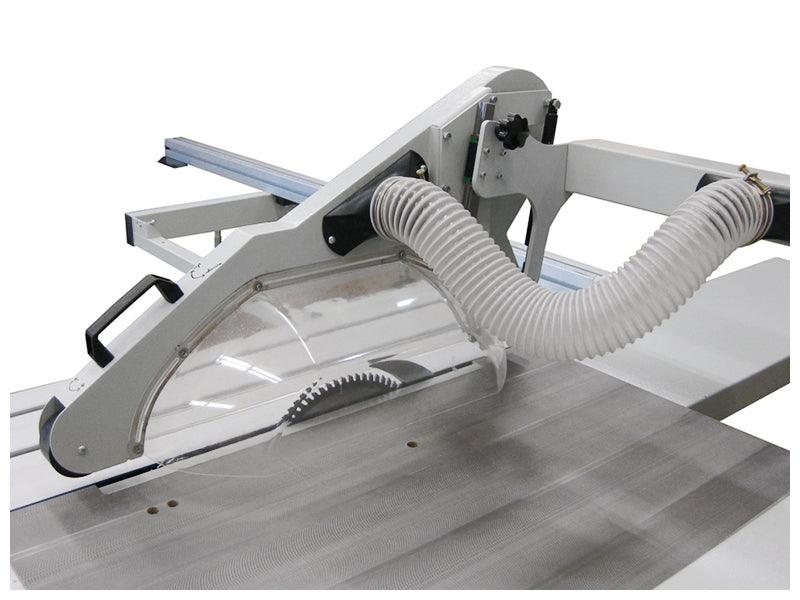

- Overarm safety guard with quick change system for changing between straight and bevel cutting guards
- Powerful 7 ½ HP main motor for 3 Phase or 5HP main motor for Single Phase, with separate 1HP scoring motor

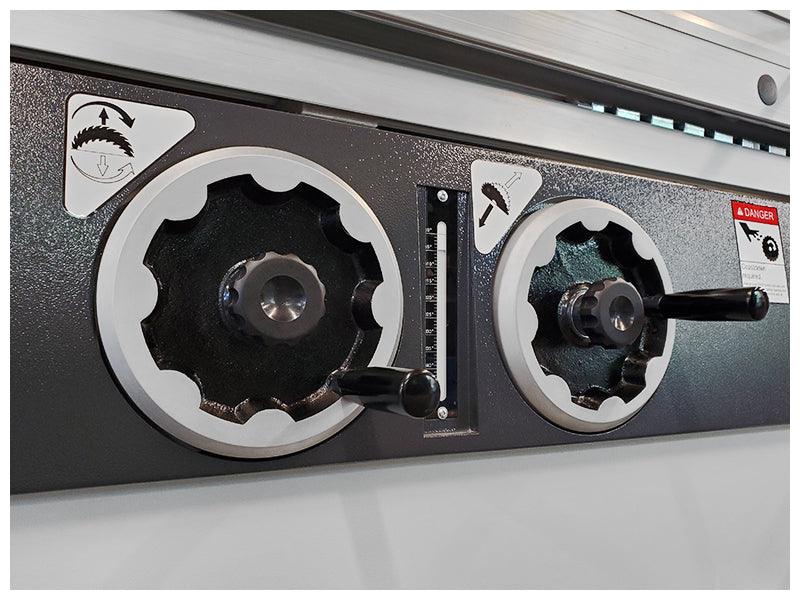

- Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
- Heavy-duty outrigger for strong support of workpiece during cutting operations
- Dual inch and metric scales for both rip and crosscut fences

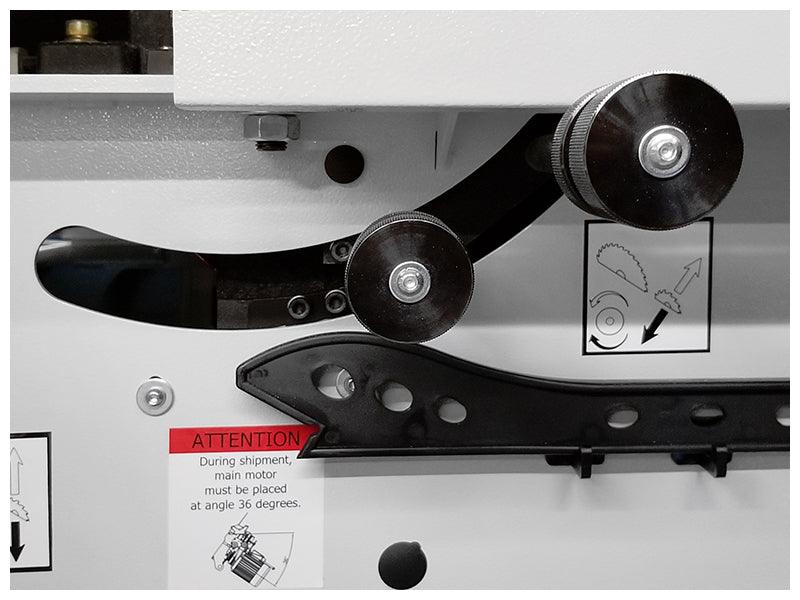

- Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience

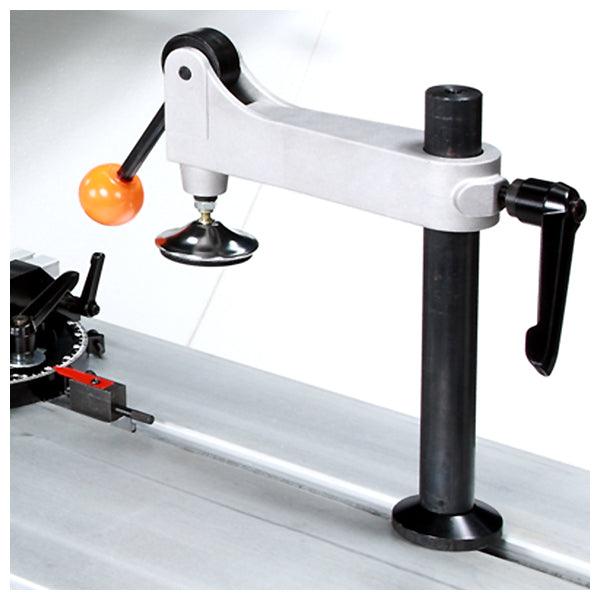

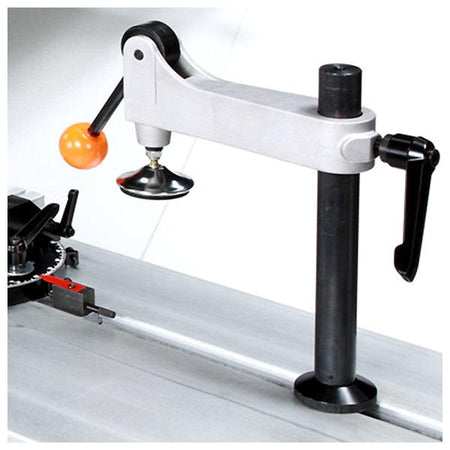

- Eccentric hold down clamp, table return handle, and wedge for solid wood ripping included
- Overhead saw blade guard with built in dust port included (CE-type)
- verarm safety guard with quick change system for changing between straight and bevel cutting guards
|
|
INCH |
METRIC |
Sliding table dimension |
126″ x 14.9″ |
3200 x 378 mm |
Cast iron table |
21.6″ x 35.3″ |
548 x 896 mm |
Extension table (rear) |
37.5″ x 35.3″ |
952 x 896 mm |
Extension table (front) |
12.6″ x 32.7″ |
320x 830 mm |
Table size |
59″ x 68″ |
1500 x 1726 mm |
Round rail |
1.97″ |
50mm |
Maximum main saw blade dia. |
16″ |
400 mm (16″) |
Main saw bore |
30mm |
|
Max. cutting height at 90° (355mm) |
4.13″ |
105 mm |
Max. cutting height at 45° (355mm) |
2.76″ |
70mm |
Main motor power |
7.5 HP (3ph) / 5HP (1ph) |
5.5 kW (3ph) /3.7 kW (1ph) |
Main blade speed (3) |
3000/4000/5000 RPM |
|
Scoring saw blade |
120 mm |
|
Scoring saw blade bore |
20mm |
|
Scoring blade motor power |
1 HP |
0.75 kW |
Scoring blade speed |
8000 RPM |
|
Cutting width |
51.2″ |
1300 mm |
Cutting width adjustment |
Manual |
|
Main saw blade tilting adjustment |
Manual (0°~45°) |
|
Main saw height adjustment |
Manual |
|
Scoring saw adjustment |
Manual |
|
Dust ports (machine / guard) |
4.72″ / 2.5″ |
120mm / 64 mm |
Machine total weight |
1612 lbs. |
733 kgs |
Machine shipping details |
1428 lbs (83″x46″x44″) |
649 kgs (2110x1150x1120mm) |
Sliding table shipping details |
380 lbs (137″x20″x15″) |
173 kgs (3480x490x370mm) |
Overhead guard shipping details |
80 lbs (40″x36″x6″) |
36 kgs (1000x900x140mm) |
Electrics |
230/3/60 = 26.2 Full Load |
|
Electrics |
230/1/60 = 36 Full Load Amps |
|
In-stock and in-store products ship the same day. Dropship items that are stocked usually ship same day or the next day. For products that are out of stock, shipping times may vary. We’re here to help if you have any questions about your order or delivery status.
Each machine comes with a manufacturer’s warranty. For full details on coverage, terms, and conditions, please refer to the documentation provided by the manufacturer. If you have any questions or need help verifying your warranty, our customer service team is always happy to assist.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
5HP 1 PHASE
D405M101PH
|
|
||
|
7.5 HP 3 PHASE
D405M103PH
|
|
Product subtotal
