Overview

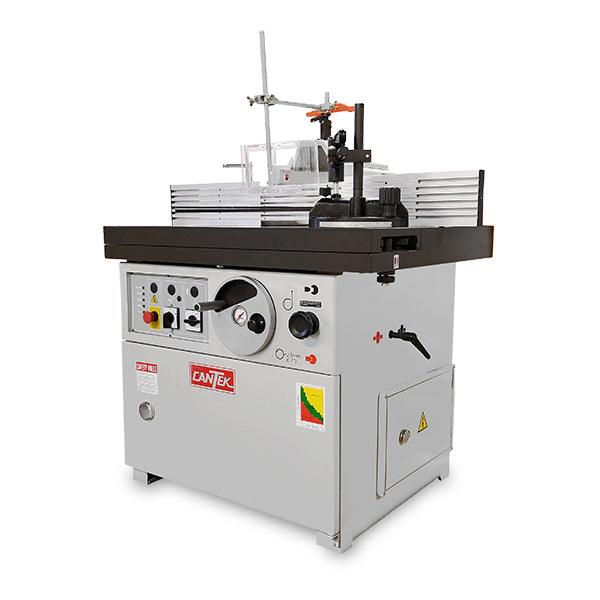

The Cantek SS512CSB Sliding Table Shaper is a ruggedly built 7.5 HP production shaper designed for demanding production environments. Its versatile design suits edge-profiling, door and furniture components, mouldings, tenoning, and more, with a cast-iron sliding table running on bearings for smooth, vibration-free movement. The dual-direction 7.5 HP spindle handles optimum shaping even with large profiles, while the heavy-duty cast-iron table and shaping column ensure maximum stability and superior vibration damping for finish quality.
Key Features

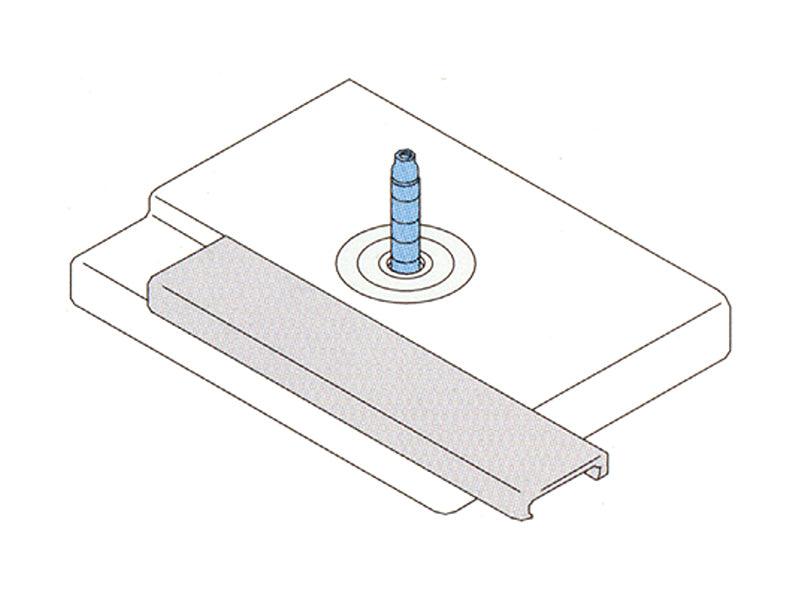

- Cast-iron sliding table runs on bearings for vibration-free, smooth movement

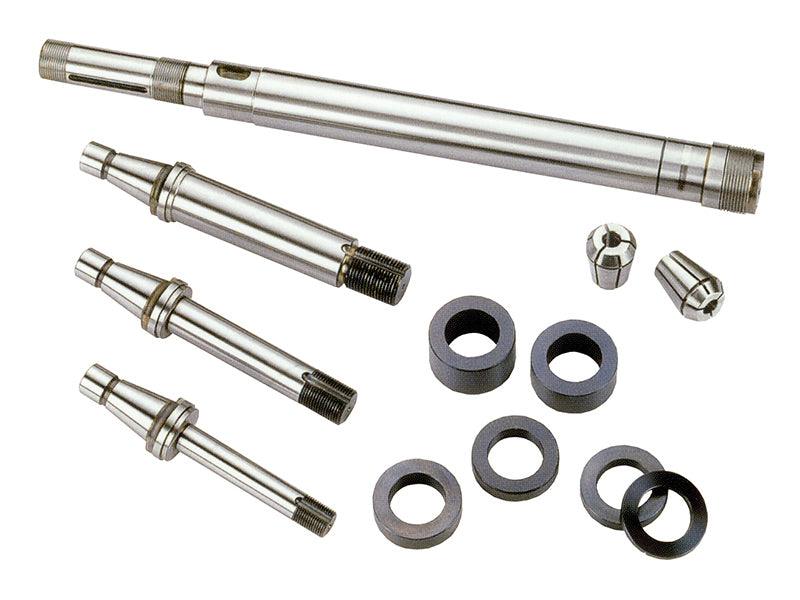

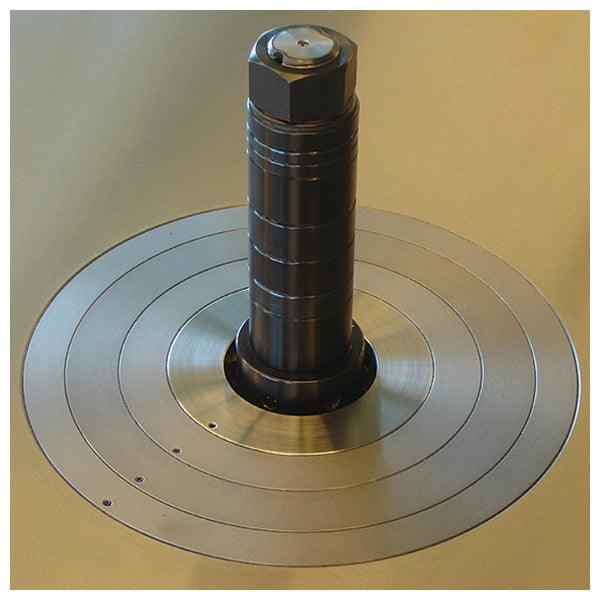

- 1 ¼” interchangeable spindle standard (other sizes available)

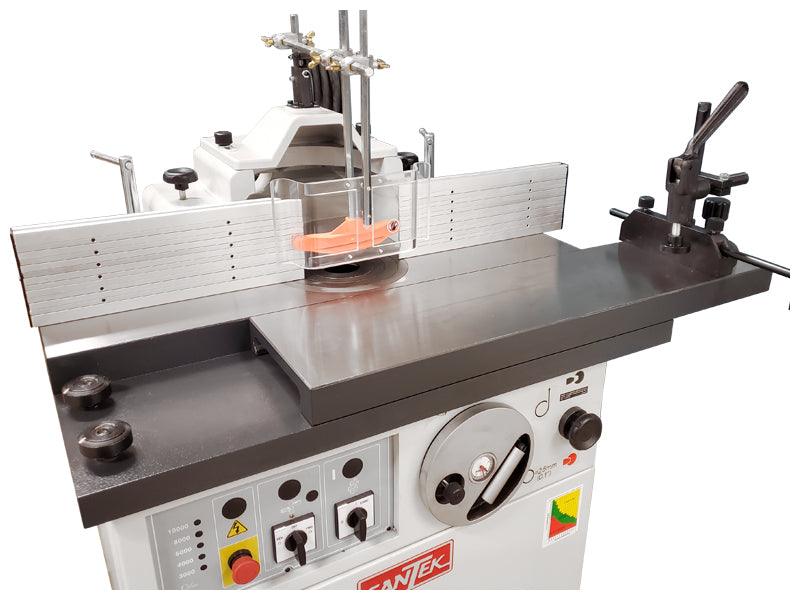

- Large cast-iron table ground and polished for maximum stability and durability

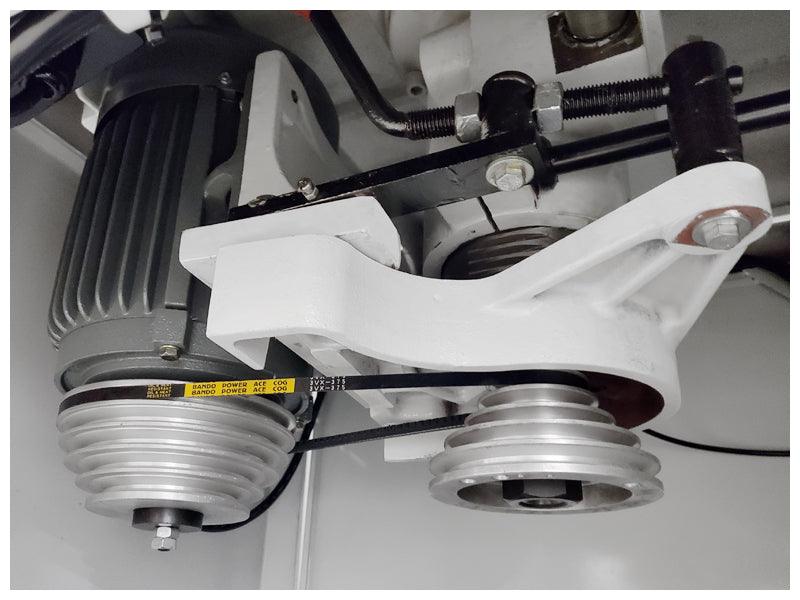

- Powerful 7.5 HP motor for demanding profiling work

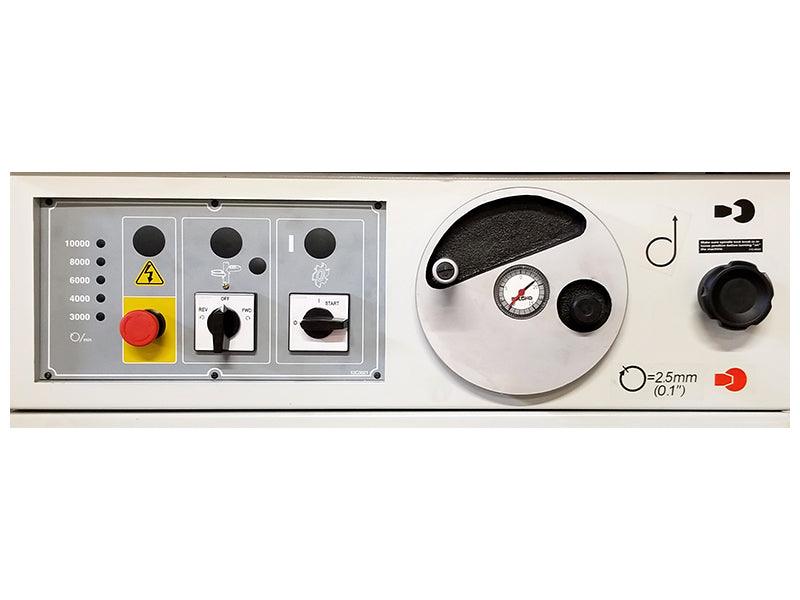

- Five spindle speeds easily adjusted to suit tool diameter
- Electronic spindle brake for added safety and fast changeover

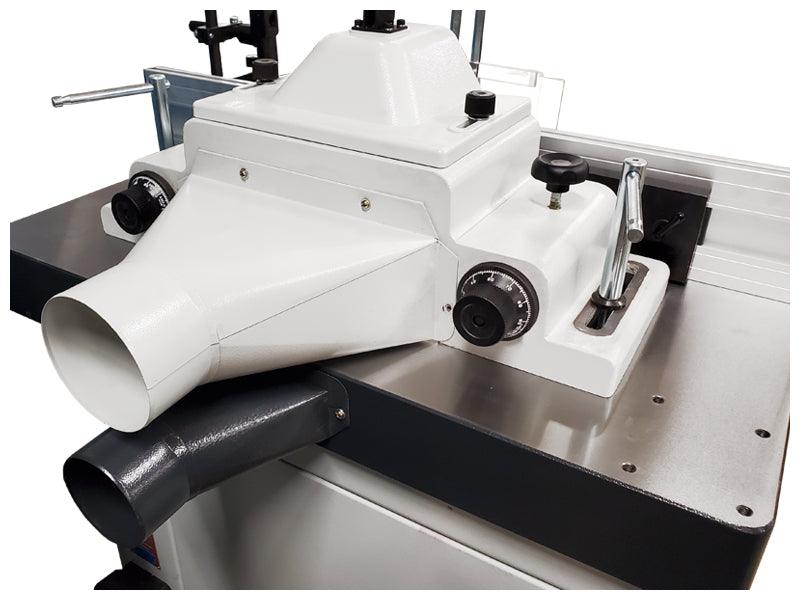

- Precision fence assembly with micro infeed/outfeed adjustment

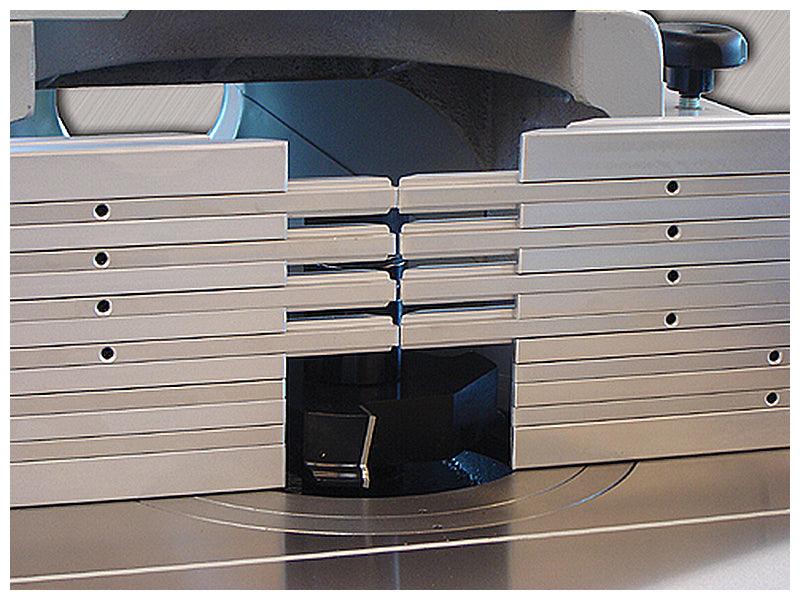

- Finger-style fence adjusts around the cutter for added safety and workpiece stability
- Forward/reverse spindle rotation
- Spindle lock with limit switch safety

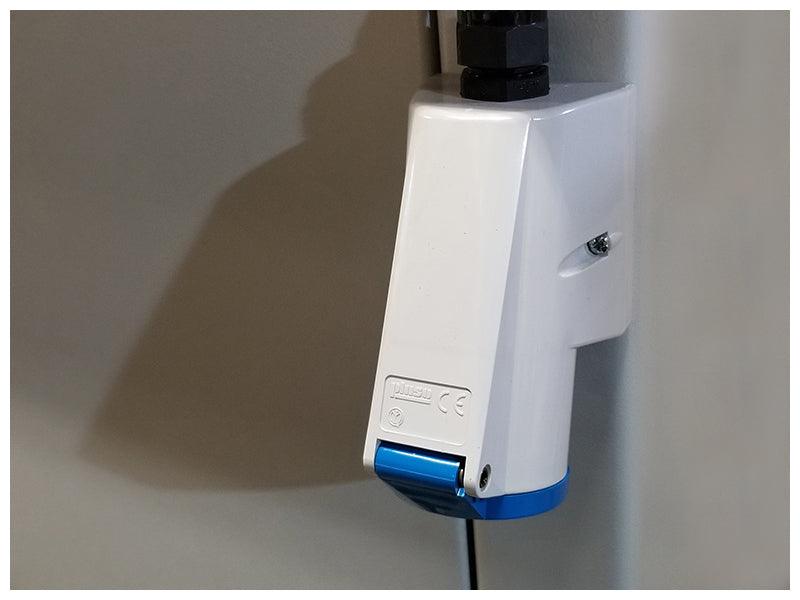

- Plug to accept Cantek Power Feeder; table pre-drilled for mounting feeder base
- Includes 1 ¼” spindle, dust chutes (5” on guard, 4” in table), safety guard, and miter tenoning jig
Specifications
| Table size | 31 ½” x 39.4″ |
|---|---|
| Spindle speeds (5) | 3000/4000/6000/8000/10000 RPM |
| Spindle taper | 5 MT |
| Spindle diameter | 1 ¼” |
| Motor | 7.5 HP |
| Sliding table dimensions | 39.4” x 10 ¼” |
| Sliding table stroke | 37” |
| Largest diameter of cutter (above table) | 13 ¼” |
| Largest diameter of cutter (below table) | 8 ¼” |
| Fence size | 6″ x 43″ |
| Vertical spindle stroke | 7” |
| Useable length of spindle | 5 ½” long |
| Dust port | (1) 5″ on guard, (1) 4” in table |
| Net weight | 1034 lbs. |
| Machine dimensions | 48.4″ x 39.4″ x 52 ¾” |
| Shipping weight | 1166 lbs. |
| Shipping dimensions | 45 ¼” x 37″ x 41″ |
