Cantek Vertical Oscillating Edge Sander
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Overview

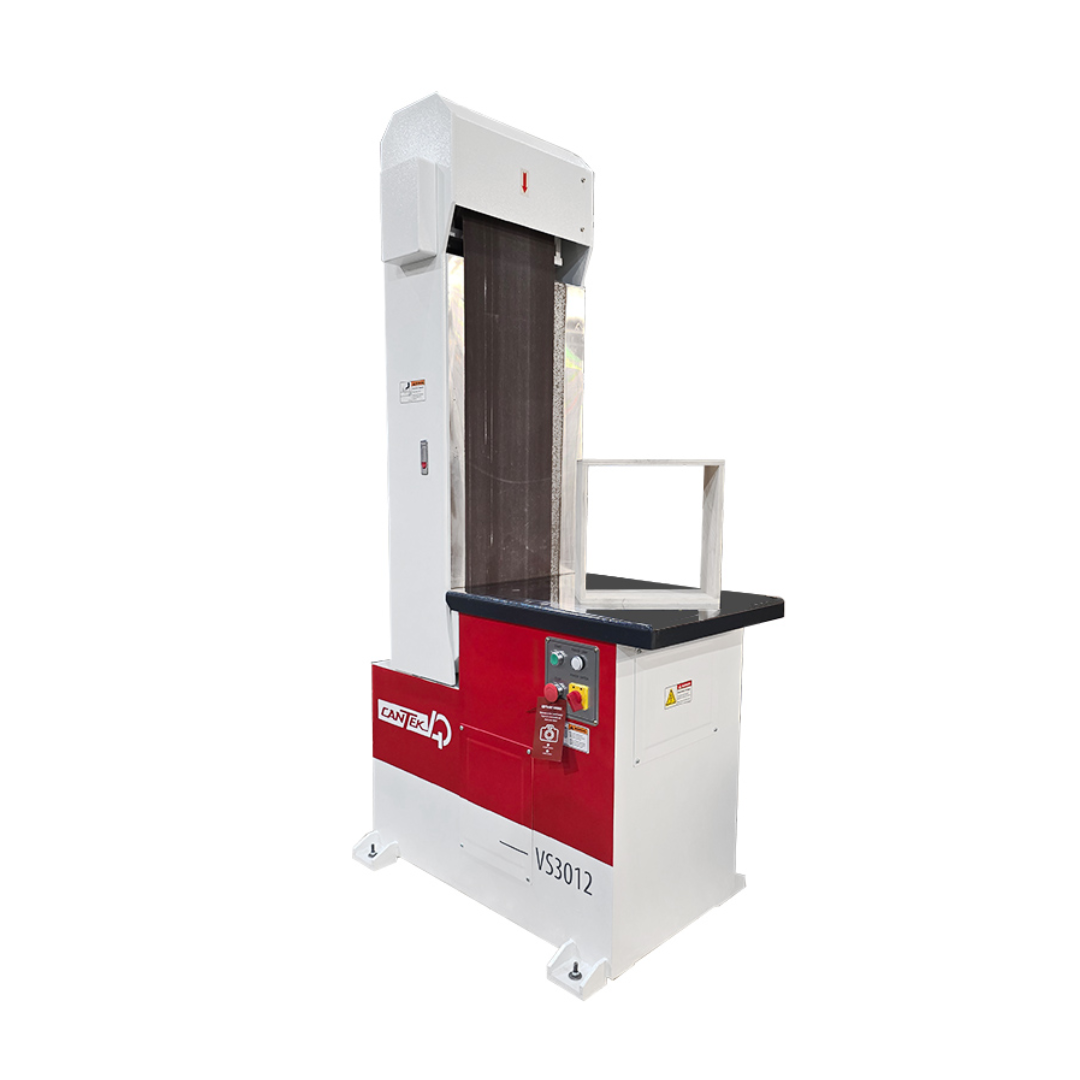

The Cantek VS3012 Vertical Oscillating Edge Sander streamlines finishing on drawer boxes and similar workpieces, eliminating tedious hand sanding. A 12″ x 105″ sanding belt driven by a 7.5 HP 3-phase motor delivers consistent, high-performance results, while the 13″ x 30″ platen and 3/8″ oscillation stroke ensure smooth, even sanding for a professional finish every time.
Key Features

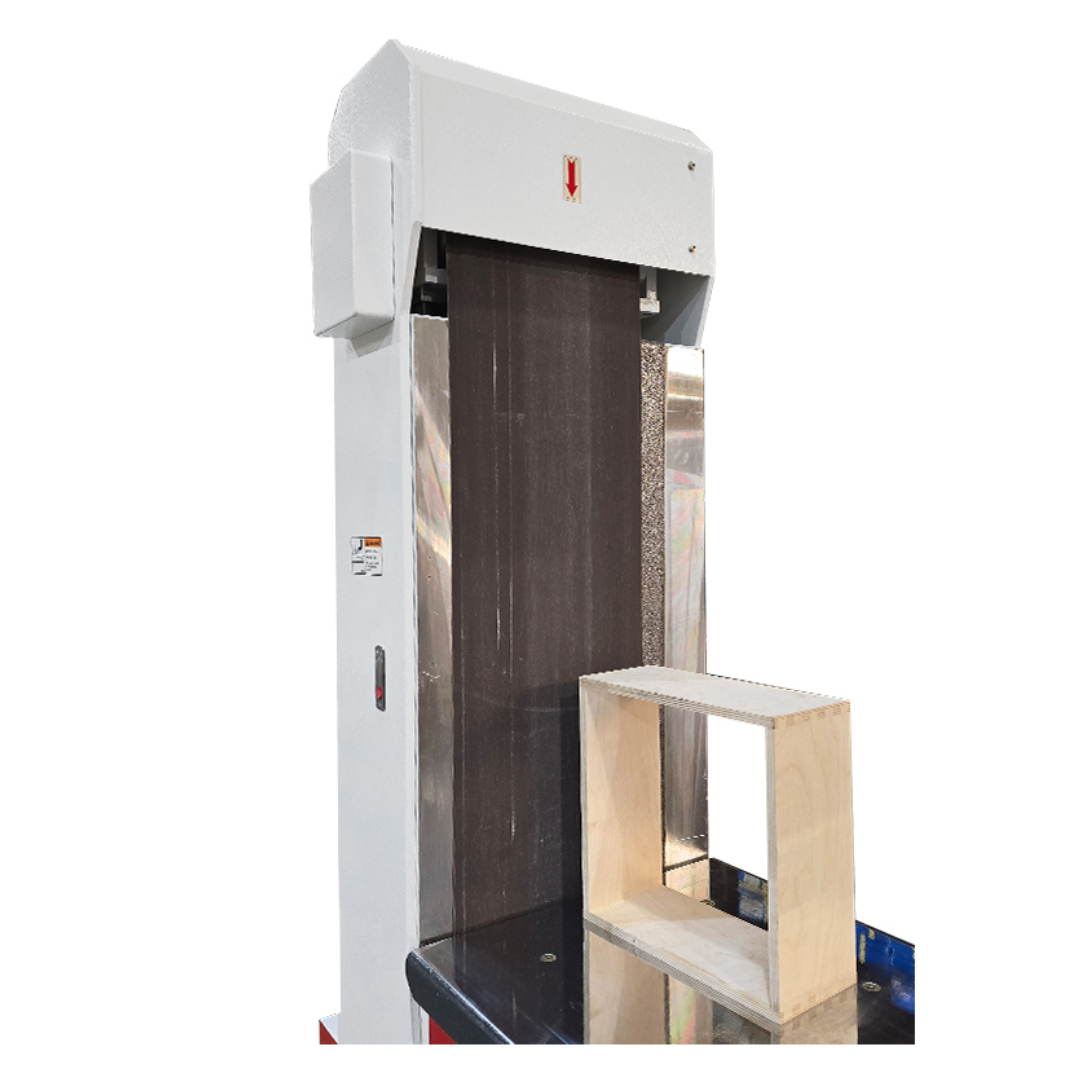

- Large 12″ wide x 30″ high sanding area with graphite cloth backing for reduced friction and extended belt life
- Powerful 7.5 HP sanding motor
- Separate belt oscillation motor with 3/8″ stroke and 60 cycles per minute

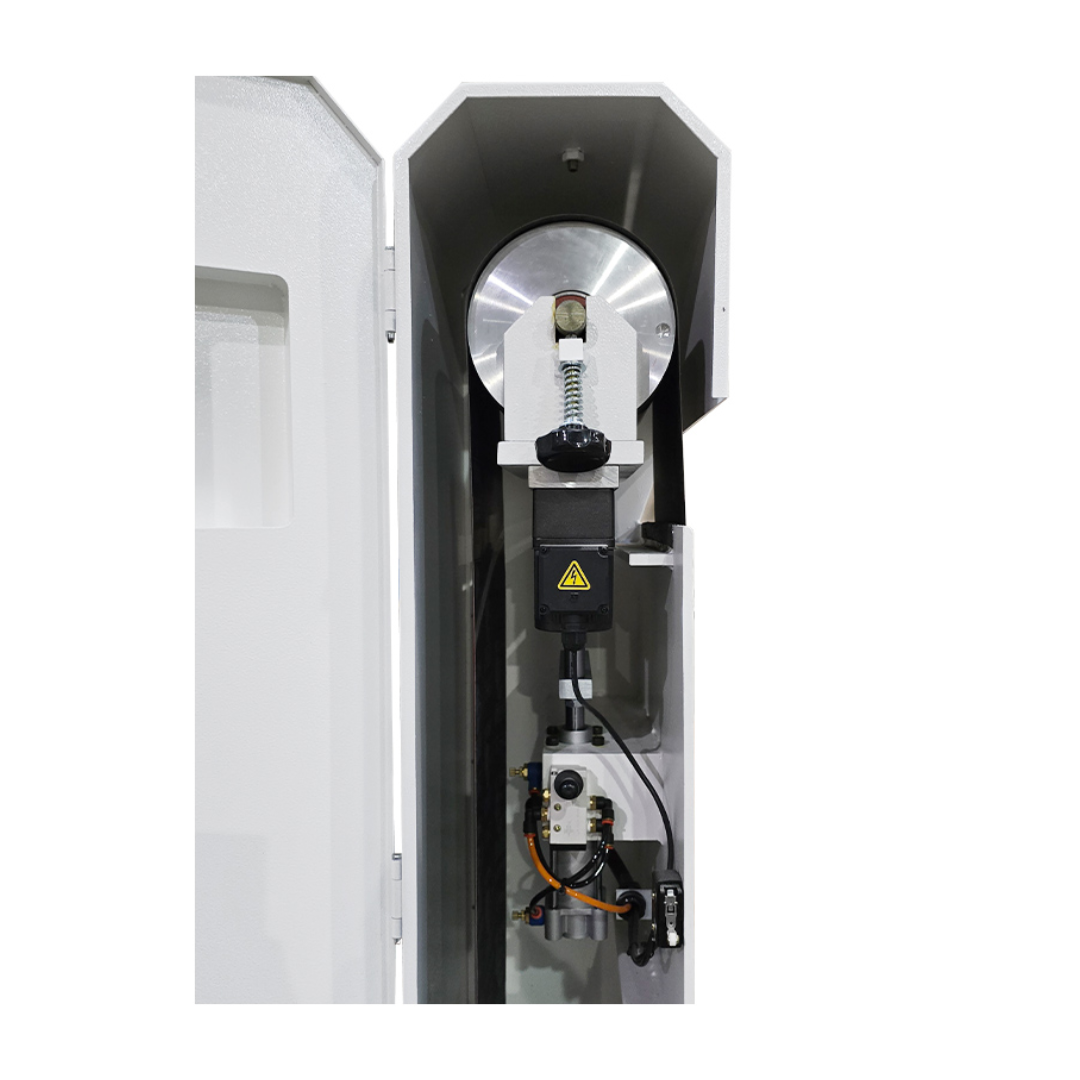

- Pneumatic belt tensioning for fast belt changes

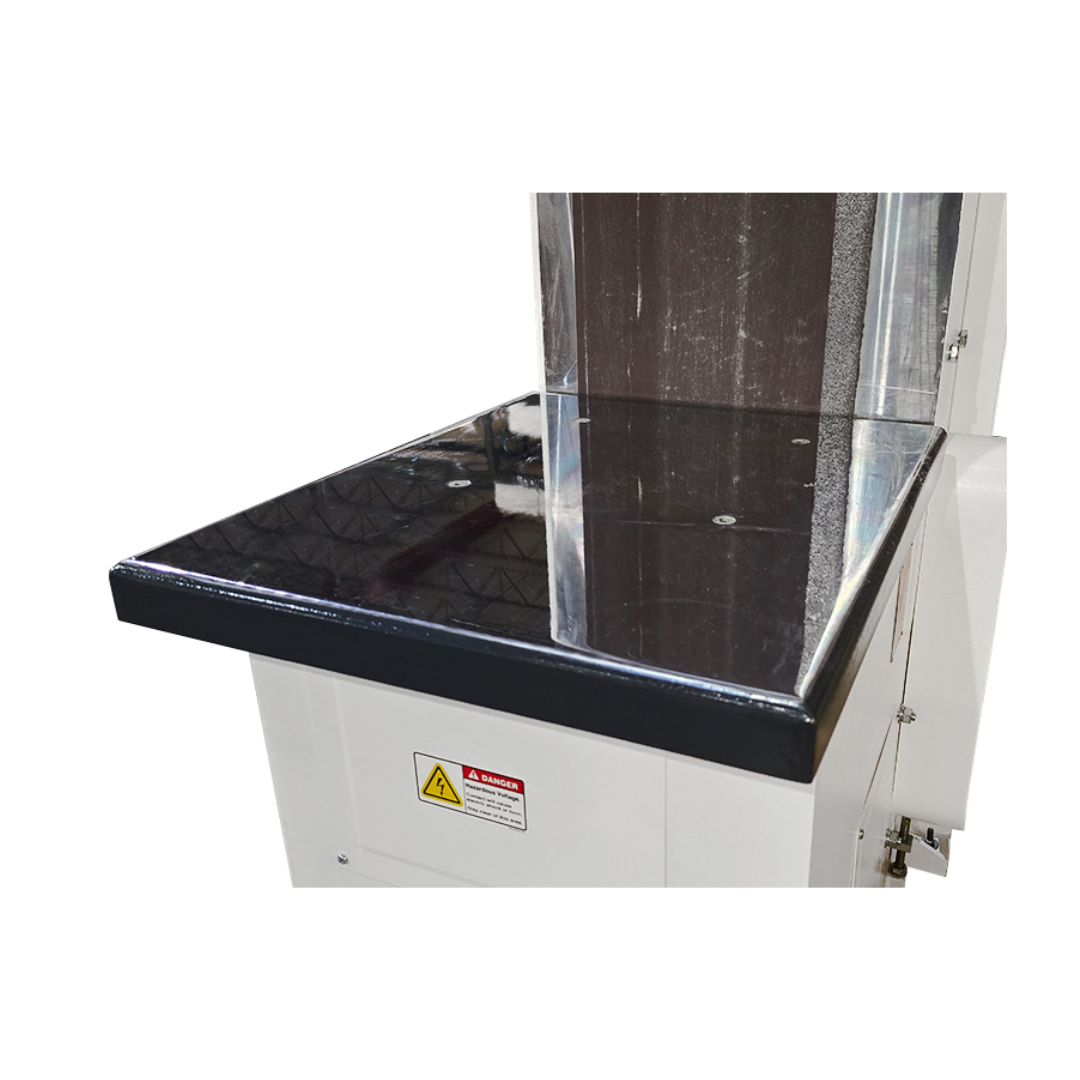

- Compact design with a precision-machined table for flatness
- Convenient belt tension and centering adjustment

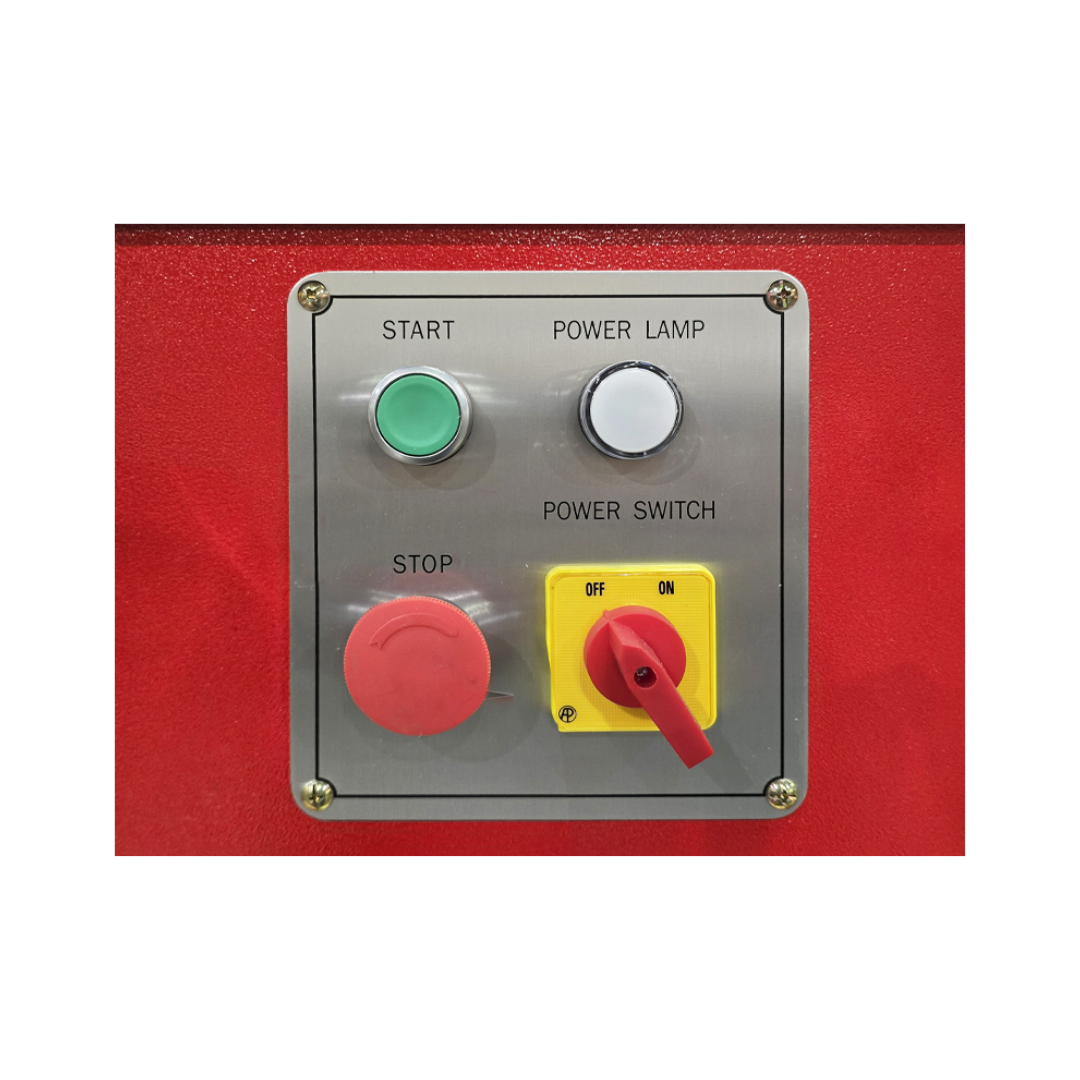

- Conveniently located control box for quick use
- 12″ x 105″ belt is considerably less expensive than traditional edge sanding belts
Specifications
| Sanding Motor | 7.5 HP |
|---|---|
| Oscillation Motor | 15 W |
| Oscillating Stroke | 3/8″ |
| Sanding Belt Size | 12″ x 105″ |
| Sanding Belt Speed | 3182 FPM |
| Worktable | 20″ x 24″ |
| Worktable Height From Floor | 30″ |
| Graphite Cloth Size | 13″ x 32.9″ |
| Dust Port Size | 5″ |
| Machine Dimensions | 38.6″ x 26″ x 76″ |
| Machine Weight | 836 lbs |
| Shipping Dimensions | 43″ x 30″ x 82″ |
| Shipping Weight | 1078 lbs |
| Machine Electrics | 230/3/60 = 23 amps or 575/3/60 = 10 amps |
