Overview

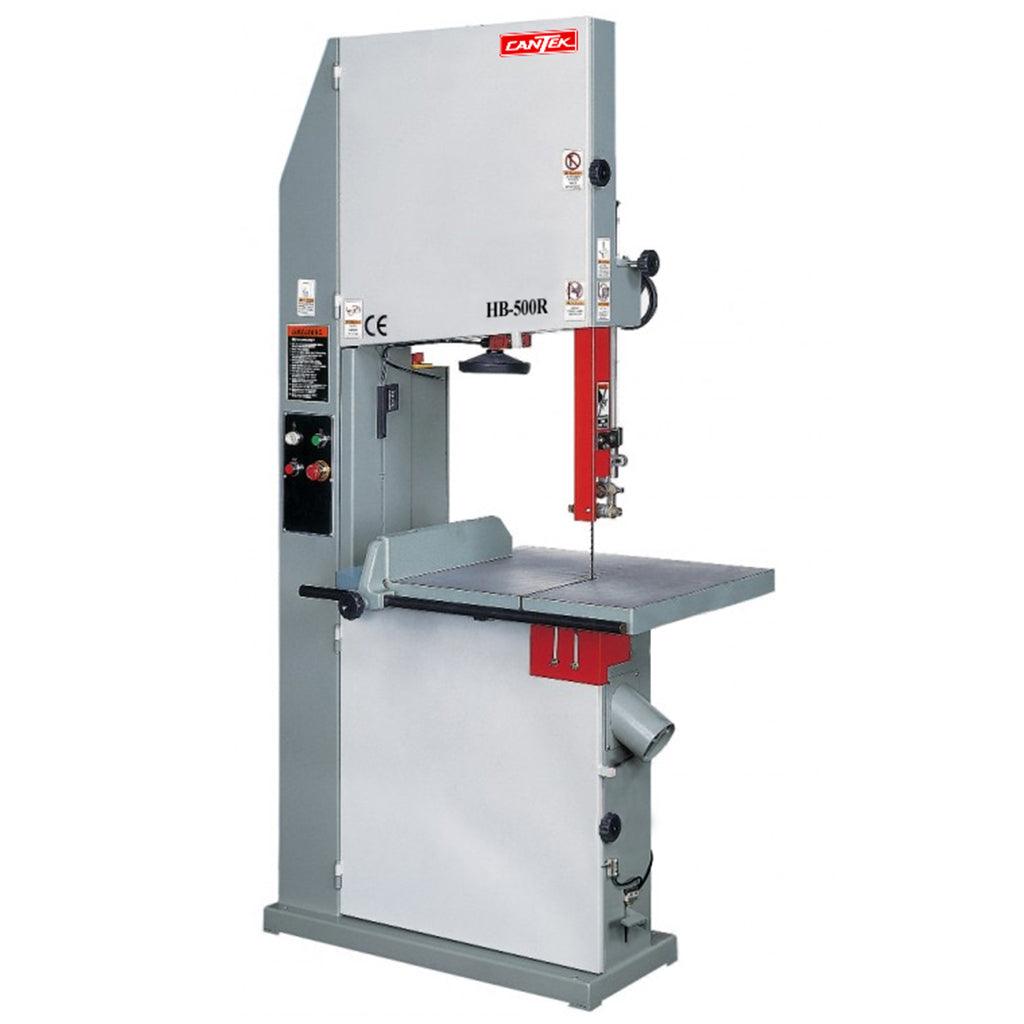

The Cantek HB500R is a 20″ production bandsaw with a 3HP motor, built on a heavy gauge steel frame for stable, vibration-free cutting. Precision-machined, dynamically balanced cast iron wheels are laminated with rubber for accurate blade tracking, and the cast iron table tilts to 45° for bevel cuts. Rack & pinion guide adjustment and a handwheel blade-tension system make setup quick and convenient.
Key Features
- Heavy gauge steel frame for stable, vibration-free cutting
- Rack & pinion guide adjustment
- Rubber-laminated saw wheels for accurate blade tracking

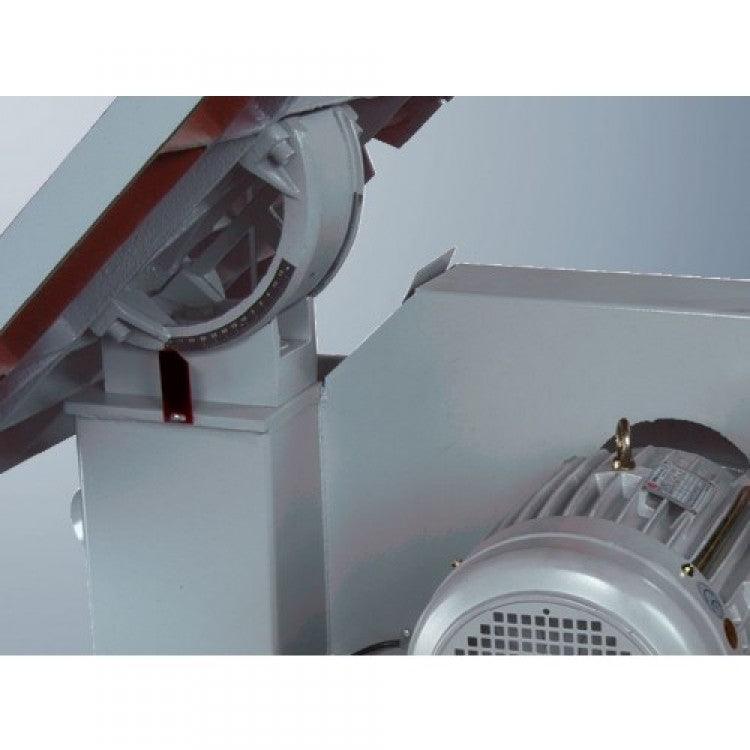

- Cast iron table with precision ground surface, tilts to 45° for bevel cuts
- Convenient blade tension adjustment by handwheel
- Precision machined, dynamically balanced cast iron top & bottom wheels
- Foot brake

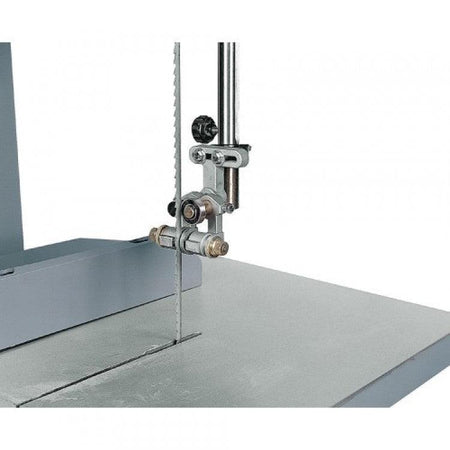

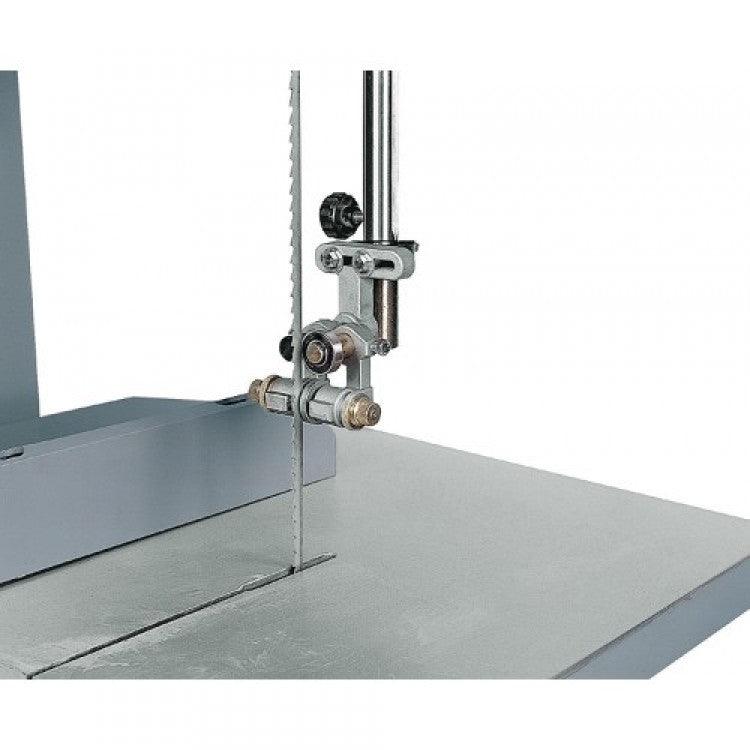

- Ball bearing upper & lower guides
Specifications
| Saw Wheel Diameter | 20″ |
|---|---|
| Motor | 3HP |
| Table Size | 26-3/4″ x 20-1/2″ |
| Table Tilting | 0 ~ 45° |
| Throat Capacity | 18-3/4″ |
| Height Capacity | 11-7/8″ |
| Width of Wheel | 1.38″ (35mm) |
| Blade Speed | 4450 FPM |
| Blade Length | 156-1/4″ ~ 157-1/2″ |
| Blade Width | 1/4″ ~ 1-1/4″ |
