Overview

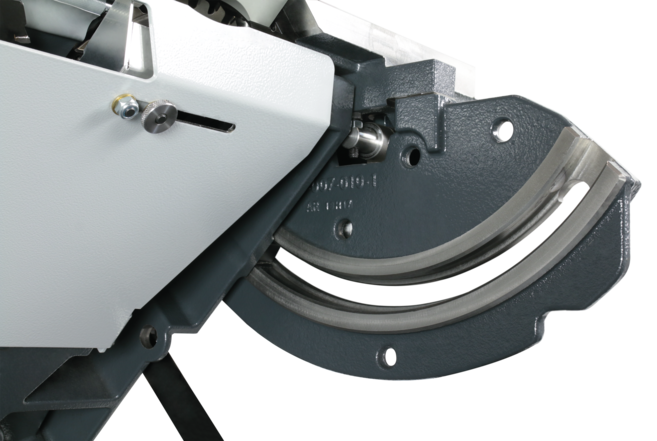

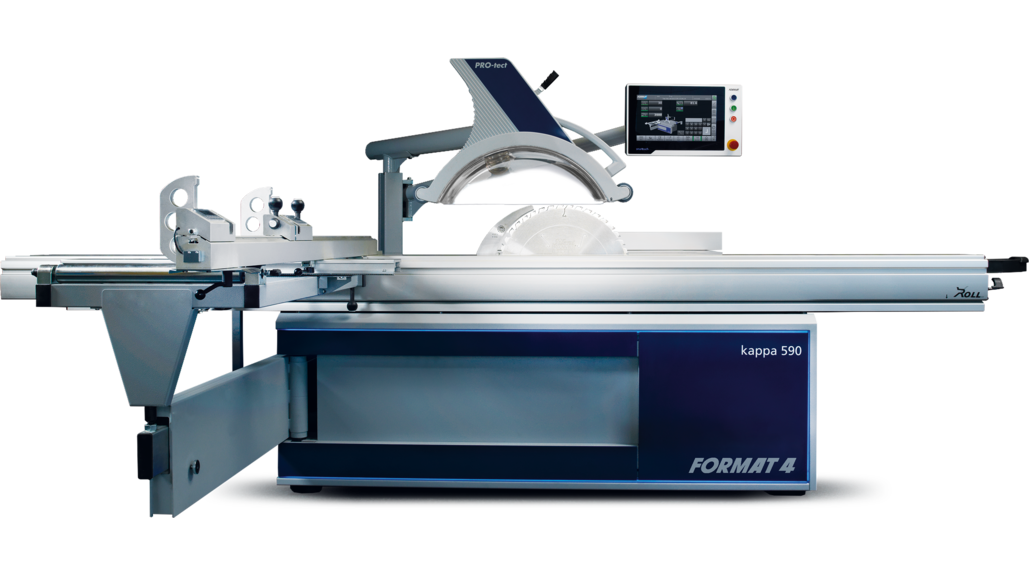

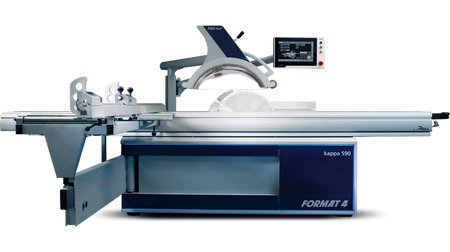

The Felder Kappa 590 E-Motion is a premium sliding table panel saw with a twin-pivot saw unit that swivels 92° for angle cuts in any position, cutting internal mitres and compound cuts with ease. Its highly efficient synchronous motor runs at a continuously adjustable 2,000–5,000 rpm, and all axes are controlled from a 15" touch screen with network-ready, in-house software.
Key Features

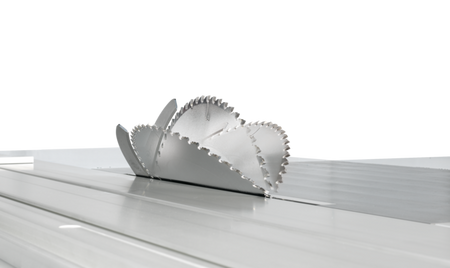

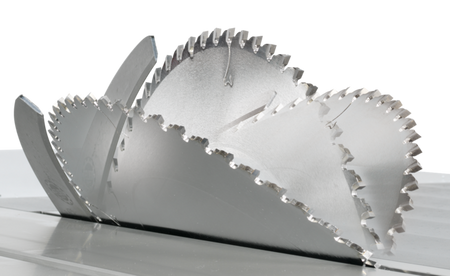

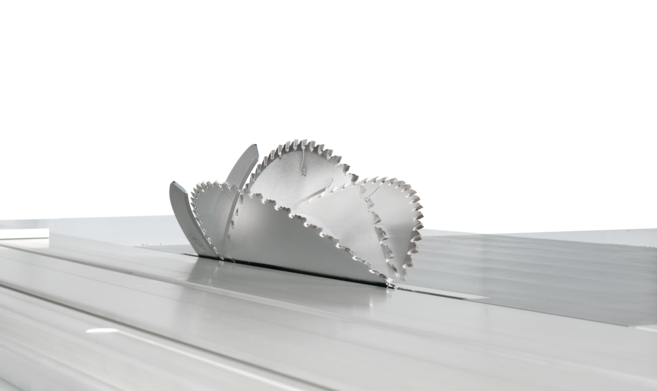

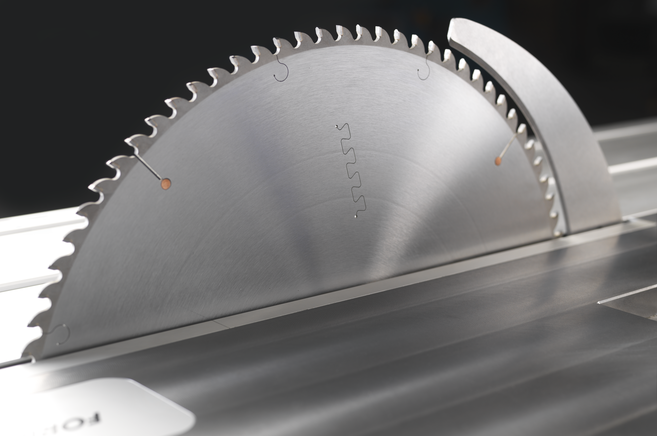

- Twin-pivot saw unit with 92° total swivel range, cutting height up to 202 mm with 550 mm blades

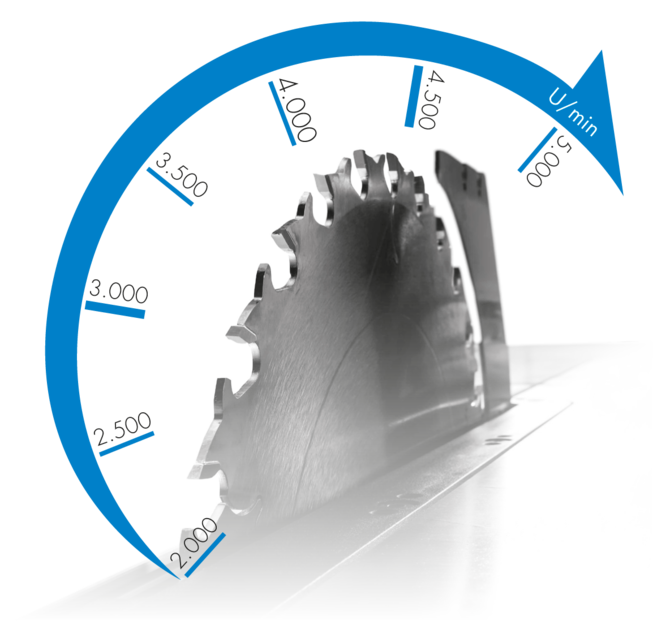

- Synchronous motor with continuously adjustable speed (2,000–5,000 rpm) via Poly-V-belt drive

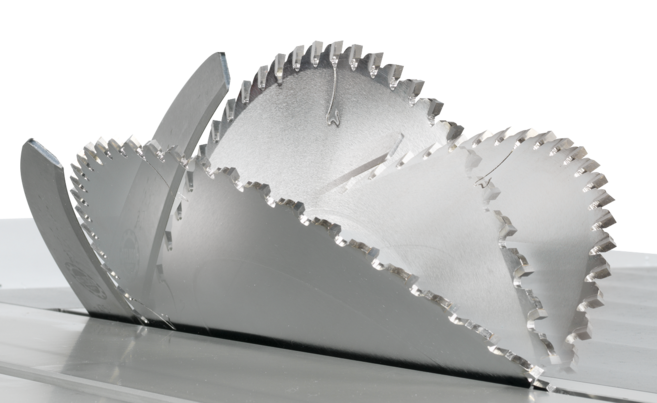

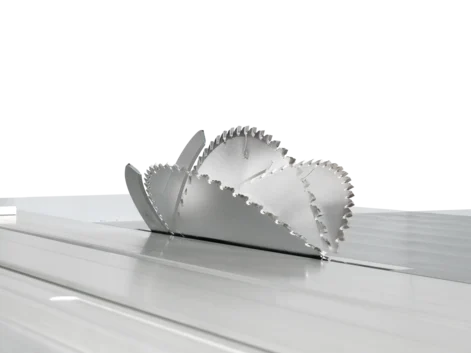

- Saw blade tilt +/-46°

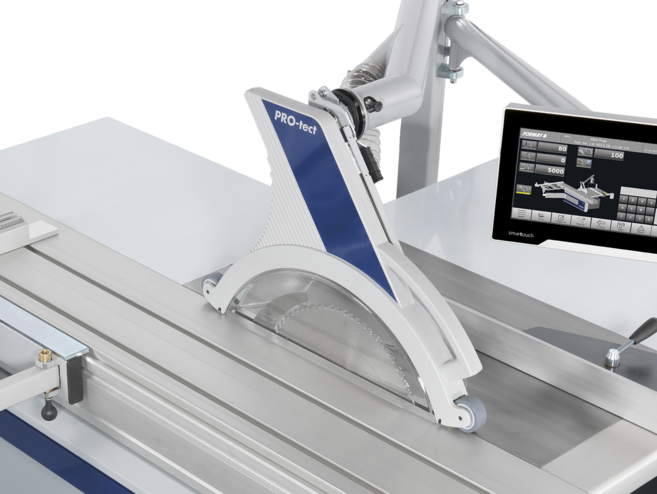

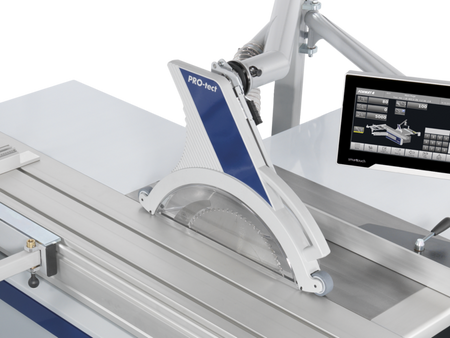

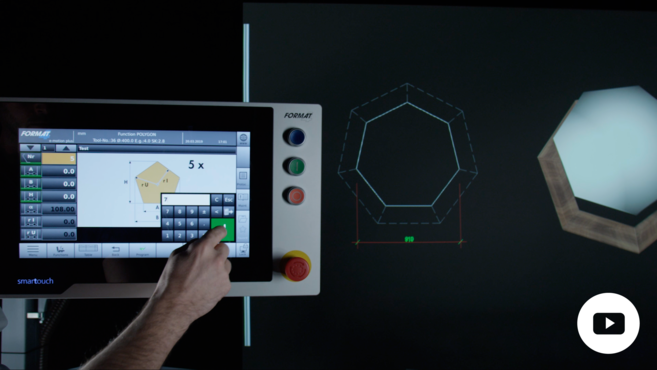

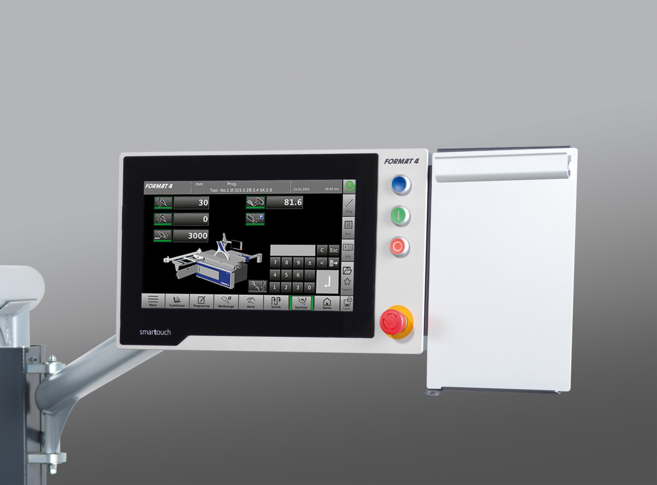

- 15" touch-screen control with graphical interface, USB, and network-ready connection

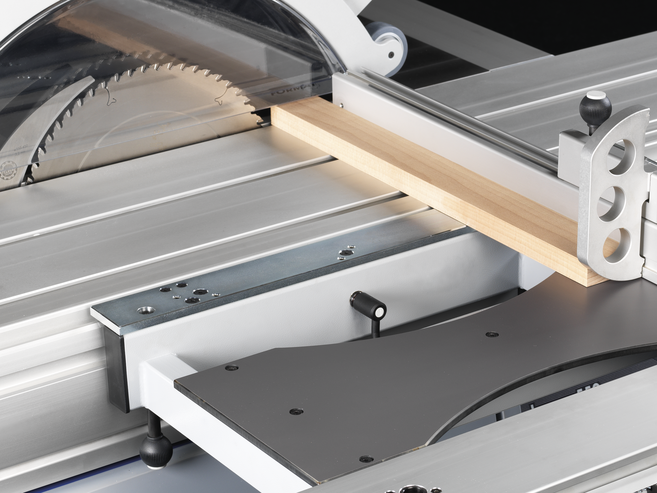

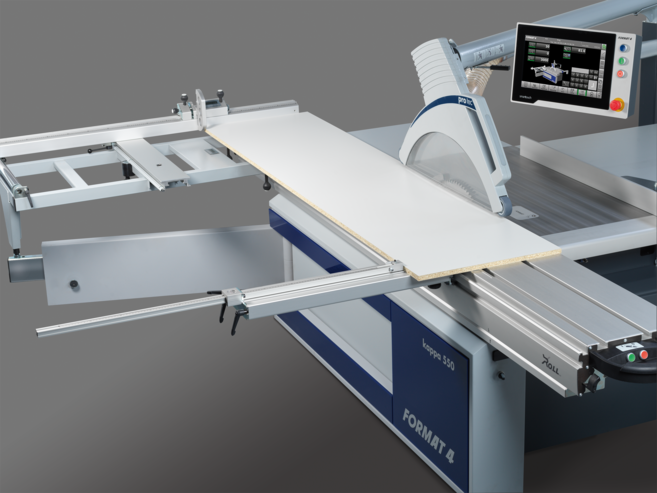

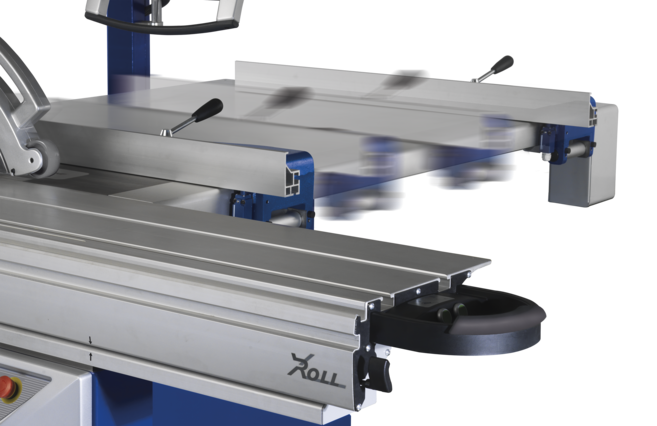

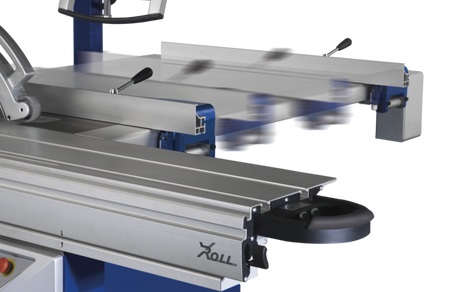

- Positioning control of the rip fence
- Unlimited tool storage positions with programmable, importable cutting sequences

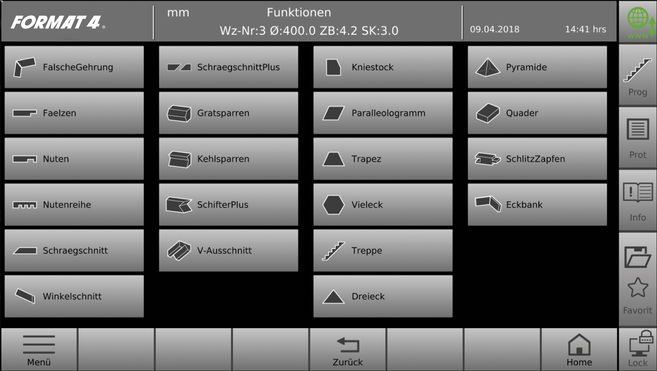

- Additional cut functions: rabbets, grooves, notches, angle and oblique cuts, false mitres, compound cuts, and hip and valley rafters
Specifications
| Swivel Range | 92° (twin-pivot unit) |
|---|---|
| Max Cutting Height | 202 mm (with 550mm blade) |
| Saw Blade Diameter | Up to 550 mm |
| Motor Speed | 2,000–5,000 rpm (continuously adjustable) |
| Saw Blade Tilt | +/-46° |
| Control Panel | 15" touch screen |
