The ingenious panel saw with double pivoting for angle cuts in all positions.
With innovative details, the new Kappa 590 becomes the new benchmark for Premium Sliding Table Panel Saws. The new twin-pivot unit has a total swivel range of 92° and achieves a cutting height of 202 mm for saw blades with a diameter of 550 mm. This saves valuable working time and simplifies the cutting of internal mitre and simple compound cuts.
The highly efficient synchronous motor with continuously adjustable speed control from 2,000 to 5,000 rpm guarantees constant high performance and best power transmission with state-of-the-art Poly-V-belt technology.

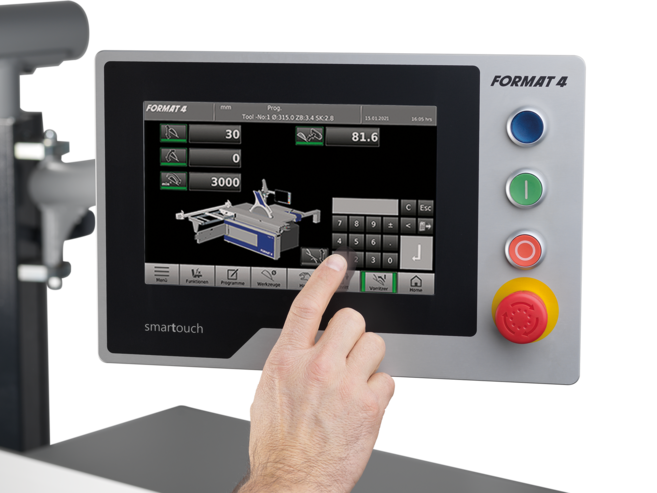

All axes of the machine can be controlled ergonomically and intuitively by the central operating unit with 15" touch screen. The in-house software with a graphical user interface, a multitude of programs, a USB interface, and the prepared network connection make work easier and guarantee efficiency and productivity.
Of course, the new Premium Sliding Table Panel Saw also has all the proven Format4 virtues and quality features. With these Format4 system solutions, different outrigger versions and individual control variants, the kappa 590 sliding table panel saw makes perfection the norm!
- Saw blade tilt +/-46°
- Complex angle cuts as easy as possible – intuitive machine control with 15" touch screen
- Highly efficient synchronous motor with continuously adjustable rotating speed
- Preparation for automatic cutting optimization and network connection
- 3-axis scoring unit control with park position (optional)
- Positioning control of the rip fence
- Unlimited tool storage positions
- Complete cutting sequences programmable
- Possibility of importing cutting sequences
- Additional functions: rabbets, grooves, notches, angle cuts, oblique cuts plus, false mitres, compound cut plus, concealed V-neck, hip and valley rafters as well as various geometric shapes
The ingenious panel saw with double pivoting for angle cuts in all positions
With innovative details, the new kappa 590 becomes the new benchmark for Premium Sliding Table Panel Saws. The new twin-pivot unit has a total swivel range of 92° and achieves a cutting height of 202 mm for saw blades with a diameter of 550 mm. This saves valuable working time and simplifies the cutting of internal mitre and simple compound cuts.
The highly efficient synchronous motor with continuously adjustable speed control from 2,000 to 5,000 rpm guarantees constant high performance and best power transmission with state-of-the-art Poly-V-belt technology.
All axes of the machine can be controlled ergonomically and intuitively by the central operating unit with 15 "touch screen. The in-house software with graphical user interface, a multitude of programs, a USB interface and the prepared network connection make work easier and guarantee efficiency and productivity.
Of course, the new Premium Sliding Table Panel Saw also has all the proven Format4 virtues and quality features. With these Format4 system solutions, different outrigger versions and individual control variants, the kappa 590 sliding table panel saw makes perfection the norm!
- Saw blade tilt +/-46°
- Complex angle cuts as easy as possible – intuitive machine control with 15" touch screen
- Highly efficient synchronous motor with continuously adjustable rotating speed
- Preparation for automatic cutting optimization and network connection
- 3-axis scoring unit control with park position (optional)
- Positioning control of the rip fence
- Unlimited tool storage positions
- Complete cutting sequences programmable
- Possibility of importing cutting sequences
- Additional functions: rabbets, grooves, notches, angle cuts, oblique cuts plus, false mitres, compound cut plus, concealed V-neck, hip and valley rafters as well as various geometric shapes.
| Category | kappa 590 e-motion | kappa 590 x-motion |
|---|---|---|
| Motor Frequency | 60 Hz | 60 Hz |
| Standard Motor | 10 kW S6, variable speed 2000–5000 rpm | 7.5 kW S6, variable speed 2000–5000 rpm |
| Optional Motor | 14 kW S6, variable speed 2000–4000 rpm | 10 kW or 14 kW S6 options |
| Saw Blade Diameter | 300–550 mm | 300–450 mm standard / up to 550 mm optional |
| Max Cutting Height | 202 mm | 152 mm standard |
| Electrical Height Adjustment | Standard | Standard |
| Electrical Angle Adjustment | +/-46° | +/-46° |
| Control System | e-motion touch control panel | x-motion touch control panel |
| USB & Network Prep | Yes | Yes |
| Software Package e-motion Plus | Optional | Not available |
| Rip Capacity Standard | 1250 mm with position control | 1000 mm powder coated steel |
| Rip Capacity Options | 1000 mm / 1600 mm | 1250 mm / 1600 mm |

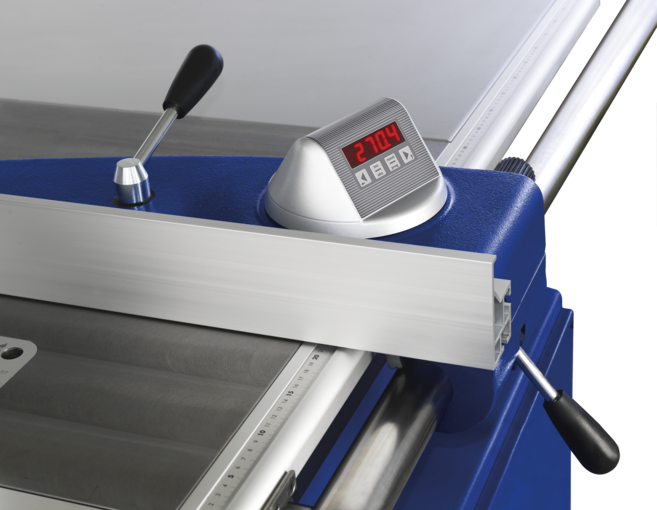

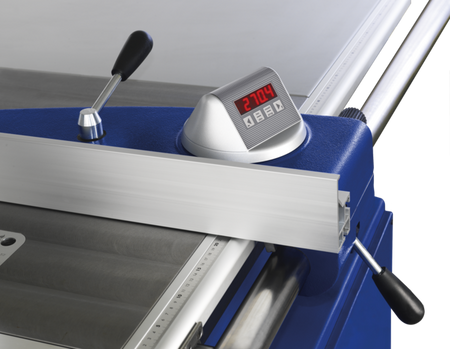

| Rip Fence Digital Indicator | Included with controlled versions | Optional |
| Sliding Table Standard | 2800 mm X-Roll | 2800 mm X-Roll |
| Sliding Table Options | 2200 / 3200 / 3700 mm | 2200 / 3200 / 3700 mm |
| Outrigger Table | 1250 × 650 mm | 1250 × 650 mm |
| Crosscut Fence Standard | 3200 mm with 2 stops | 3200 mm with 2 stops |
| Scoring Unit | Optional | Optional |
| Quick Blade Change Systems | Optional Easy-Lock / Quick-Lock | Optional Easy-Lock / Quick-Lock |
| Overhead Guard | Adjustable, swing-away | Adjustable, swing-away |
| Remote Unlocking Guard | Optional | Optional |
| Thermo-label Printer Support | Optional | Optional |
| Container Transport Prep | Standard | Standard |
