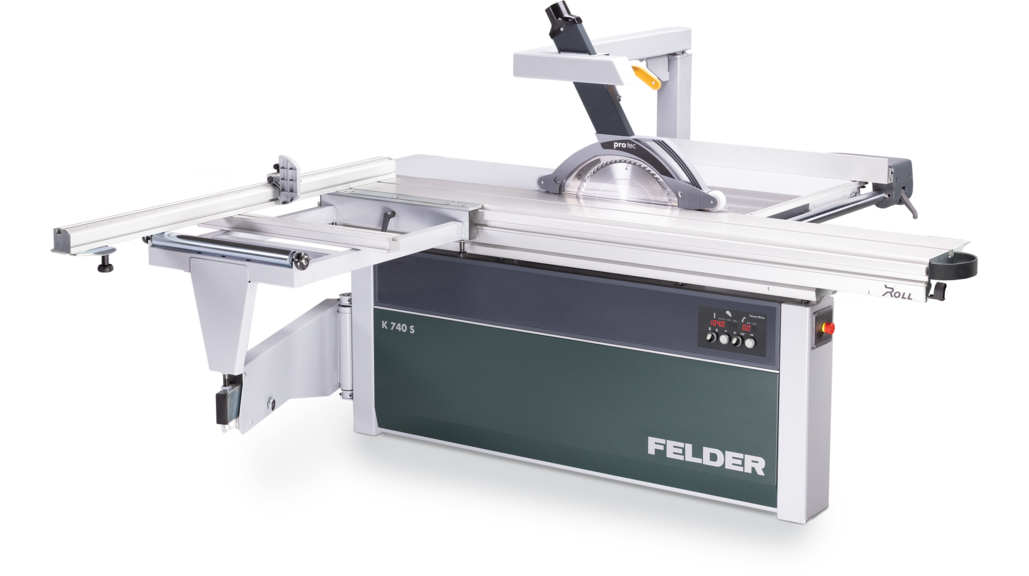

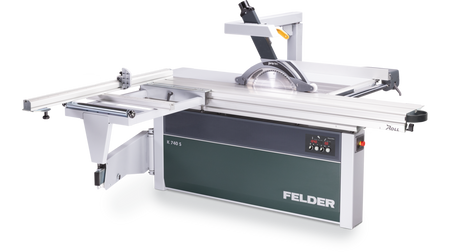

Felder Sliding Panel Saw K 740 S

K 740 S: The new FELDER sliding table panel saw K 740 S combines large cutting height, compact size and high operating comfort

The new FELDER K 740 S convinces with the combination of performance and comfort in a space-saving, solid design. The machine is characterized by a large and powerful circular saw unit with a maximum cutting height of 140 mm when using a Ø 400 mm saw blade. It is also possible to use an electrically driven scoring unit with a Ø of 120 mm in combination with a Ø 350 mm main saw blade. Even cuts through materials with sensitive surfaces becomes a breeze.

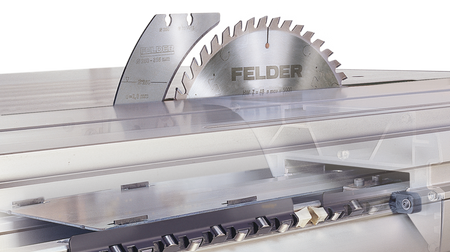

With the tilting saw blade unit and precision double guiding for precise angle and height adjustment, the K740 S guarantees a new dimension of efficiency. With the solid outrigger tables on both the Professional and S models the panel saws leave nothing to be desired. Protected from dust and absolutely maintenance-free, the X-Roll format sliding table ensures perfect woodworking for many years. The K 740 S is equipped with a tilting FELDER overhead saw guard for optimum extraction results and the highest level of work safety. The optional "Power-Drive" package with electronical saw blade height and angle adjustment accurate to a tenth of a millimetre bring precision and operating comfort to your workshop that are simply another class.

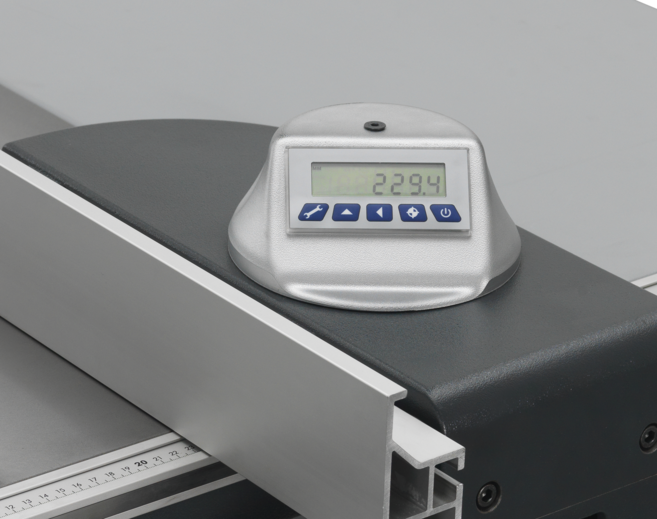

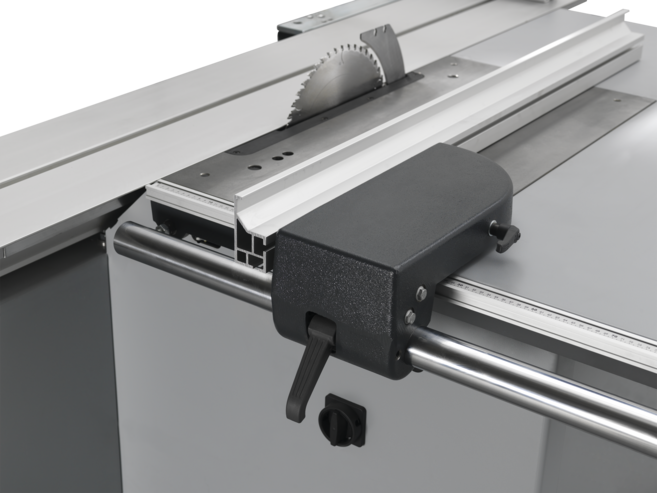

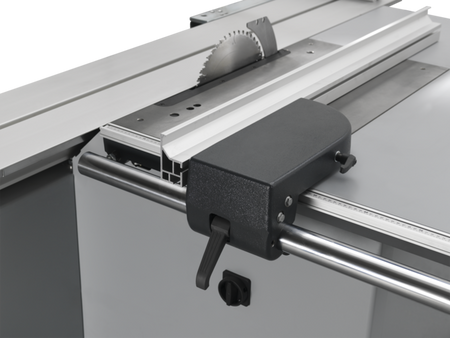

The intelligent parallel cutting fence brings superior comfort and impressive productivity to every workshop. It is an optional feature of the K 740 S, to quickly move with a tenth of a millimetre to the specified position at the push of a button, guided on a linear guide system with ball-screw bearing, thus ensuring precise cutting results quickly and easily. Six year guarantee on the patented "Easy-Glide" tilting guide system and 10 year guarantee on the proven FELDER "X-Roll" sliding table system ensure maximum reliability for years to come.

Also perfect for machining non-ferrous metals, plastics and composite materials: Upon request, the K 740 models can be equipped with variable speed control and minimum quantity lubrication.

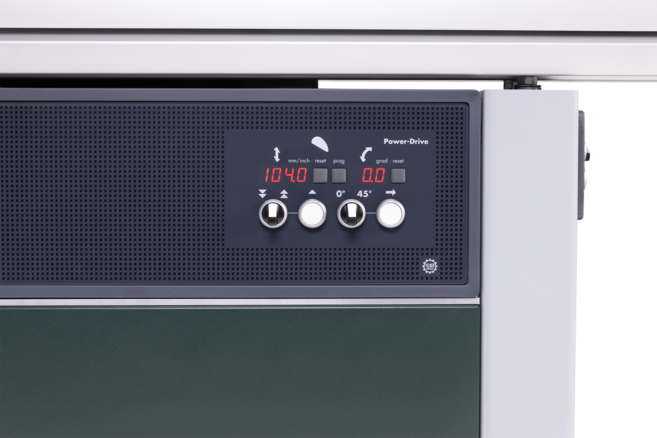

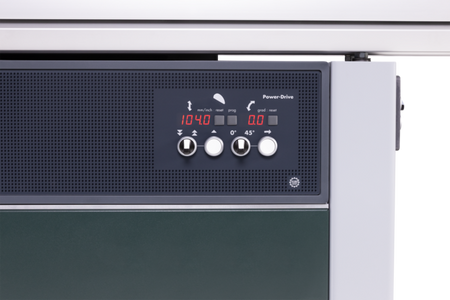

"Power-Drive" (Circular Saw Blade)
Similarly, the saw blade height and angle settings can be set to an accuracy of a tenth of a millimetre. For fine tuning there is also a push button and a clear LED display screen to show you the actual current value.

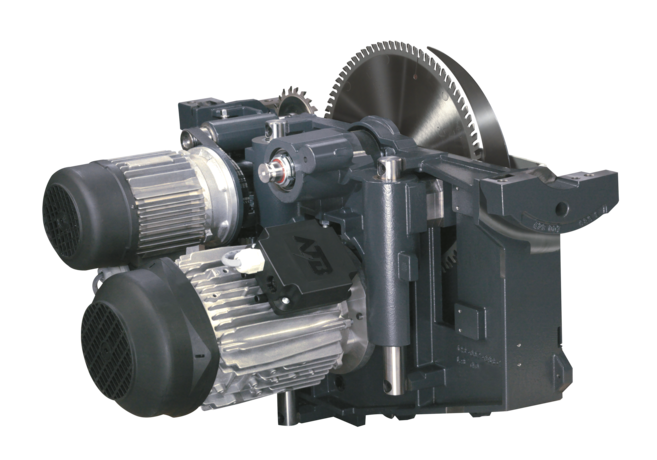

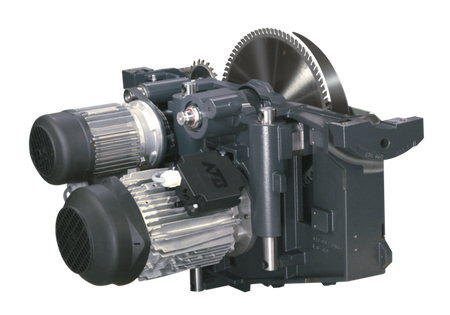

The new circular saw unit: Efficiency meets operating comfort
The advanced circular saw unit with the patented tilt segment "Easy-Glide" impresses with a cutting height of 140 mm when using a Ø 400 mm saw blade. The electric scoring unit for scoring blades with a diameter of 120 mm can be used in combination with a Ø 350 mm saw blade.

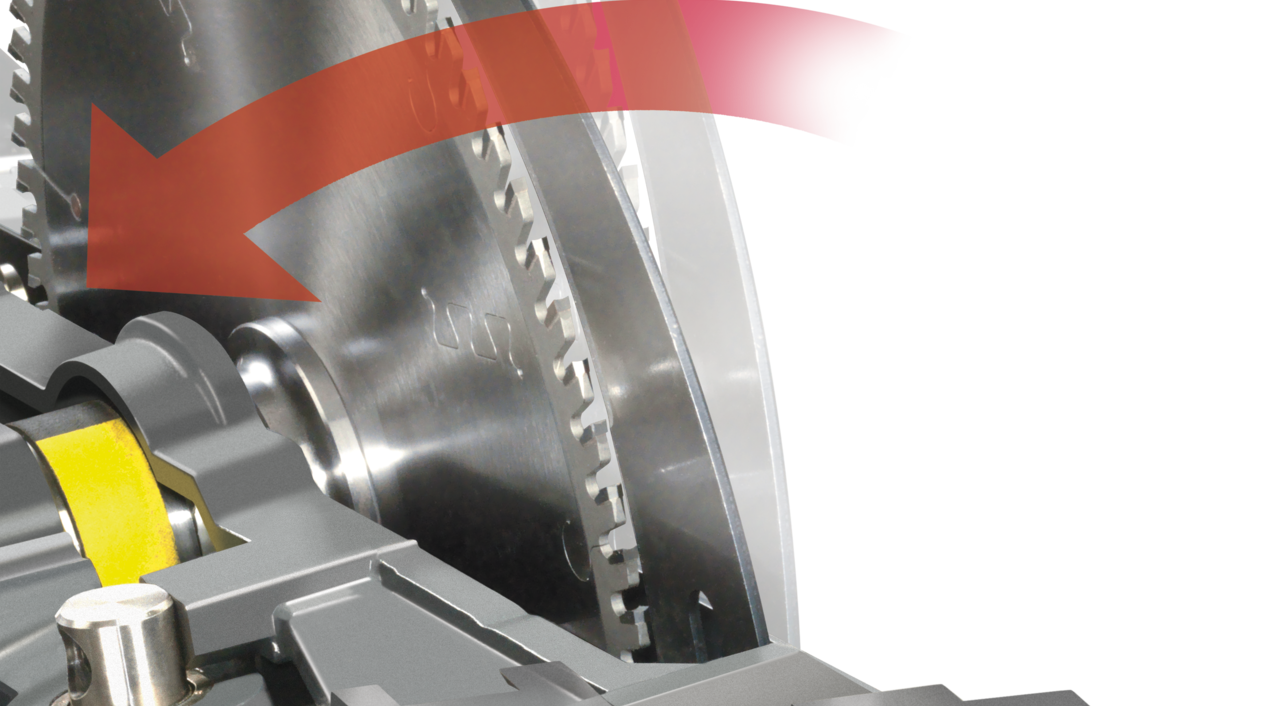

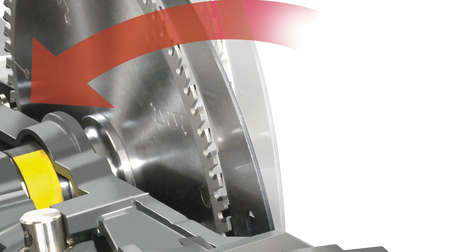

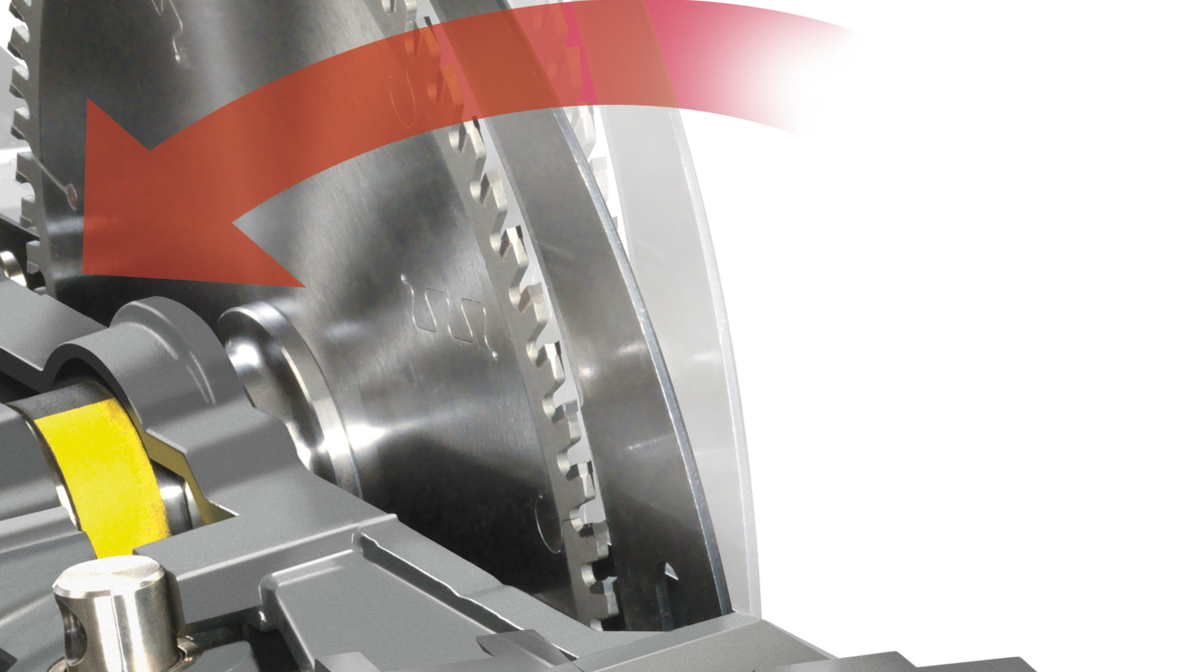

"Easy-Glide" - 6 year warranty!
The patented tilt segment “Easy-Glide” fulfills the highest requirements in businesses and industries. A precise, guided, doublesided support, guarantees maximum load bearing and tolerance free tilting and is absolutely maintenance free. A special, highly durable synthetic material situated in the guide of the tilting segment ensures extremely smooth movement and long-lasting precision. The tilting guide system, a synthetic material tried and tested in aerospace and lock construction, works without the requirement of lubrication and is totally resistant to dust. With a 6 year factory guarantee this Felder component offers reliabilty for many years to come.

Circular saw shaft
The electronically balanced saw arbor with dual bearing seat system is powered via a Poly-V belt. Combined this results in an almost 100 % trans­mission of power to the saw blade. The saw arbor diameter on our machinery is a standard European size of 30 mm (1,18"). We offer this size of arbor for increased stability when performing a bigger cut and also more user safery when especially using dado tooling. The standard US size arbor is 16 mm (5/8"). This is almost half the diameter of our arbor and is intended for lighter machinery with small tooling. The European 30 mm diameter tooling is available for various suppliers throughout the US and existing tooling can also be resized to fit our machinery. Take a step "UP" in your machine and also in your tooling. Please visit our on-line shop to view the range of tools we can offer. Link: www.felder-tooling.us

Pneumatic Workpiece holder

• Easy clamping of workpieces with maximum flexibility, can be used on all panel saws and spindle moulders that have a sliding table
• Magnetic fitting makes it easy to install and adjust
• Safety cylinder ensures maximum work safety
• Pressure bar function possible with every sliding table length
• Locking height 95 mm
• Clamp. force approx. 300 kg

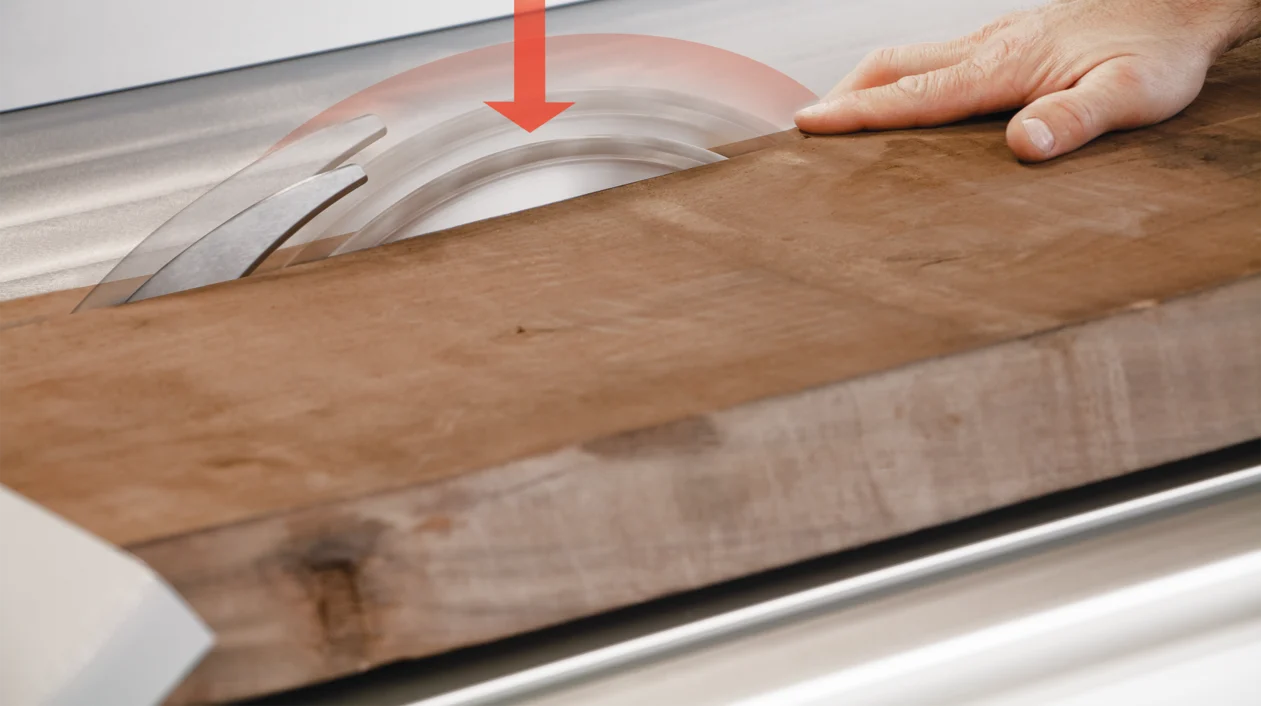

WORLD FIRST: PCS^{® -} Preventive Contact System
Serious accidents on the sliding table panel saws are a thing of the past - PCS^®  is currently the fastest non-contact triggering safety device, worldwide.

• PCS detects accident hazards before contact with the saw blade.
• PCS eliminates the hazardous situation in milliseconds.
• PCS is 100% safe against damage to machine and saw blade.
• PCS allows safe operation close to the saw blade.
• PCS supports groove cuts.
• PCS is ready to be used again at the push of a button.
• PCS requires no additional maintenance and cleaning cycles.
• PCS works without additional external energy sources and without external sensors or video systems.
• PCS is resistant to dust and dirt.

Find out more about PCS^® here

*PCS^® does not replace any of the legal protective devices required. The machine must be operated with the splitter and the saw guard properly installed according to regulations.
