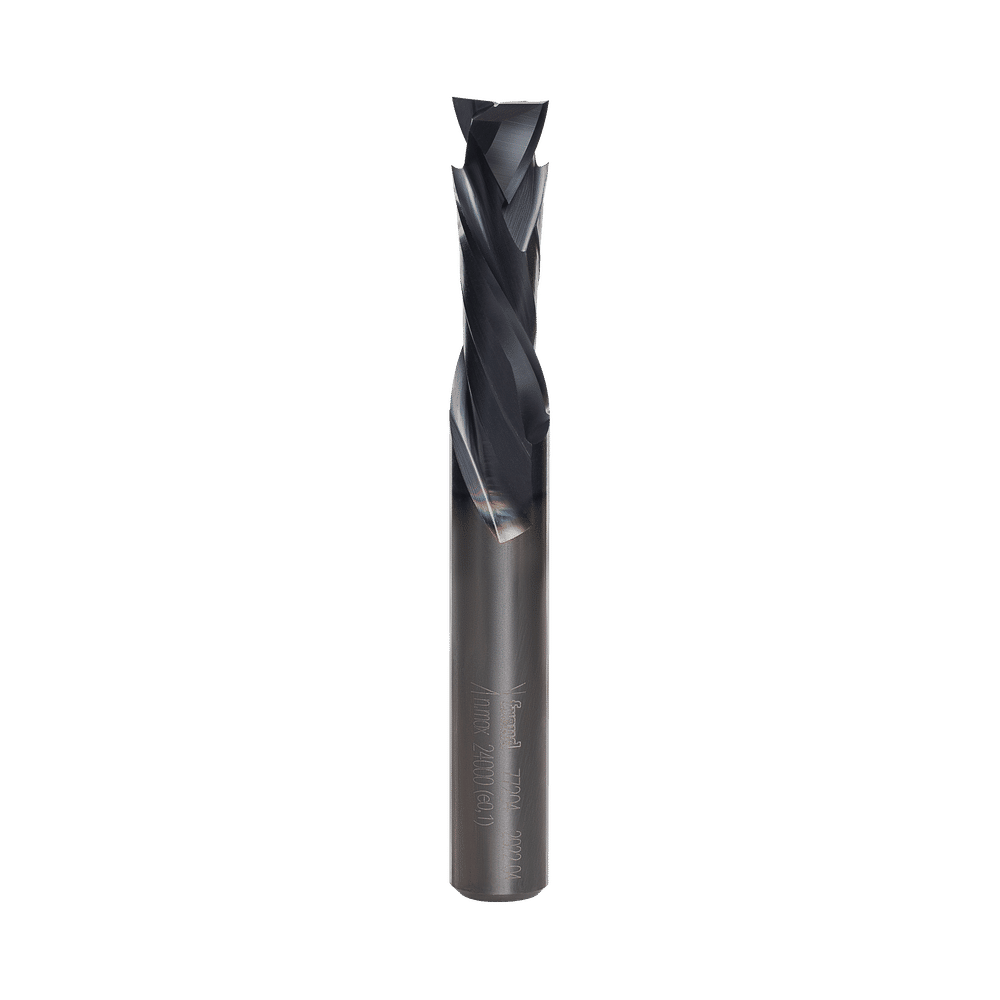

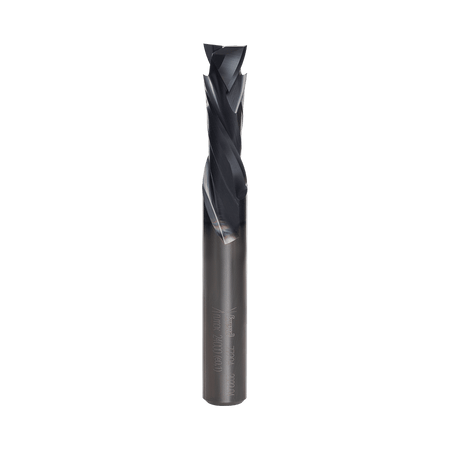

Freud 3/8" (Dia.) Double Compression Bit with 3/8" Shank 77-204
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Overview
The Freud 3/8" (Dia.) Double Compression Bit with 3/8" Shank 77-204 is a 2-flute solid carbide compression spiral router bit for chip-free routing in double-sided veneers and laminates. It combines up shear and down shear flutes to prevent tear out on either side of the material, and is ideal for routing laminates like double-sided melamine panels. It also cuts well in plywood, hardwood or softwood, and can be used in CNC, hand-held and table-mounted routers.
Key Features
- Clean, chip free cuts in double-sided materials
- Combine up shear and down shear cutting action
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Freud Premier Solid Carbide
- Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
- Ideal for routing laminates like double-sided melamine panels, and also cuts well in plywood, hardwood or softwood
- Cuts Veneered Plywood, Hardwood, Softwood, Melamine, Laminate, and Composites
Specifications
| Item Number | 77-204 |
|---|---|
| Number of Cutters | 2 |
| Max RPM | 24000 |
| Carbide Height (h) | 1-1/8" |
| Overall Dia. (D) | 3/8" |
| Overall Length (H) | 3" |
| Shank Dia. (A) | 3/8" |
| Upcut Length | 11/32" |
