Overview

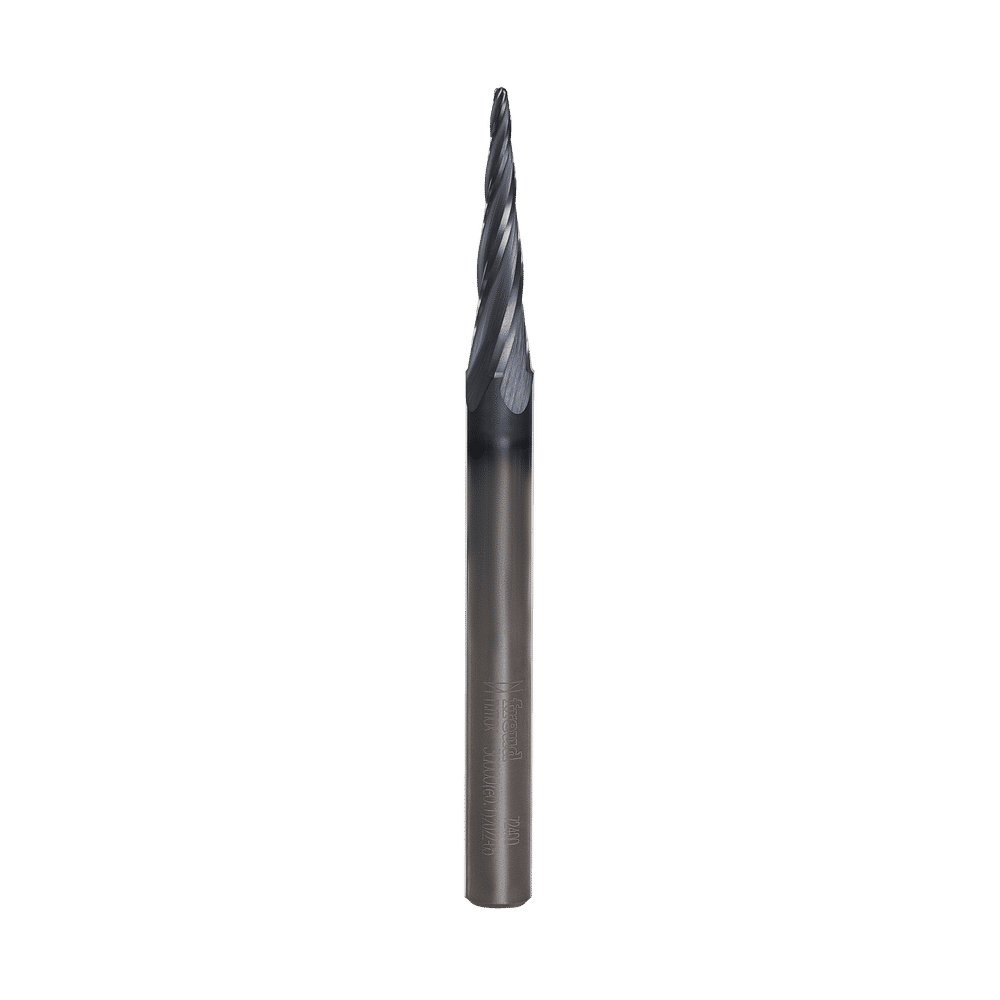

The Freud 5.4° x 1/16" Tapered Ball Tip 72-400 is a solid carbide tapered ball tip bit for 2D and 3D carving in plastics or wood. It has a 1/16" diameter tip and a 1/4" shank, and is ideal for wood, wood composites, hard and soft plastics, and aluminum. It is designed for CNC makers, and its flute design allows fast cuts with efficient chip and dust evacuation.
Key Features
- Specifically designed for CNC Makers to deliver long cutting life, maximum durability and high quality finish
- Enhanced TiCo™ Super Density Carbide with chromium designed and manufactured by Freud for 2x cutting life
- Advanced cutting geometry for superior chip evacuation and finish quality
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Freud Premier Solid Carbide
- Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
- Ideal for wood, Wood Composites, Plastics (Hard & Soft), and Aluminum for 2D and 3D Carving
- Cuts Hardwood, Softwood, Composites, Plastics, and Aluminum
Specifications
| Item Number | 72-400 |
|---|---|
| Number of Cutters | 4 |
| Max RPM | 24000 |
| Angle (d) | 5.4° |
| Angle (Included) | 10.8° |
| Angle (Side) | 5.4° |
| Carbide Height (h) | 1" |
| Overall Dia. (D) | 1/16" |
| Overall Length (H) | 3" |
| Radius (R) | 1/32" |
| Shank Dia. (A) | 1/4" |
