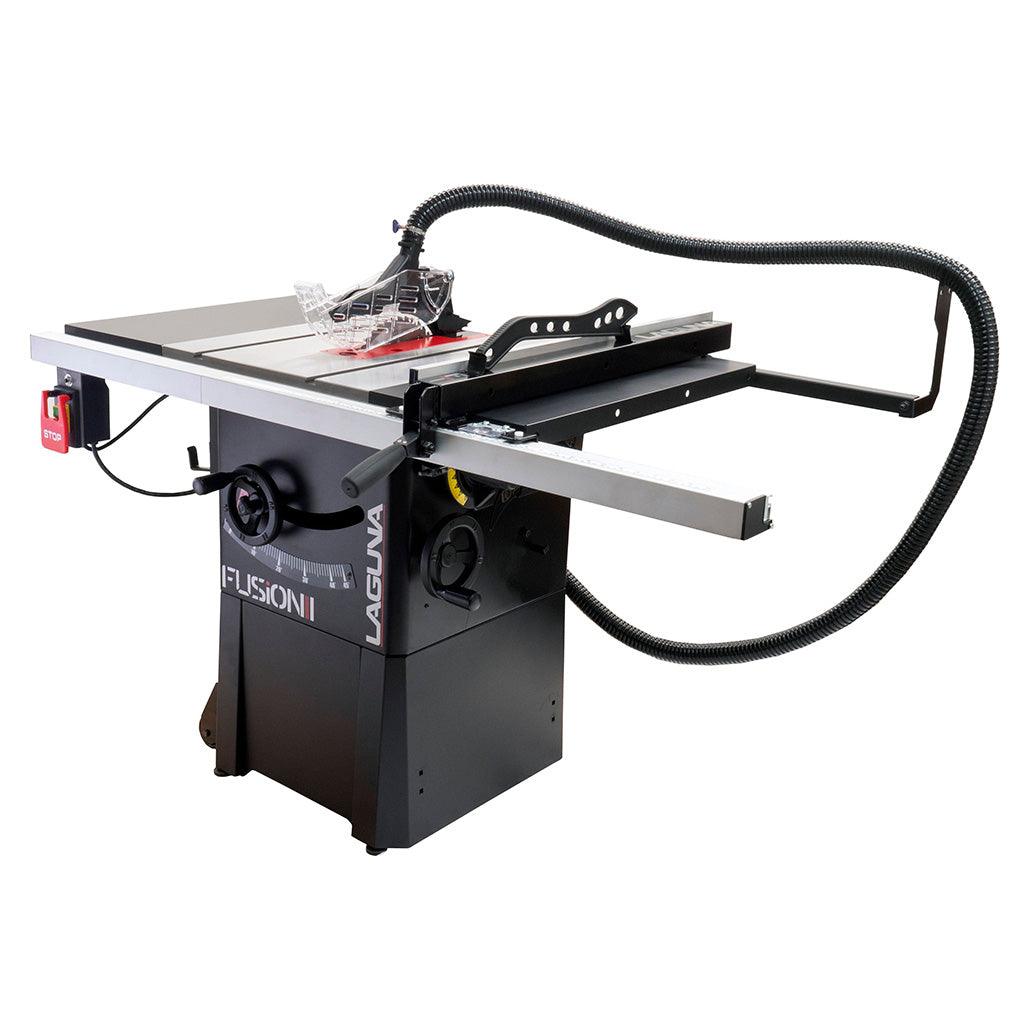

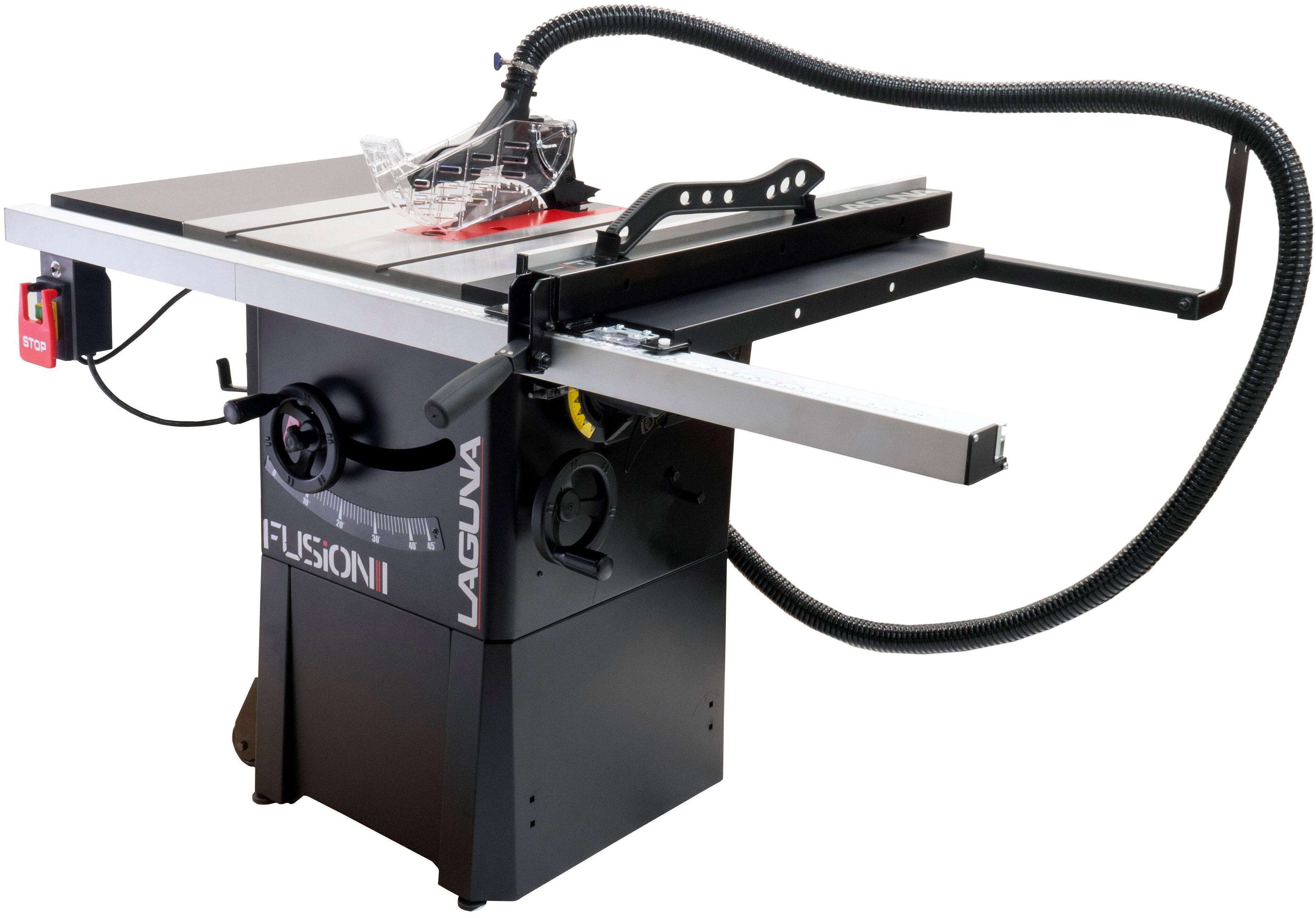

Laguna Fusion F1 Tablesaw

An affordable fusion tablesaw. We have packed all the features that our users have come to love in an affordable, sleek, and very precise package.

The new Laguna Fusion line was developed for demanding woodworkers.

Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms. Permanently lubricated bearings & Acme screws are part of the internal DNA.

Download Manual

Electrical:

Power Requirements:110V-1PH-60HZ*

Amperage (FLA): 12 AMP

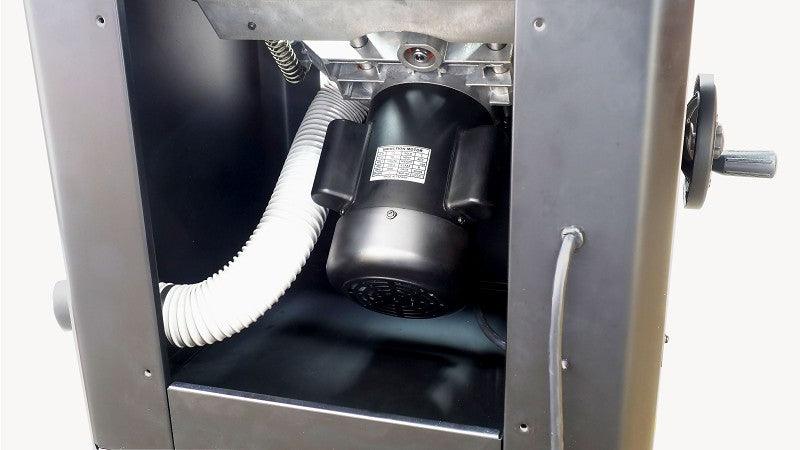

Motor Power: 1.5 HP

Motor Speed: 3450 RPM

Starter Switch: Magnetic

Plug Included: 5-15

Circuit Breaker Req.: 110V - 20 AMP

Receptacle Req.: 5-15

General :

Certification: CSA C/US 175370

Net Weight: 200 lbs

Shipping Weight: 280 lbs

Shipping Dimensions: L30" W40" H30"

Overall Size: L39-3/4" W59-5/8" H38"

Tablesaw:

Rip Capacity: 30"

Blade Size: 10"

Vertical Cut Height: 3 1/8”

45° Cut Height: 2 1/8"

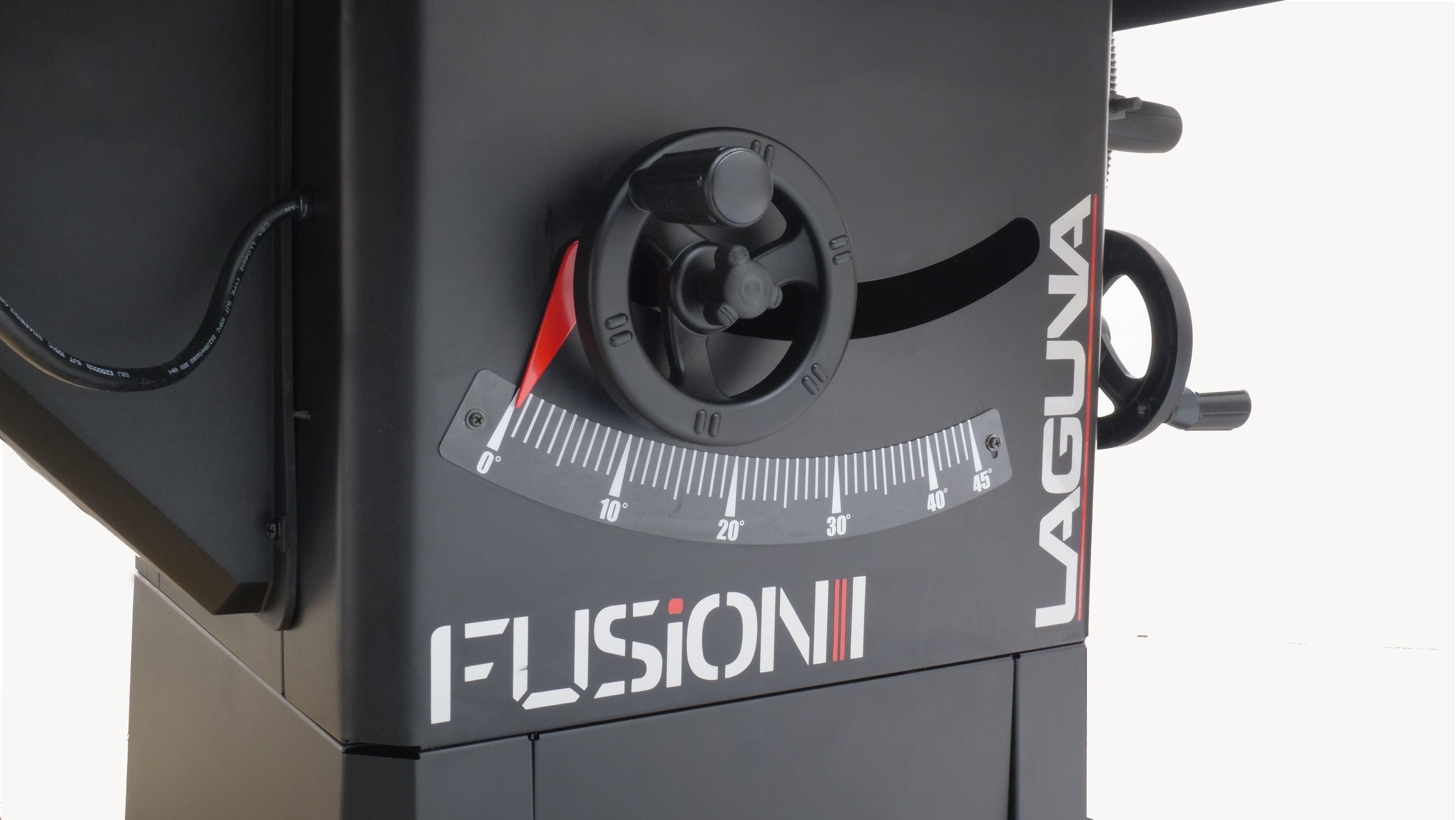

Tilt: 0-45° Left

Min. Kerf: 3mm ~1/8" (actual: 0.1875")

Max. Kerf (Dado Blade): 13/16"

Arbor Speed: 4000 RPM

Arbor Diameter:  5/8"

Mitre Slot: 3/4" to 1" T

Throat Plate: Zero Clearance Square Die- Cast, w/ adjustment

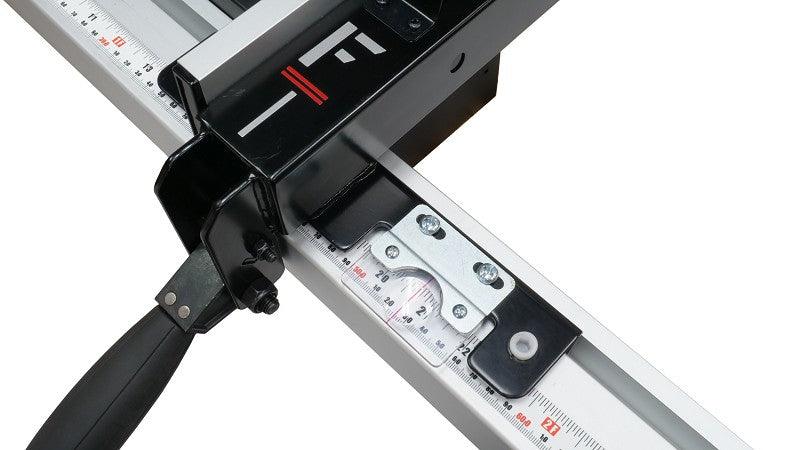

Fence: Single Rail Cam Action

Dimensions:

Overall Size: L39-3/4" W59-5/8" H38"

w/ 52" Extension: +16" to W in Overall Size

Base: L19" W20"

Floor to To Table: H34-3/4"

Table: L27" W20"

Extension Wing: L27" W12" (x2)

Throat Plate: L14-5/8" W4-1/16" th1/2"

Dust Collection:

Dust Port Outer Diameter: 3-7/8"

CFM Requirement: 350 CFM

Dust Port Outer Diameter: 3-7/8"

Materials:

Table: Cast Iron

Table Wing: Sheet Steel

Cabinet : Sheet Steel

Throat Plate: Die Cast Iron

Arbor Wheels: Die Cast

Fence: Aluminum Rail, Steel Body

Upper Trunnion : Cast Aluminum Alloy

Lower Trunnion: Cast Aluminum Alloy

Features & Comparison:

Industrial Use: NO

Enclosed Cabinet: NO

Integrated Mobility: NO

Quick Release Guards: YES

Quick Blade Change: YES

Integrated Tool Holder: YES

TEFC Motor: YES

110V Power: YES

Iron Upper Trunnion: NO

Accessories & Options:

Dado Throat Plate:  PTSF236110175-001

Thin Kerf Riving Knife: PTSF132110150-0130-000

Right of wing table: NO

Outfeed Table Attachment: NO

Dust Collection Guard: Included with purchase

Mitre Guage: Included with purchase

Blade Guard: Included with purchase

Arbor Wrench: Included with purchase

Riving Knife: Included with purchase

Standard Throat Plate: Included with purchase
