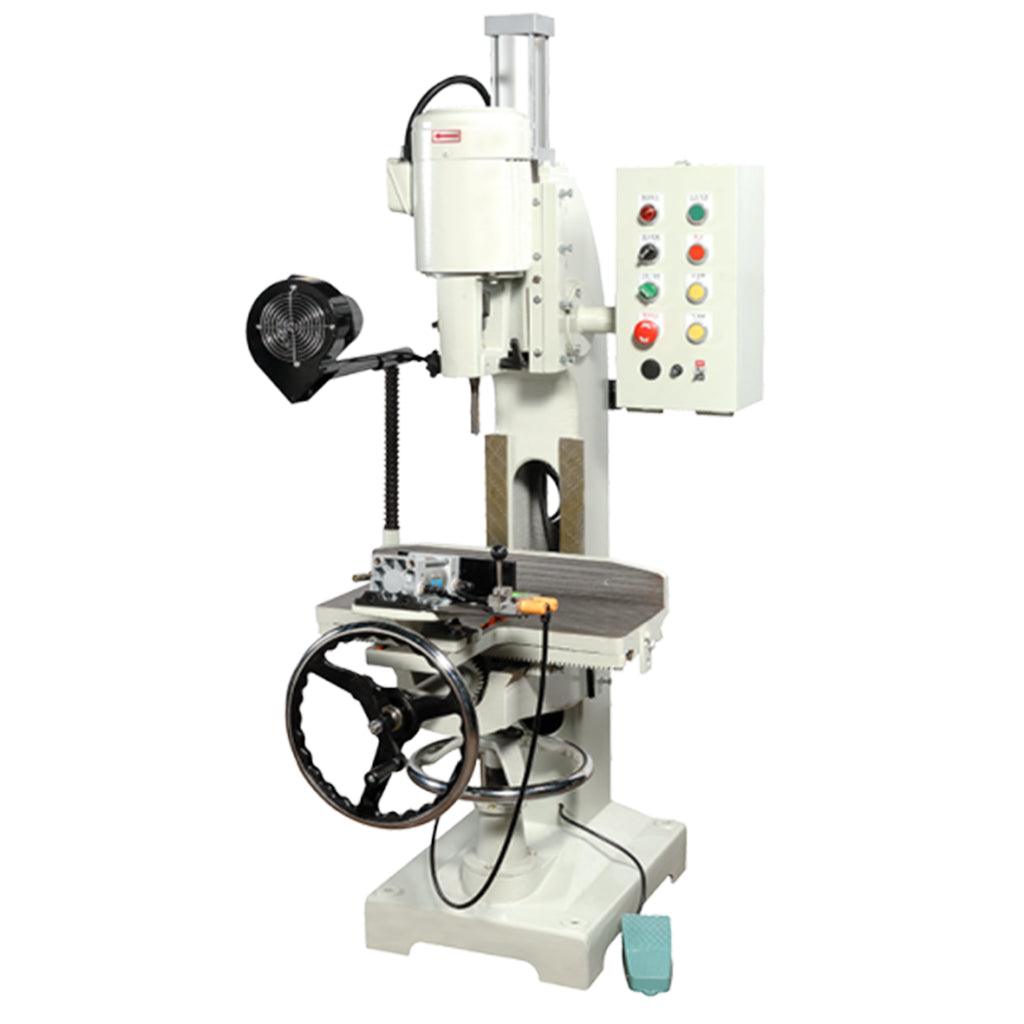

CANTEK Pneumatic Hollow Chisel Mortiser - PCM120

CANTEK Pneumatic Hollow Chisel Mortiser - PCM120

by Cantek
$6,720.00 - $6,720.00
$6,720.00
$6,720.00 - $6,720.00
$6,720.00
  • Power stroke of head permits easy, fast and accurate successive cuts.
  • Separate fan blower to keep work clean and free from dust and chips.
  • Manual adjustable table height and lateral position
  • Heavy duty cast iron construction.
  • Convenient centralized control panel
  • Foot pedal actuated cycle.
  • Pneumatic workpiece clamping by lever

    Chisel range 1/4″~3/4″
    Motor 2HP
    Spindle speed 3400 RPM
    Table 16-3/4″ x 21-1/4″
    Table tilts 30o
    Air pressure 8KG
    Clamping cylinder 2.5” (63mm)
    Head traveling cylinder 3.15” (80mm)
    Table cross travel 5”
    Table longitudinal travel 18”
    Table vertical travel 12”
    Max. stock width 12”
    Max. mortising depth 4”
    Machine weight 572 lbs
    Shipping weight 726 lbs
    Shipping dimension 35” x 38” x 70” (880x960x1780mm)
